UPVC Door Handle Sprung Modern Architectural 92mm 92PZ 211mm Screw Centres Double Glazing PVC Pair

Regular price £42.99 £0.00
Shipping calculated at checkout.
The Architectural Door Handle is a modern lever/lever contemporary handle design perfectly matching into the Fab&Fix product portfolio. Tailored to meet both the needs of new and replacement markets.

Features-


Long baseplate with screw positions to suit most locks
Ergonomic contemporary lever and low friction nylon bush, easy to grip and smooth action
Supplied with screw/ spindle pack to suit PVCu profiles - all parts to hand
Colour coordinated screw heads; matching hardware, down to the smallest detail
Architectural common baseplate; for an unrivalled range and suited design options

The Architectural Inline Sprung Lever Lever Door Handle is designed to operate a Multi Point Lock with a Euro Cylinder. The handles screw fixings are located above the lever and at the bottom of the backplate to fit locks with a screw hole dimension of 211mm. The Architectural handle has been designed with a 32mm wide backplate for new doors or replacing handles on existing doors.


Suitable for PVCu, Timber, Aluminium and Composite doors; the handle set is sprung. The Architectural handle is available in a range of finishes as part of the Perfectly Matching Home range, that includes Hardex Graphite, Hardex Chrome, Hardex Bronze and Hardex Gold. The Hardex Electro finish is amongst the more resilient and attractive in the world today and is perfectly matching not only in colour but in form as well - we focus on even the smallest details to ensure your home has a full suite of hardware. Alongside stunning looks, our door handles have been tested to the highest technical standards and meet the requirements of PAS 24:2012 on most door systems to confidently ensure the door security performance. All finishes meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance to provide the most robust finish for your hardware; and to ensure smooth and consistent performance over time the handle is endurance tested in our test house to excess of 200,000 cycles.

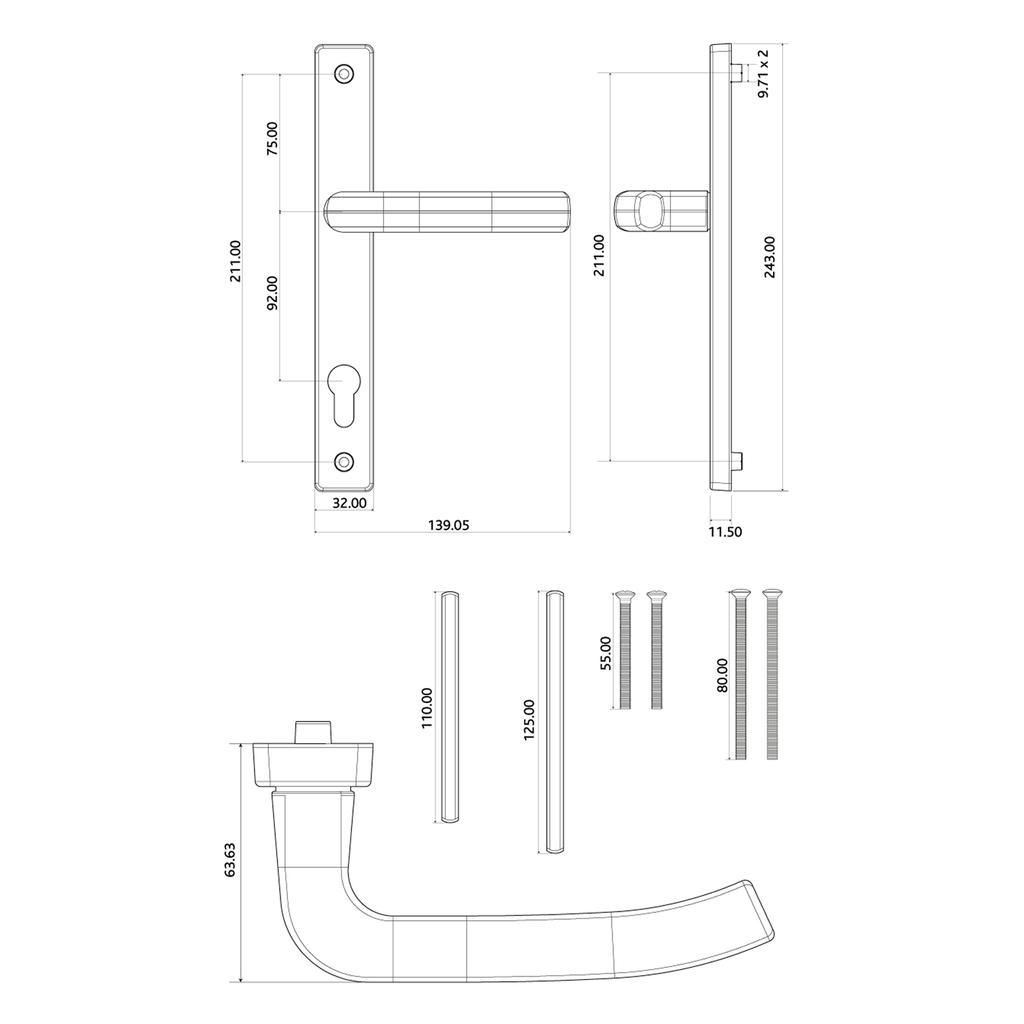

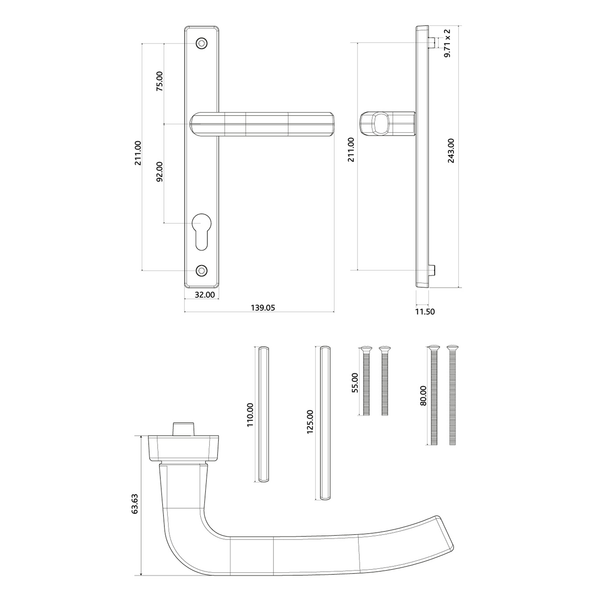

Technical Diagram-
techdetails
