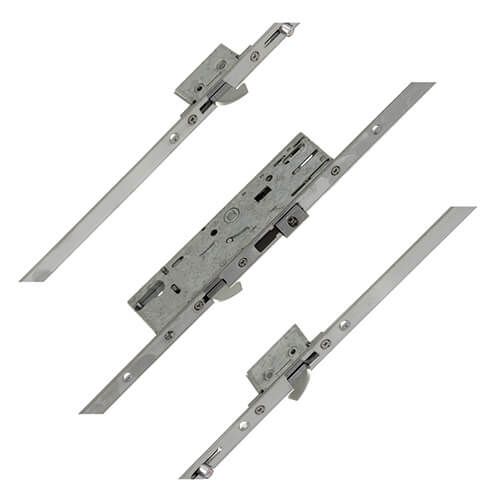

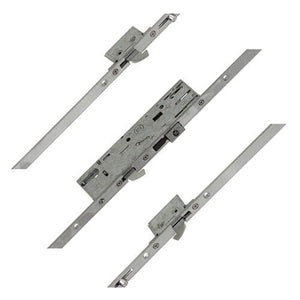

Yale YS170 Latch and 3 Hooks, Square 45mm Backset 20mm x 1836mm faceplate
Yale's newest multipoint lock is the YS170 which features a central hookbolt for increased security and easily reversible latch. This lock is available in square and radius 20mm faceplate versions.
Operation: Lift lever or split spindle nightlatch.
Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

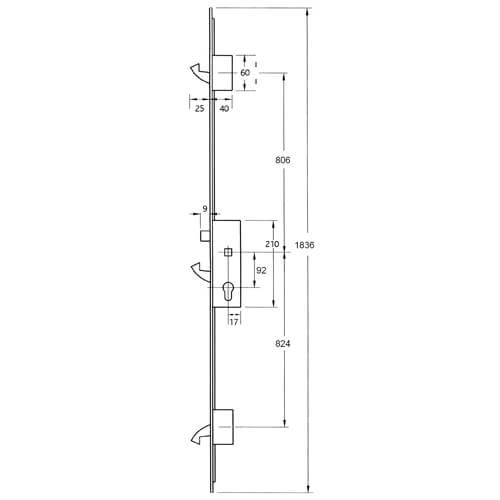

- Centres: 92mm
- Case height: 210mm
- Case depth: Backset + 17mm
- Overall length - 1836mm
- Distance between hooks - 1630mm
