Yale

Yale YS170 Latch, 3 Hooks and 2 Rollers, Square 16mm x 2200mm faceplate

Regular price £98.89 £0.00
Shipping calculated at checkout.

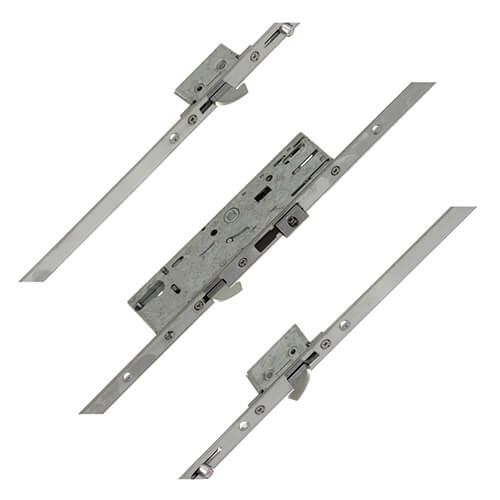

Yale's newest multipoint lock is the YS170 which features a central hookbolt for increased security and easily reversible latch. This lock features 3 hooks and 2 rollers.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

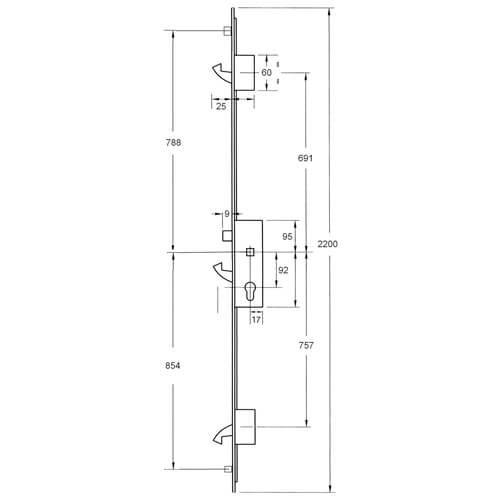

Technical Information-

  • Centres: 92mm
  • Case height: 210mm
  • Case depth: Backset + 17mm
  • Overall length - 2200mm
  • Distance between outer rollers - 1642mm
  • Distance between hooks - 1448mm
