Yale YS170 Latch 3 Hooks 4 Rollers Split Spindle 35mm Backset

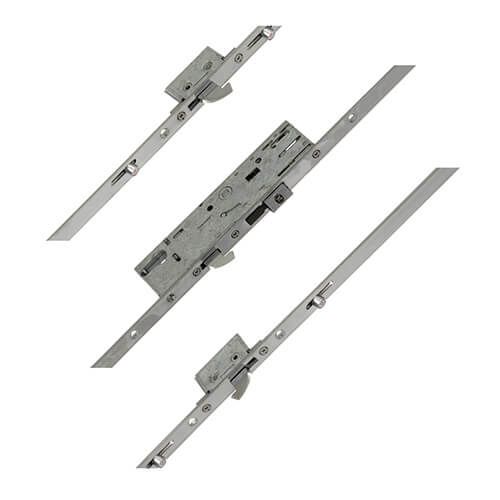

Yale's newest multipoint lock is the YS170 which features a central hookbolt for increased security and easily reversible latch. This lock features 3 hooks and 4 rollers.
Operation: Lift lever or split spindle nightlatch.
Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s)

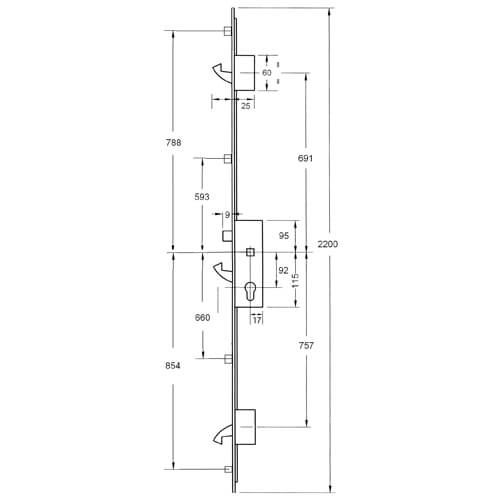

- Centres: 92mm
- Case height: 210mm
- Case depth: 35mm Backset + 17mm
- Overall length: 2200mm
- Distance between outer rollers: 1642mm
- Distance between inner rollers: 1253mm
