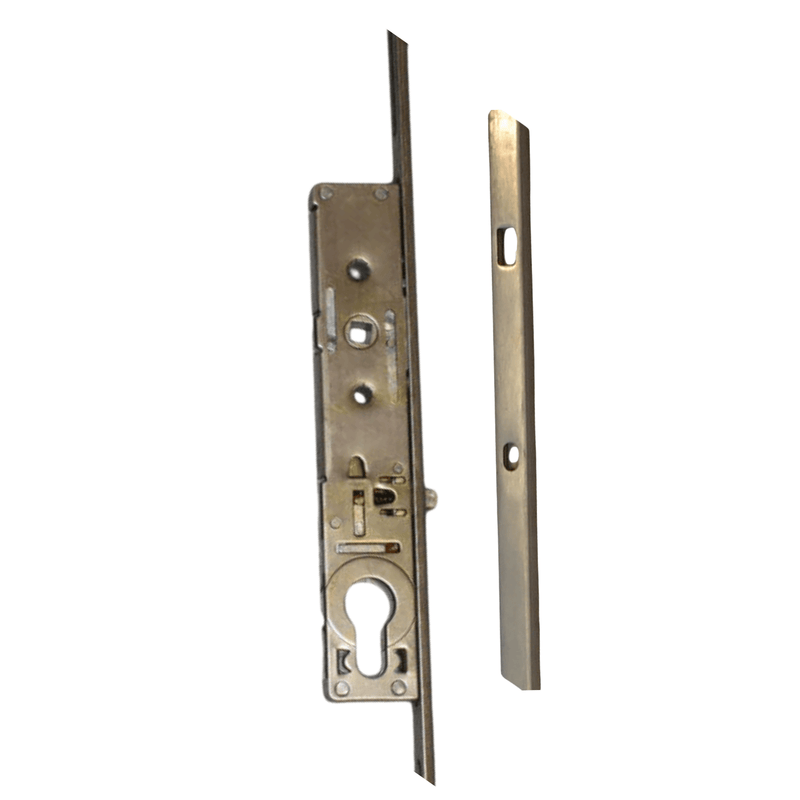

Yale Sliding Patio Door Lock UPVC 6 Point Inline Anti Lift Paddock Mila Fearless

Regular price £29.99 £0.00
Shipping calculated at checkout.

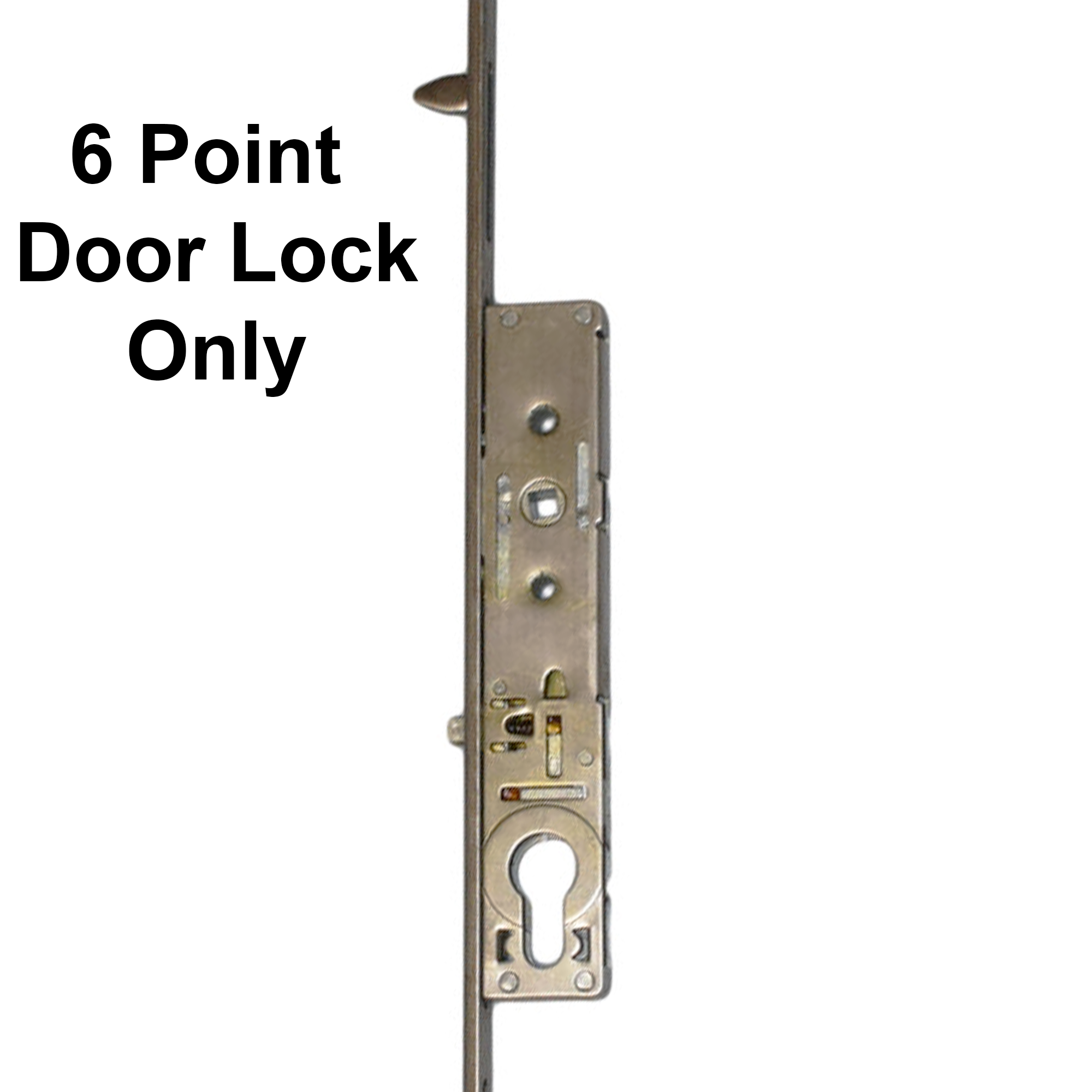

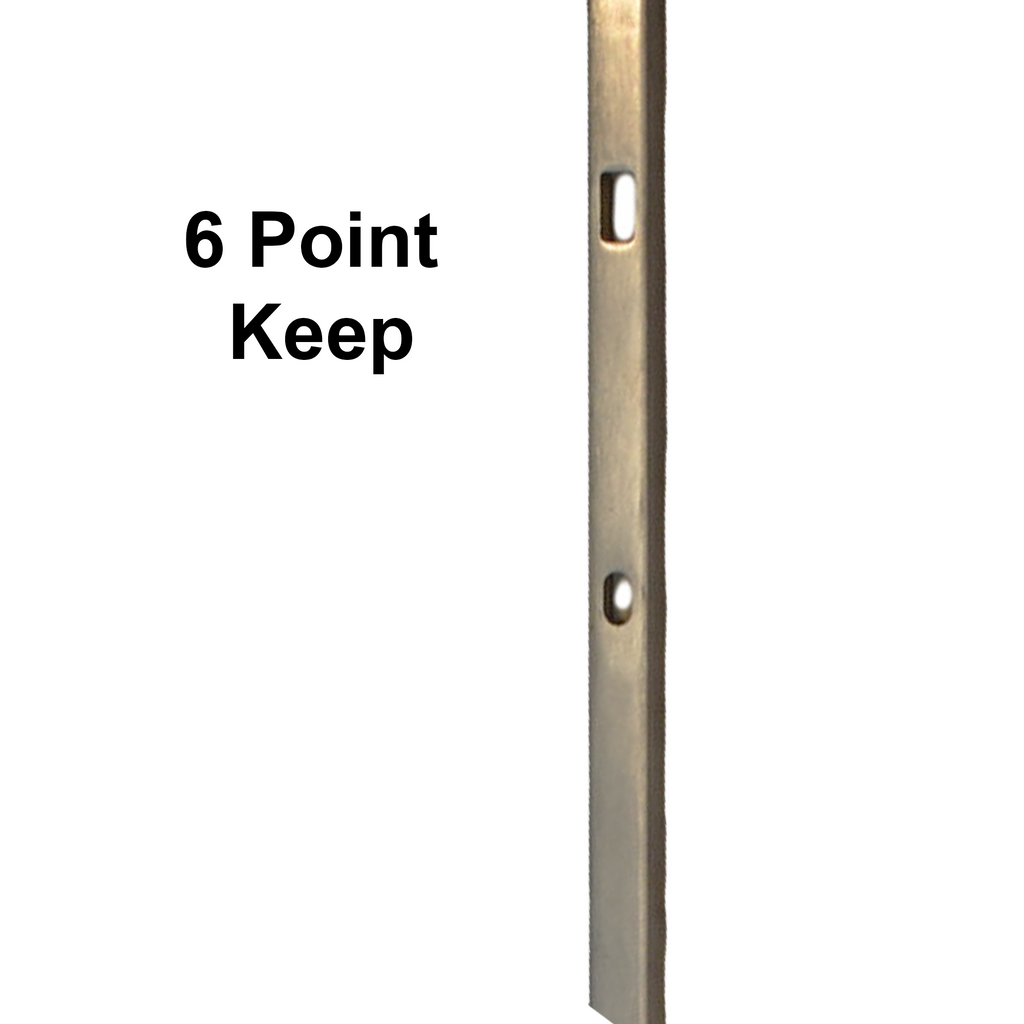

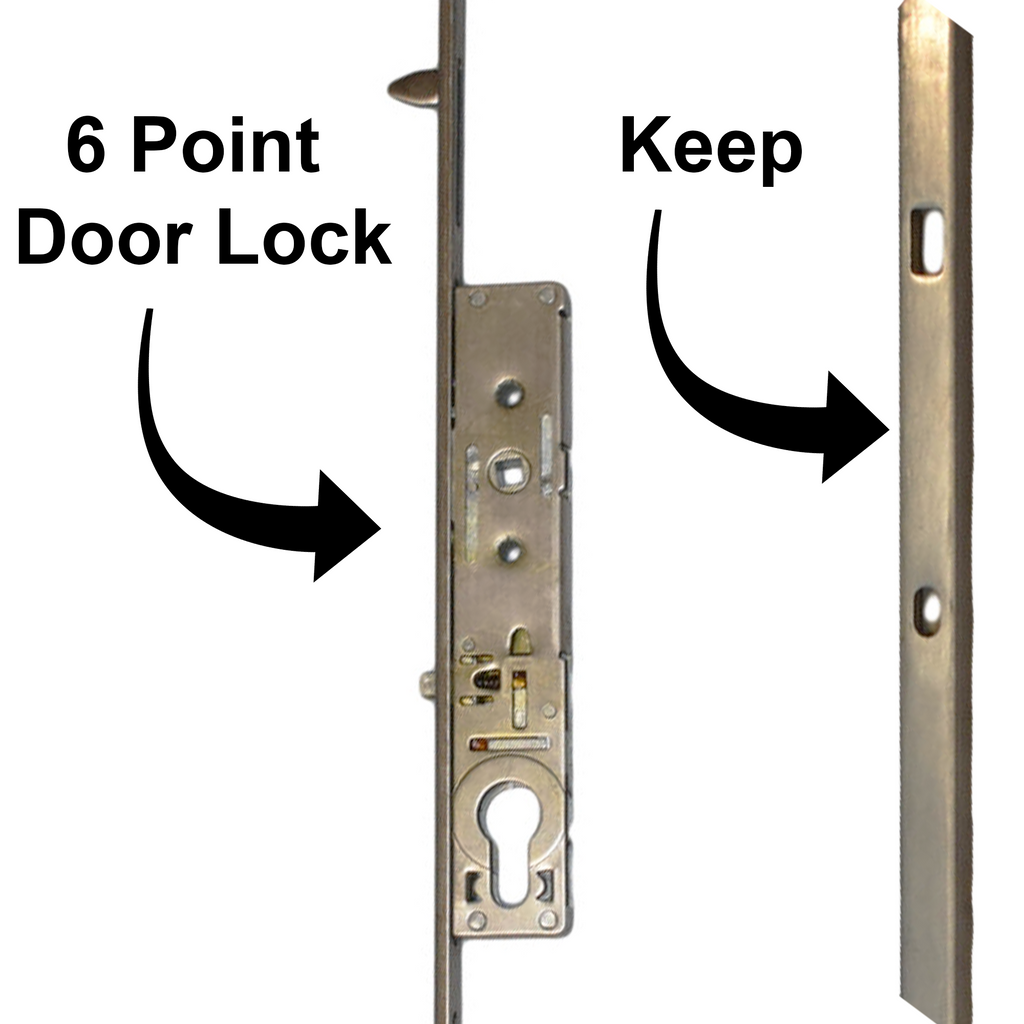

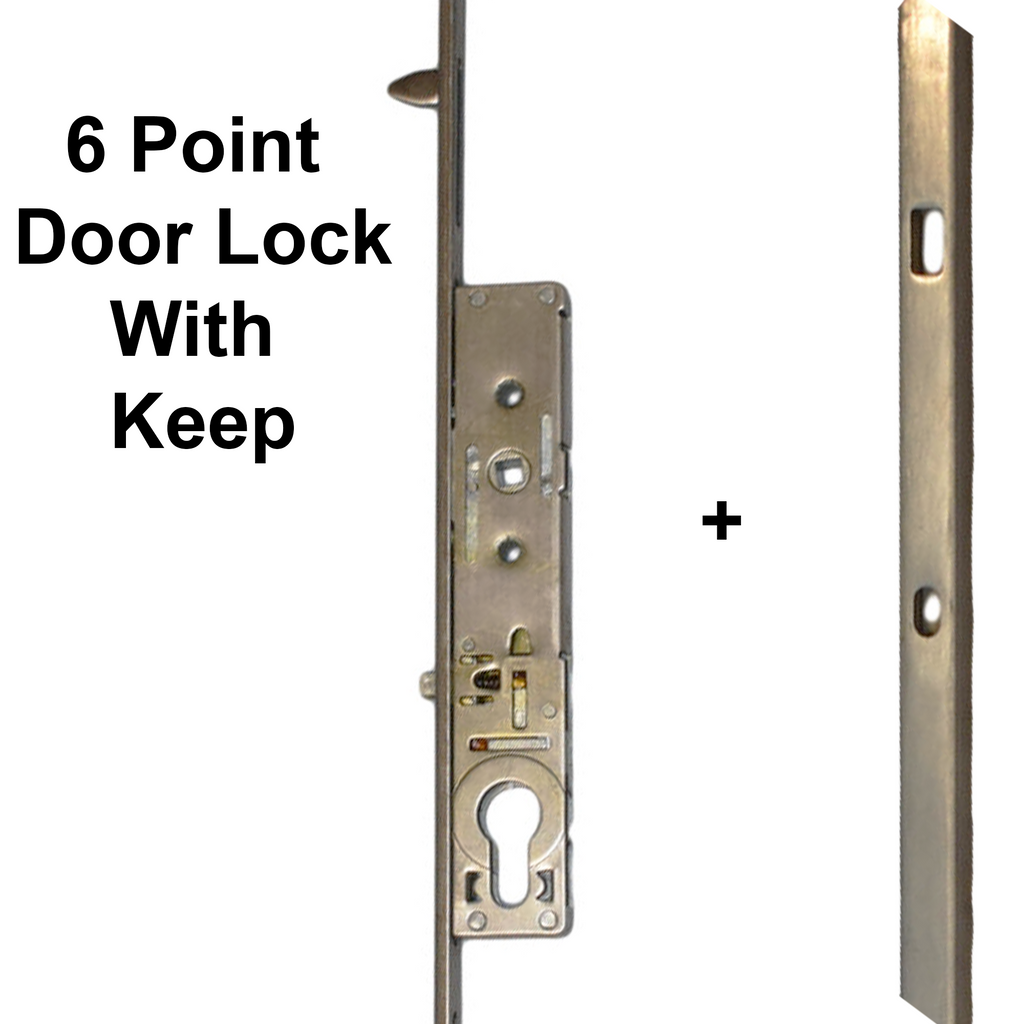

EACH VARIANT IMAGE CORRESPONDS WITH WHAT YOU HAVE ORDERED. 6 POINT DOOR LOCK IS NOT THE EURO CYLINDER WHICH YOU PUT YOUR KEYS INTO. THE 6 POINT DOOR LOCK IS THE ACUTAL MECHANISM THAT OPERATES THE DOOR. PLEASE SEE IMAGE BELOW WHICH SHOWS WHAT A 6 POINT DOOR LOCK AND KEEP IS.
techdetails

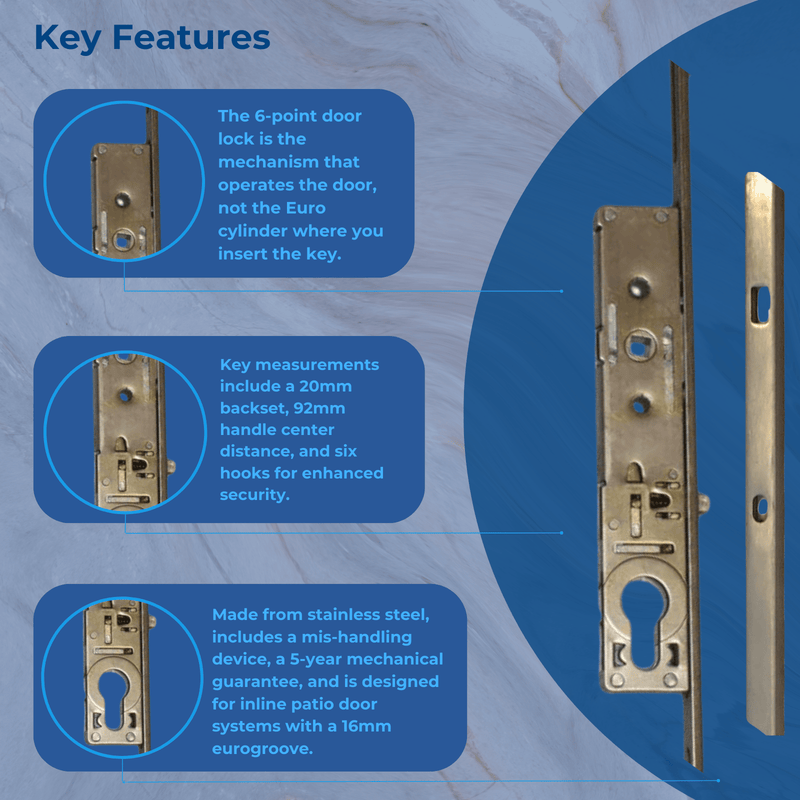

Technical Information

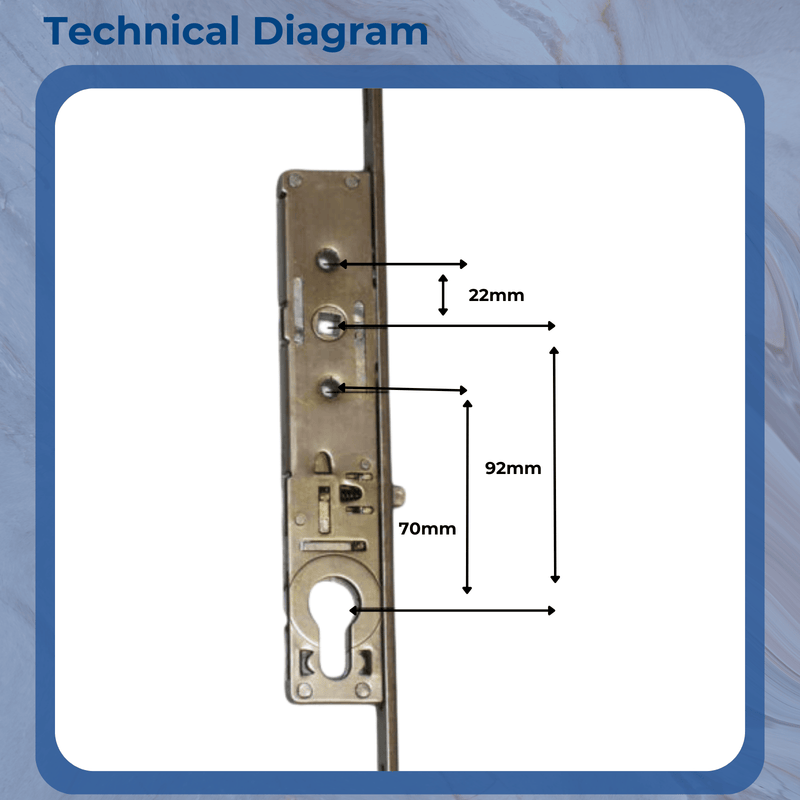

Backset - 20mm (front of lock to centre of cylinder)
Distance between handle centres - 92mm
Distance between retracted inner hooks - 530mm
Distance between retracted outer hooks - 1208mm
Width of keep 16.5mm

6 hooks for maximum security.
Mis-handling device prevents operation of the hooks until the door is fully closed.
5 year mechanical guarantee.
Manufactured from stainless steel.
For inline patio door systems with a 16mm eurogroove.
