Yale Quartus Inline uPVC Window Handle – Key Locking Espag
INLINE ESPAG WINDOW HANDLE Yale Quartus Window Handle
|
|
43mm
SCREW FIXING CENTRES
|
7mm
SQUARE SPINDLE
|
10–50mm
SPINDLE LENGTHS
|

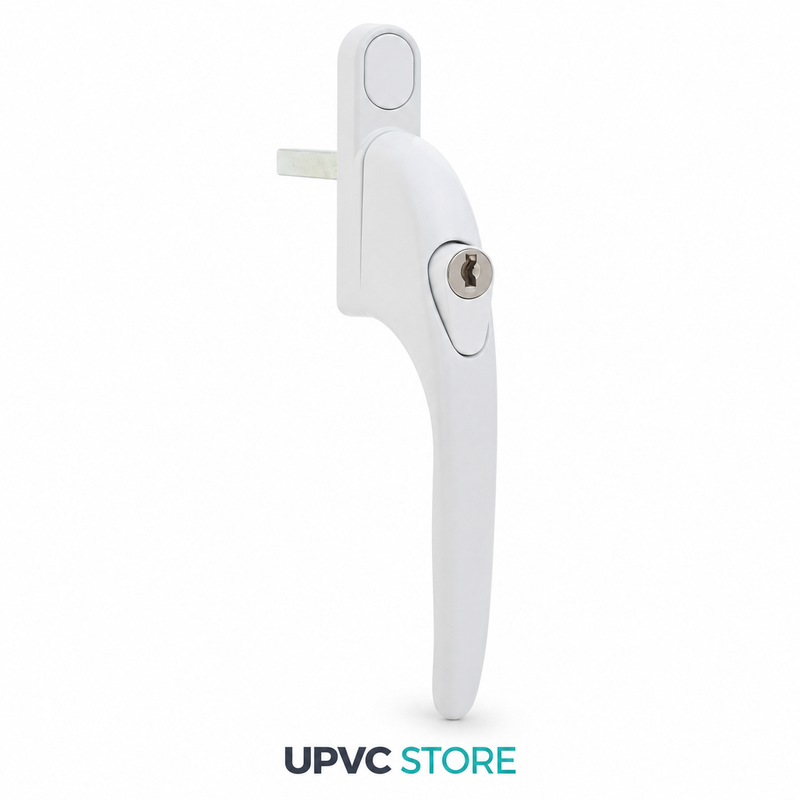

The Yale Quartus is a genuine Yale inline espagnolette window handle, designed as the direct successor to the popular Sparta 2. Non-handed, it fits both left and right-hand opening windows, and its industry-standard 43mm screw fixing centres mean it replaces almost any existing uPVC or aluminium espag handle regardless of the original brand.
Built from tough die-cast zinc with a durable powder-coated or plated finish, the Quartus features push-button opening with key deadlocking for security — the handle locks and cannot be flicked open, and the push-to-open button adds child safety. Every handle ships with fixing screws, a Yale key and colour-matched screw cover cap.
Replace your window handle if: the handle is stiff, loose or spinning freely; the key no longer locks it; the lever has snapped or the finish has corroded; or you simply want matching handles across the house. Measure your spindle length (base of the handle to the tip of the metal bar) and choose the nearest size — a slightly longer spindle is usually fine as most gearboxes accept extra depth.
Key Features
|
✓ Genuine Yale product with 10-year mechanical guarantee ✓ Universal non-handed design — fits left and right-hand windows ✓ Key deadlocking with child-safe push-button release |

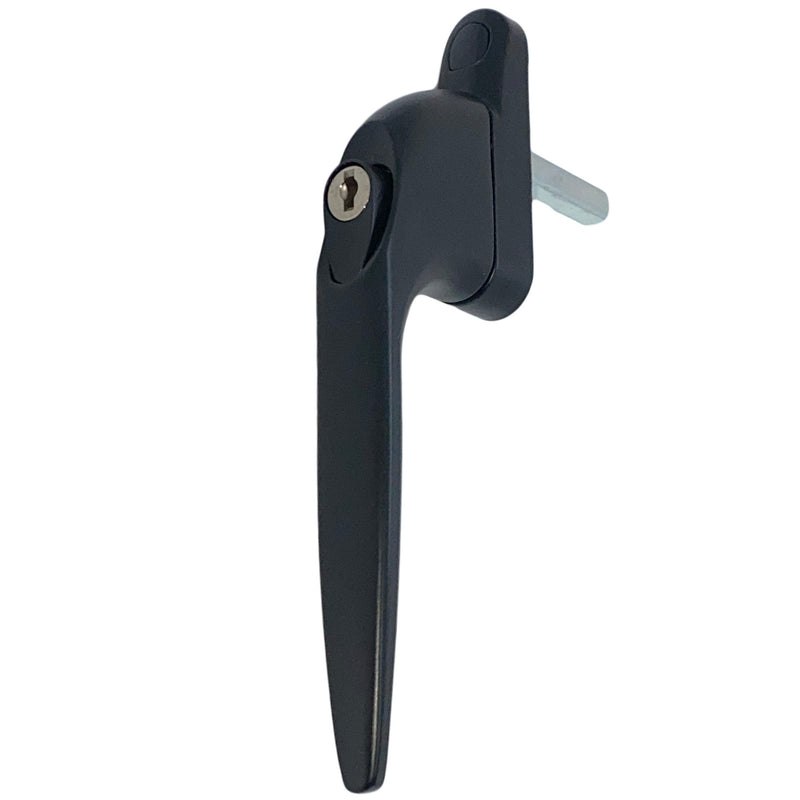

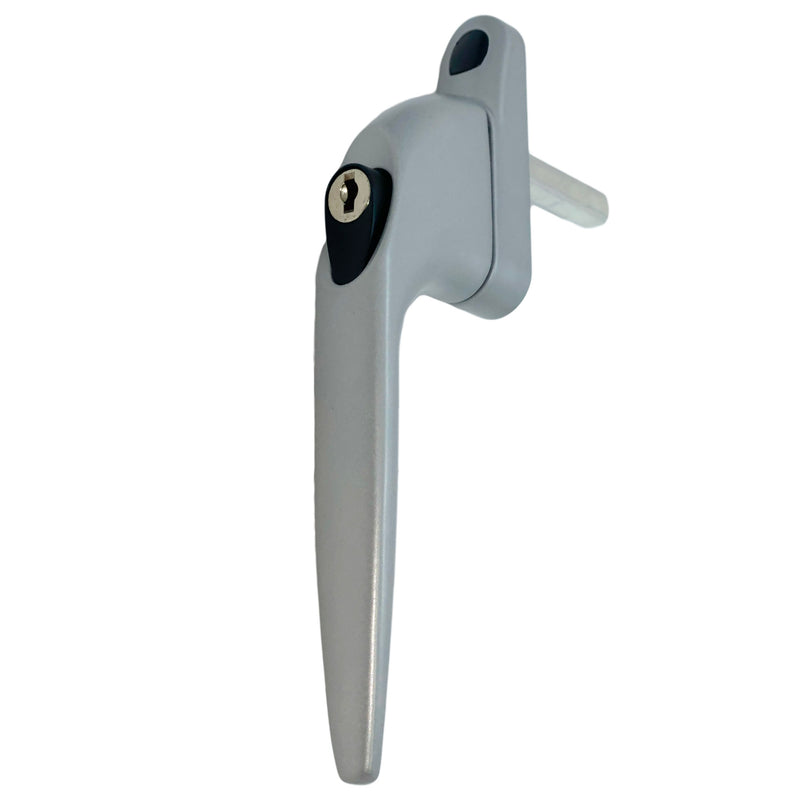

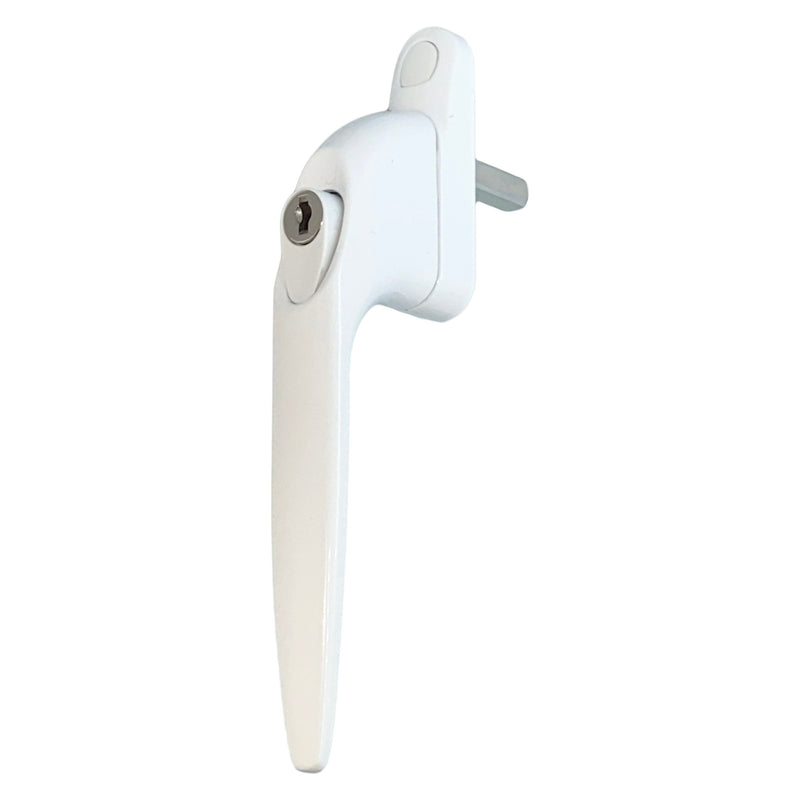

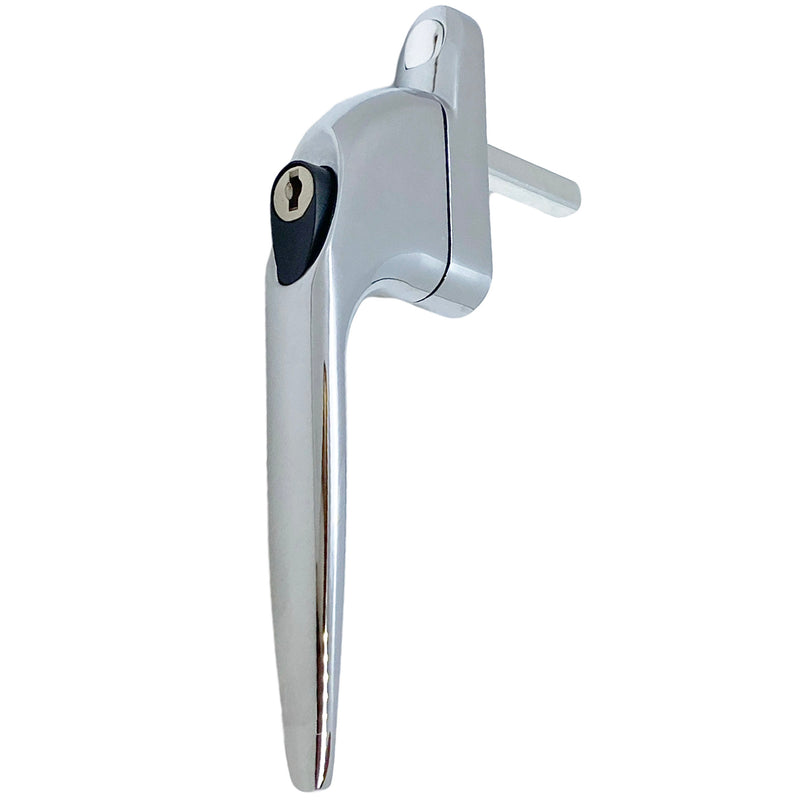

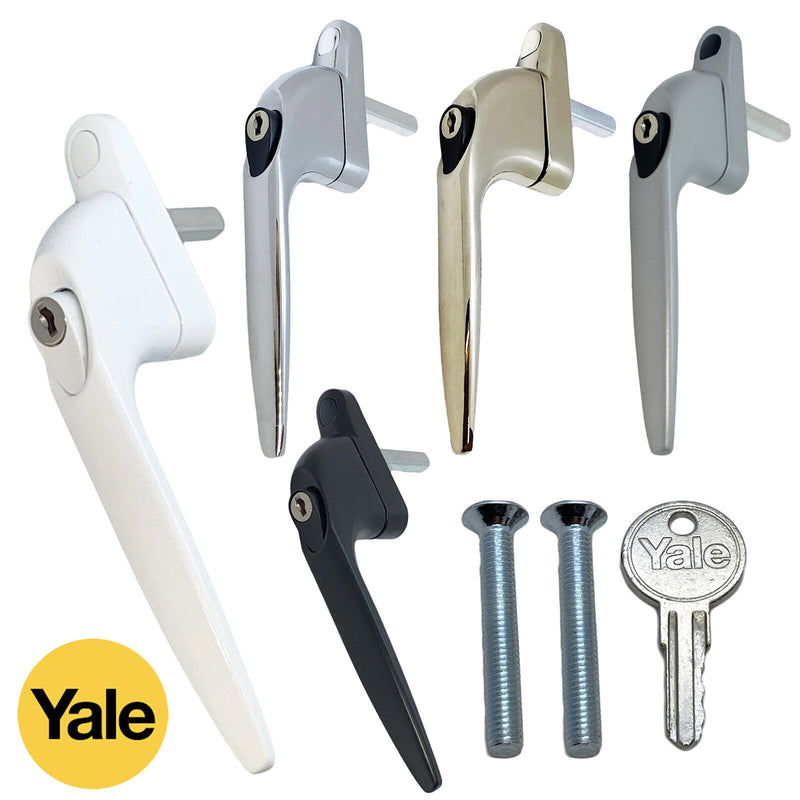

✓ Die-cast zinc body with corrosion-resistant finish ✓ Tested to BS 6375 Part 2 (20,000 cycles) and BS EN 1670 Grade 4 ✓ Five finishes: White, Black, Chrome, Satin Silver, Champagne Gold |
Technical Specifications
| Brand / Model | Yale Quartus |
| Handle type | Inline espag (espagnolette), non-handed |
| Fixing screw centres | 43mm (centre to centre, industry standard) |
| Spindle | 7mm square, fixed — 10, 15, 20, 30, 40 or 50mm lengths |

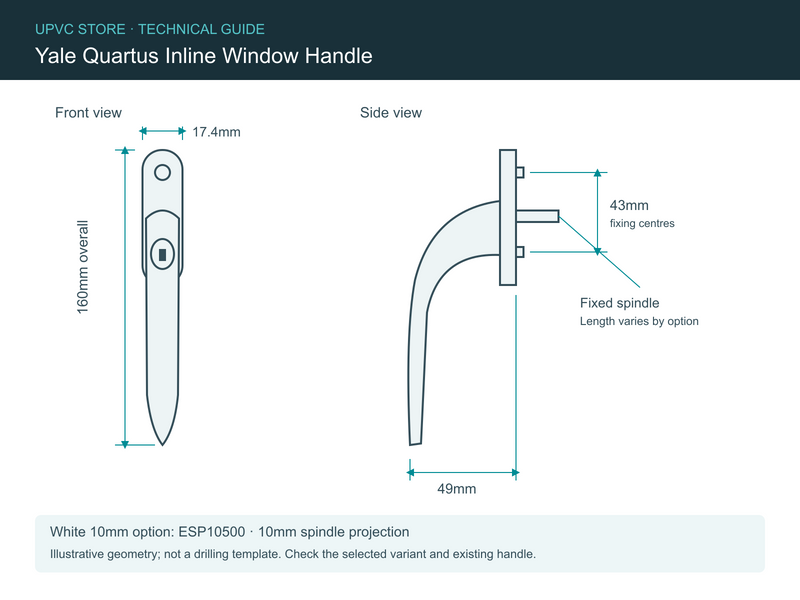

| Backplate (L × W × D) | 65mm × 17.4mm × 13mm |
| Overall length / projection | 160.2mm / 49mm from sash |
| Material | Die-cast zinc body; steel spindle; nylon/ABS mouldings |
| Locking | Key deadlocking, push-to-open button; immobiliser insert included for non-locking use |
| Suitable for | uPVC, aluminium and timber windows with espag or shootbolt mechanisms |
| Standards | BS 6375 Part 2 (EN 12400 Class — 20,000 cycles); BS EN 1670:2007 Grade 4 corrosion (240hr NSST) |
| Guarantee | Yale 10-year mechanical and surface guarantee |
Fitting in Three Steps
|
01
Remove the old handle. Open the window, prise off the screw covers and undo the two fixing screws. |
02

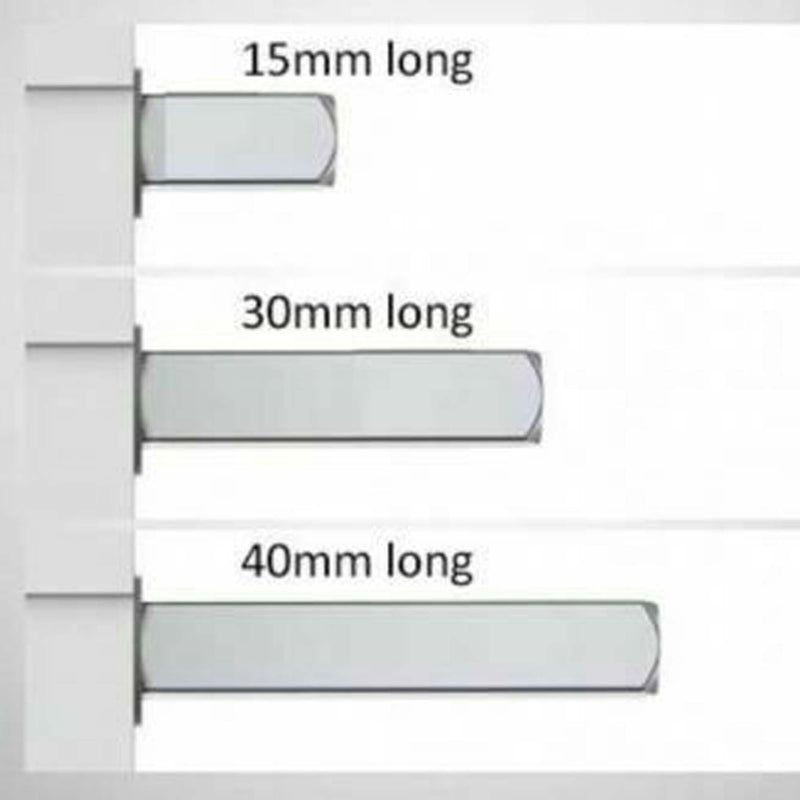

Measure the spindle. From the base of the old handle to the tip of the square bar — match to the nearest size. |
03
Fit the Quartus. Insert the spindle into the gearbox, secure with the two screws supplied and press on the cover cap. |

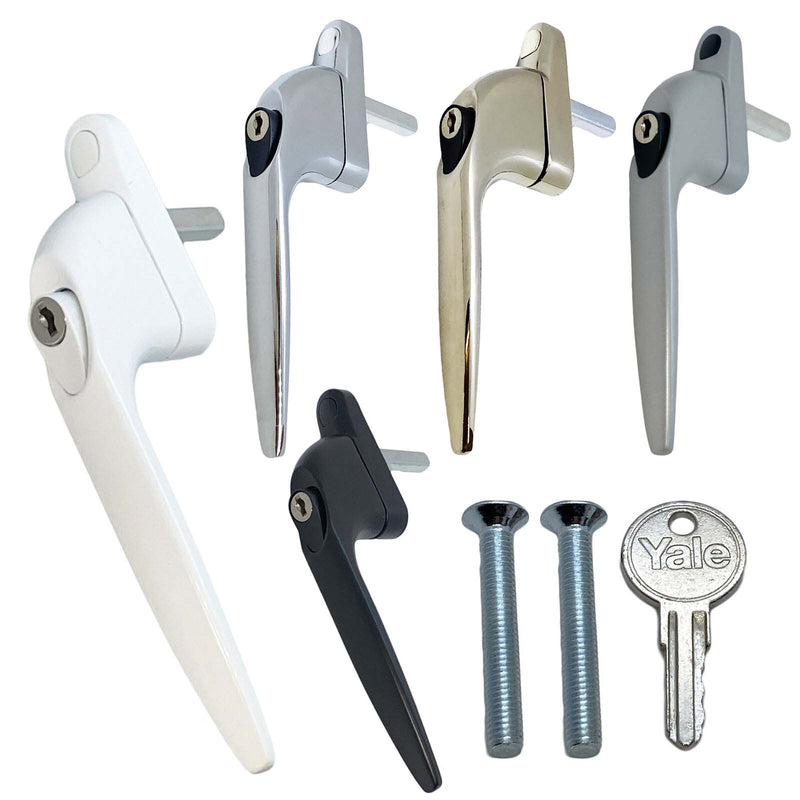

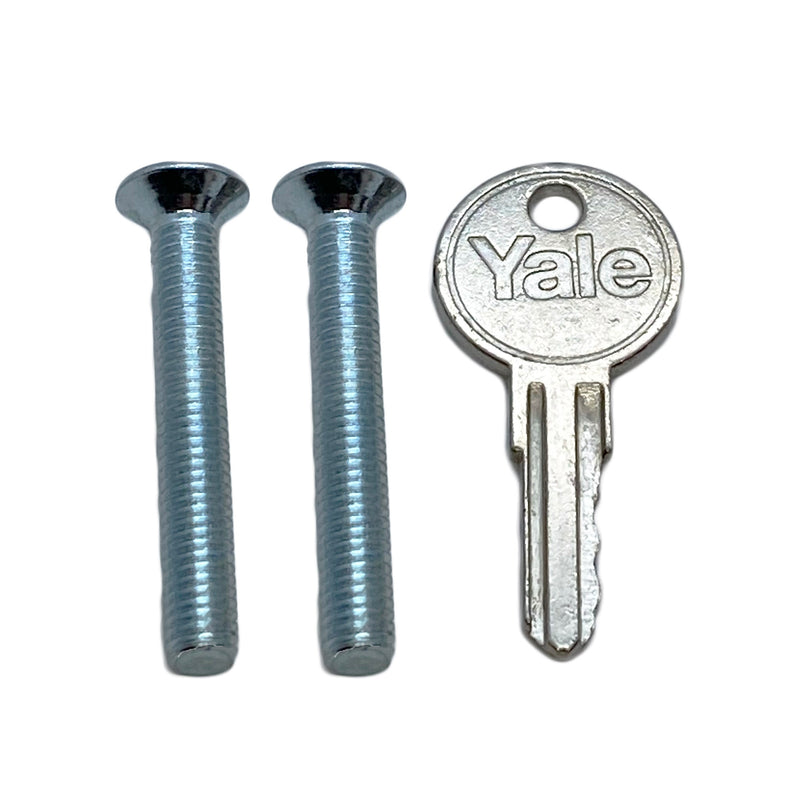

In the Box1 × Yale Quartus inline window handle • 2 × fixing screws • 1 × Yale key • colour-matched screw cover cap • immobiliser insert (for non-locking use) |
Frequently Asked Questions
Will this fit my window?
Almost certainly — espag handles are made to an industry-standard 43mm screw centre spacing, so the Quartus replaces most existing uPVC and aluminium window handles whatever the original brand. Just match the spindle length.
How do I measure the spindle length?
Remove your existing handle and measure from the base of the handle to the tip of the square metal bar. If you are between sizes, go slightly longer — most window gearboxes accept extra spindle depth.
Do I need a left or right-handed version?
No. The inline Quartus is non-handed and works on both left and right-hand opening windows.

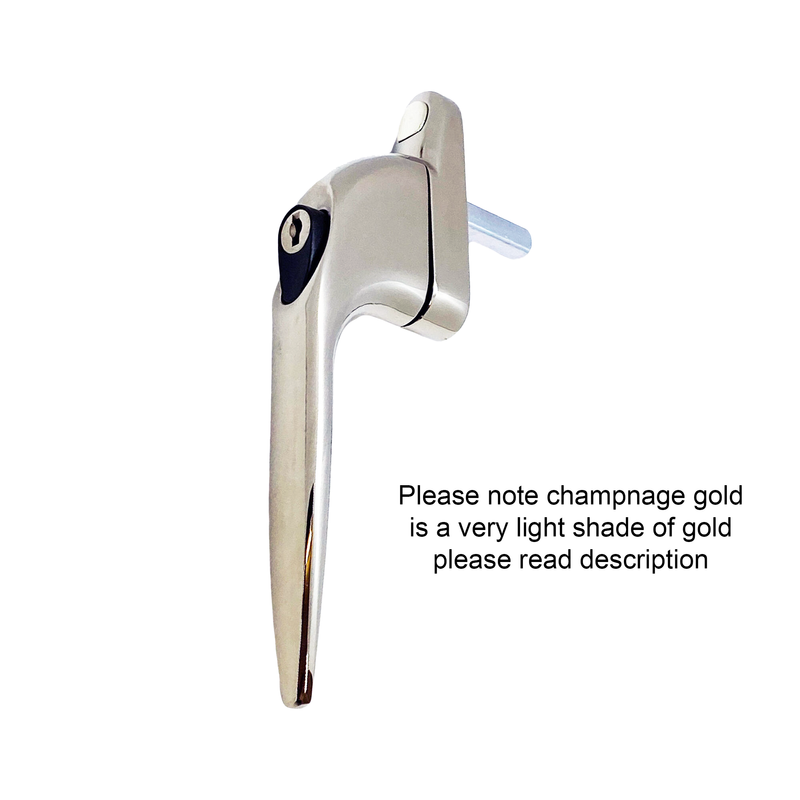

Is the gold finish real gold?
The finish is Champagne Gold — a plated, lacquered champagne-tone finish, not solid gold. It suits brass and gold-effect window furniture.
Can it be used as a non-locking handle?
Yes — each handle includes a push-fit immobiliser insert that converts it to non-locking, useful for fire-escape (egress) windows.
