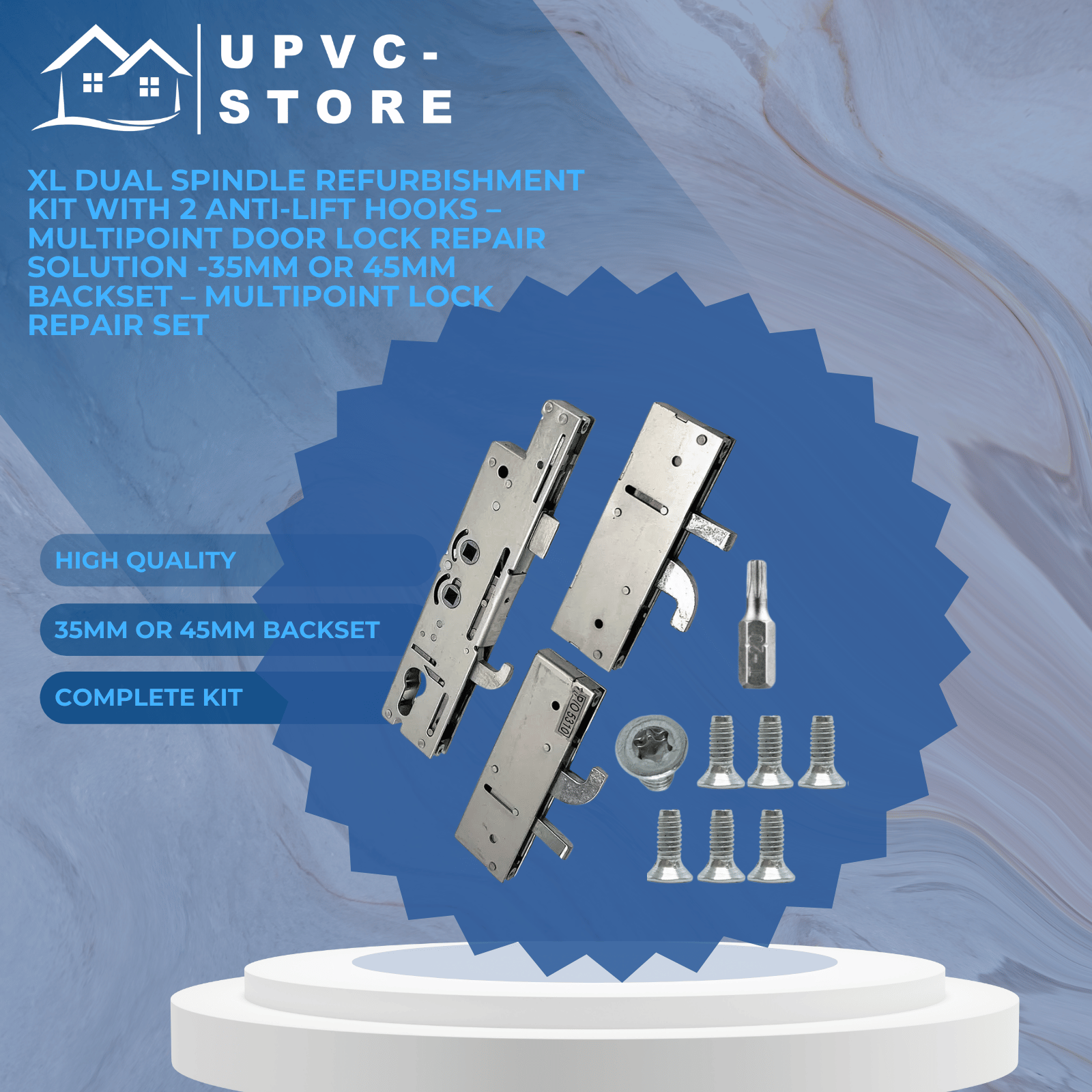

XL Dual Spindle Refurbishment Kit with 2 Anti-Lift Hooks – Multipoint Door Lock Repair Solution (35mm or 45mm Backset)

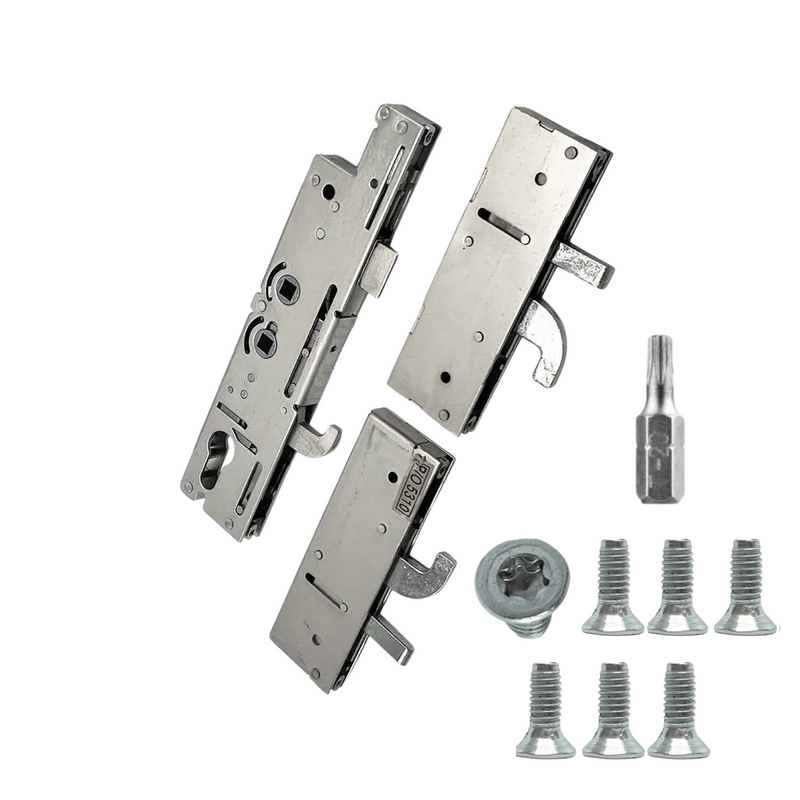

What's Included?

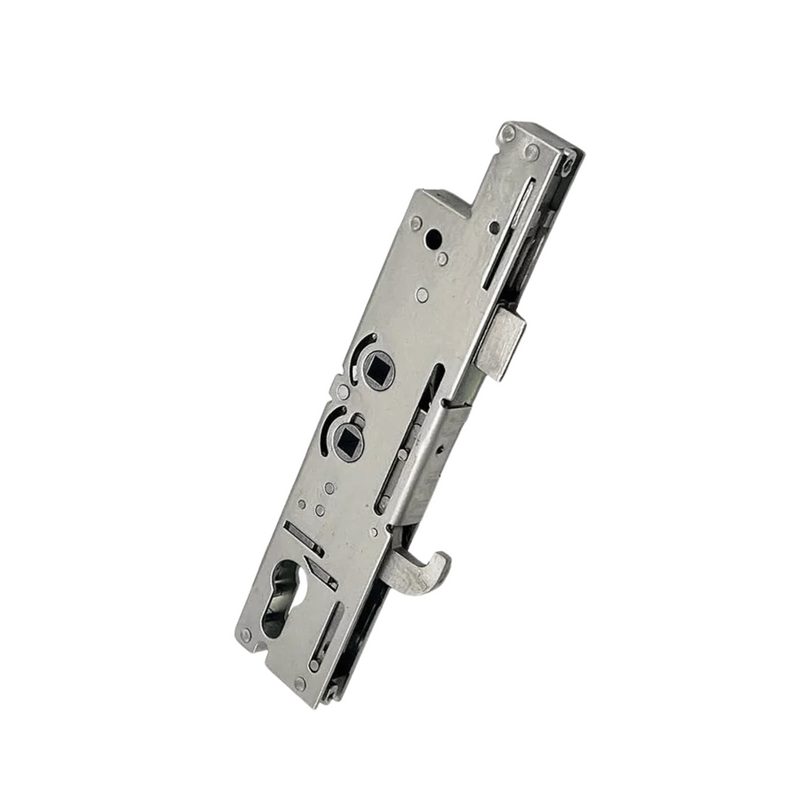

• 1 x Central gearbox with latch & hookbolt

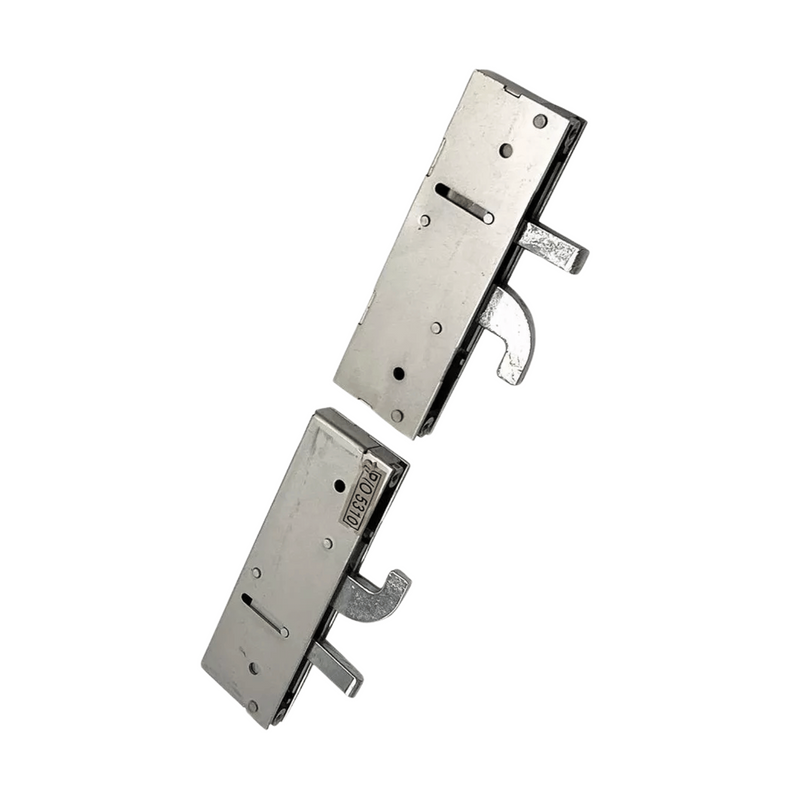

• 2 x Small hook cases (opposing direction)

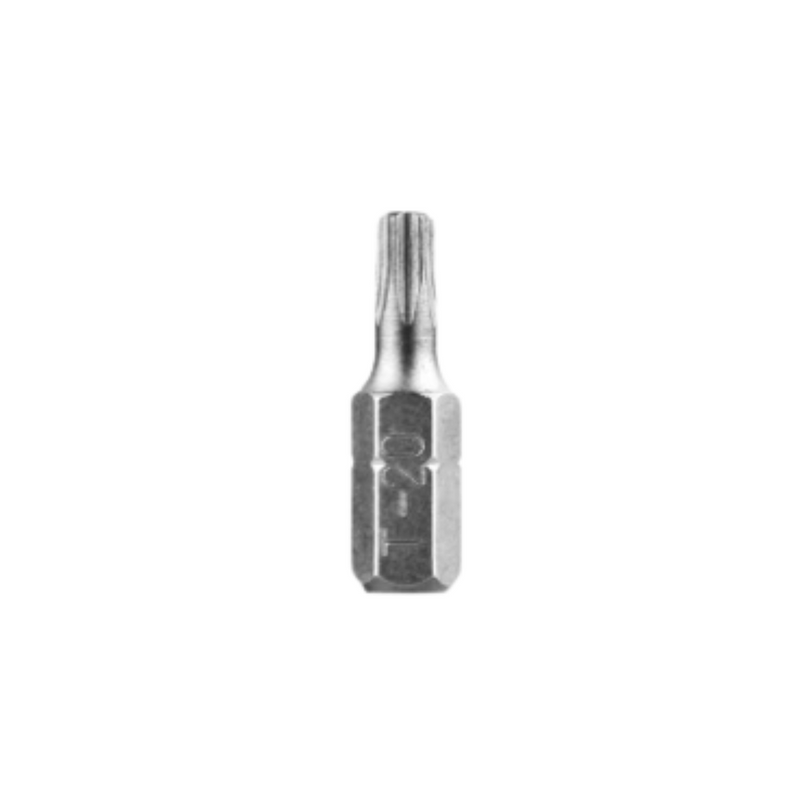

• 1 x T20 Torx bit

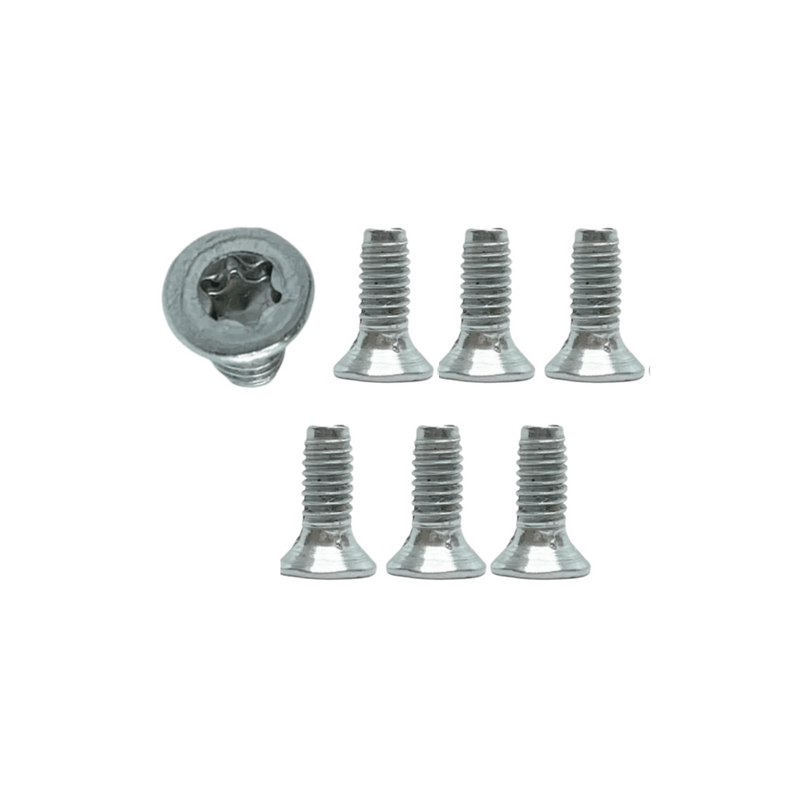

• 7 x M4.0 Grub Screws

Product Information

This professional refurbishment kit includes all components required to repair and restore any Fullex XL multipoint door lock system with a double spindle latch and hookbolt centre case, as well as two hook and anti-lift bolt cases.

Engineered as a compact, cost-effective alternative to full-length lock replacements, this kit resolves common failures such as damaged locking points, worn spindle followers, or internal gearbox issues. It allows reuse of the original faceplate and drive rods when still in working condition.

Why Choose This Kit?

Designed to fit inside a box no larger than a pizza box, this space-saving solution is ideal for mobile locksmiths. Avoid delays and model-specific replacements—just select the correct backset and configuration, install the new components onto the existing faceplate, and restore the lock in one efficient visit.

Key Benefits

• Eliminates return visits due to incorrect stock or model mismatches
• Removes the need for bulky full-length packaging and transport
• Enables quick, same-day, on-site lock repairs for customer satisfaction

Sustainable & Efficient Lock Repairs

This eco-conscious refurbishment system significantly reduces packaging waste and transport emissions by eliminating the need for full-length replacement locks. It’s a sustainable and professional solution for multipoint door lock repairs.

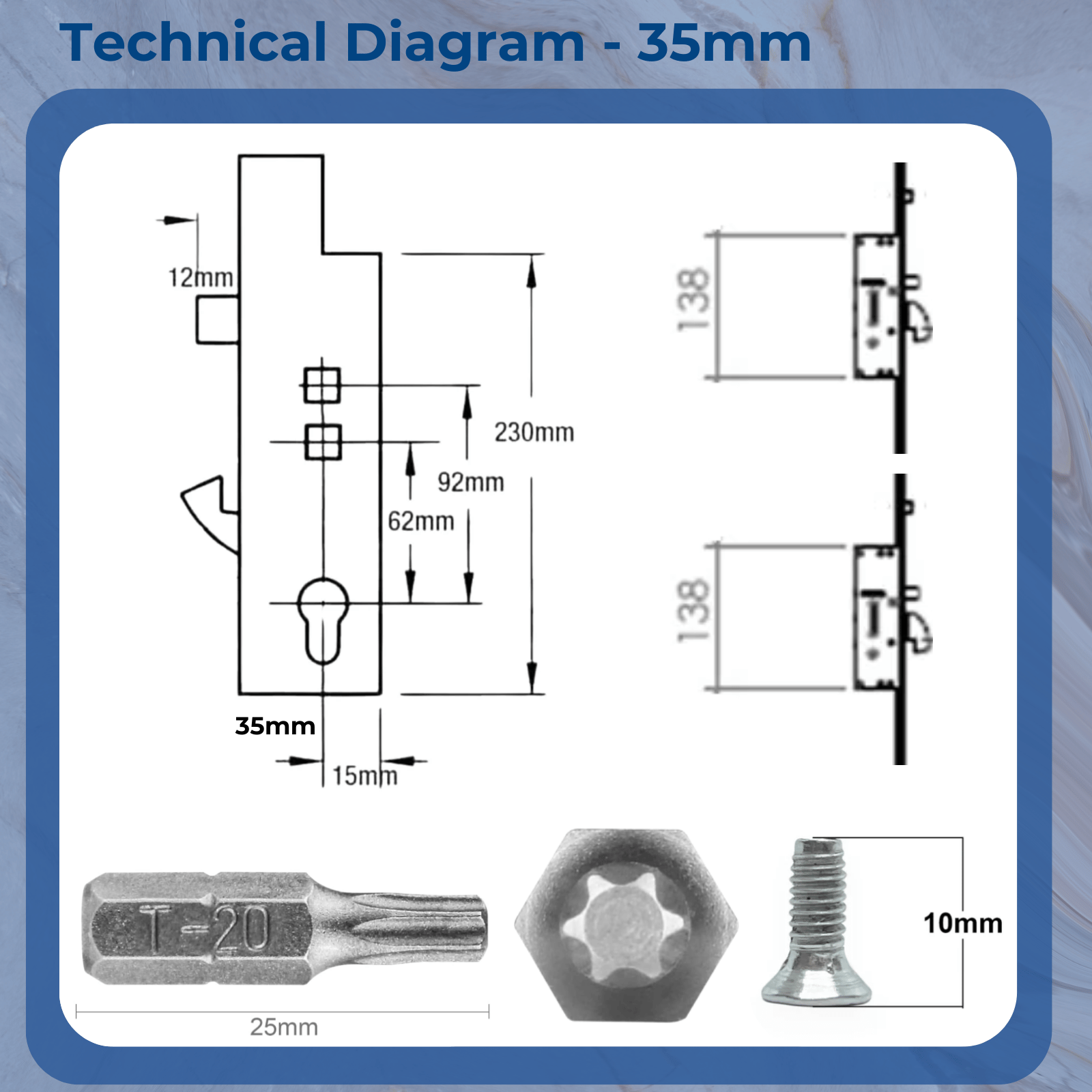

Product Specifications

• Manufacturer: Fullex
• Backset: Select from dropdown
• Centres (PZ): 92mm / 62mm
• Spindle Size: 8mm
• Spindle Type: Double spindle
• Hooks: 3
• Latch: 1
• Anti-Lift Bolts: 2
• Main Gearbox: Latch & hookbolt configuration
• Operation: Select from dropdown
• Handing: Universal / Non-handed
