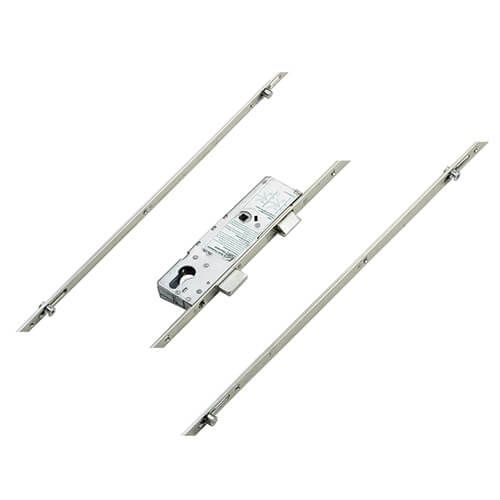

Winkhaus Cobra Latch Deadbolt 2 Rollers 2 Mushrooms Split Spindle

Regular price £186.74 £0.00
Shipping calculated at checkout.

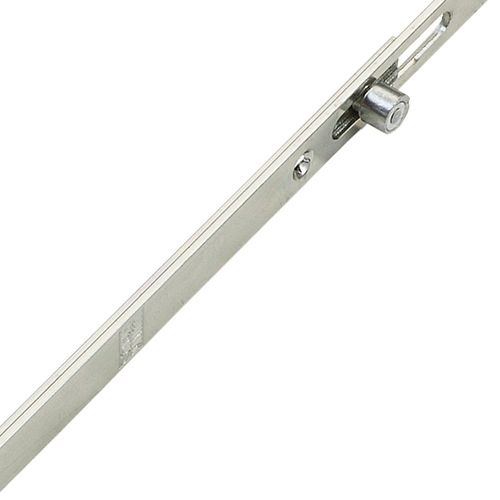

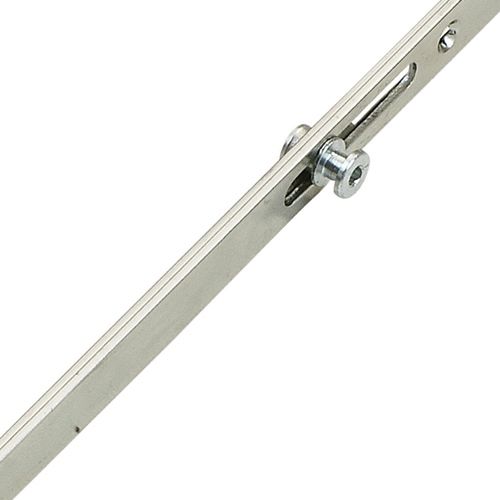

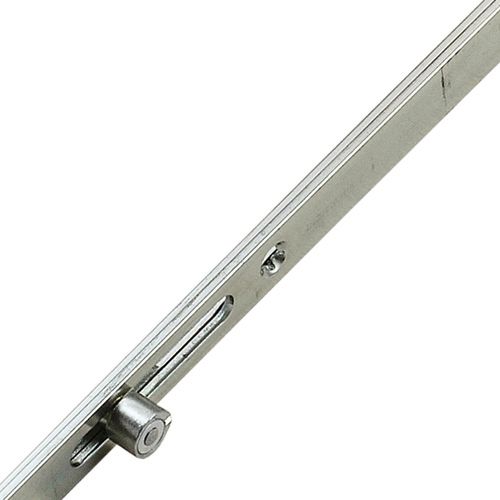

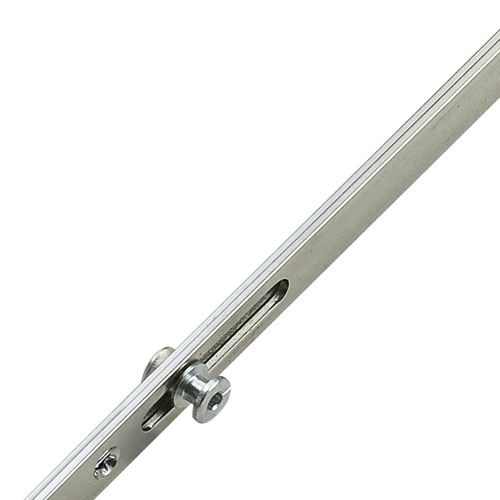

Winkhaus Cobra lock with 2 rollers and 2 mushroom cams.

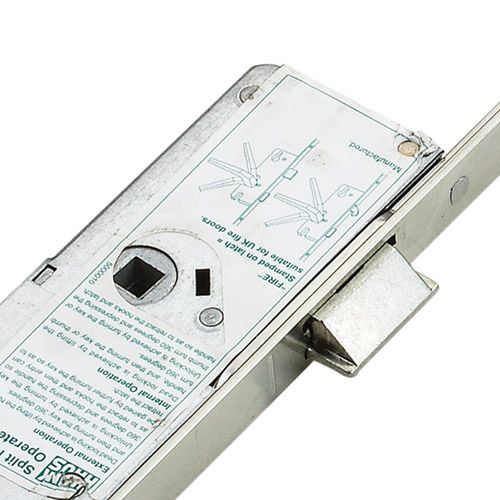

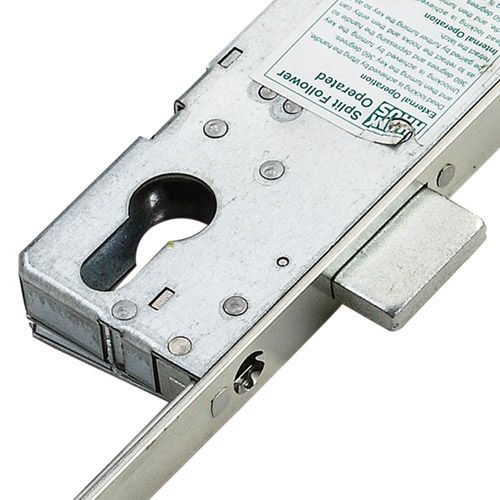

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Push in latch a screw will appear in back of lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.

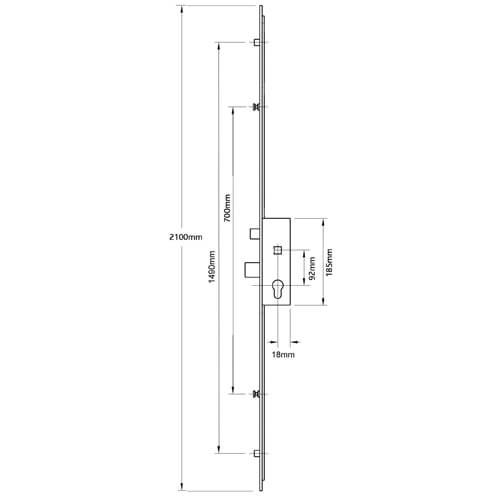

Technical Information-

  • Centres: 92mm
  • Case height: 185mm
  • Case depth: Backset + 18mm
  • Overall length: 2100mm
  • Distance between rollers: 1490mm
  • Distance between mushrooms: 700mm
