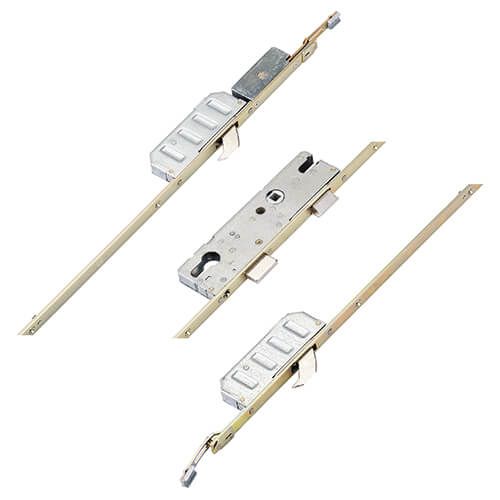

This lock features connectors for use on the master door of a pair of French doors. Shootbolts are listed in the associated items on this page.
Operation: Lift lever or split spindle nightlatch.

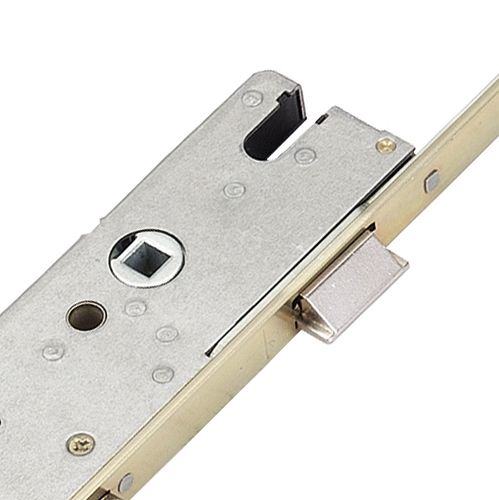

Latch reversal: Push in latch undo screw in back of lock case to remove latch. Reverse and reinstate. Nightlatch reversal: Small rectangular slot to side of spindle hole contains a black split pin, insert flat bladed screwdriver and push split pin to opposite side to reverse function.

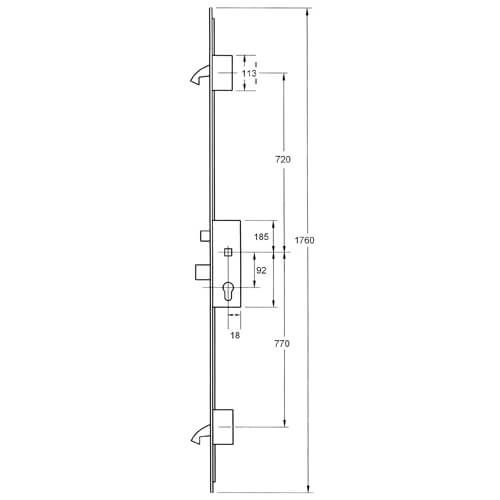

Centres: 92mm Case height: 185mm Case depth: Backset + 18mm Overall length: 1760mm Distance between hooks: 1490mm Entryguard backset: 35mm
