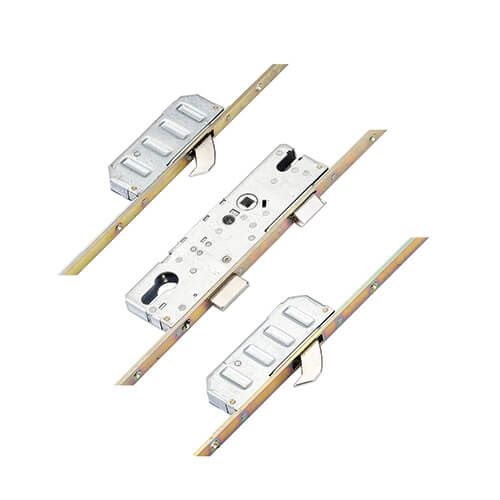

Winkhaus Cobra Latch Deadbolt 2 Hooks L/L S/S

This 2 hook cobra has smaller distances between the hooks, measuring 1340mm compared with 1490mm for a normal Cobra.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Push in latch a screw will appear in back of lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.

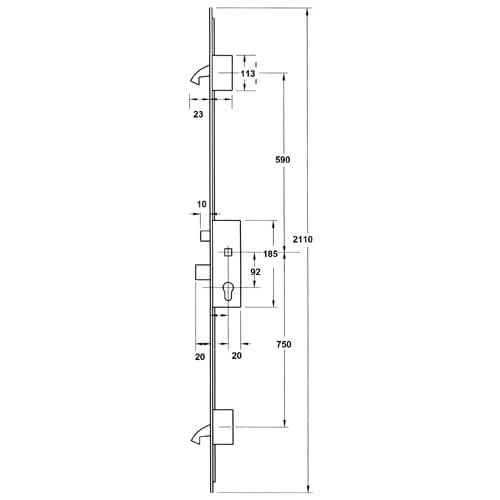

Technical Information-

• Centres: 92mm
• Case height: 185mm
• Case depth: Backset + 18mm
• Overall length: 2110mm
• Distance between hooks: 1340mm
• Entryguard backset: 35mm
