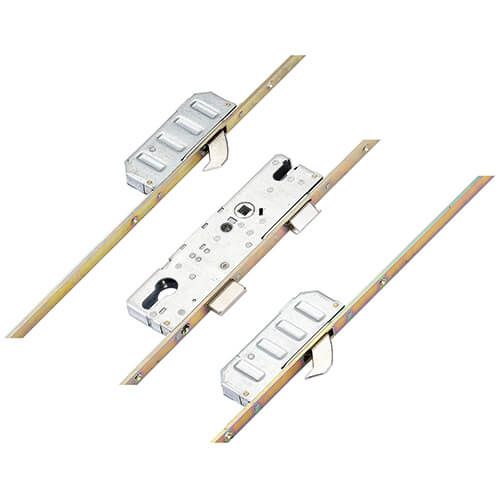

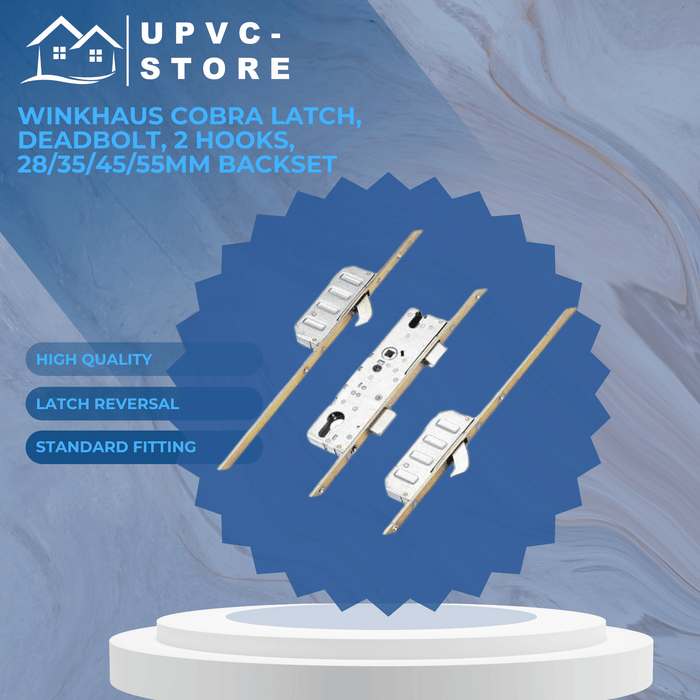

Winkhaus Cobra Latch, Deadbolt, 2 Hooks, 28/35/45/55mm Backset

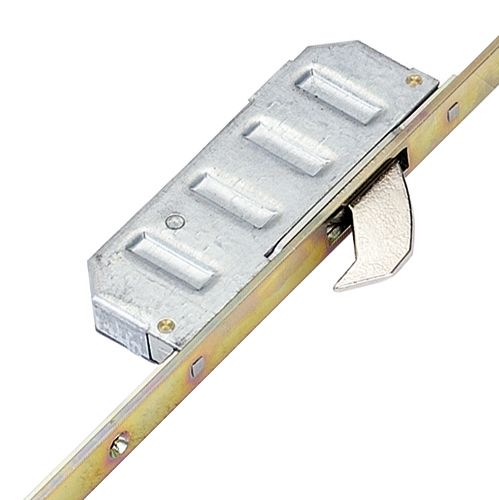

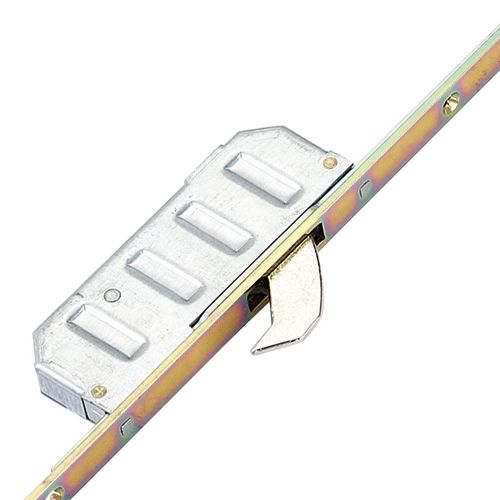

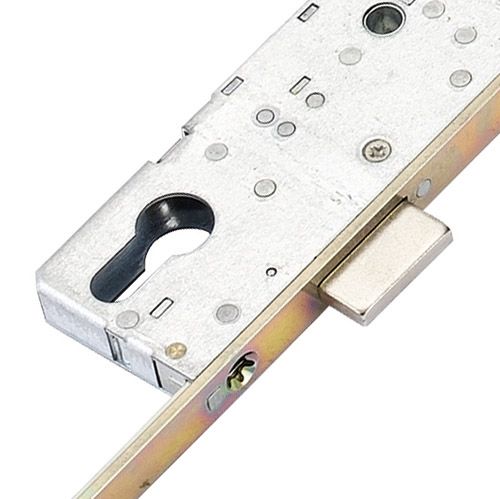

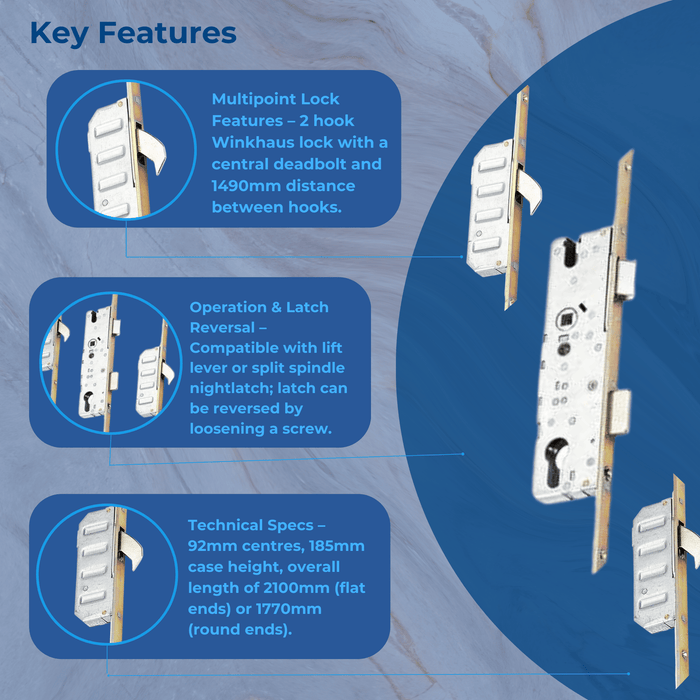

This classic 2 hook Winkhaus multipoint lock features a central deadbolt and a distance of 1490mm between hooks.
If you have a lift lever lock, use this lock with a solid spindle.
Faceplate maybe marked STV-F2070.
Operation: Lift lever or split spindle nightlatch.

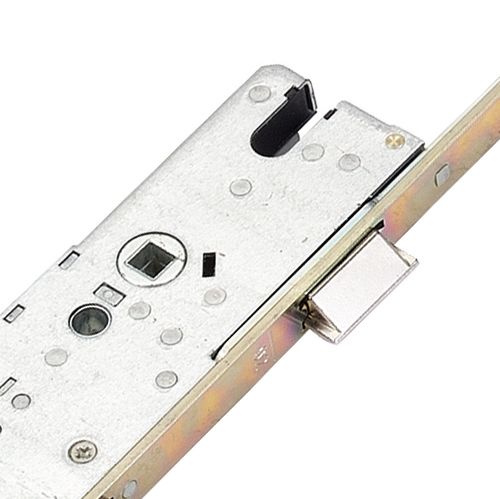

Latch reversal: Push in latch and a screw will appear in the back of the lock case. Undo the screw to remove the latch. Reverse, reinsert and replace the screw.

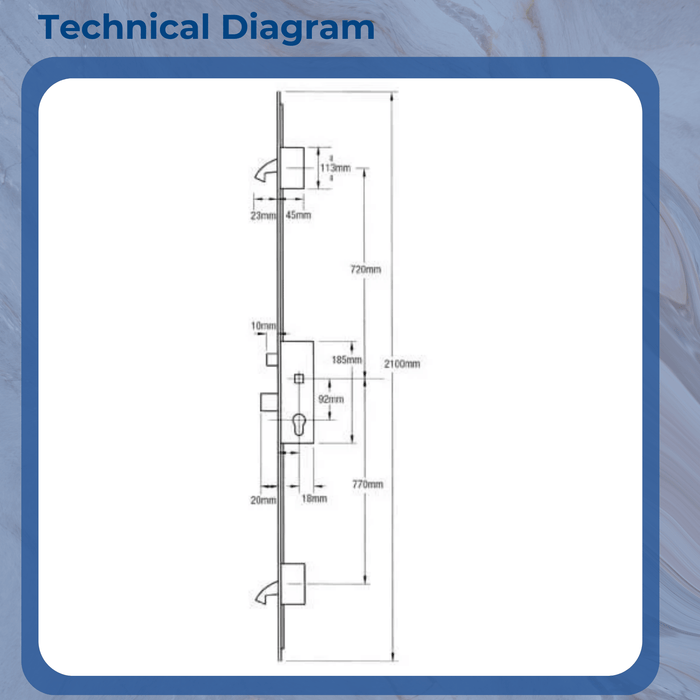

- Centres: 92mm
- Case height: 185mm
- Case depth: Backset + 18mm
- Overall length:
- 2100mm (flat ends)
- 1770mm (round ends)
- Distance between hooks: 1490mm
