RW Simon Vent-A-Matic DGS/JG Static Ventilator with Stormguard for Double Glazing

RW Simon Vent-A-Matic DGS/JG Static Ventilator with Stormguard

A static, non-electric ventilator for sealed double-glazed windows, providing continuous ventilation with an integral stormguard. Supplied as one DGS/JG ventilator. This model has no pull-cord control.

Technical information

• Window Ware code: VMT30528
• Circular glass aperture: 162mm diameter
• Sealed double-glazing thickness: 12–32mm
• Equivalent area at 1Pa: 7,796mm²
• Integral stormguard included

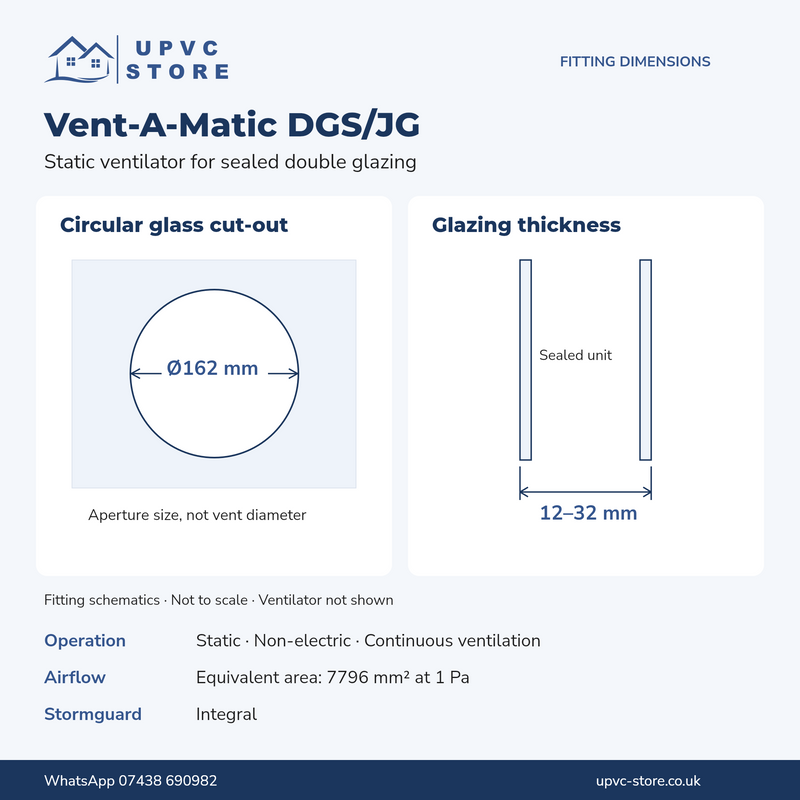

Check the model, aperture and total sealed-unit thickness before ordering. The aperture dimension refers to the hole in the glass. Refer to the fitting diagram for these measurements.
