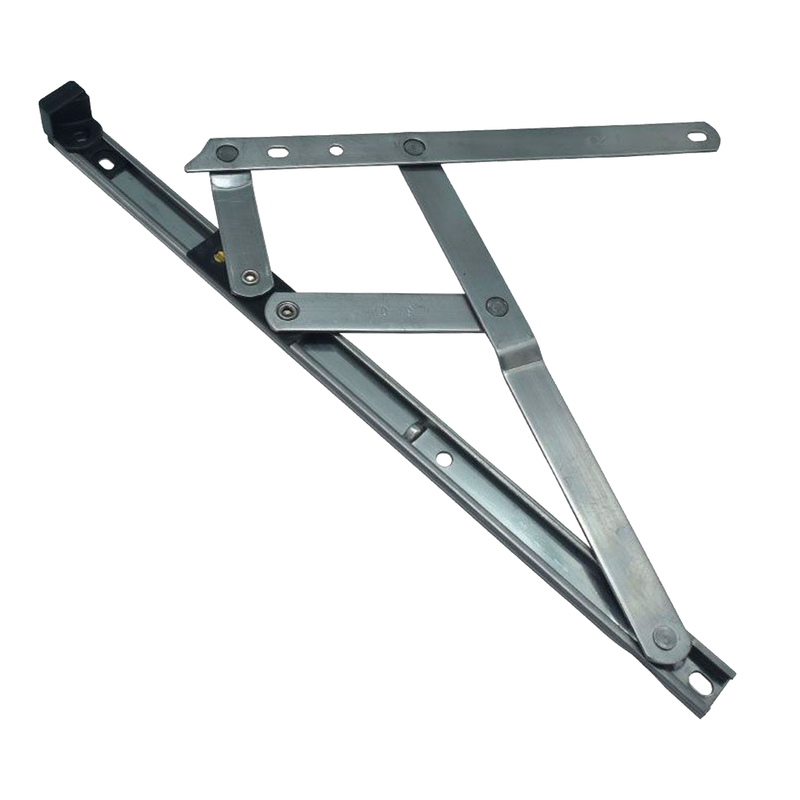

uPVC Universal Window Hinge Kit Double Glazing Friction Stay PVC 13mm 17mm Stack 8 10 12 16 20 24 inch
by UPVCSTORE
Original price
£9.99
-
Original price
£22.99
Original price
£9.99
£9.99
-
£22.99
Current price
£9.99

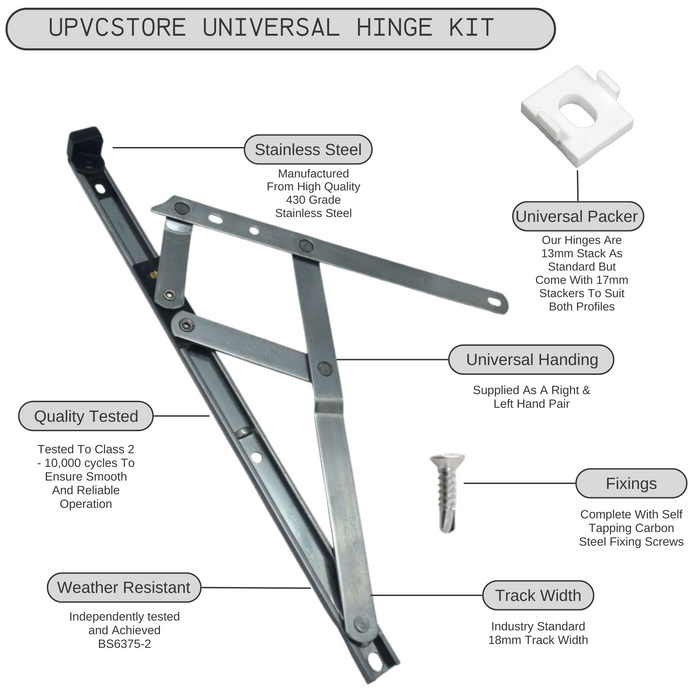

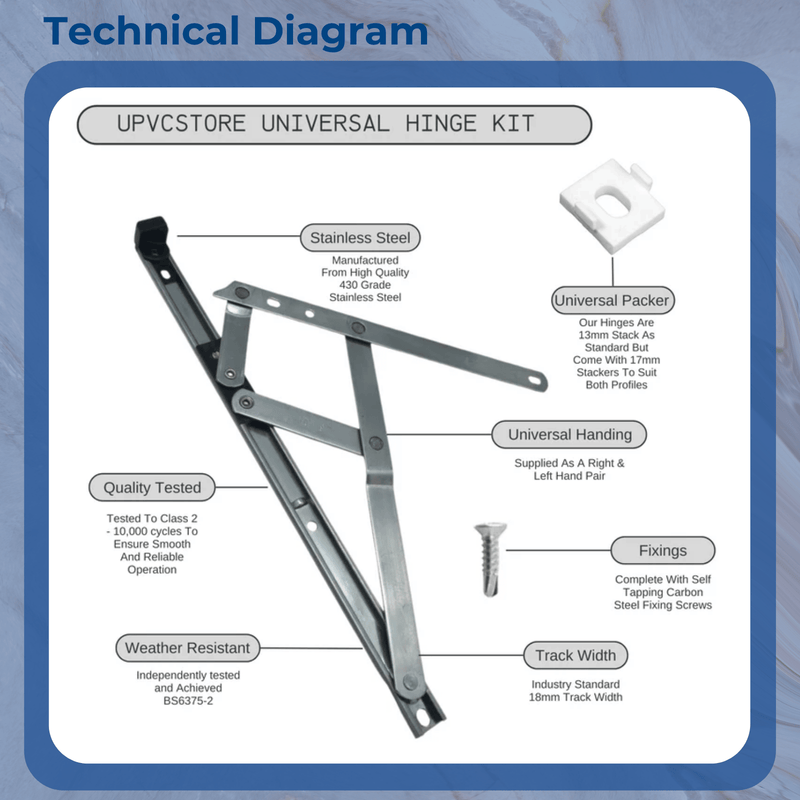

All hinges achieved BS6375-2 and all hinges tested to Class 2 - 10,000 cycles
18mm track width

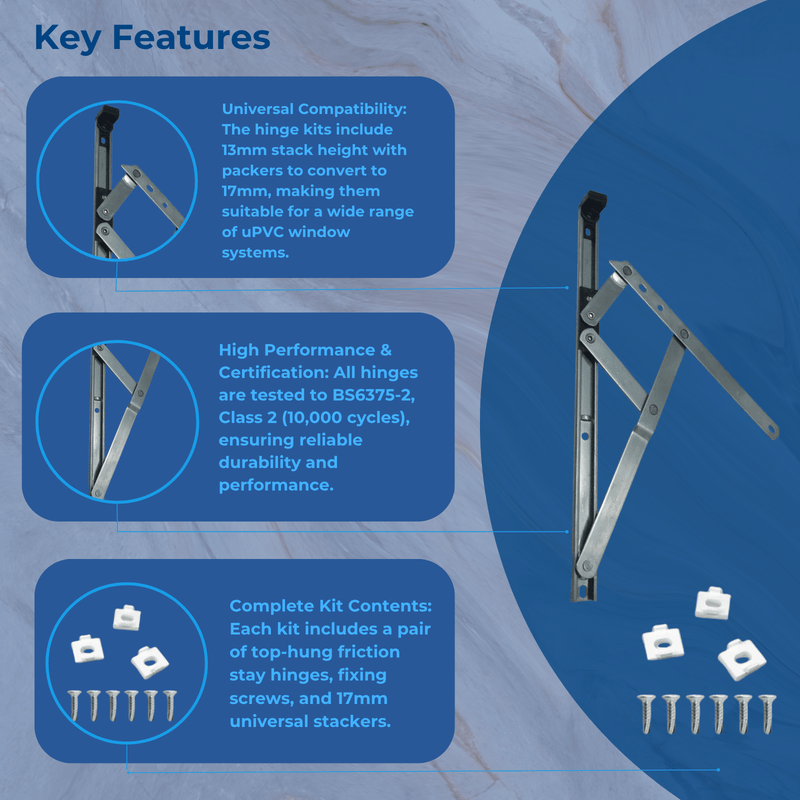

13mm Stack with packers to convert to 17mm stack
Manufactured from 430 Grade Stainless Steel
Technical Specifications-
8 inch Universal kit
1 Pair of 8 inch, top hung, 13mm stack with 17m stackers,
64 degree opening angle, max sash weight 10kg, complete with fixing screws
10 inch Universal kit
1 Pair of 10 inch, top hung, 13mm stack with 17m stackers,
88 degree opening angle, max sash weight 16kg, complete with fixing screws
12 inch Universal kit
1 Pair of 12 inch, top
hung, 13mm stack with 17m stackers,
88 degree opening angle, max sash weight 21kg, complete with fixing screws
16 Inch Universal Kit
1 Pair of 16 inch, top hung, 13mm stack with 17m stackers,
84 degree opening angle, max sash weight 22kg, complete with fixing screws
20 Inch Universal Kit
1 Pair of 24 inch, top Hung, 13mm Stack with 17mm Stackers,
42 degree opening angle, max sash weight 24kg, complete with fixing screws
24 Inch Universal Kit
1 Pair of 24 inch, top Hung, 13mm Stack with 17mm Stackers,
38 degree opening angle, max sash weight 50kg, complete with fixing screws

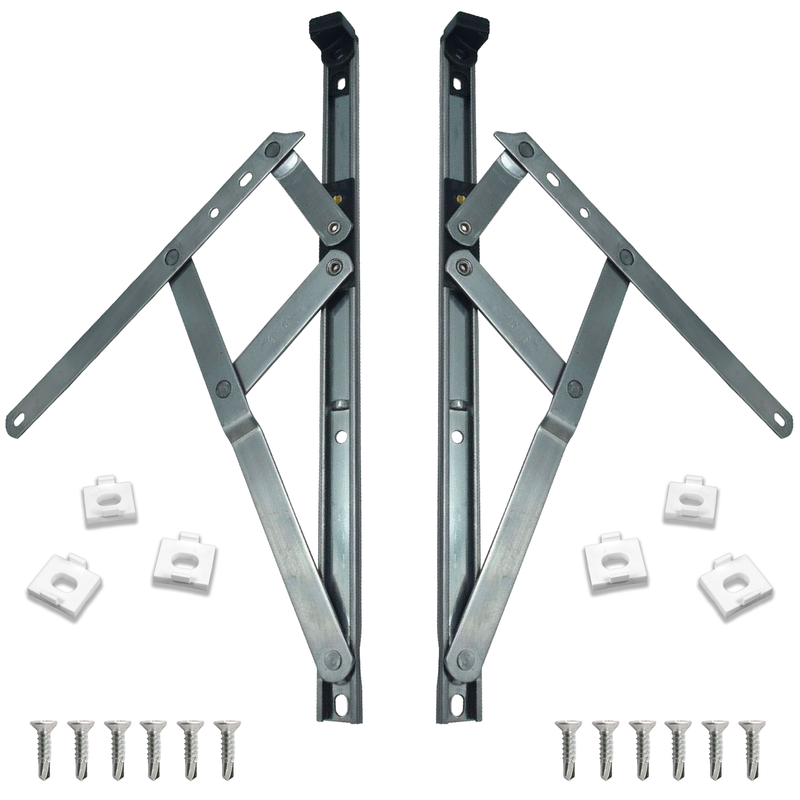

What's In The Kit?

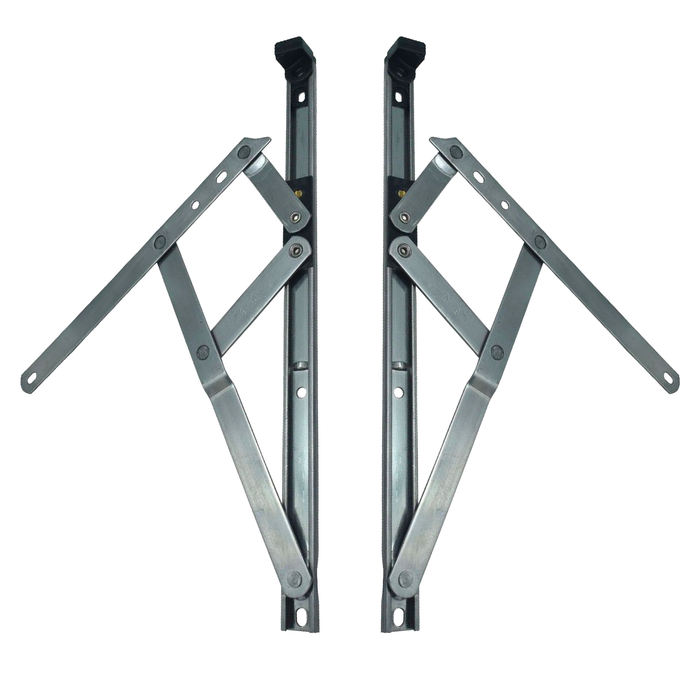

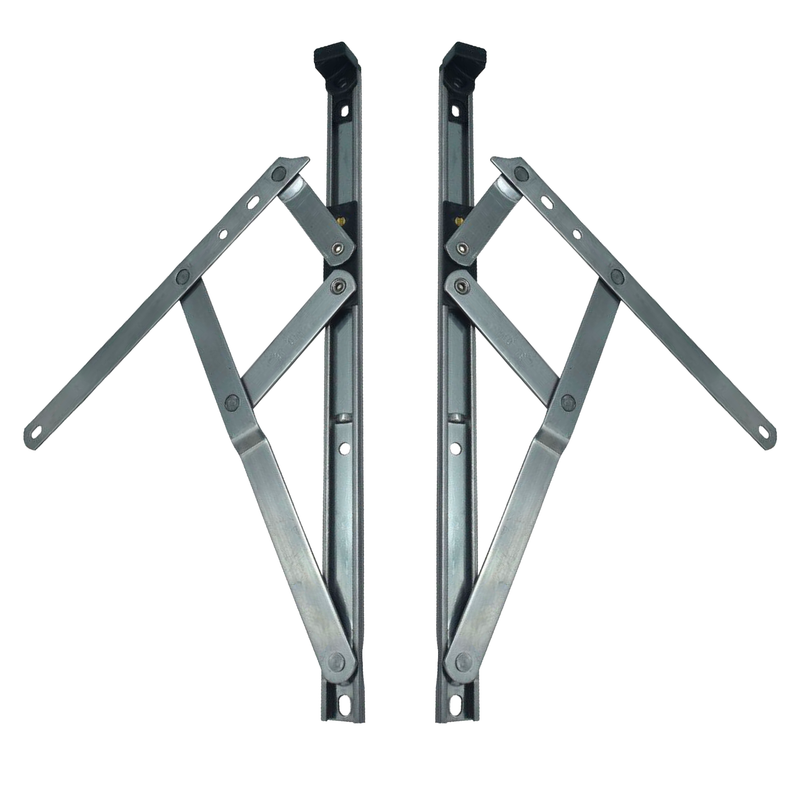

1 pair of window hinges
Fixing screws

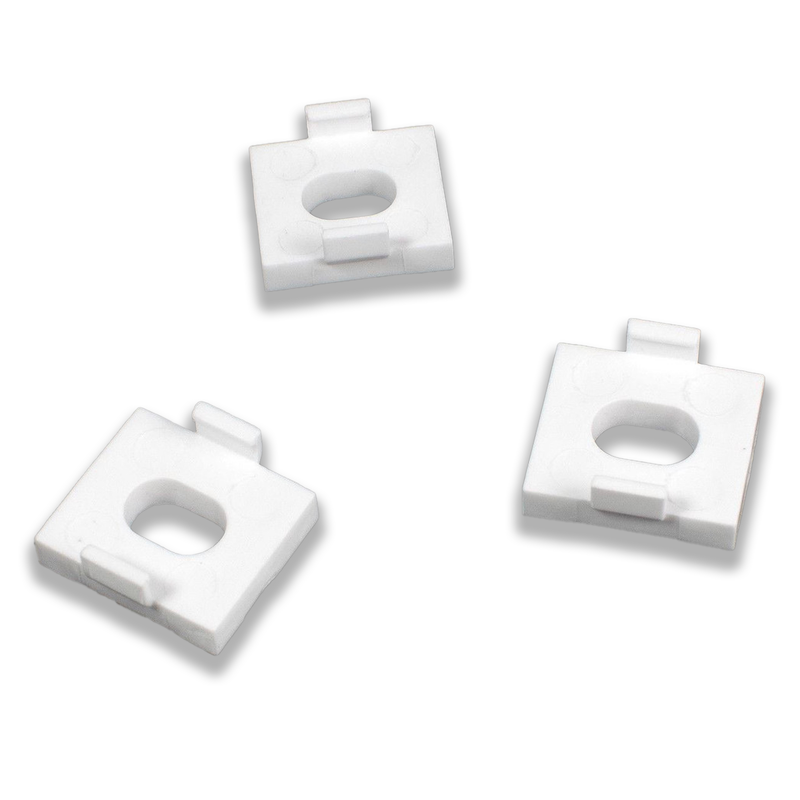

17mm universal stackers
