Trojan Patriot Plus 3D Adjustable Flag Hinge – 16mm, 19mm & 22mm
by Trojan
Original price
£12.23
-
Original price
£20.40
Original price
£15.45
£12.23
-
£20.40
Current price
£15.45
Packers are additional to your hinge quantity. Your selected hinges and packers will be added together.
Trojan Patriot Plus is a non-handed, 3D adjustable flag hinge for compatible uPVC doors. Choose your finish and match the step height to your existing hinge and door profile.
Choose your hinge

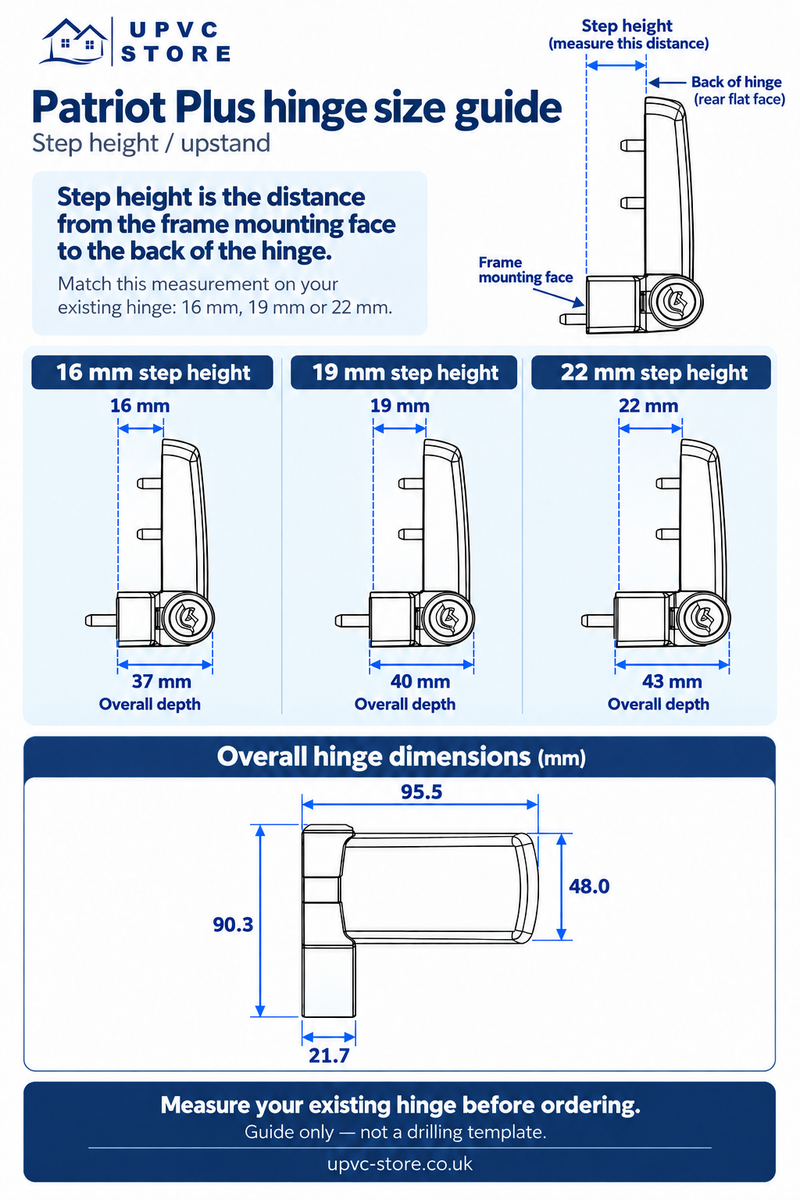

- Step heights: 16mm, 19mm or 22mm. Measure the upstand between the frame and sash mounting surfaces; do not choose by appearance alone.

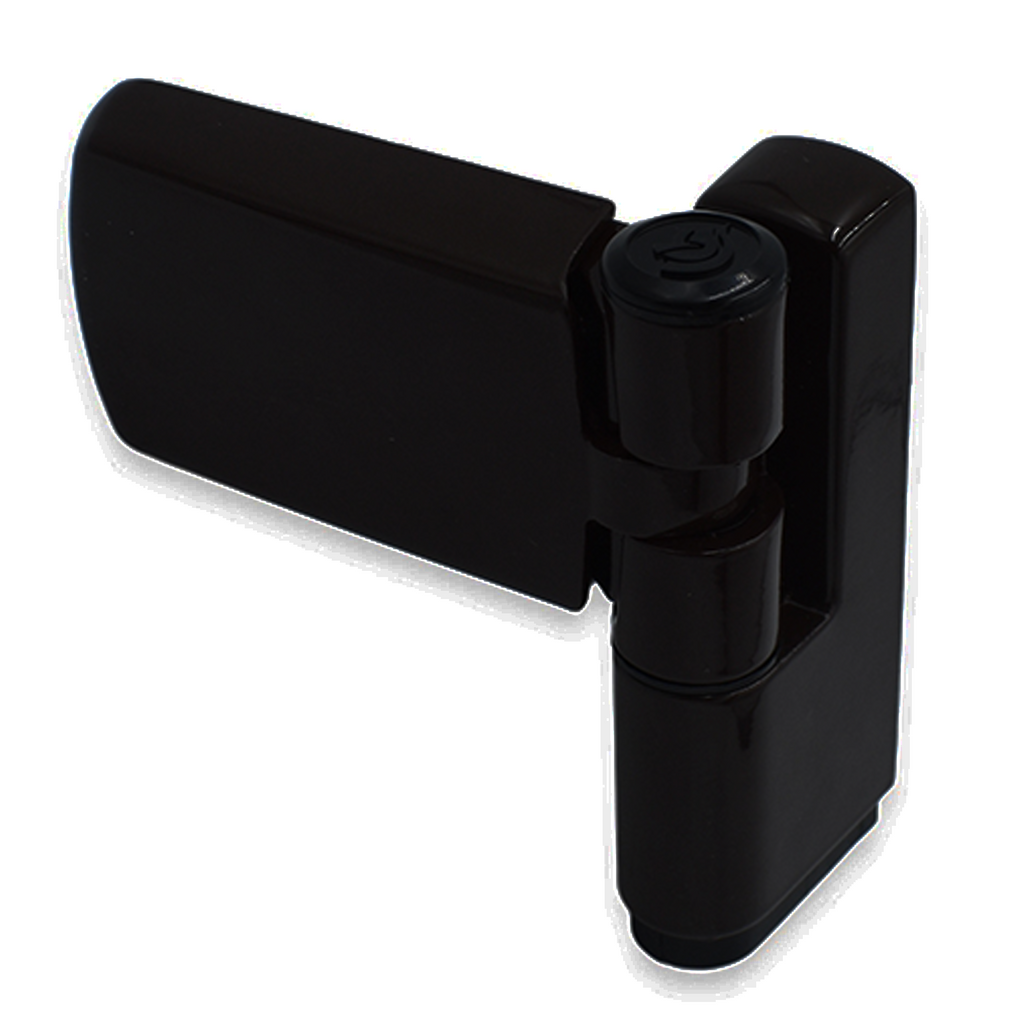

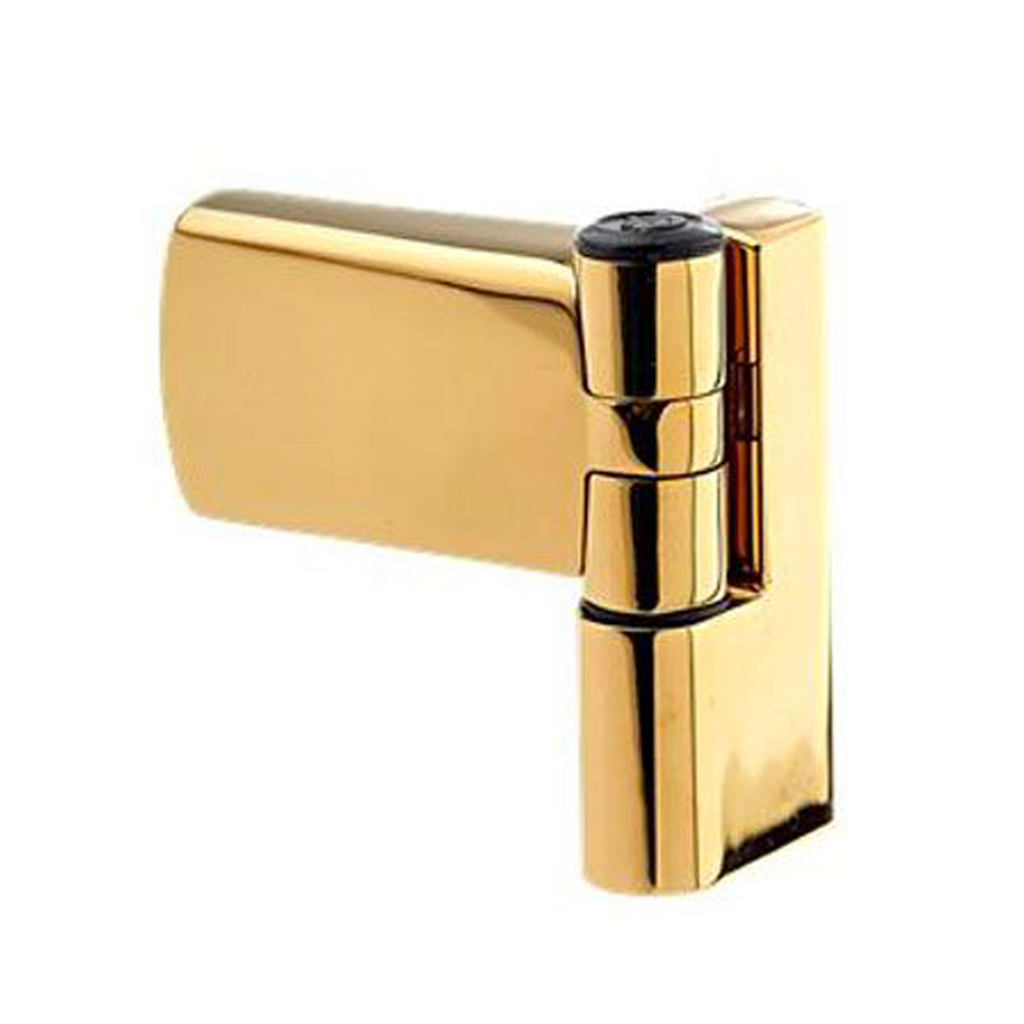

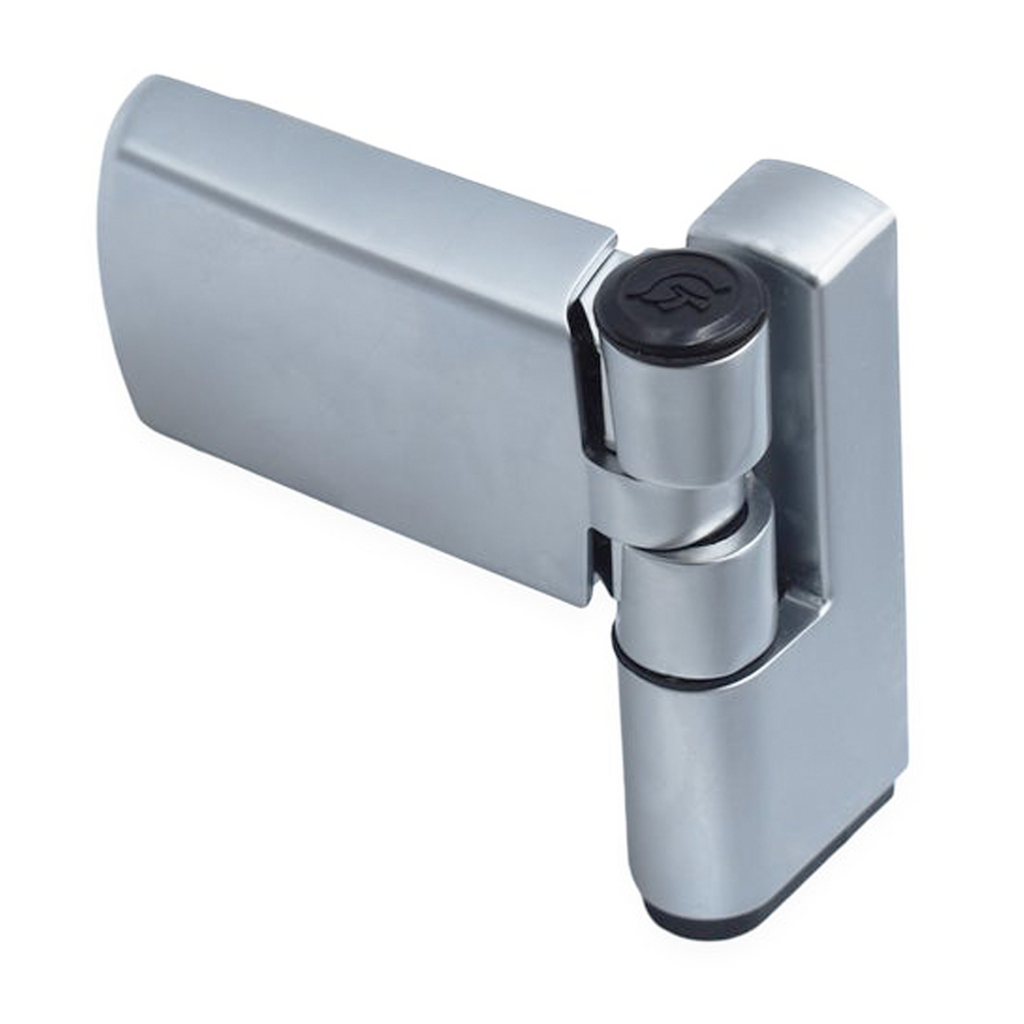

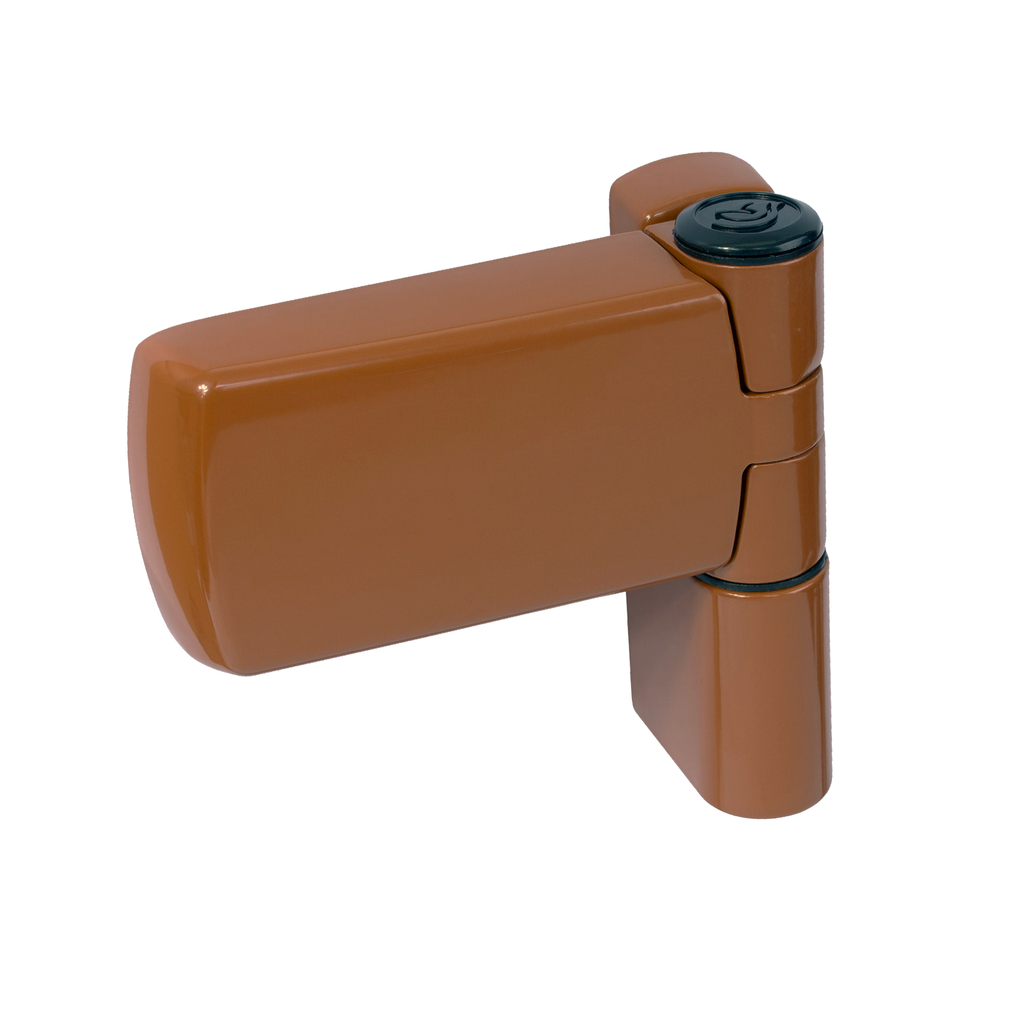

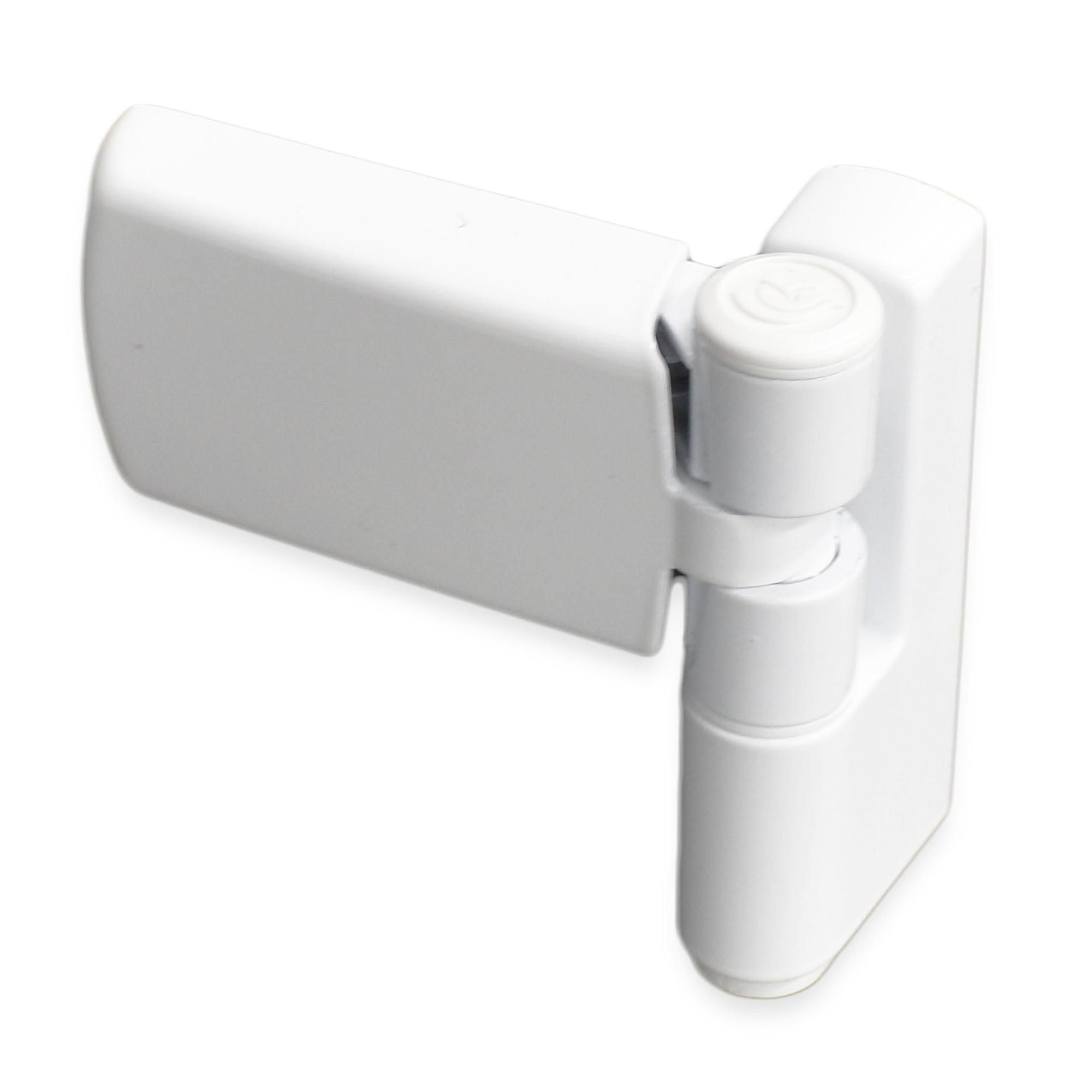

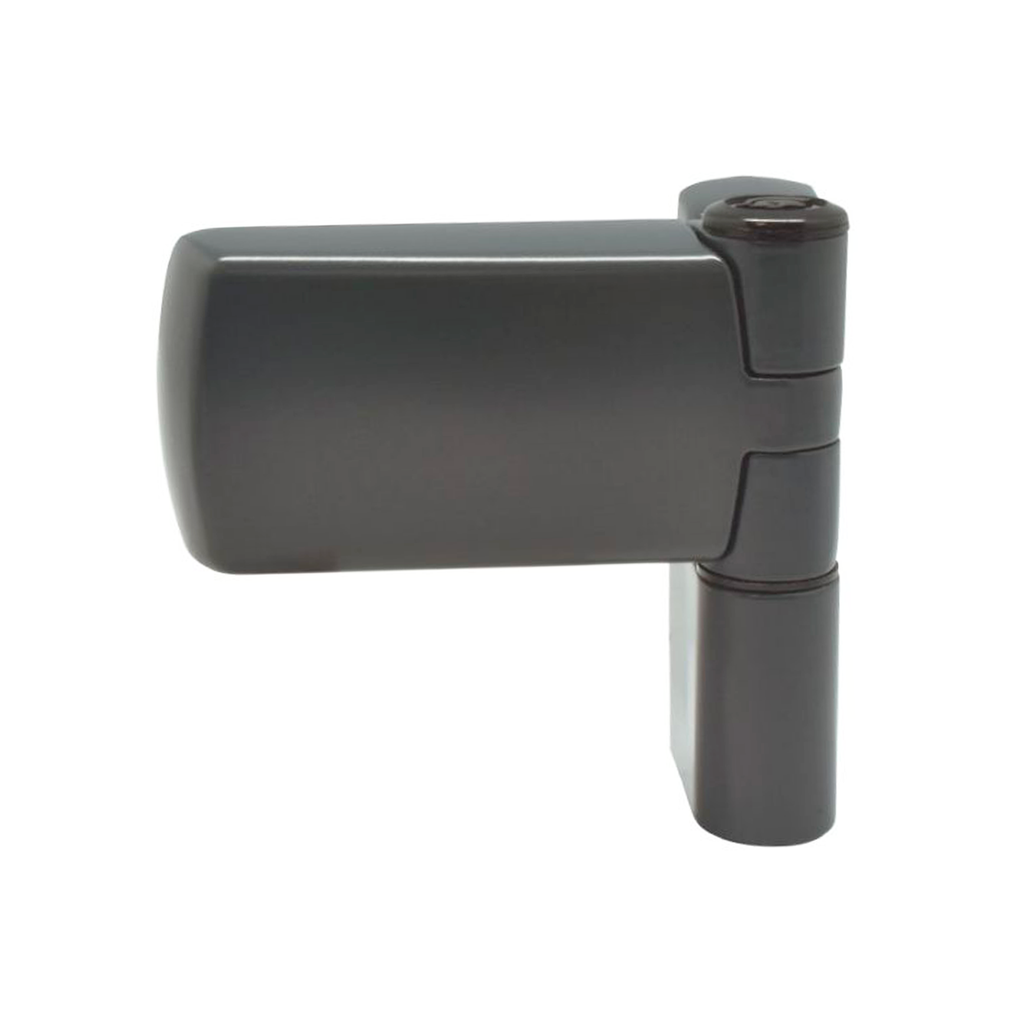

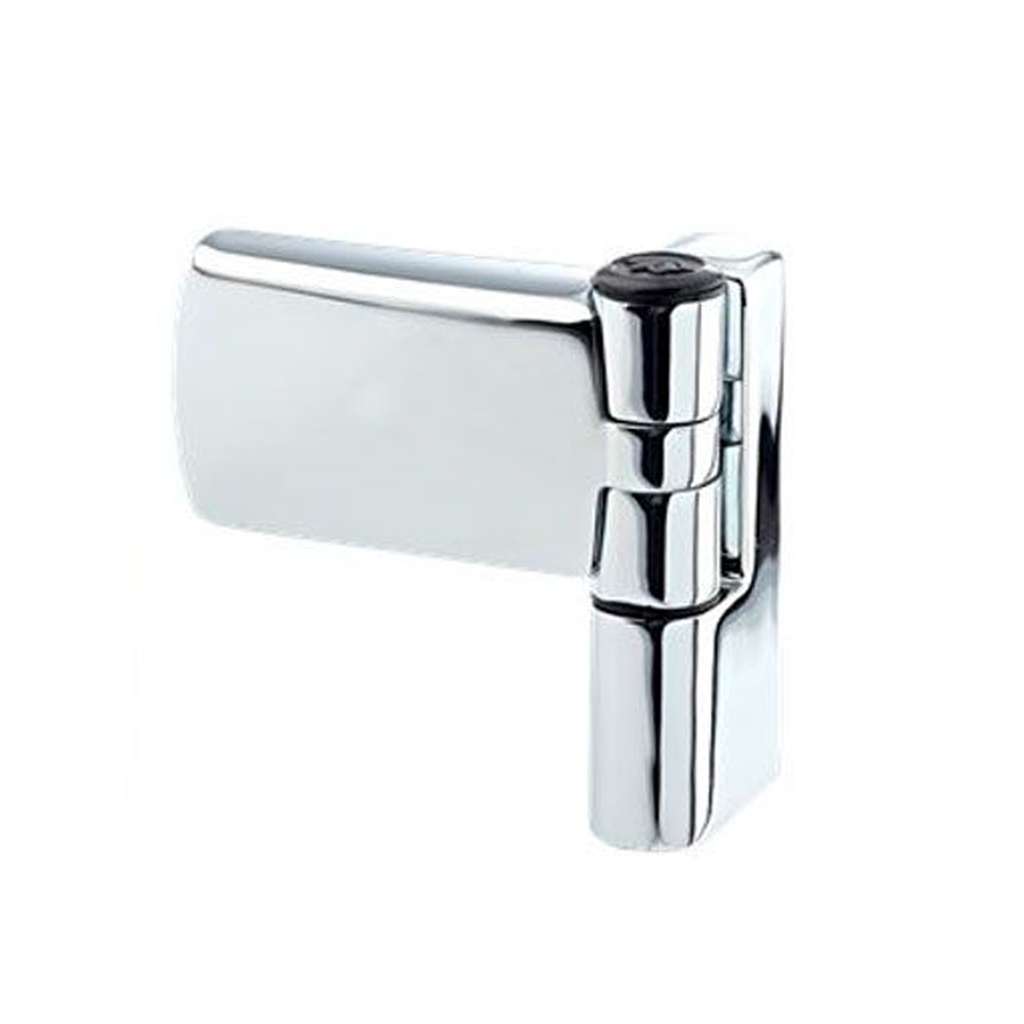

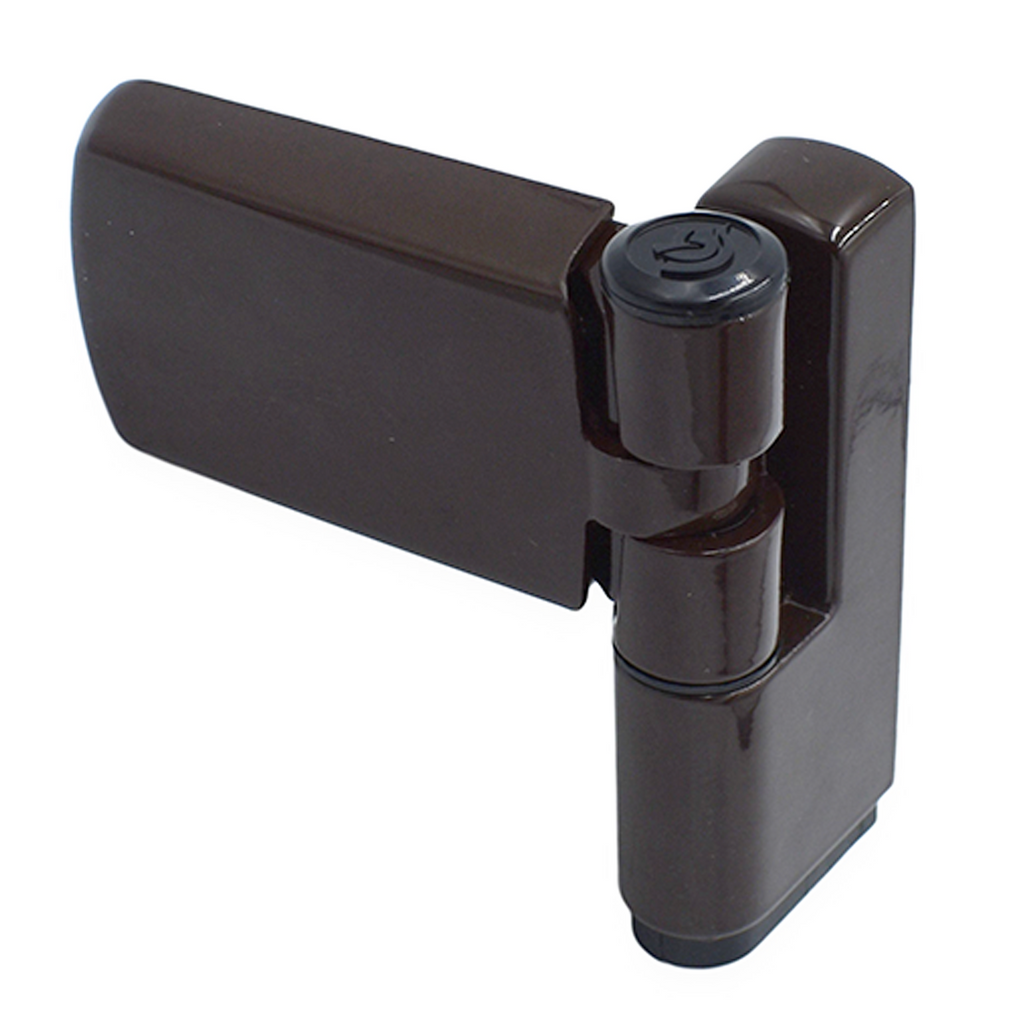

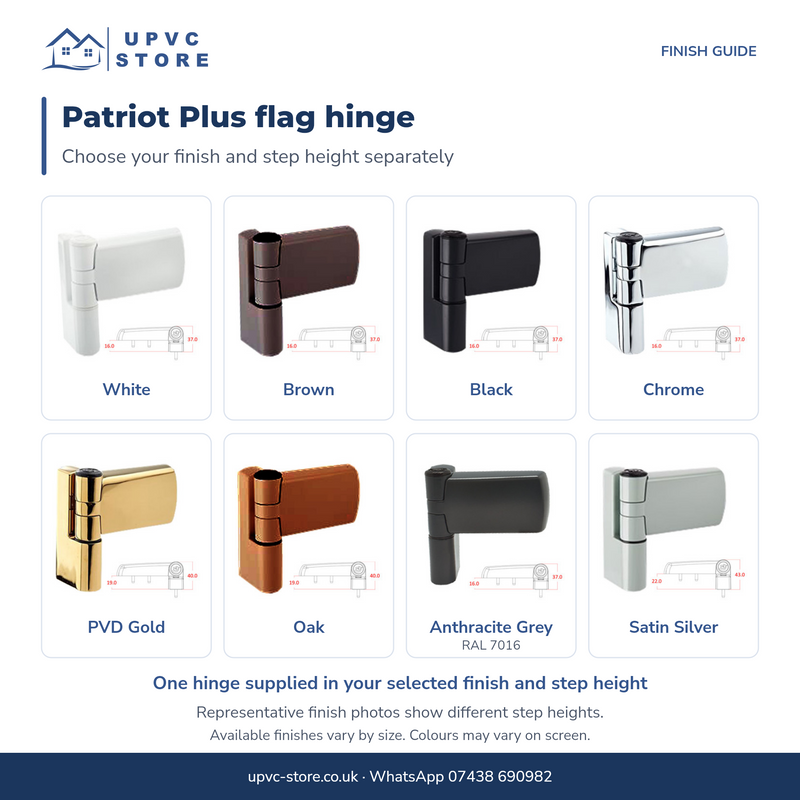

- Finishes: White, Black, Brown, Chrome, Satin Silver, PVD Gold, Oak and Anthracite Grey RAL 7016. Available finish/size combinations are shown in the selector.
- Sold individually: one complete hinge per hinge option.

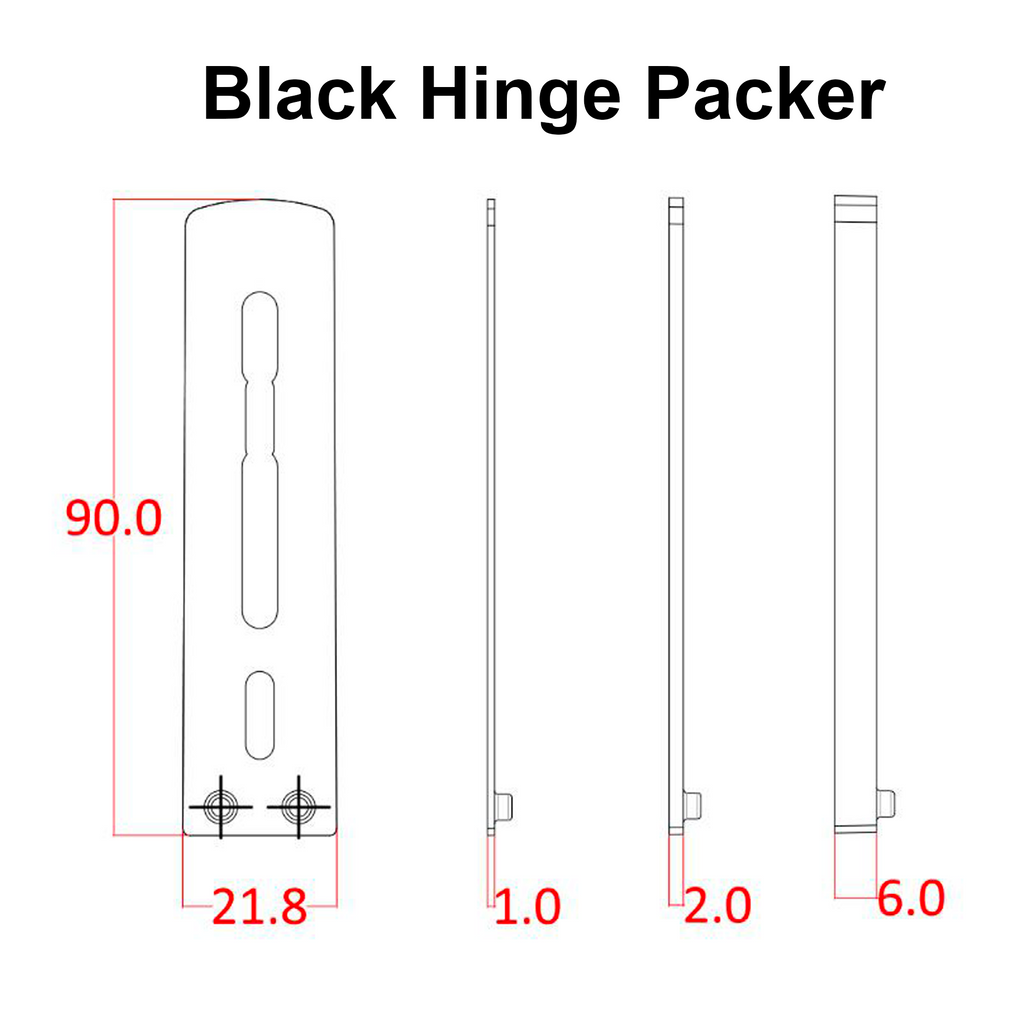

- Optional packers: choose your hinge finish and rebate/upstand size first. If your installation needs packers, add White or Black Patriot Plus packers separately in 1mm, 2mm or 6mm thickness. Packers are sold individually and are not included with the hinge.
Technical information
| Handing | Non-handed; left or right opening |
|---|---|
| Height adjustment | +8mm / −0mm |
| Lateral adjustment | ±6mm |
| Compression adjustment | ±1.5mm |
| Door weight | Up to 80kg using three correctly installed hinges |
| Durability | Tested to 100,000 cycles |
| Corrosion resistance | BS EN 1670 Grade 4, 480-hour test |

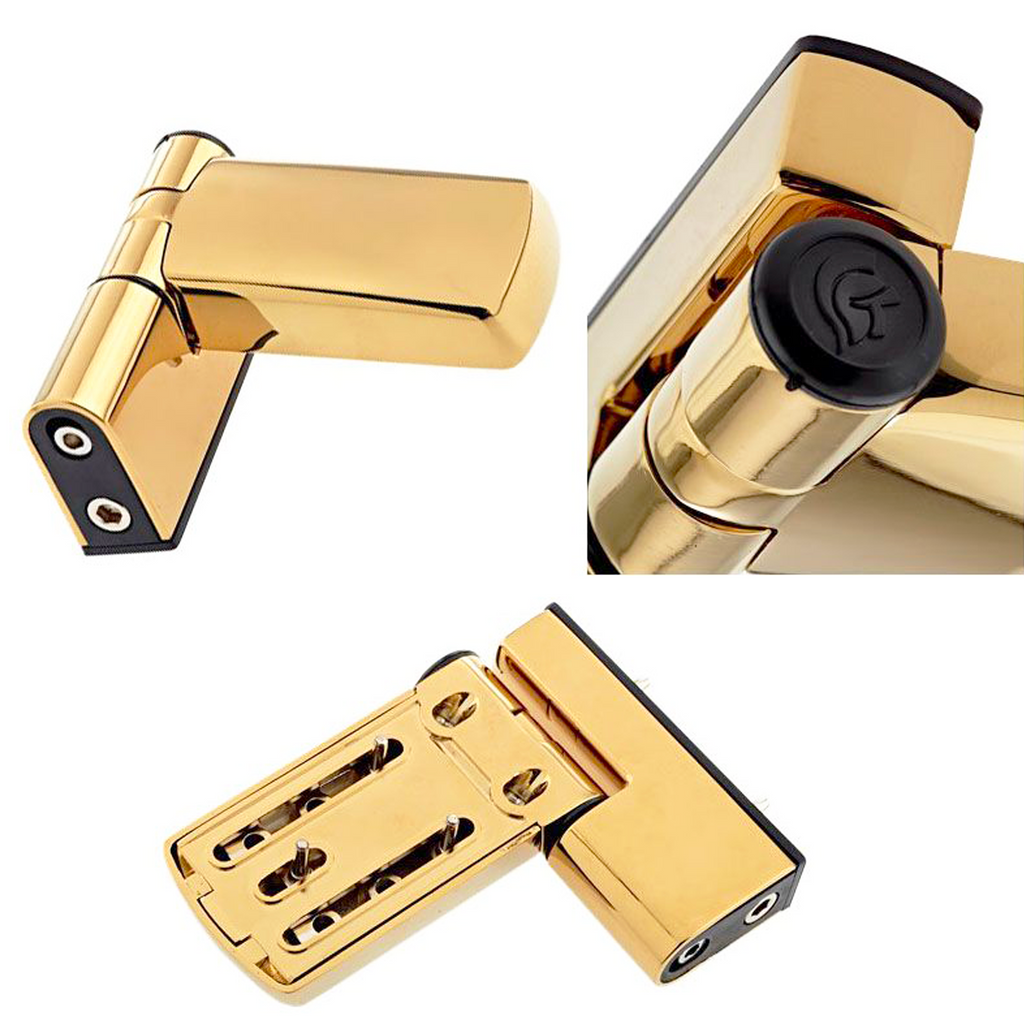

The anti-lift design and concealed fixings support a secure installation. PAS 24 performance applies to a suitable tested complete doorset, not to the hinge alone.
Before ordering
Check the step height, mounting footprint and fixing positions against your existing hinge. The technical image is a selection guide, not a drilling template. Use fixings suitable for the door profile and reinforcement. If unsure, send us a photograph and measurements before ordering.
