Yale / Trojan 3D Composite Door Hinge — Rebated Adjustable Butt Hinge

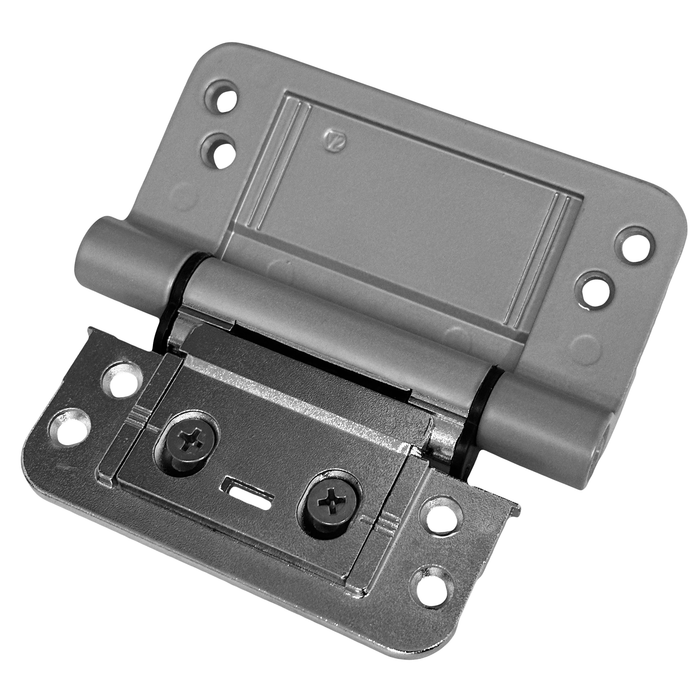

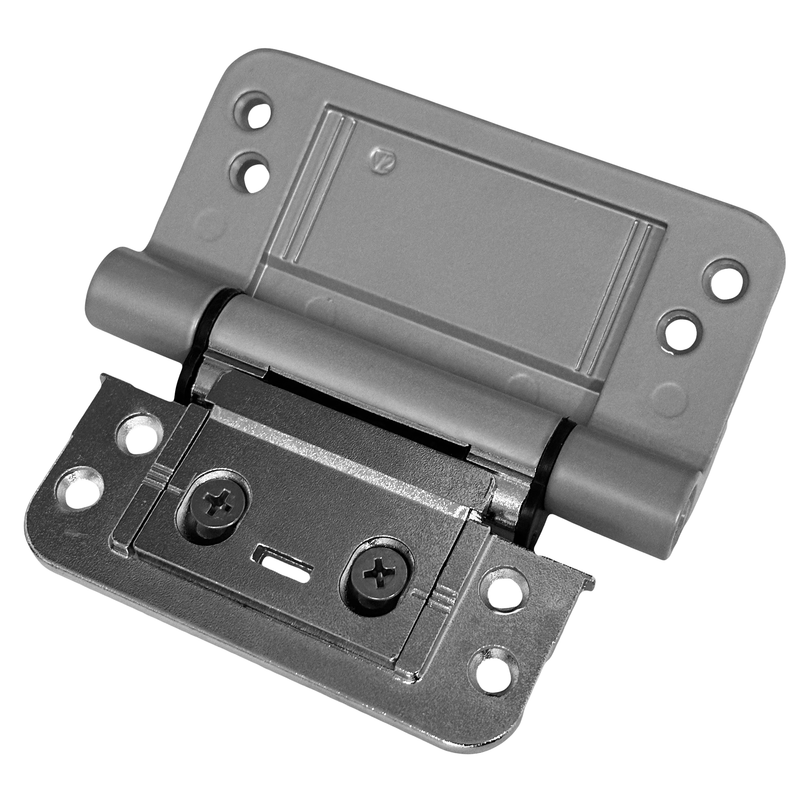

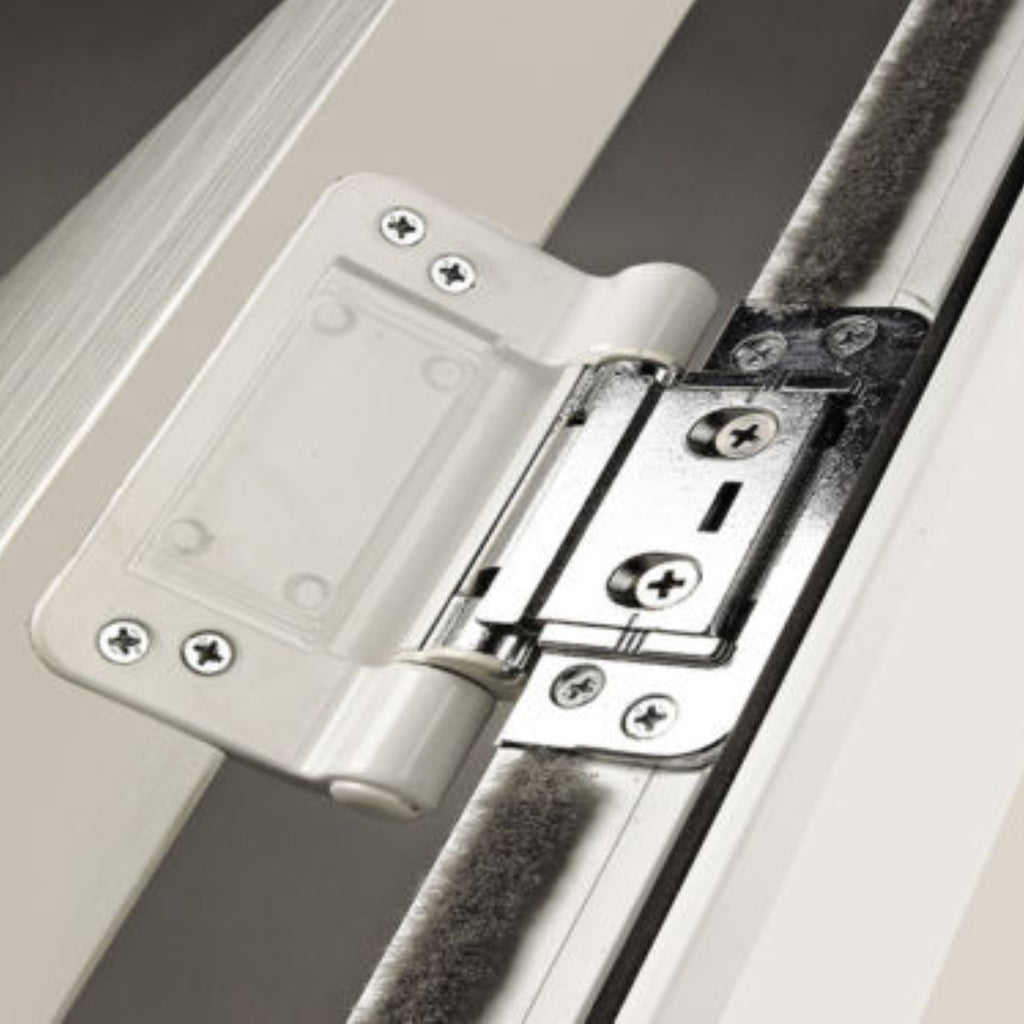

Trojan 3D composite door hinge

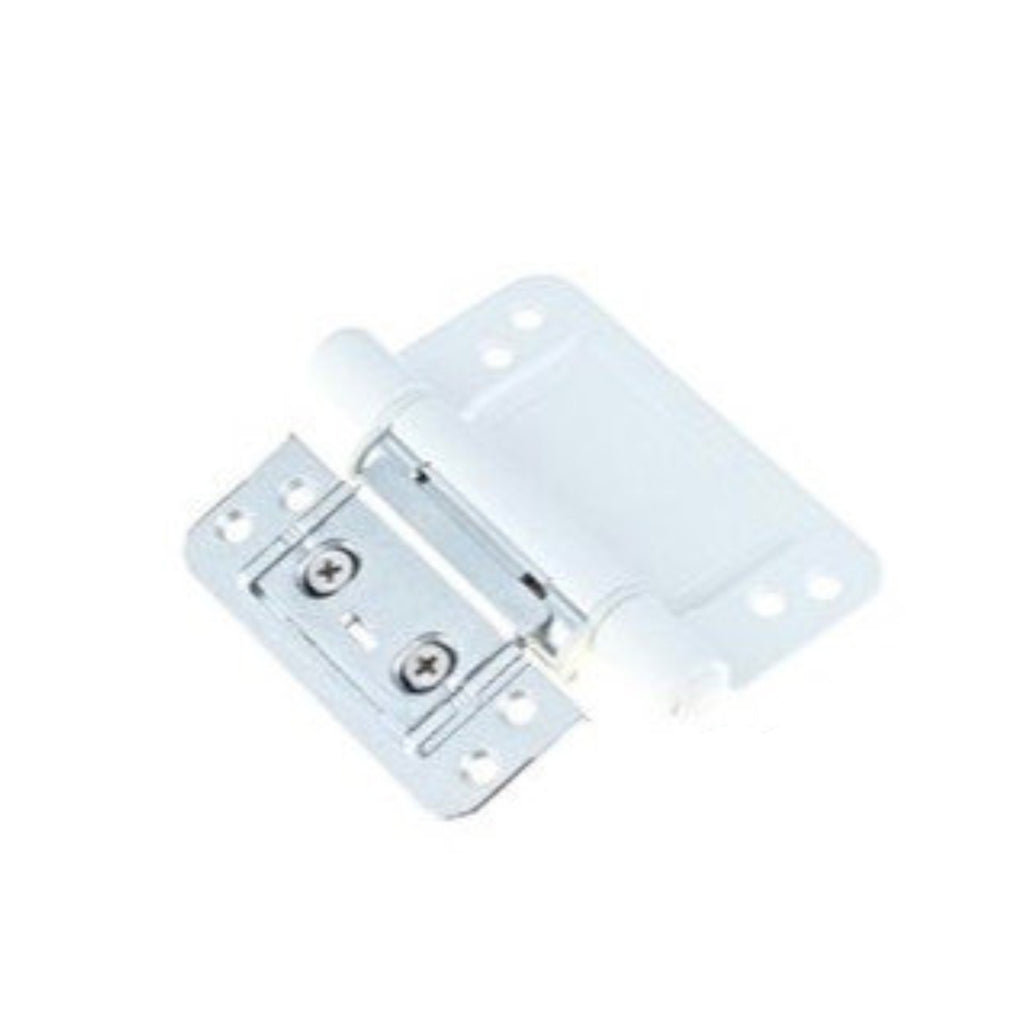

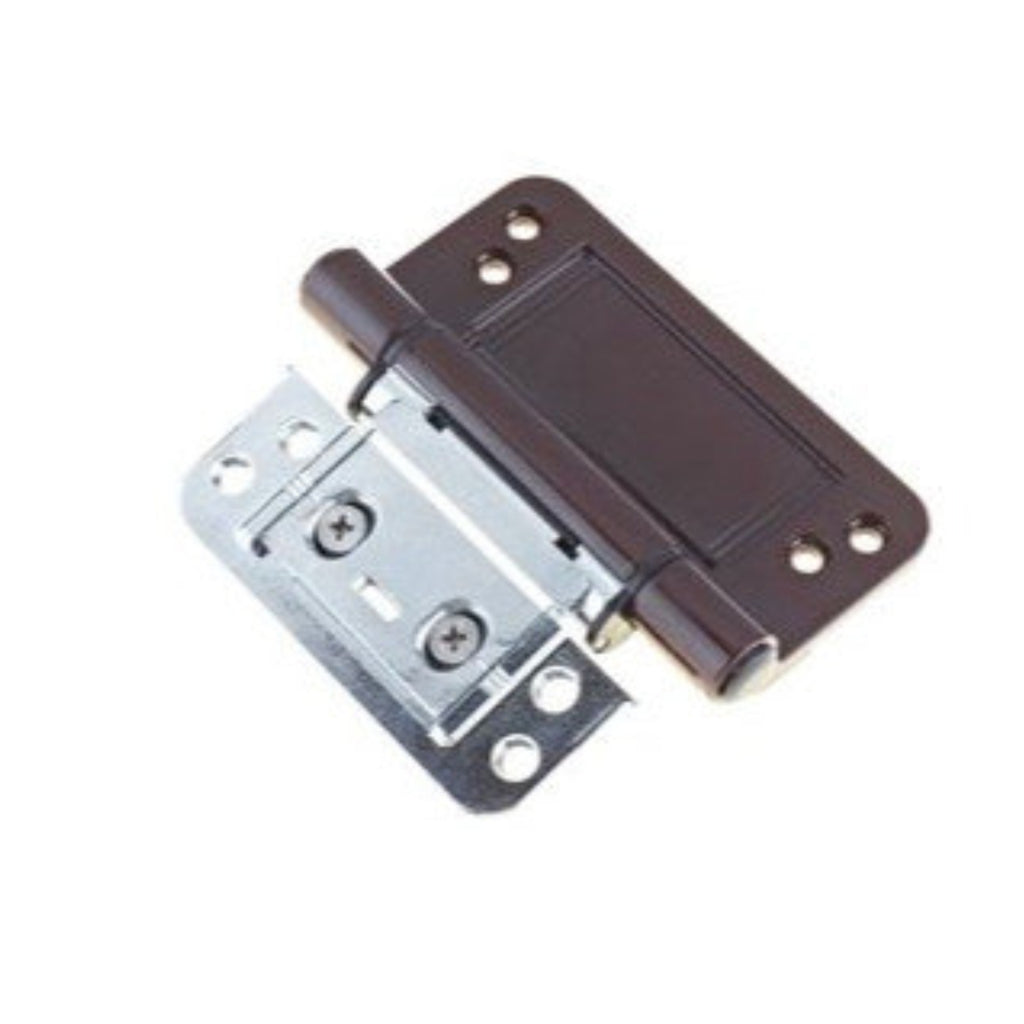

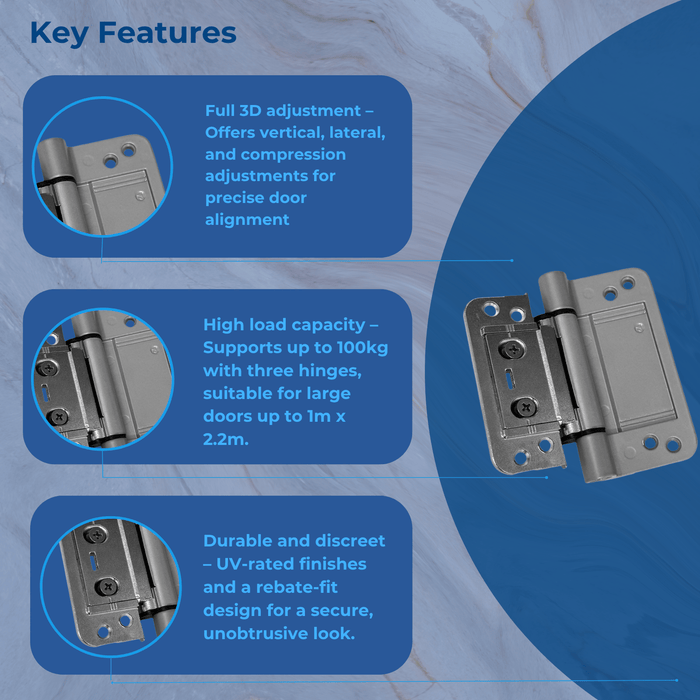

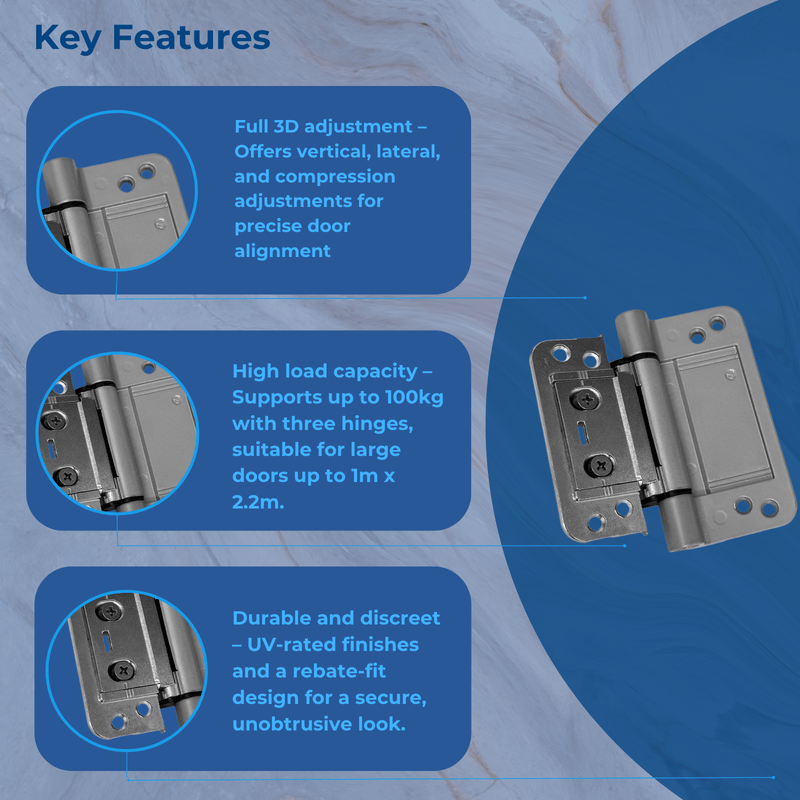

A rebated butt hinge for composite doors, with adjustment in three directions to help align the door and set the seal pressure. The detachable sash piece makes fitting easier, and the hinge is supplied pre-assembled.

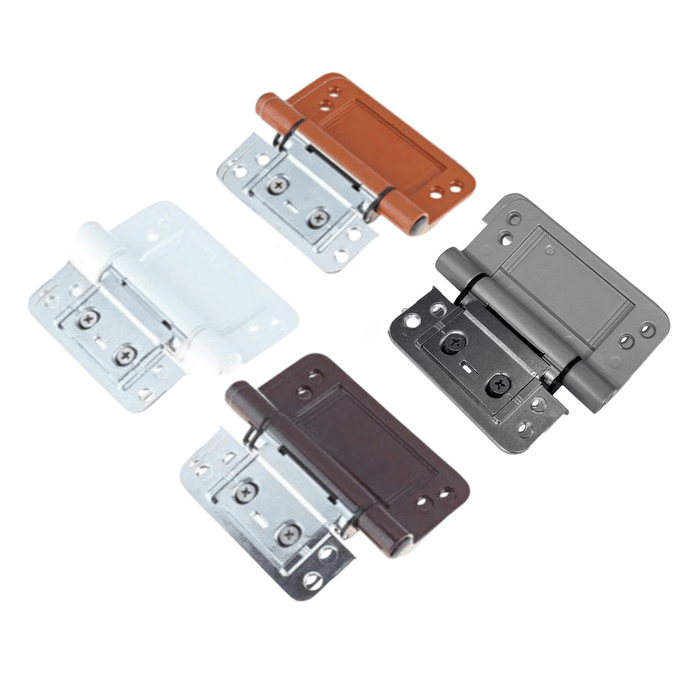

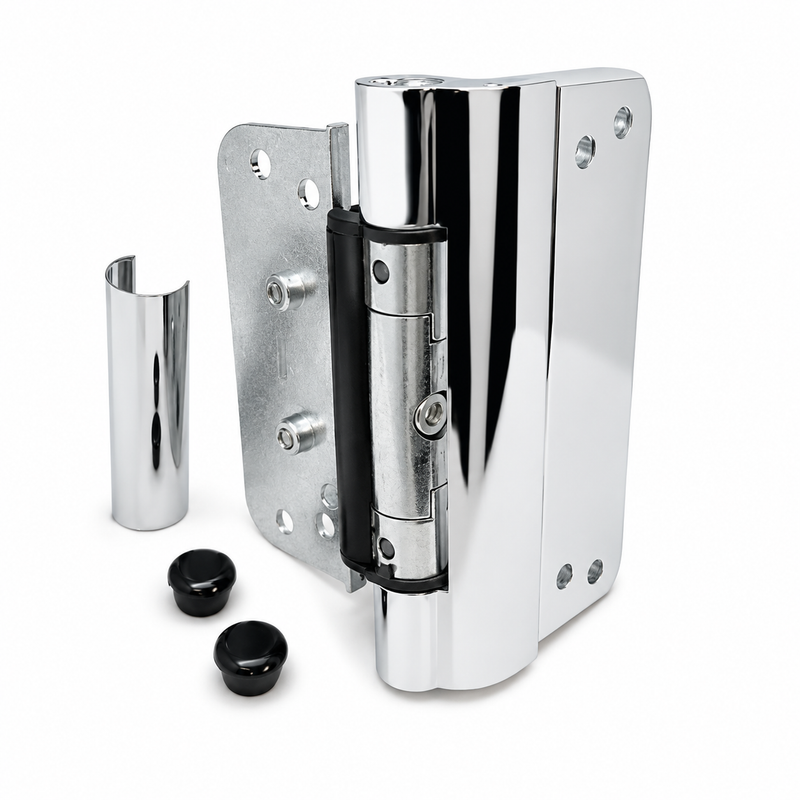

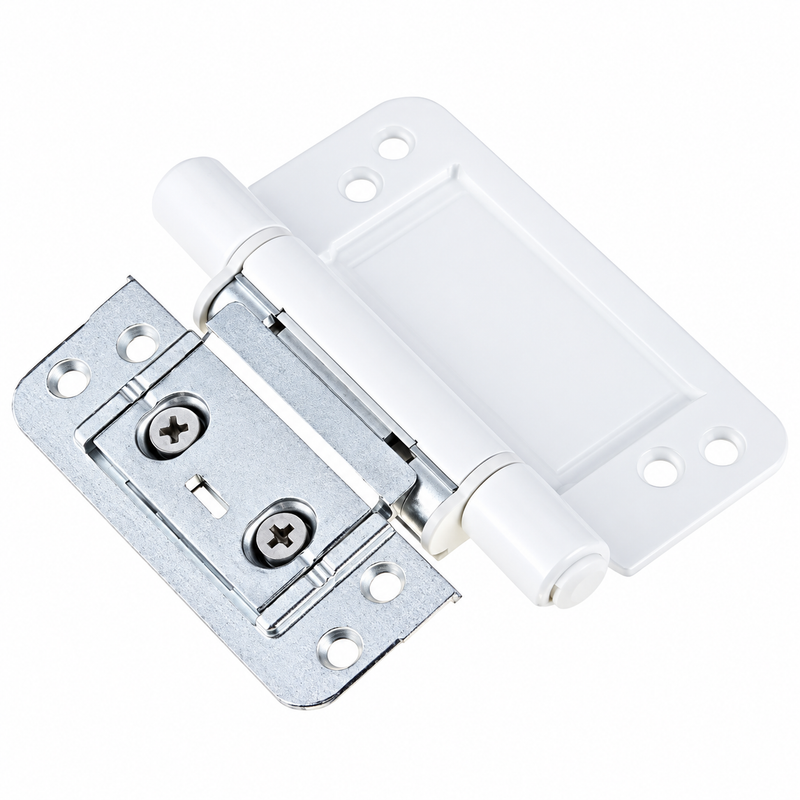

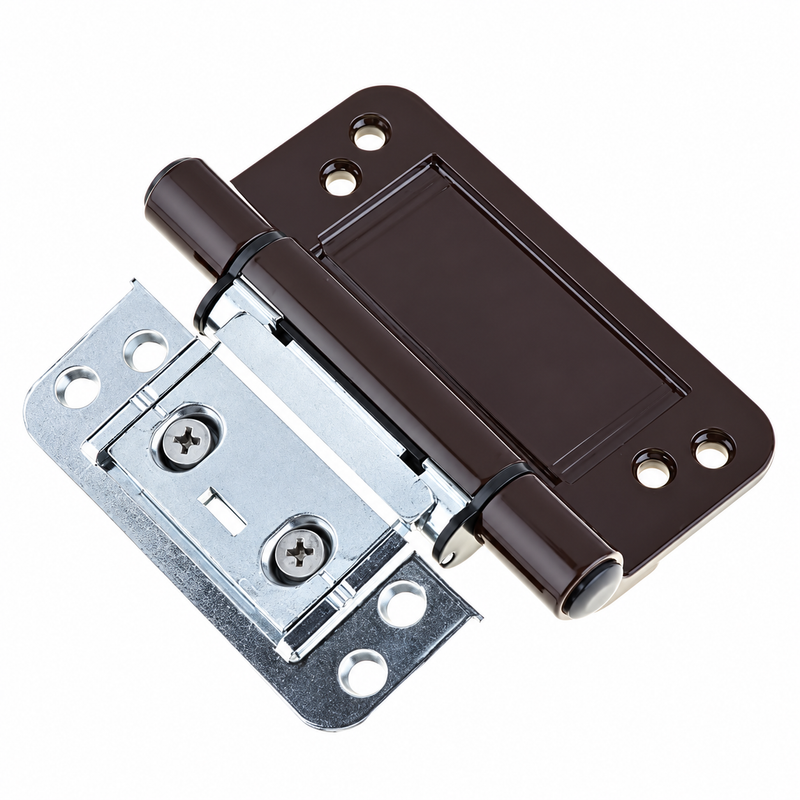

Supplied individually: one hinge in your selected finish. The finishes image shows the available choices, not a set of five.

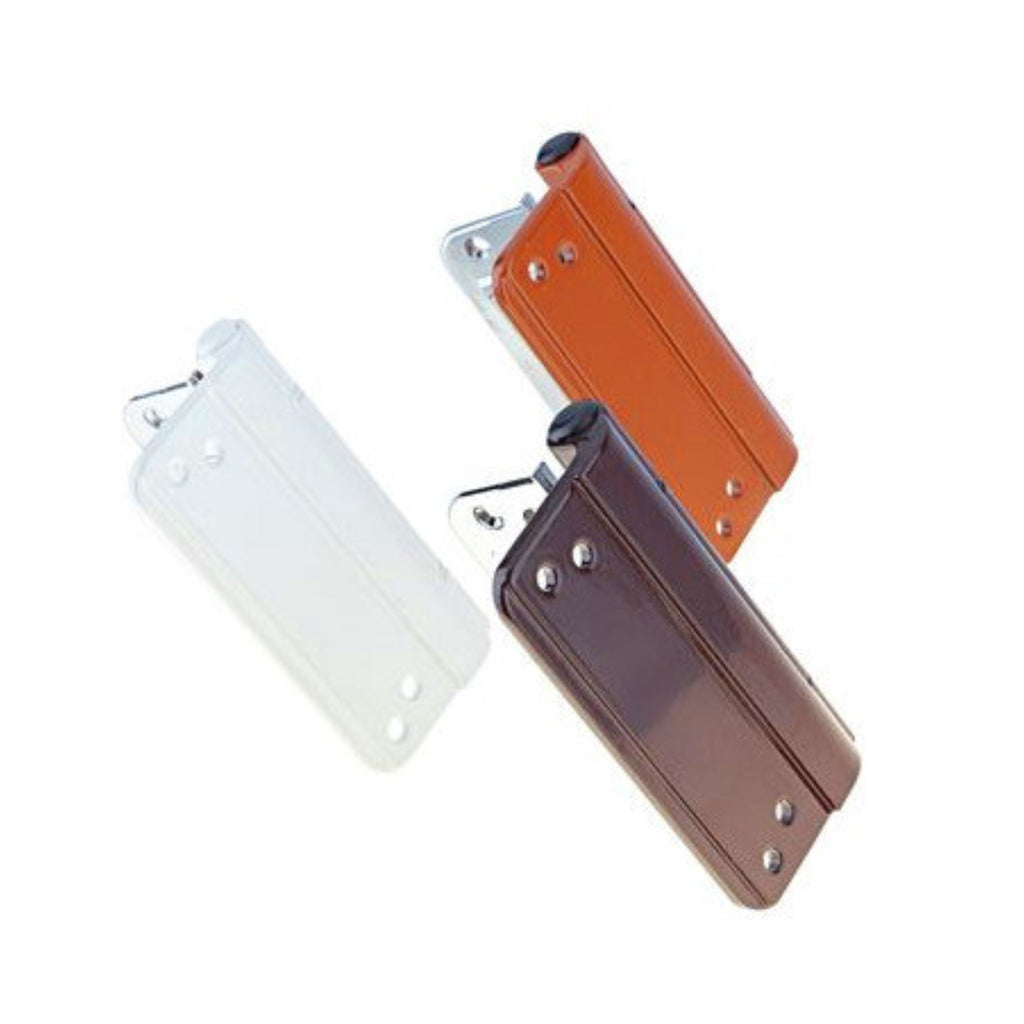

Choose your finish

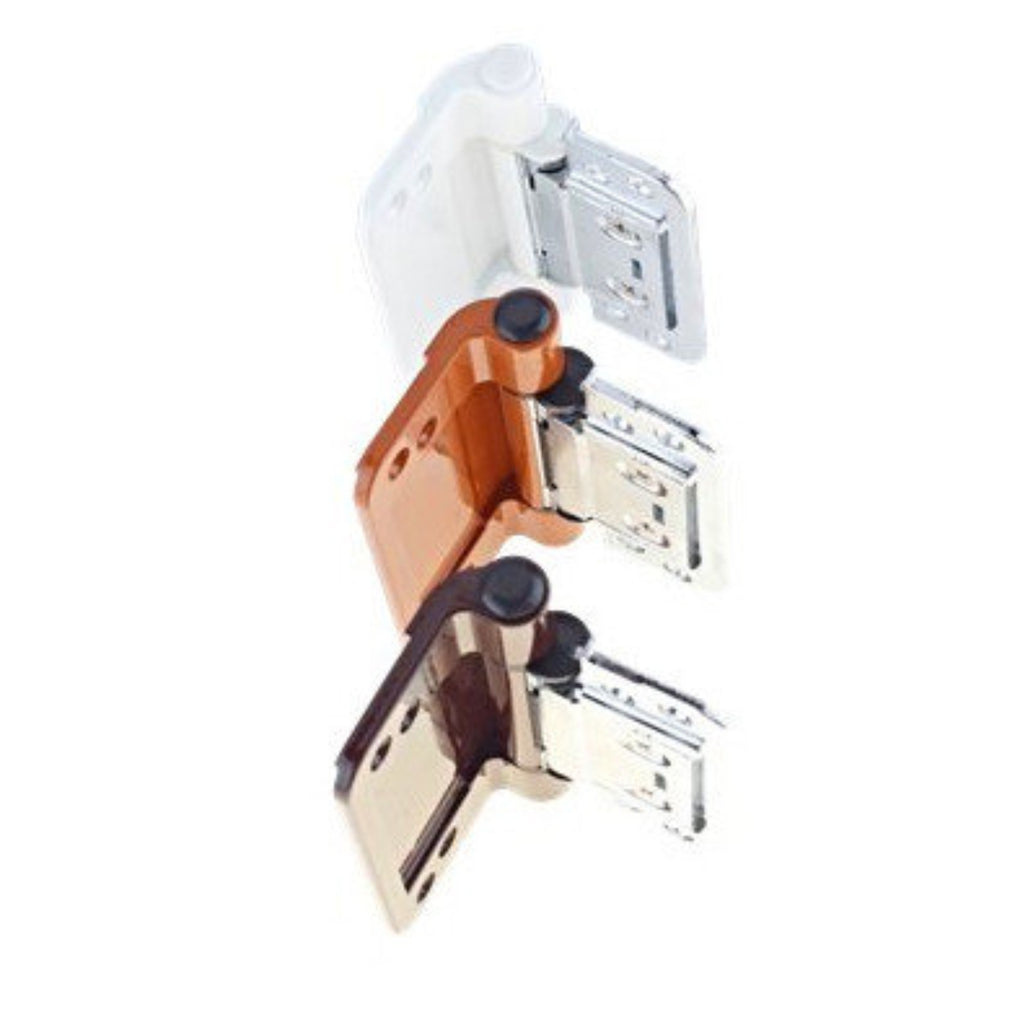

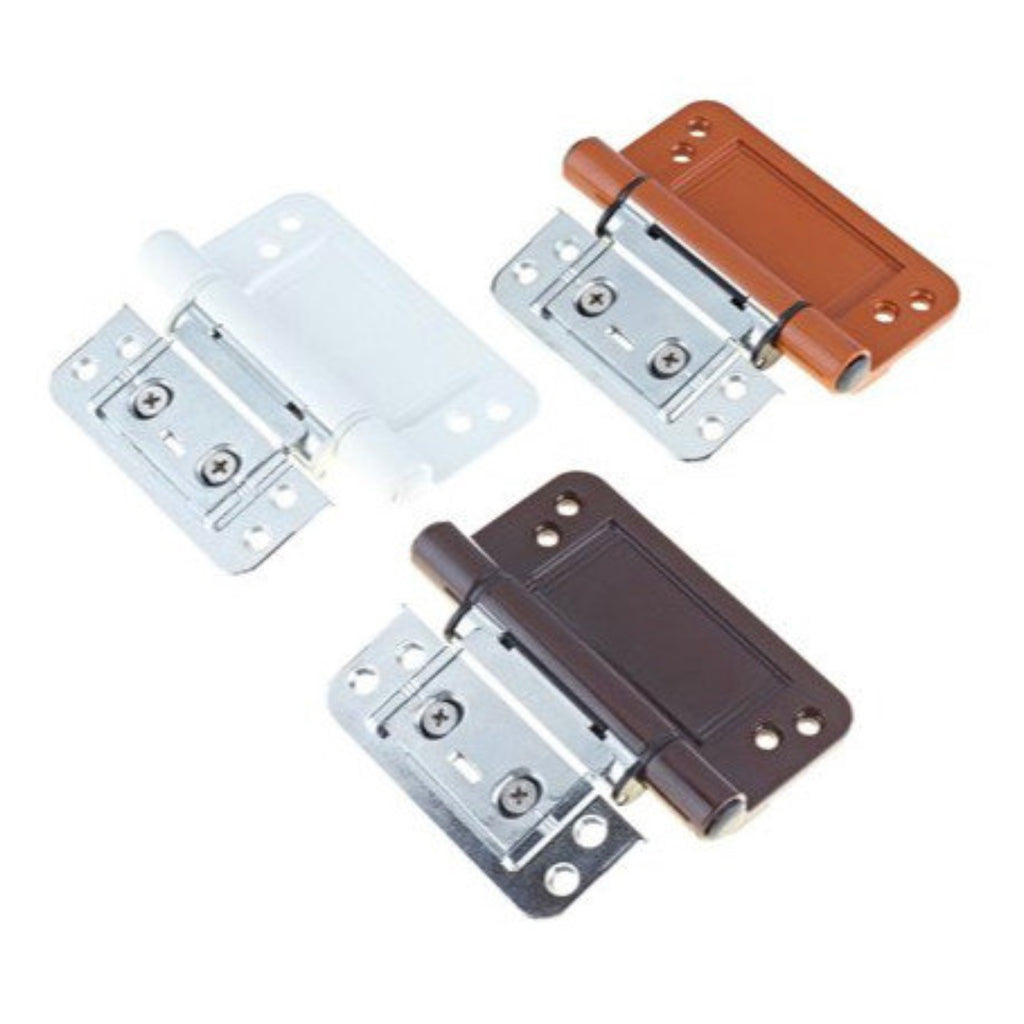

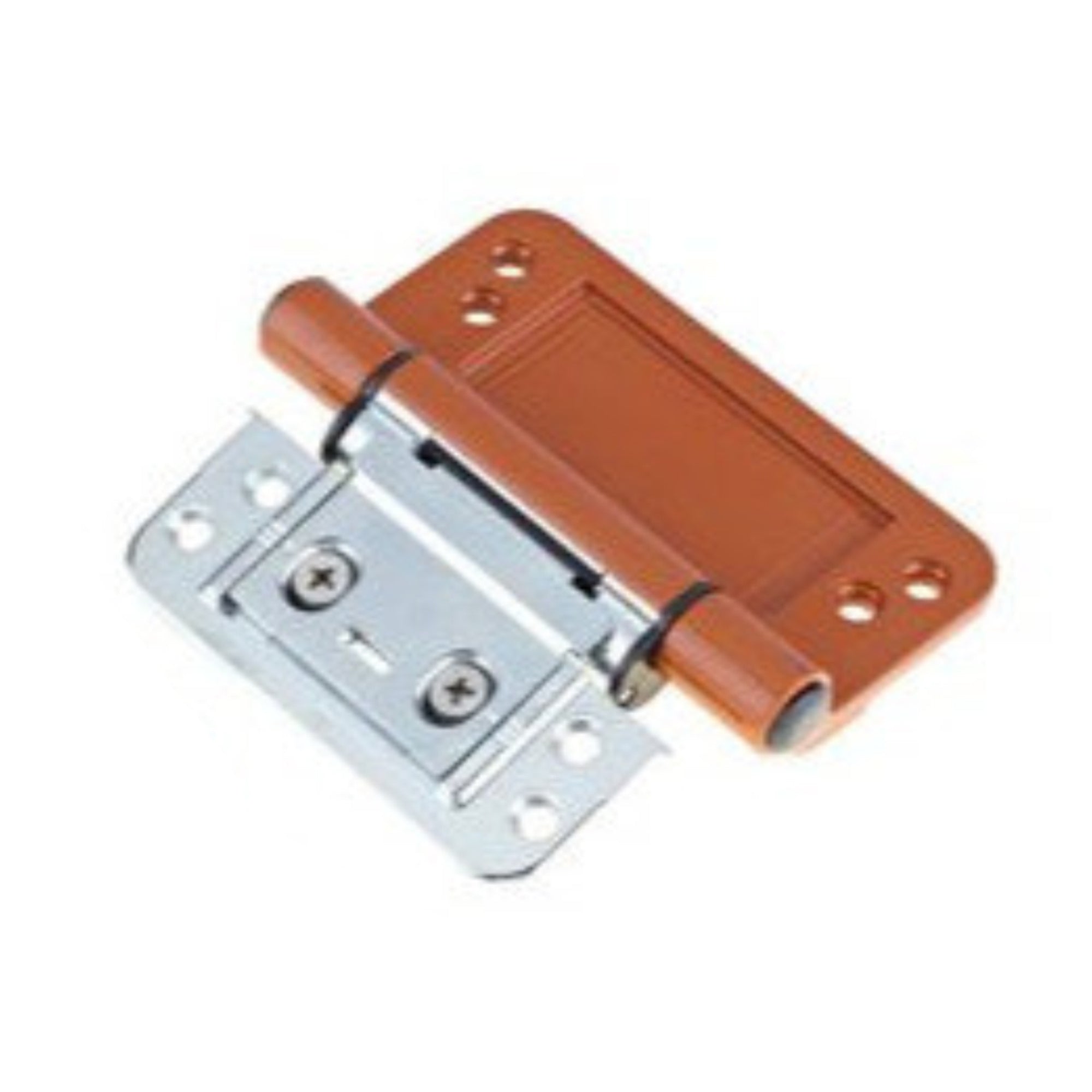

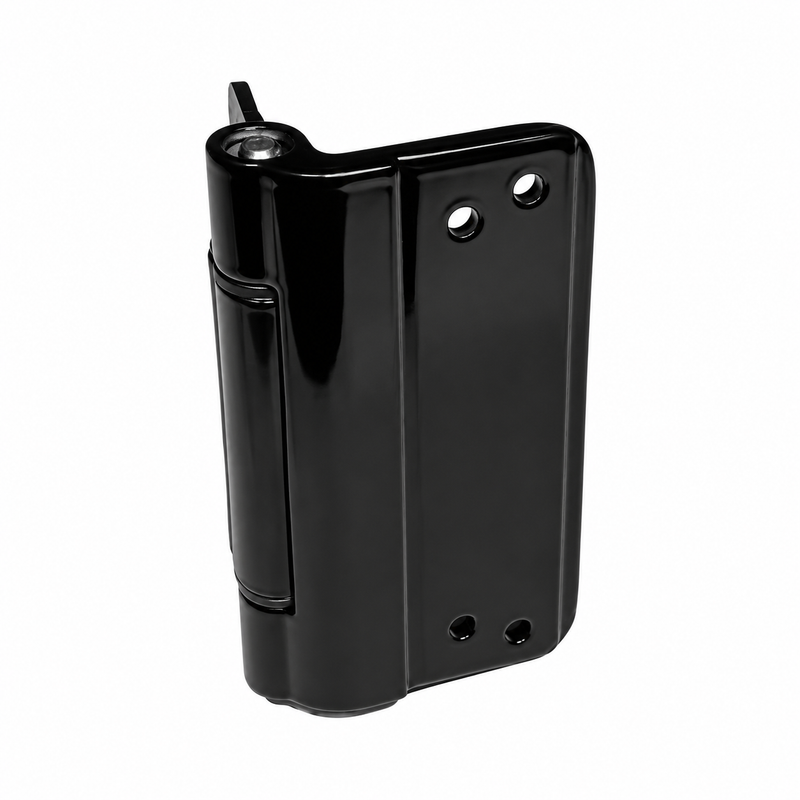

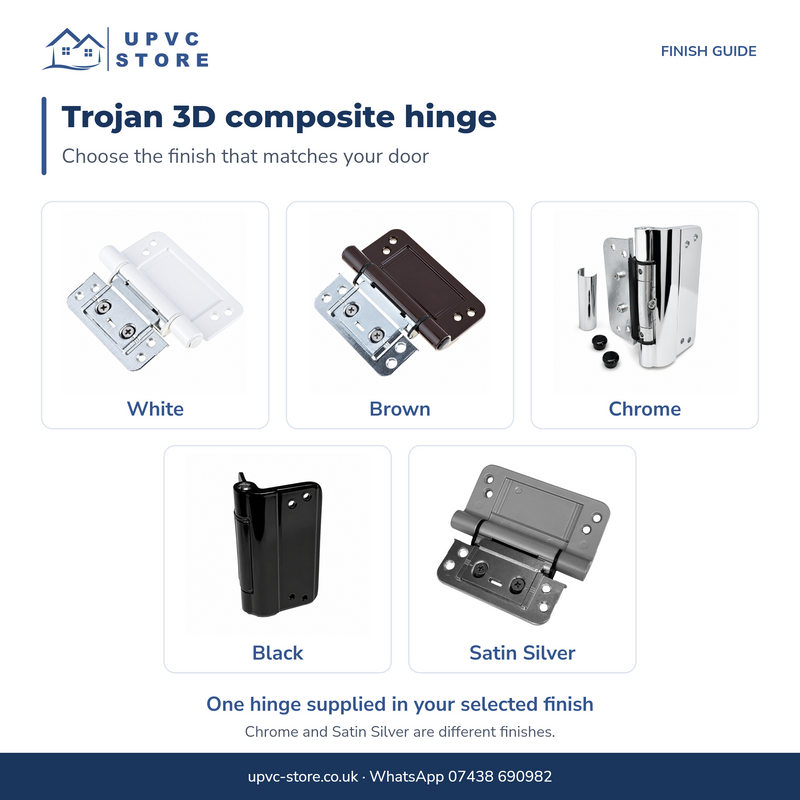

Available in White, Brown, Black, Chrome and Satin Silver. Chrome has a reflective finish; Satin Silver has a softer, satin appearance. Choose the finish that matches your existing hardware.
Dimensions and adjustment
| Measurement | Specification |
|---|---|
| Sash piece height × width | 90 × 34 mm |
| Sash piece thickness / corner radius | 5.5 mm / 10 mm |
| Lateral adjustment | ±3 mm |
| Vertical adjustment | ±4 mm |
| Compression adjustment | ±1.75 mm |
| Maximum door weight with three hinges | 100 kg |
| Maximum door size with three hinges | 1000 mm wide × 2200 mm high |

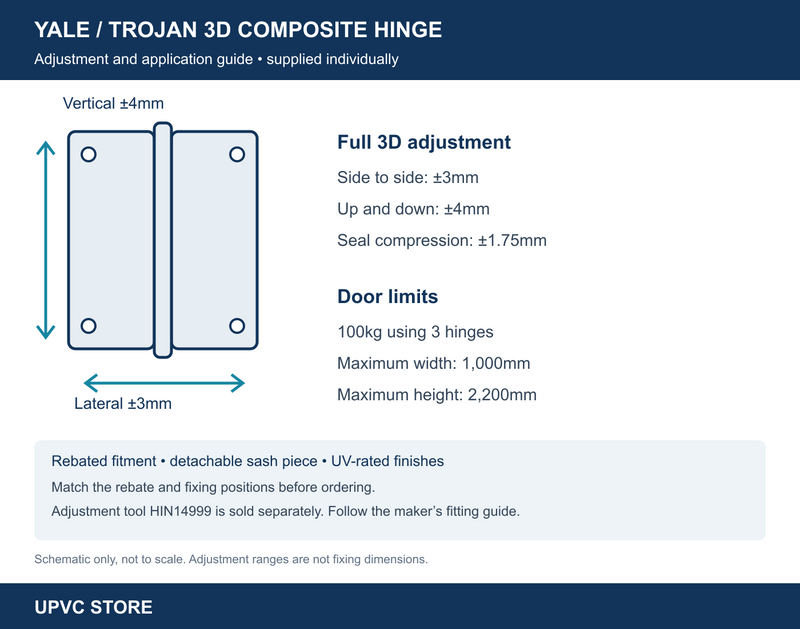

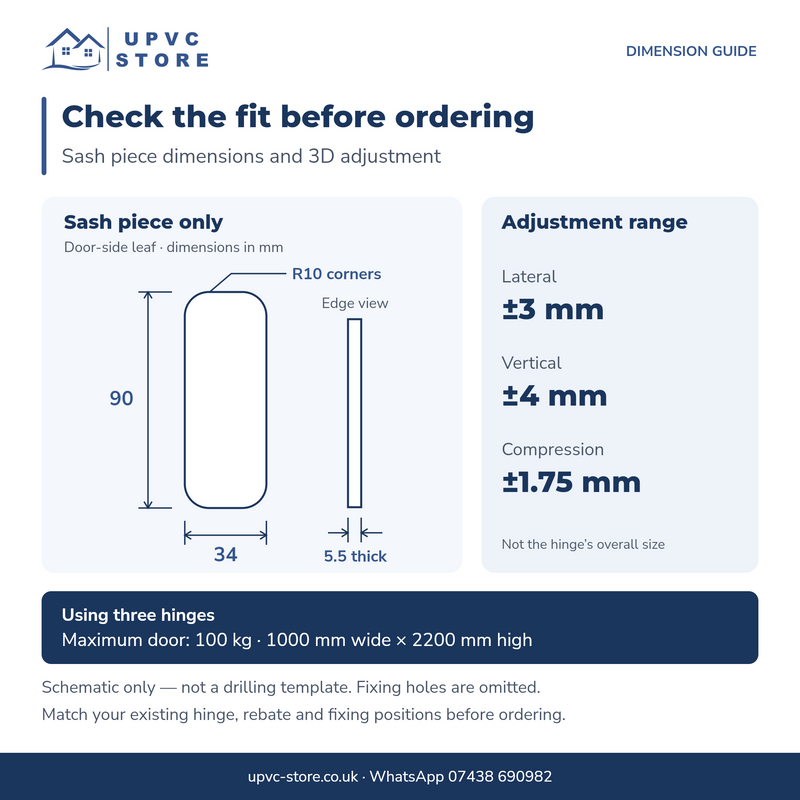

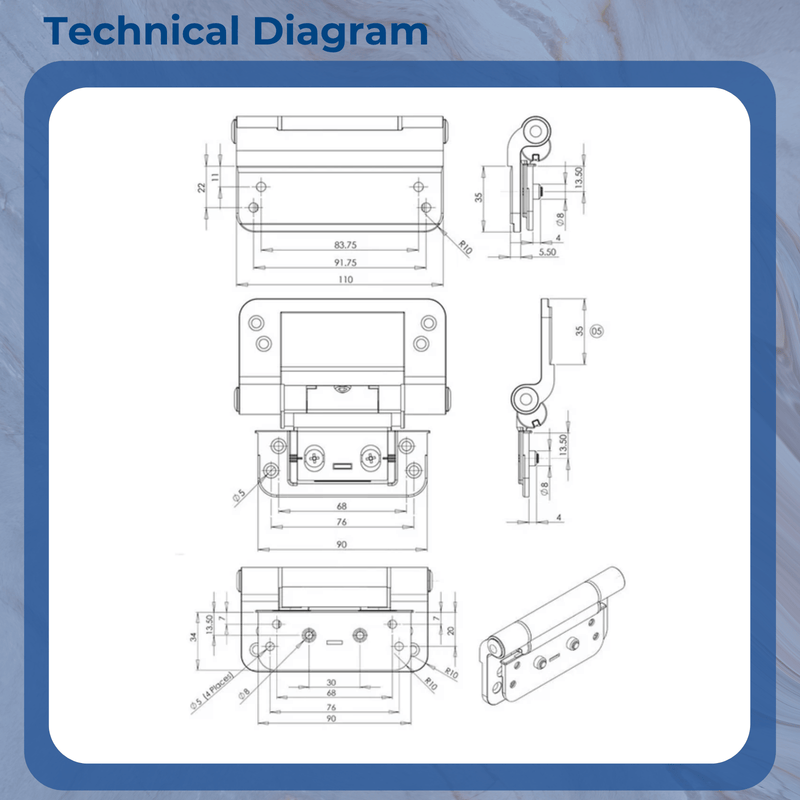

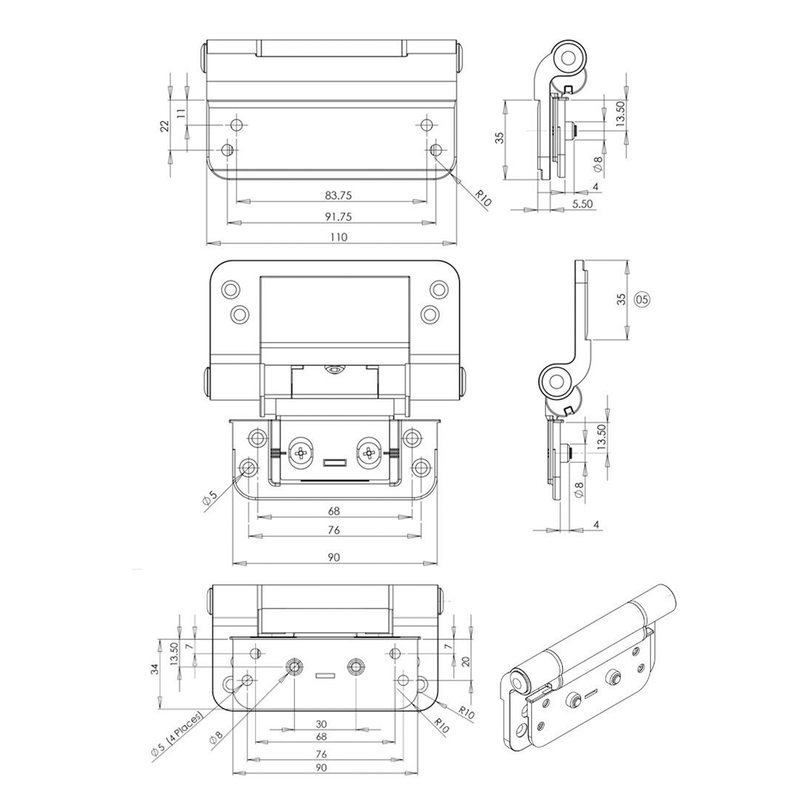

The 90 × 34 mm measurement refers to the sash piece, not the complete opened hinge. Adjustment figures describe movement, not alternative hinge sizes. The diagram is an identification guide, not a drilling template.
Check before ordering
Compare your existing hinge shape, sash-piece dimensions, door rebate and fixing positions. This hinge is designed for rebated fitment; the door make alone does not confirm compatibility. Follow the manufacturer's fitting instructions and support the door safely during adjustment.
The Yale / Trojan adjustment tool HIN14999 is sold separately. View the manufacturer's adjustment instructions.
Manufacturer-stated 10-year mechanical guarantee, subject to correct installation and maintenance.
Bought from UPVC Store, backed by UPVC Store
Unsure whether this is your hinge? Send a photo of your existing hinge, the door rebate and your measurements before ordering.
