Yale Defender Slimline Friction Hinges – Pair
Replacement friction stays for compatible top-hung or side-hung windows with a narrow hinge channel. The Defender Slimline range uses a 15mm-wide track and 13mm stack height. Each option is supplied as a pair of hinges.
Choose your size
| Nominal length / application | Window Ware code |
|---|---|
| 8 inch top hung | HIN81508 |
| 10 inch top hung | HIN81510 |
| 12 inch top hung | HIN81512 |
| 16 inch top hung | HIN81516 |
| 20 inch top hung | HIN81520 |
| 24 inch top hung (heavy duty) | HIN81524 |
| 12 inch side hung | HIN82512 |
| 16 inch side hung | HIN82516 |

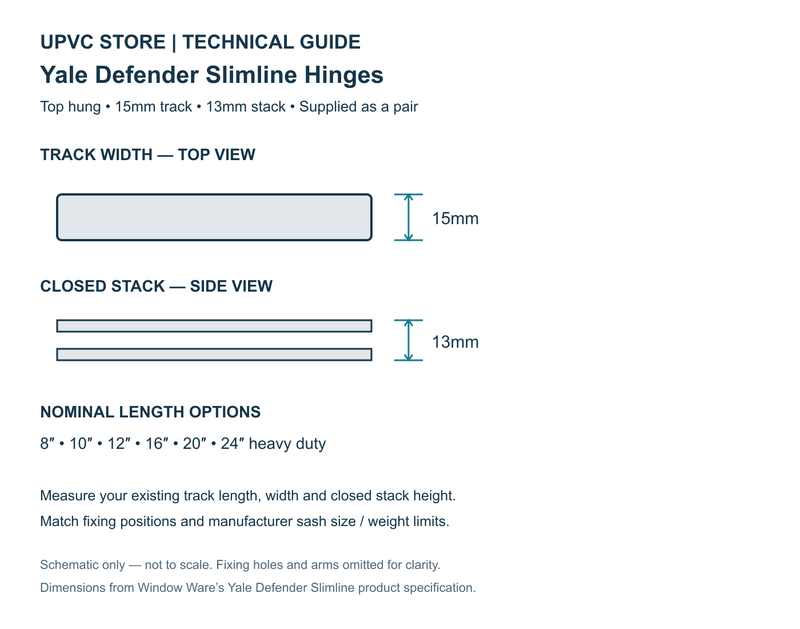

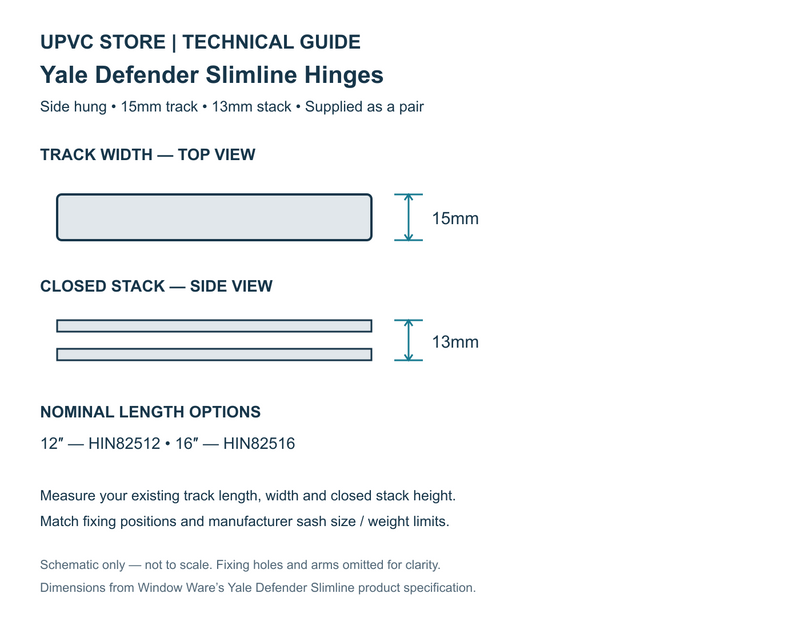

Technical information
- Application: choose top hung or side hung to match your window
- Track width: 15mm
- Stack height: 13mm
- Pack contents: one pair of friction hinges
- Adjustable friction for controlled operation
- Slot-hole-slot vent fixing arrangement for reinforced frames
- Enclosed end cap

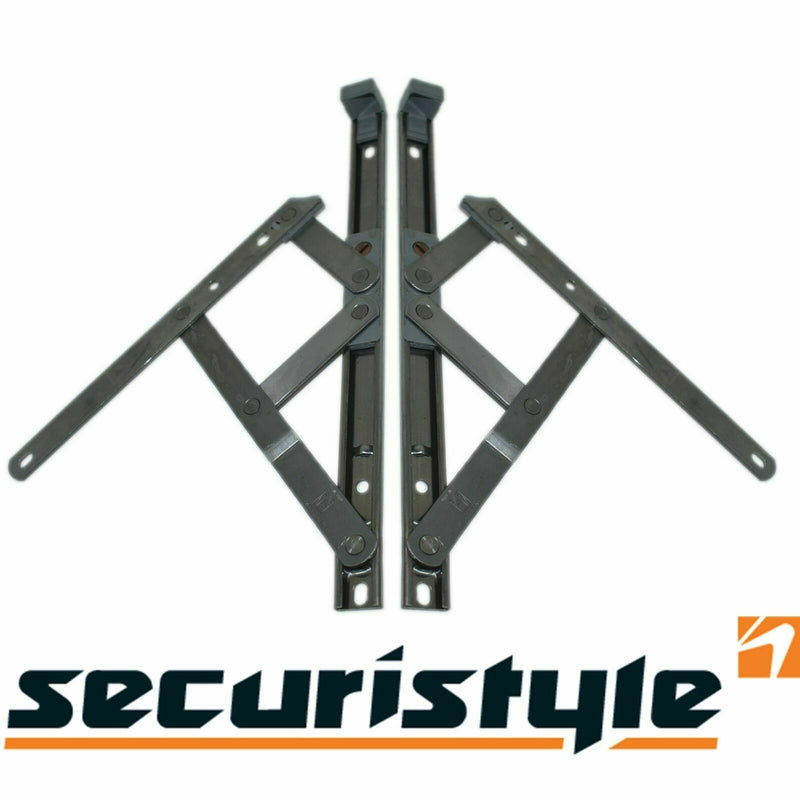

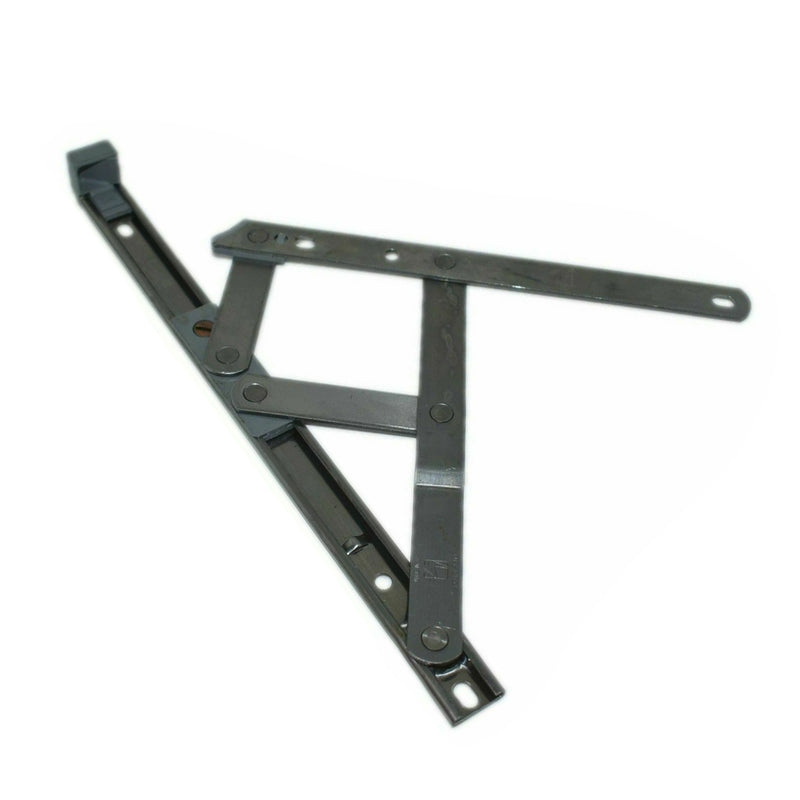

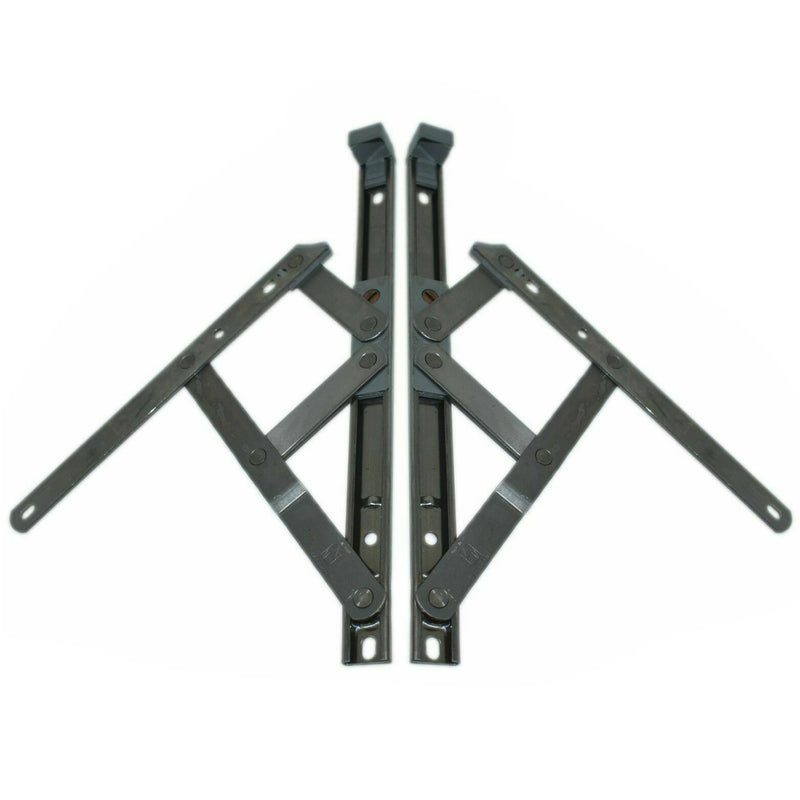

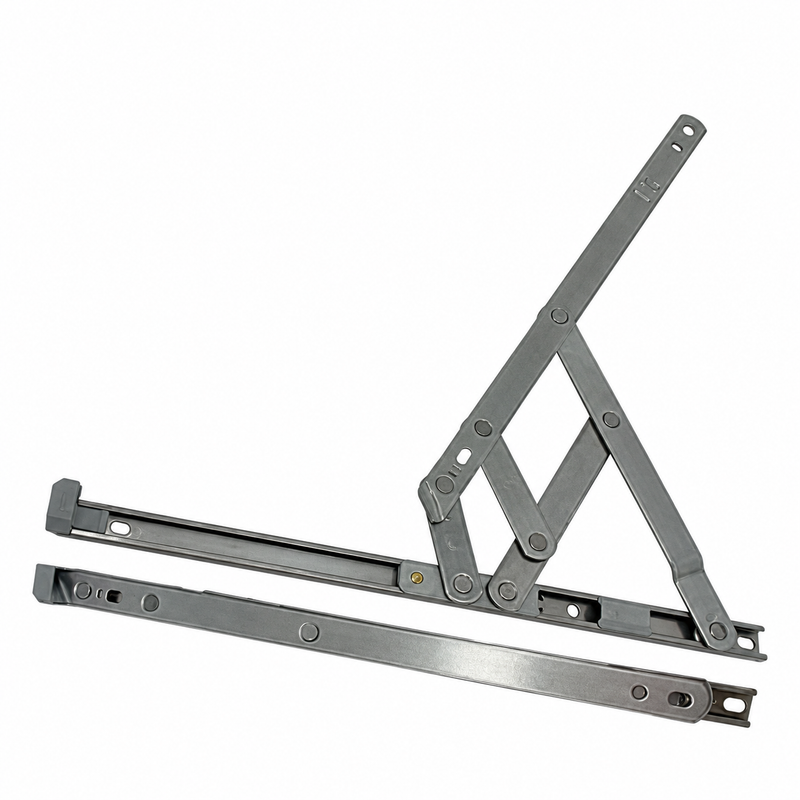

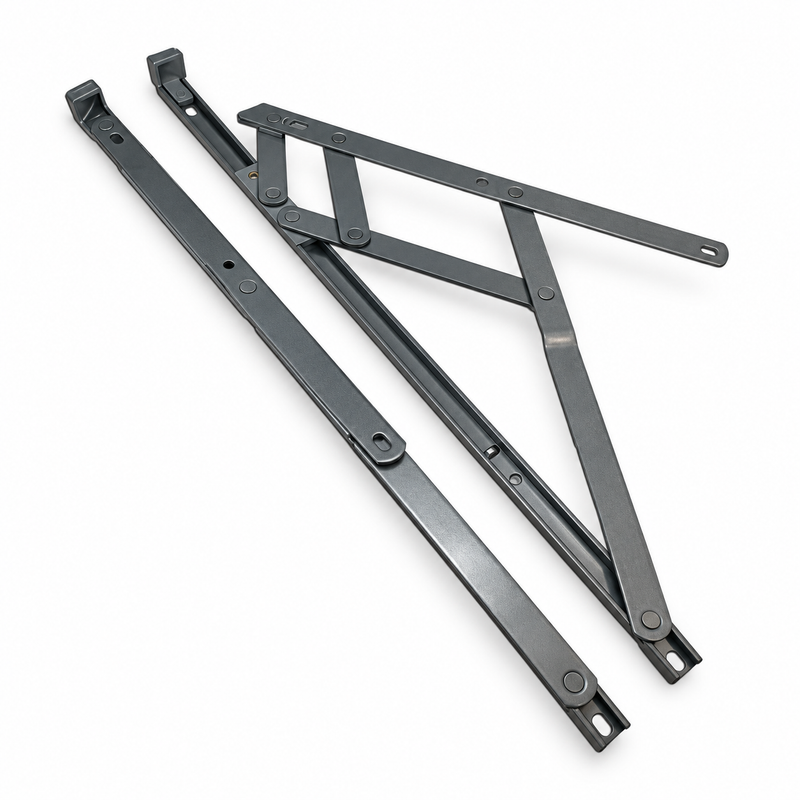

Match the existing hinge length, track width, stack height and fixing positions before ordering. Select a hinge suitable for the sash dimensions and weight using the manufacturer’s specification. Top-hung and side-hung stays are not interchangeable. Product photograph illustrates the range; arm layout varies with size.
