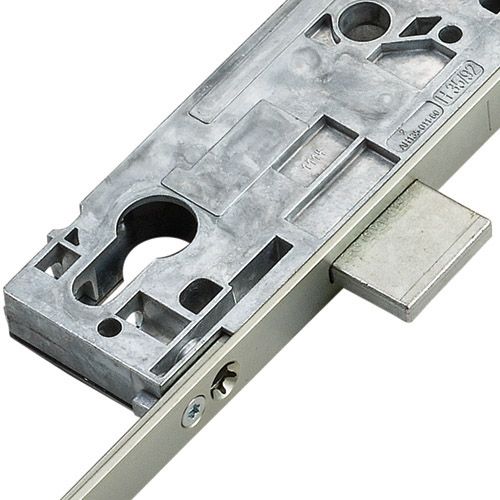

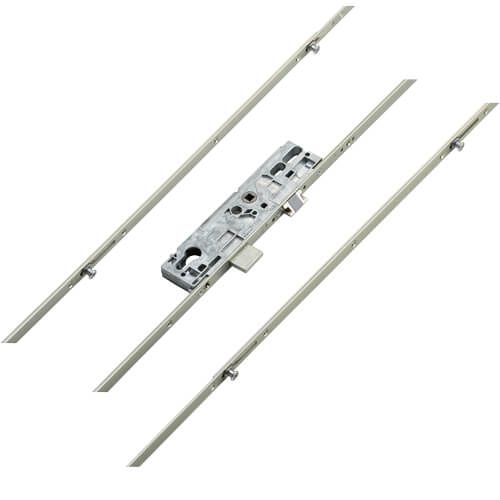

Roto H600 Latch Deadbolt 4 Mushrooms Lift Lever

The H600 is Roto's latest lock and this version will replace the old 4 roller Roto locks although keeps may need to be repositioned.

Operation: Lift lever.

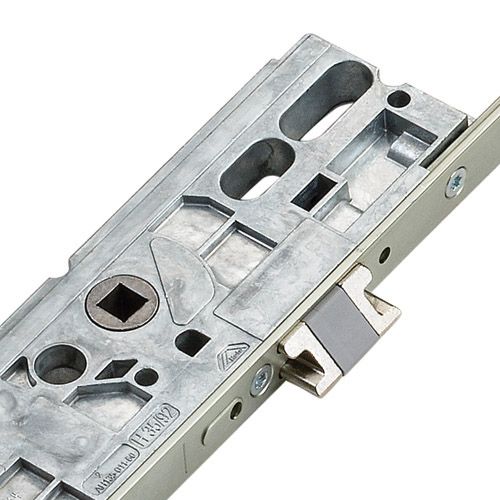

Latch reversal: Insert an allen key into the small hole above the latch. Push all the way through and press down to release the latch. Remove the latch reverse and reinsert.

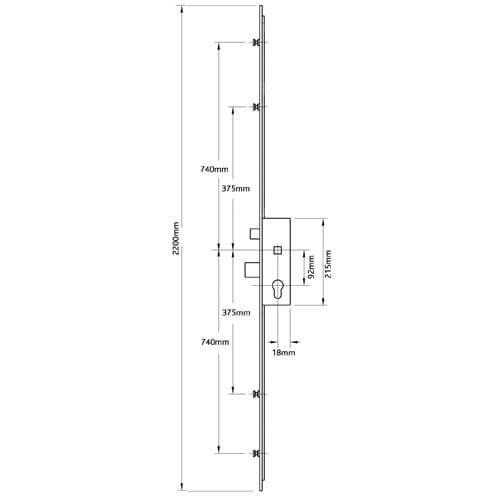

Technical Information

• Centres: 92mm
• Case height: 215mm
• Case depth: 35mm Backset + 18mm
• Overall length: 2200mm

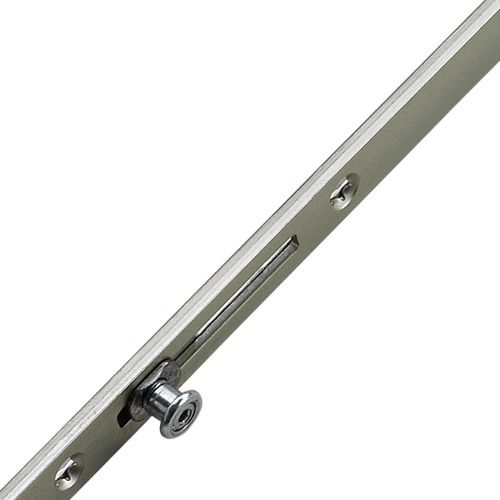

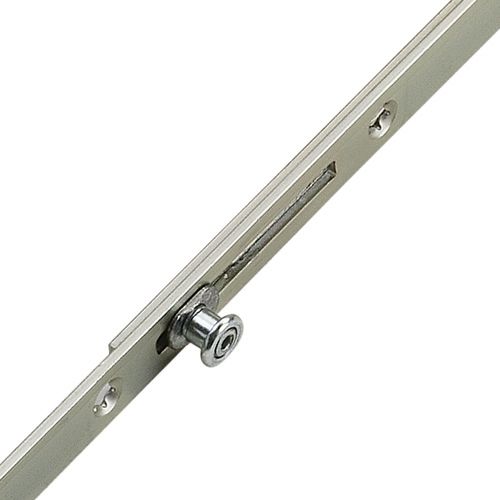

• Outer Mushrooms : 1480mm
• Distance between inner mushrooms : 750mm
