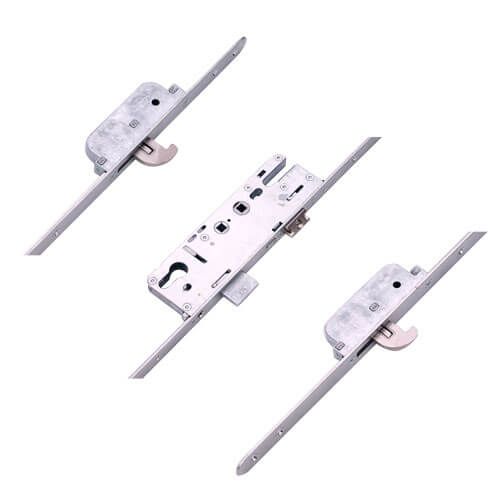

Roto Elite Latch Deadbolt 2 Hooks Double Spindle 92PZ 62PZ Multipoint Door Lock 35mm Backset

This Elite multipoint lock is a direct replacement for some of the old Roto locks.

Backset:35mm

Centres: 92mm/62mm

• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1

Operation: Lift lever or double spindle nightlatch

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.

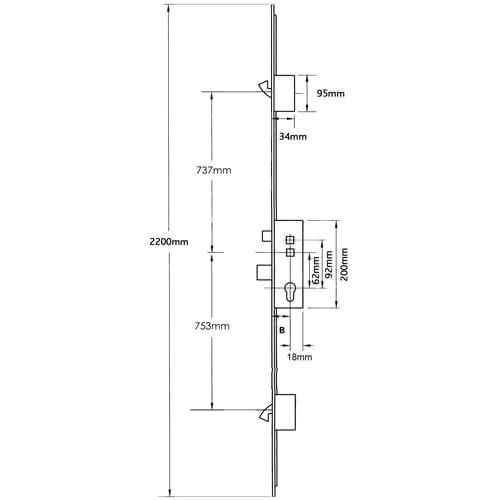

Technical Information-

• Centres: 92mm / 62mm
• Case height: 200mm
• Case Depth: Backset + 18mm
• Overall Length: 2200mm
• Distance between hooks: 1490mm
• Rounded 20mm Faceplate
• Hooks throws upwards
• Shootbolts not compatible
