Multipoint Door Lock Refurbishment Kit – Double Spindle with 2 Anti-Lift Hooks – 35mm or 45mm Backset – Multipoint Lock Repair Set

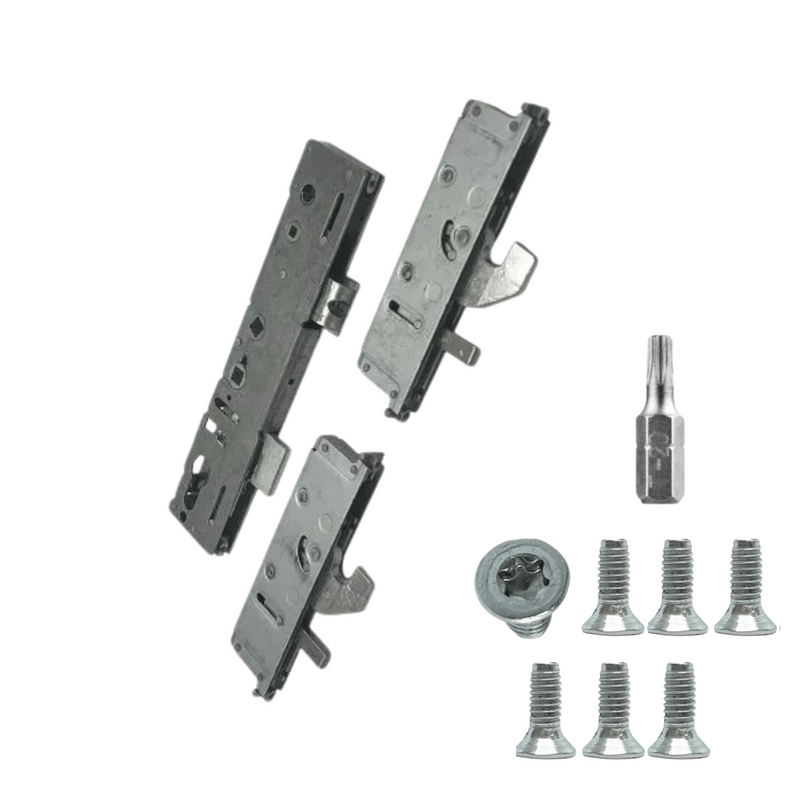

What's Included?

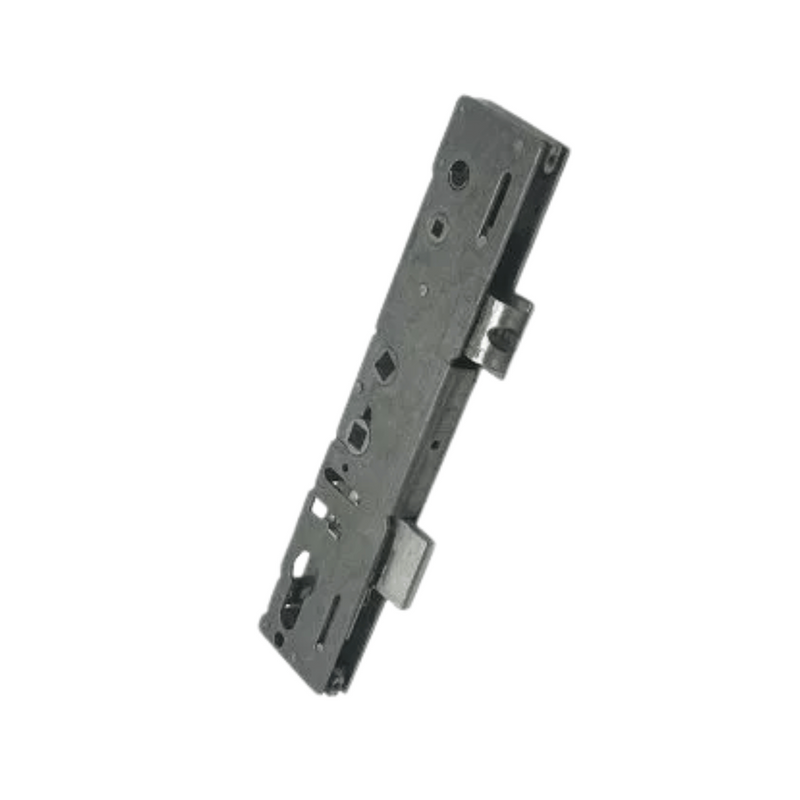

• 1 x Central gearbox with latch & deadbolt
• 2 x Small hook cases (opposing direction)

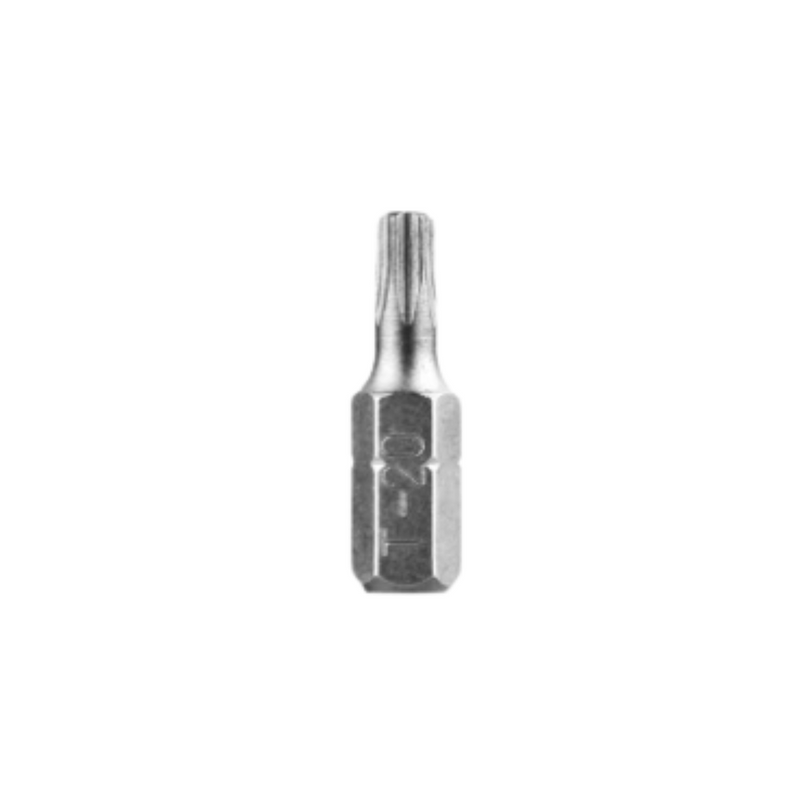

• 1 x T20 Torx bit

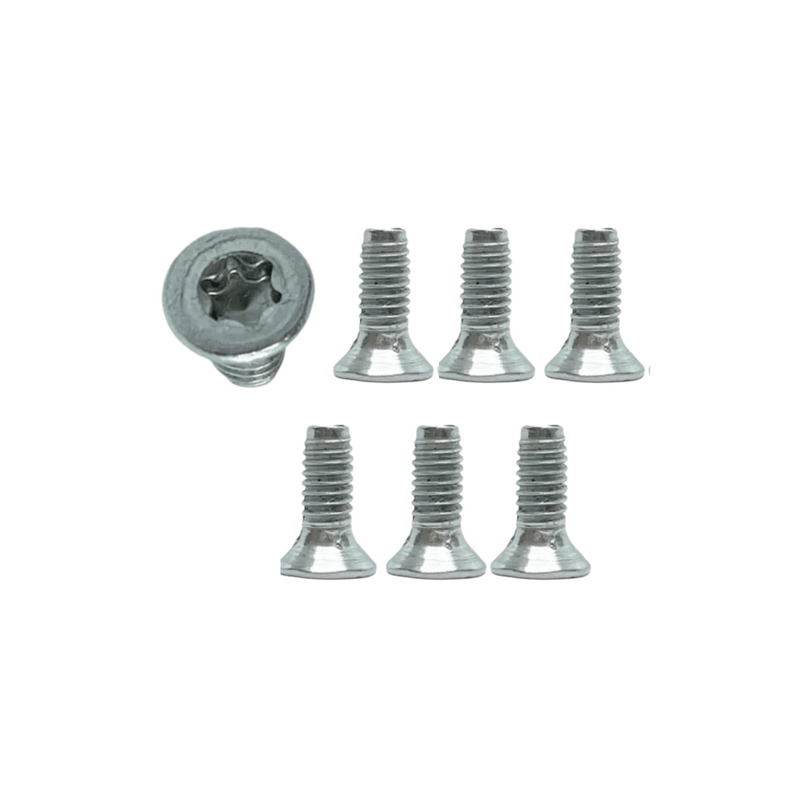

• 7 x M4.0 grub screws

Product Information

This all-in-one refurbishment kit is designed to restore and repair Lockmaster multipoint door lock mechanisms featuring a double spindle latch and deadbolt centre case, along with two hook and anti-lift bolt cases.

Engineered as a compact, efficient repair solution, this kit fits neatly into a box no larger than a pizza box—ideal for locksmiths, installers, and mobile van stock. It offers a fast and convenient way to overhaul failed multipoint locks without sourcing a full-length replacement.

Common failures in multipoint locks occur in the spindle follower, locking points, or internal gearbox components. However, faceplates and drive rods are often still functional. This kit includes all the bolt-on components needed to fully refurbish the lock system while reusing the original faceplate—saving time, cutting costs, and reducing waste.

Eliminating the need to identify specific model numbers or wait for lengthy replacements, this system allows for a complete repair in just one visit. Simply choose the appropriate backset and locking point kit from your van, install the components, and restore the door lock to full working condition—quickly and reliably.

No trimming. No delays. No return visits. With reduced parcel size and simplified inventory, this solution also lowers carbon emissions and packaging waste, making it the smart, sustainable choice for professional lock repairs.

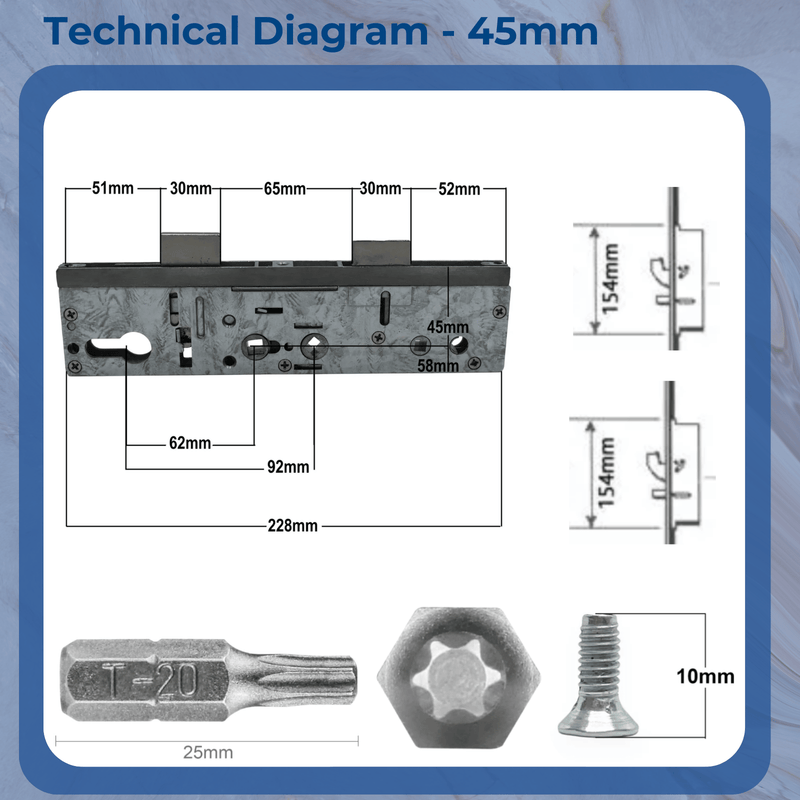

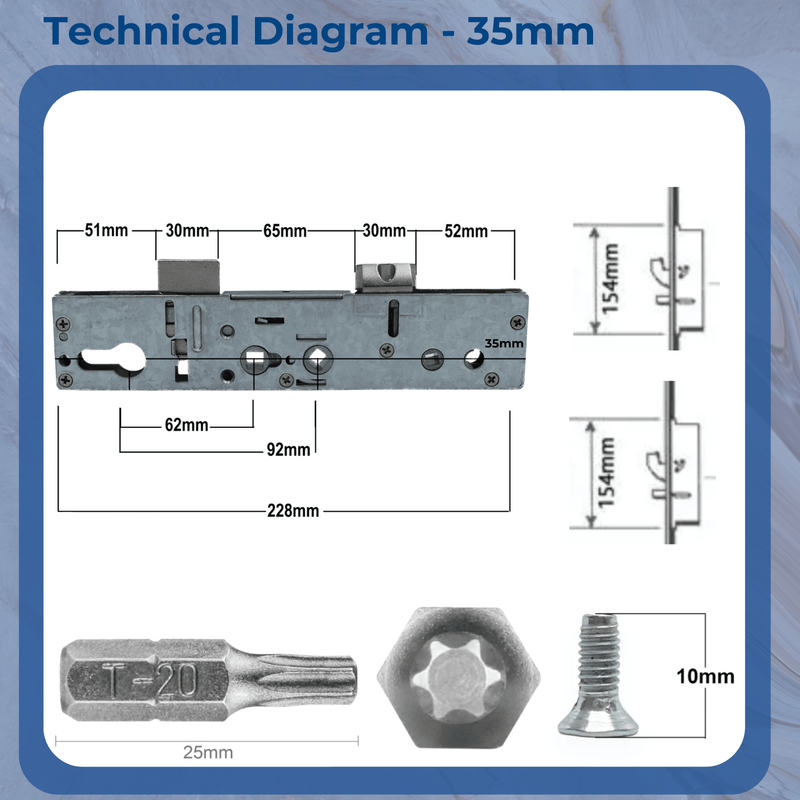

Product Specifications

• Manufacturer Compatibility: Lockmaster
• Backset: Select from dropdown
• Centres (PZ): 92mm / 62mm
• Spindle Size: 8mm
• Spindle Type: Double Spindle
• Hooks: 2
• Latch: 1
• Deadbolt: 1
• Anti-Lift Bolts: 2
• Main Gearbox: Latch & Deadbolt Configuration
• Operation: Select from dropdown
• Handing: Universal (Non-handed)
• Compatible Door Materials: uPVC, Aluminium, Timber, Composite
