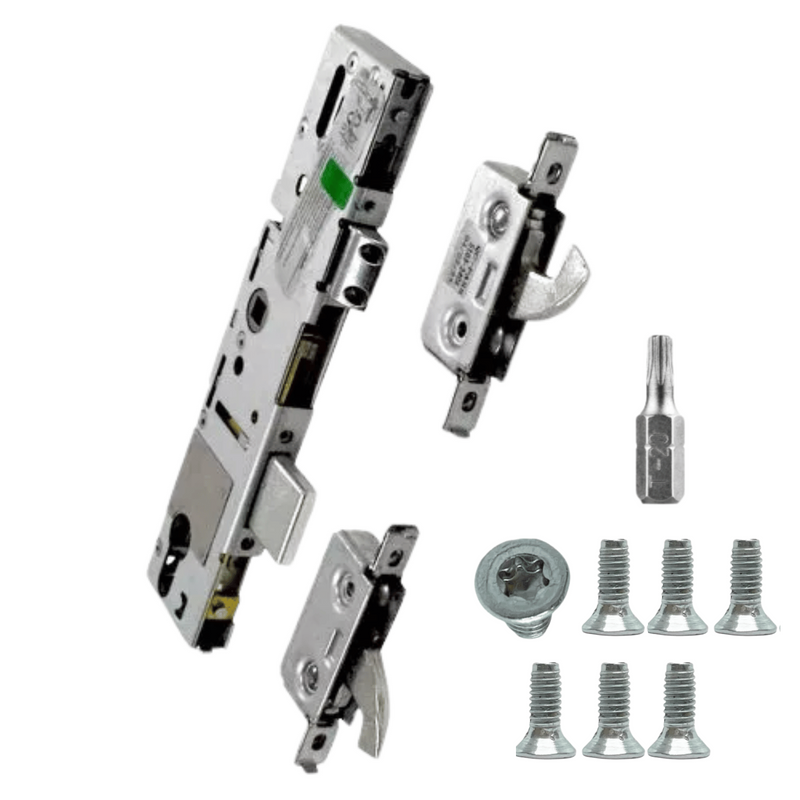

What's Included?

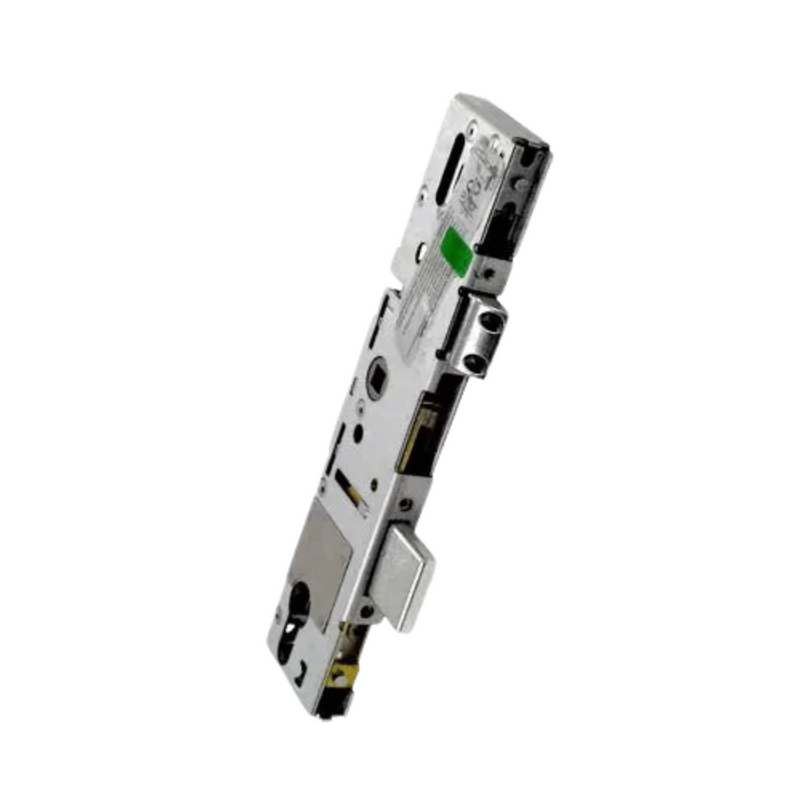

• 1 x Central gearbox with latch & deadbolt

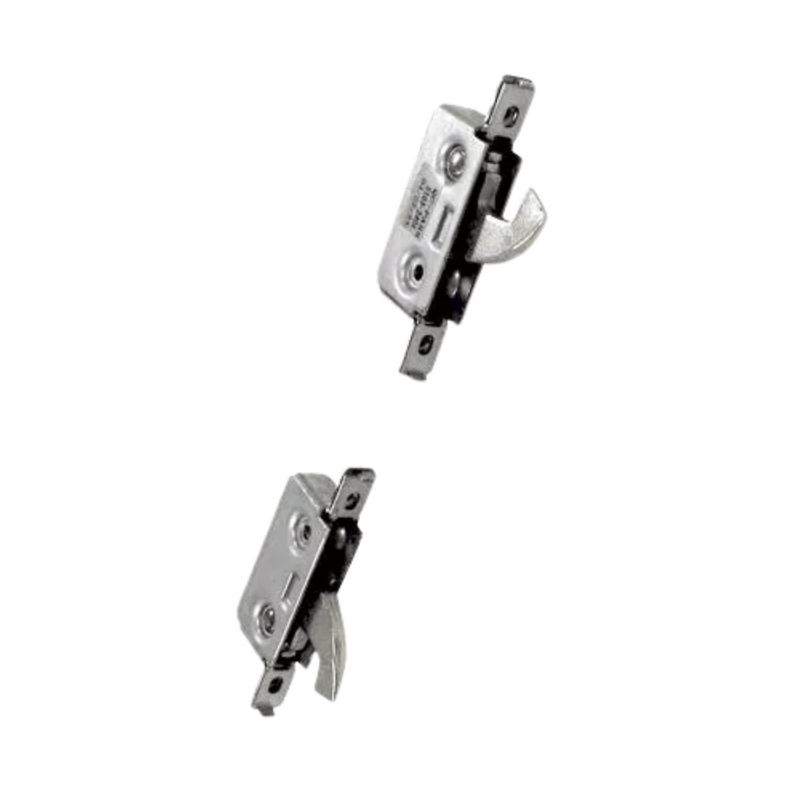

• 2 x Small hook cases (opposing direction)

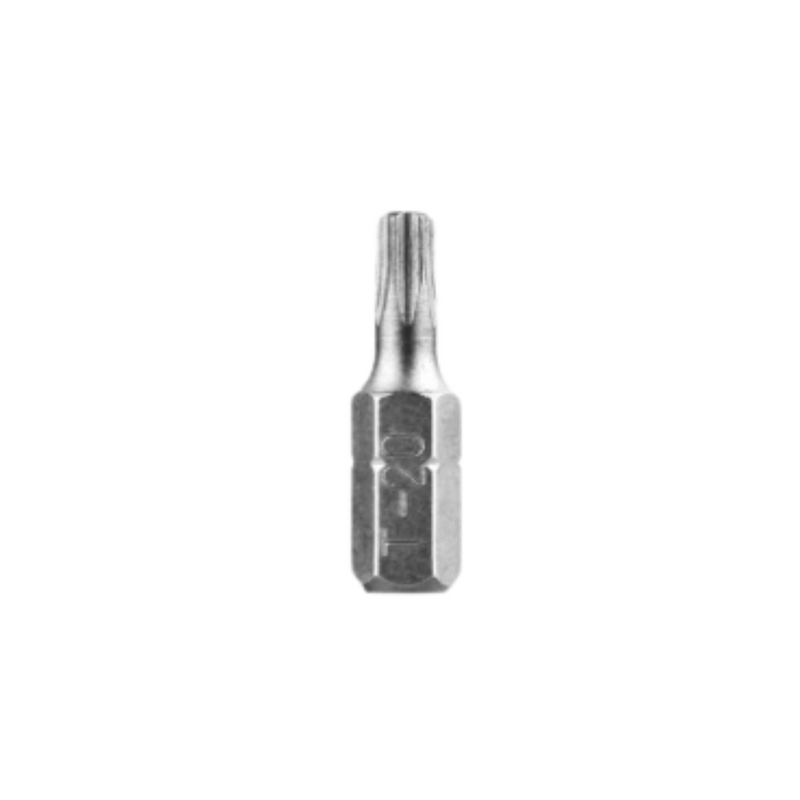

• 1 x T20 Torx bit

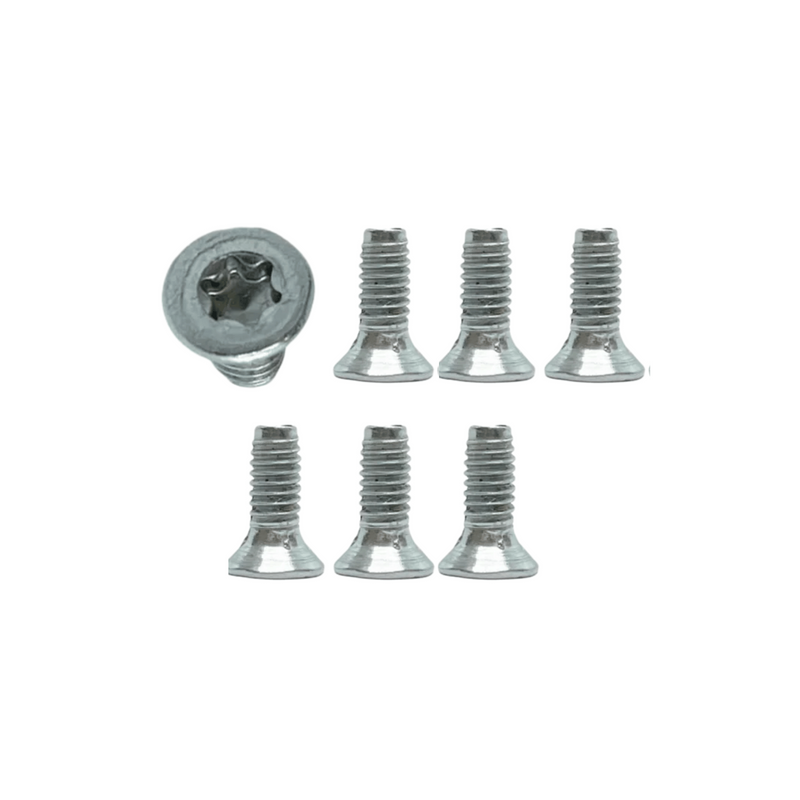

• 7 x M4.0 Grub Screws

Product Information

This comprehensive refurbishment kit includes everything required to restore a standard euro cylinder multipoint door lock system. It features a latch and deadbolt centre case (with a 6mm standard deadbolt) and two small opposing hookbolt locking points.

Designed to repair and recommission faulty or damaged multipoint door locks, this compact repair kit fits into a package no larger than a pizza box – perfect for van stock or mobile locksmiths.

Most lock failures are due to internal gearbox or locking component issues. However, the faceplate and connecting rods typically remain in good condition. This kit replaces all bolt-on components, providing a complete restoration without the need for a full-length lock replacement.

With this refurbishment system, there's no need to identify or wait for an exact replacement. Simply select the correct backset and locking configuration from your stock, attach the new components to the existing faceplate, and reinstall the lock — all in a single visit.

Key Benefits

• Complete overhaul solution for failed multipoint door locks
• Eliminates need for full-length replacements and return visits
• Compact and easy-to-store packaging
• Sustainable option – reduces waste, packaging, and vehicle emissions

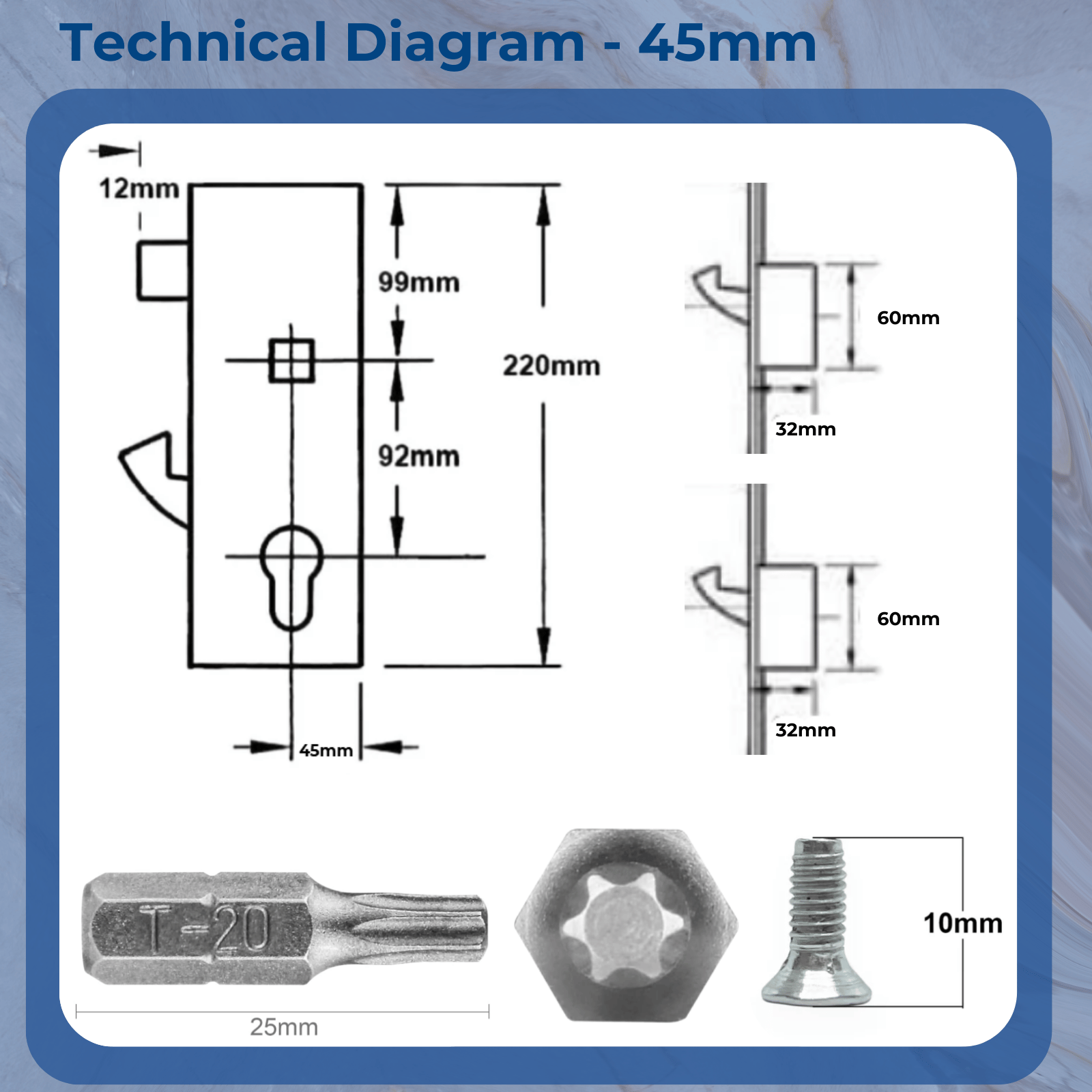

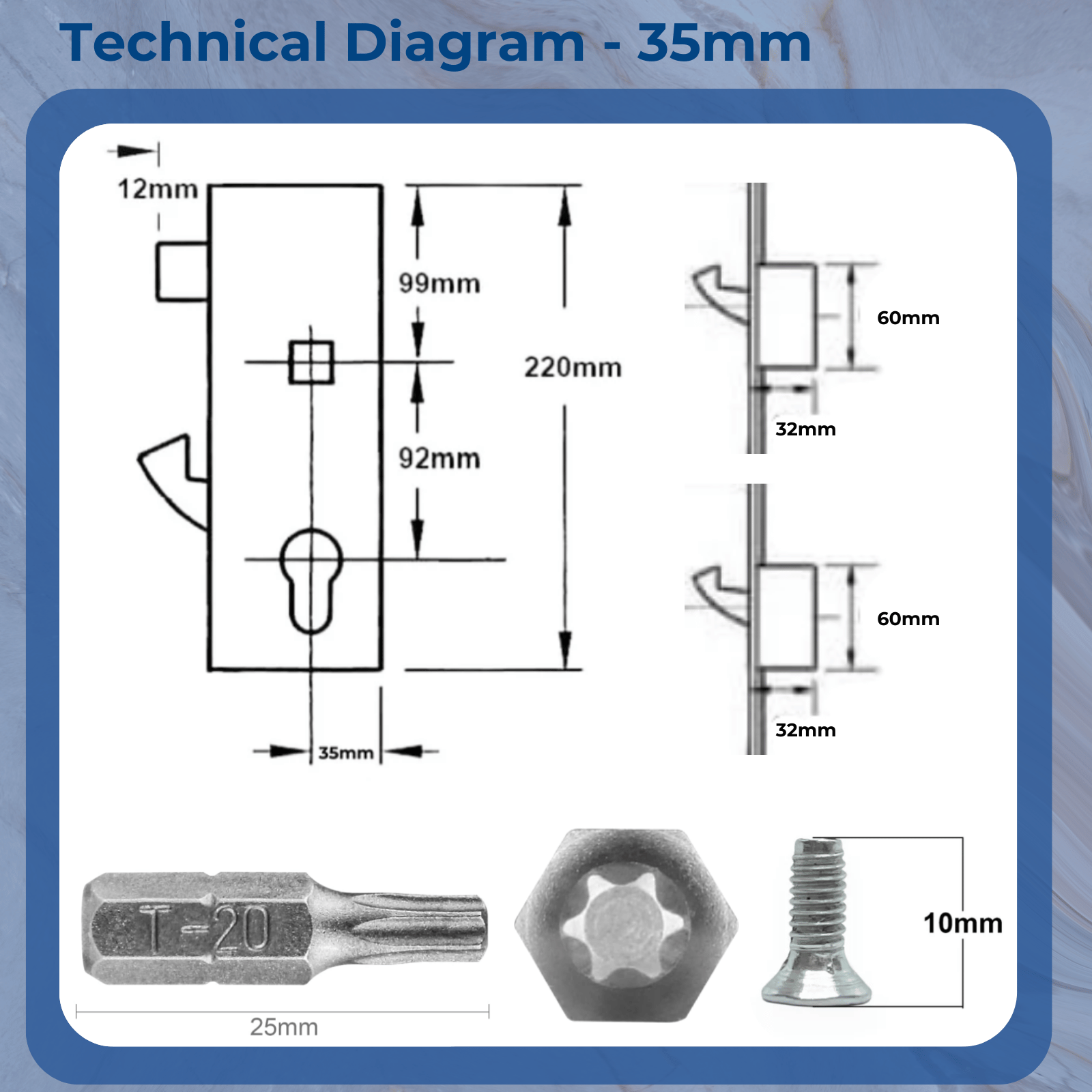

Technical Specifications

• Backset Options: 35mm or 45mm
• Centres (PZ): 92mm
• Spindle Type: Split spindle, 8mm
• Hooks: 2 opposing small hook cases
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & Deadbolt
• Operation Type: Select from dropdown
• Handing: Non-handed (suitable for left or right-handed doors)
• Door Compatibility: uPVC, aluminium, composite, and timber doors
