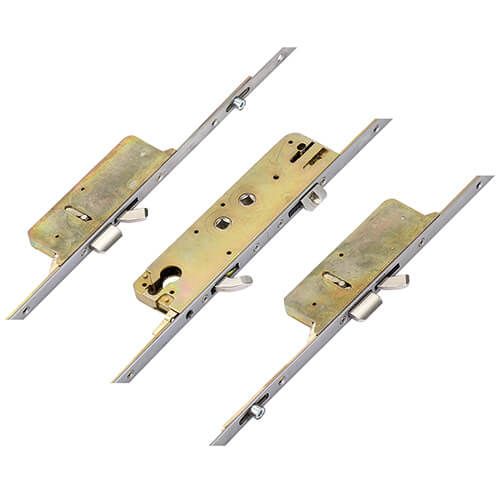

Millenco Mantis 2 Latch 3 Hooks 2 Deadbolts 2 Rollers Double Spindle
The second generation Millenco Mantis lock features 65/95mm centres and is available in 2 variations. This lock features 1300mm hook centres and a 16mm wide faceplate.
Operation: Lift lever or double spindle nightlatch.

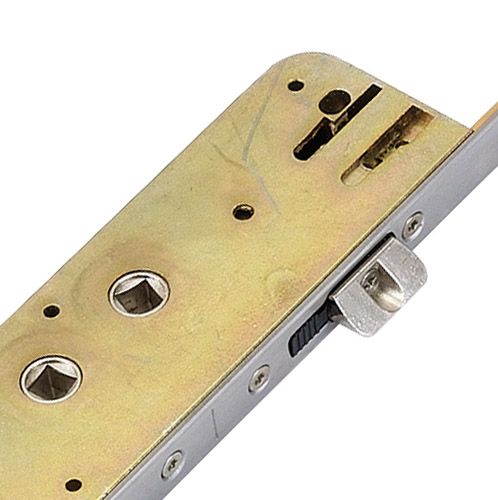

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

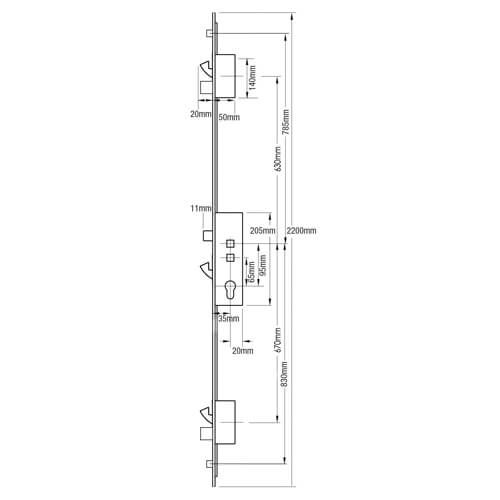

Case height: 205mm
Case depth: 55mm
Overall length: 2200mm
Faceplate width: 16mm
Distance between outer rollers: 1615mm
Distance between hooks: 1300mm
