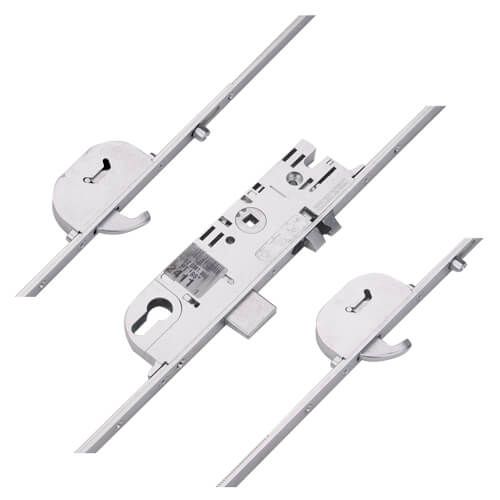

Maco CTS Latch, Deadbolt, 2 Rollers, 2 Hooks - Master French Door Lock Section

The CTS lock is the new range from Maco but the locking points are in different positions so do not directly replace old locks. This lock is designed for use on French doors.
Operation: Lift lever


Latch reversal: Push serrated button on side of case up to release latch, reverse and reinsert latch

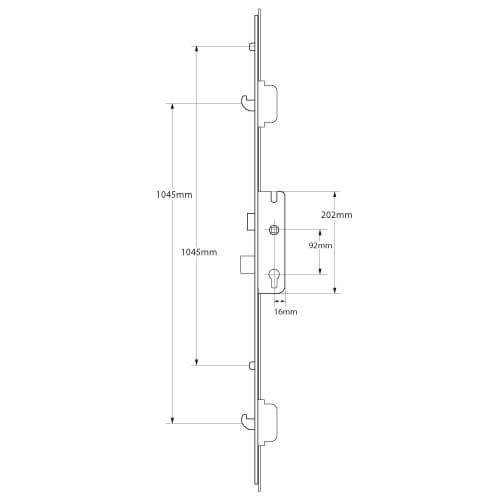

Technical Information

Case height: 202mm
Case Depth: Backset + 16mm
Centres: 92mm
Distance between hooks: 1046mm
Distance between rollers: 1046mm
