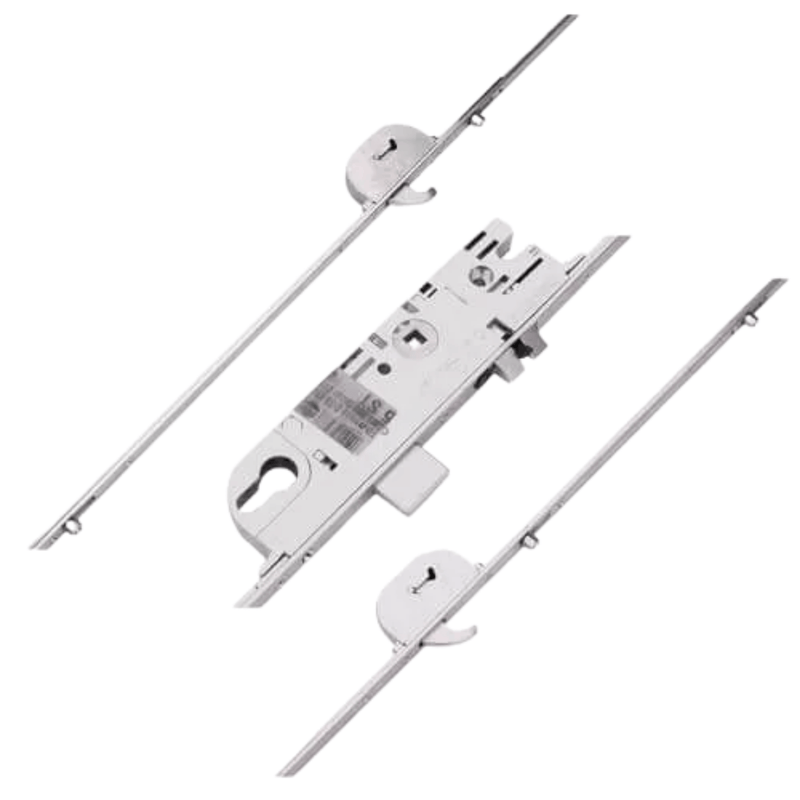

Maco C-TS Multipoint Door Lock – Split Spindle with Latch, Deadbolt, 4 Rollers & 2 Hooks
Maco C-TS Multipoint Door Lock – Split Spindle with Latch, Deadbolt, 4 Rollers & 2 Hooks
Product Information
Upgrade your door security with the Maco C-TS Split Spindle Multipoint Door Lock, featuring 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. Designed for uPVC and aluminium doors, this lock delivers advanced performance and long-term reliability.
The Maco C-TS is part of Maco’s modern Protect range, introduced in 2012 to replace the older G-TS models. While it serves as a functional replacement, the locking points differ in position, meaning it's not a direct swap. Some adjustment, including keep relocation, may be required during installation.
Key Features
- Split spindle operation: Suitable for both lift lever and split spindle configurations.
- High-security design: Includes 2 hooks (one with optional anti-lift pin), 4 i.S. rollers, 1 latch, and a central deadbolt.
- i.S. rollers: Hardened steel and adjustable for compression sealing and to prevent door warping.
- Distinctive soft latch: Features a recognisable split latch design (note: latch variants exist within the C-TS range).
- Compact gearbox: Only 202mm high, one of the smallest on the market, with a uniquely rounded design.
- Faceplate options: Available in 16mm, 20mm, and “Top Hat” euro groove styles for a flush finish.
Lock Identification
Look for the Maco logo on the faceplate and check for rounded gearbox and hook box edges. If the top corner of the gearbox is missing, it's likely the Maco A-TS automatic locking version – we also stock replacements for that model.

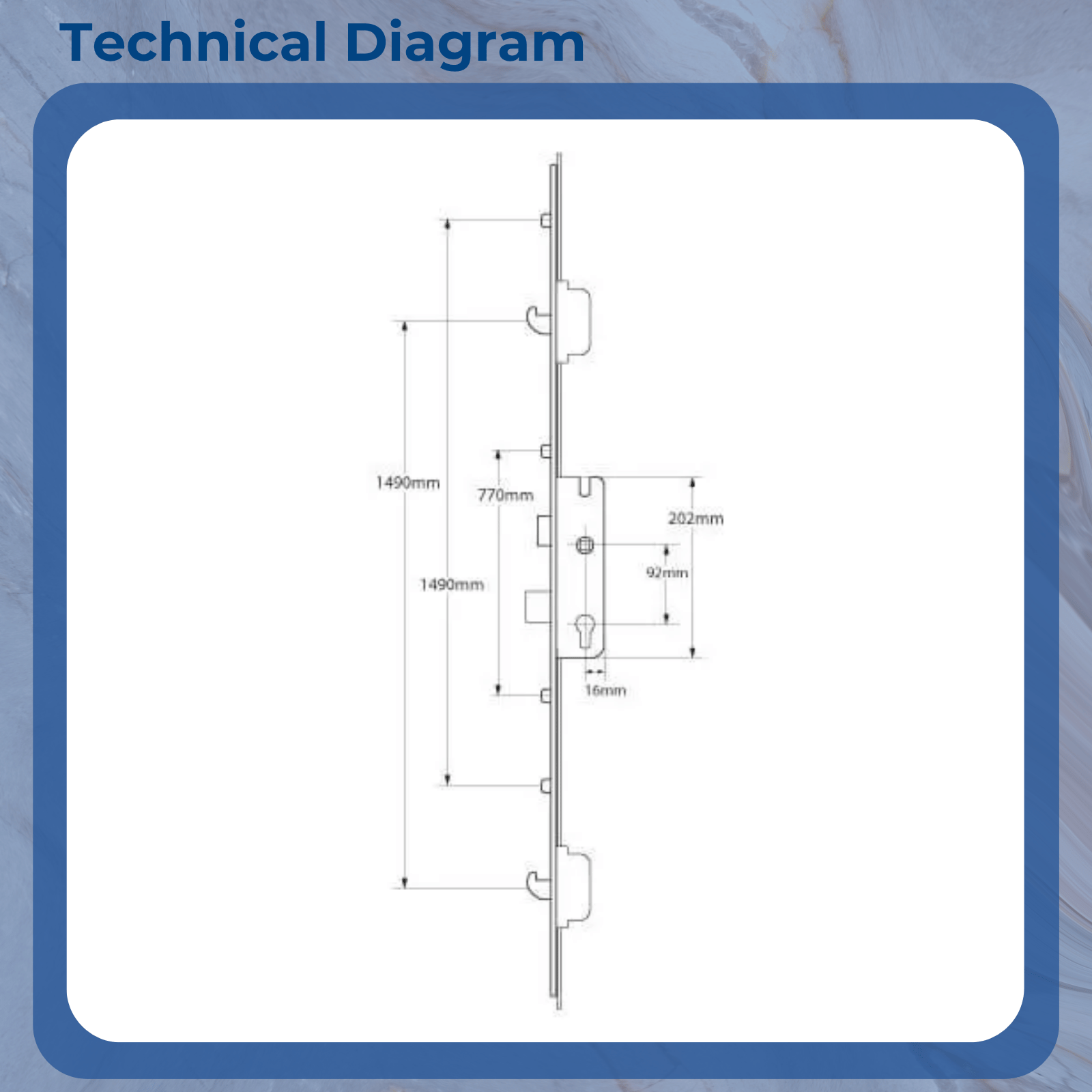

Measurements
- Backset: Available in multiple sizes (allow 2–3mm for faceplate)
- Centres (PZ): 92mm
- Spindle: 8mm split spindle
- Distance Between Inner Locking Points: 770mm
- Distance Between Outer Locking Points: 1490mm
- Top Hook to Spindle: 730mm
- Bottom Hook to Spindle: 760mm
- Top Roller to Spindle: 827mm
- Bottom Roller to Spindle: 663mm
- Lock Height: 2200mm
- Suitable Door Materials: uPVC & aluminium
Locking Mechanism – How It Works
To Lock:
- Lift the handle to engage all locking points.
- Turn the key to lock the deadbolt and secure the system.
To Unlock:
- Turn the key to release the deadbolt.
- Push the handle down to disengage all locking points and retract the latch.
Additional Features
- Endurance tested to over 100,000 cycles
- Non-handed design: Suitable for both left- and right-hand doors
- Latch reversal: Press the serrated button on the side of the case to reverse the latch
- Full range of Maco C-TS accessories available, including keeps, handles, and spindles
Product Specifications
- Brand: Maco
- Model: Protect C-TS
- Backset: Choose from dropdown
- Centres (PZ): 92mm
- Spindle Size: 8mm Split
- Faceplate Width: 16mm / 20mm / Top Hat
- Rollers: 4 i.S. cams
- Hooks: 2 (with optional anti-lift)
- Deadbolt: 1
- Latch: 1 (soft latch design)
- Main Gearbox: Latch and Deadbolt Combination
- Handing: Non-handed
- Door Material: uPVC, Aluminium
