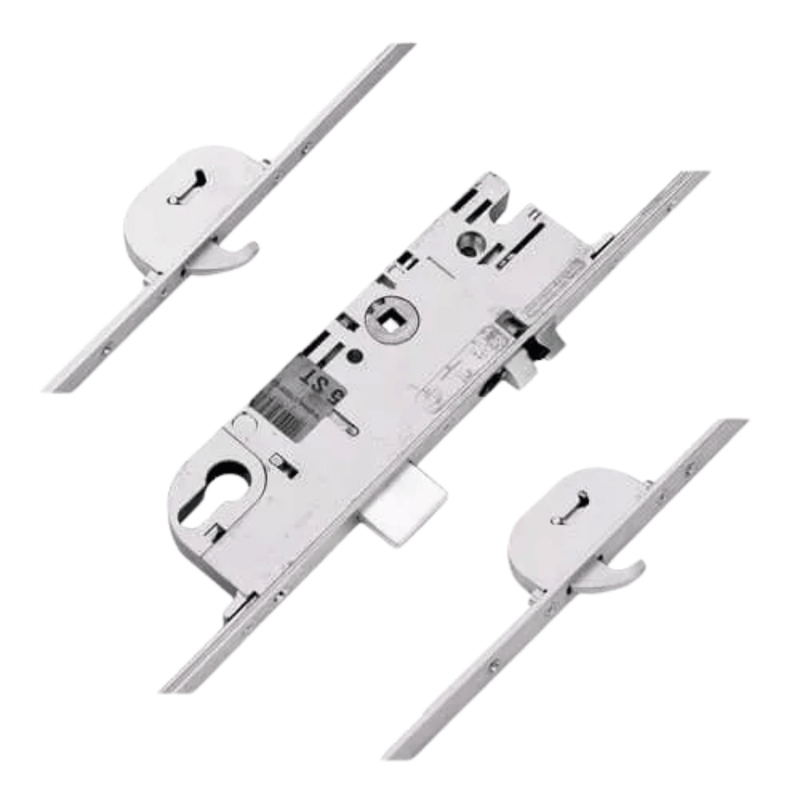

Maco C-TS Latch Deadbolt 2 Hooks Split Spindle Multipoint Door Lock

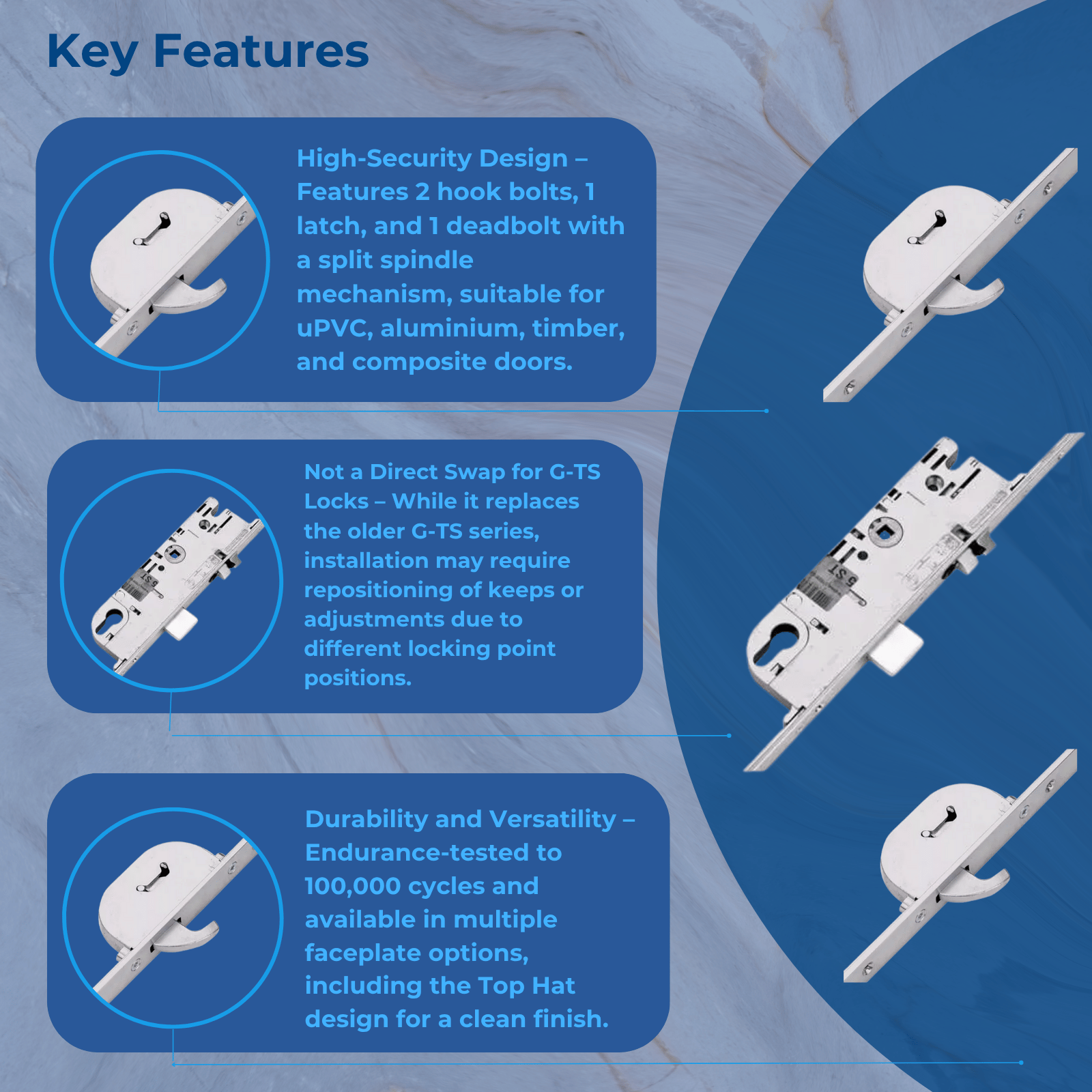

The Maco C-TS multipoint door lock is a high-security locking system designed for uPVC, aluminium, timber, and composite doors. It features 2 hook bolts, 1 latch, and 1 deadbolt, making it ideal for modern residential and commercial door security. The lock uses a split spindle mechanism, allowing for both lever/pad and lever/lever handle operation.

Introduced in 2012, the Maco C-TS replaced the older G-TS range (though they are not a direct swap). It is easily identified by the distinctive rounded edges on both the gearbox and hook cases, as well as the Maco logo stamped into the faceplate.

Faceplate Options

• Available in 16mm and 20mm widths
• Optional "Top Hat" faceplate design with a 24mm cover for a neater finish

Compatibility Notes

While the C-TS series replaces the G-TS locks, they are not directly interchangeable without adjustments. Locking points may differ, so some repositioning of keeps or minor door adjustments may be required during installation.

If your lock resembles a C-TS but the top corner of the gearbox is missing, it is likely a Maco A-TS lock (automatic locking). We also stock replacement Maco A-TS locks.

Hook Locking Types

• Standard uni-directional hook bolts that throw upwards
• Hook bolts with anti-lift pins for enhanced protection against forced entry (requires special keeps)

How to Operate

To lock the door:

• Lift the handle to engage the locking points
• Turn the key to secure the lock and deadbolt

To unlock the door:

• Turn the key to release the lock
• Push the handle down to retract the latch and hooks

Tested for Durability

Maco C-TS locks are endurance-tested to 100,000 cycles for long-term performance. We also offer compatible accessories, including spindles, keeps, and handles.

Common Applications

• uPVC door lock
• Aluminium door lock
• Timber multipoint door lock
• Composite door lock

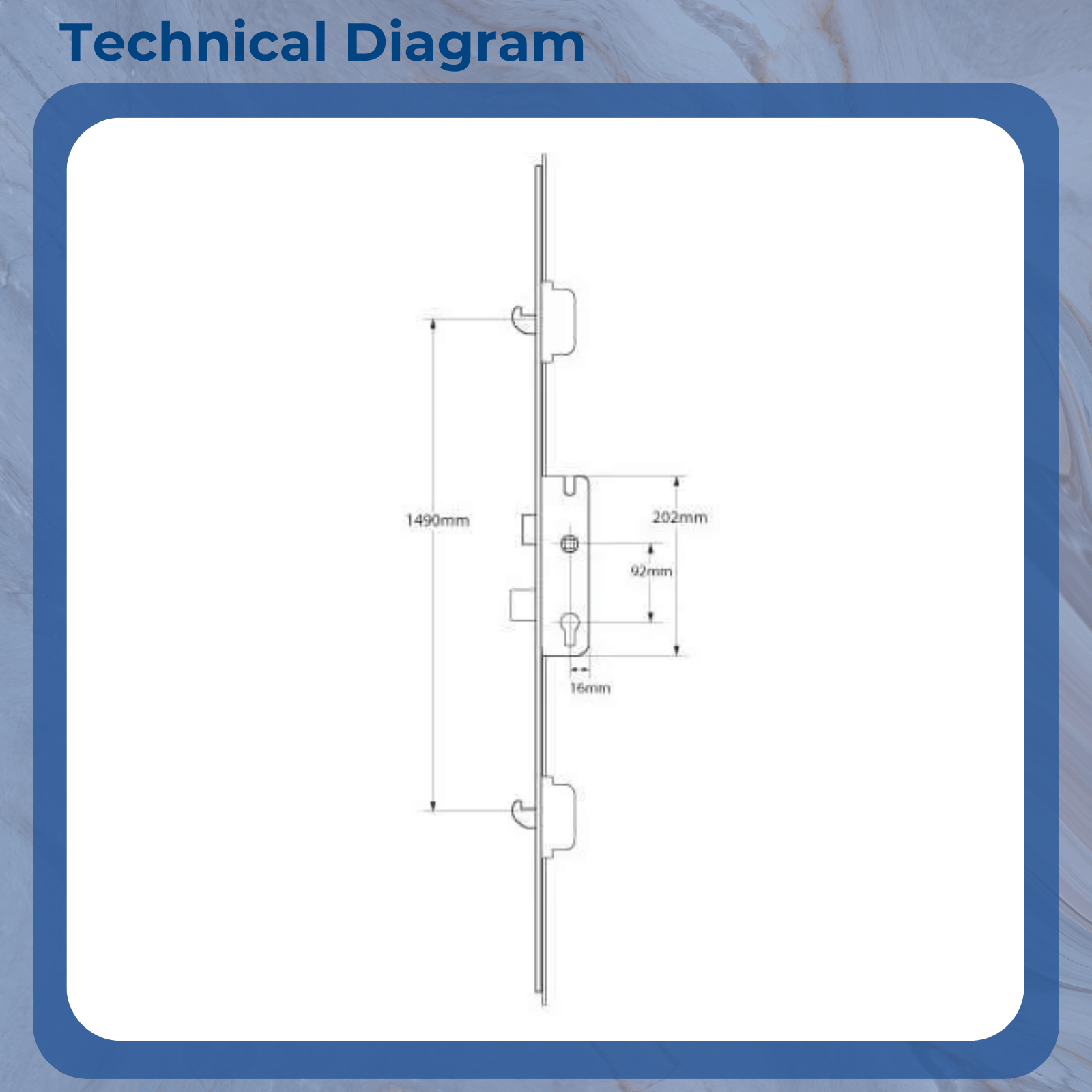

Product Specifications

• Manufacturer: Maco
• Backset: Selectable (allow 2–3mm for faceplate)
• Centres (PZ): 92mm
• Faceplate Width: 16mm or 20mm (Top Hat option available)
• Spindle Size: 8mm split spindle
• Hooks: 2
• Deadbolts: 1
• Latch: 1 (soft-latch design)
• Gearbox Height: 202mm
• Gearbox Operation: Latch & Deadbolt
• Handing: Non-handed
• Distance Between Inner Locking Points: 1490mm
• Overall Lock Height: 2200mm
• Top Hook to Spindle: 715mm
• Bottom Hook to Spindle: 775mm
• Suitable Door Materials: uPVC, Aluminium, Timber, Composite
