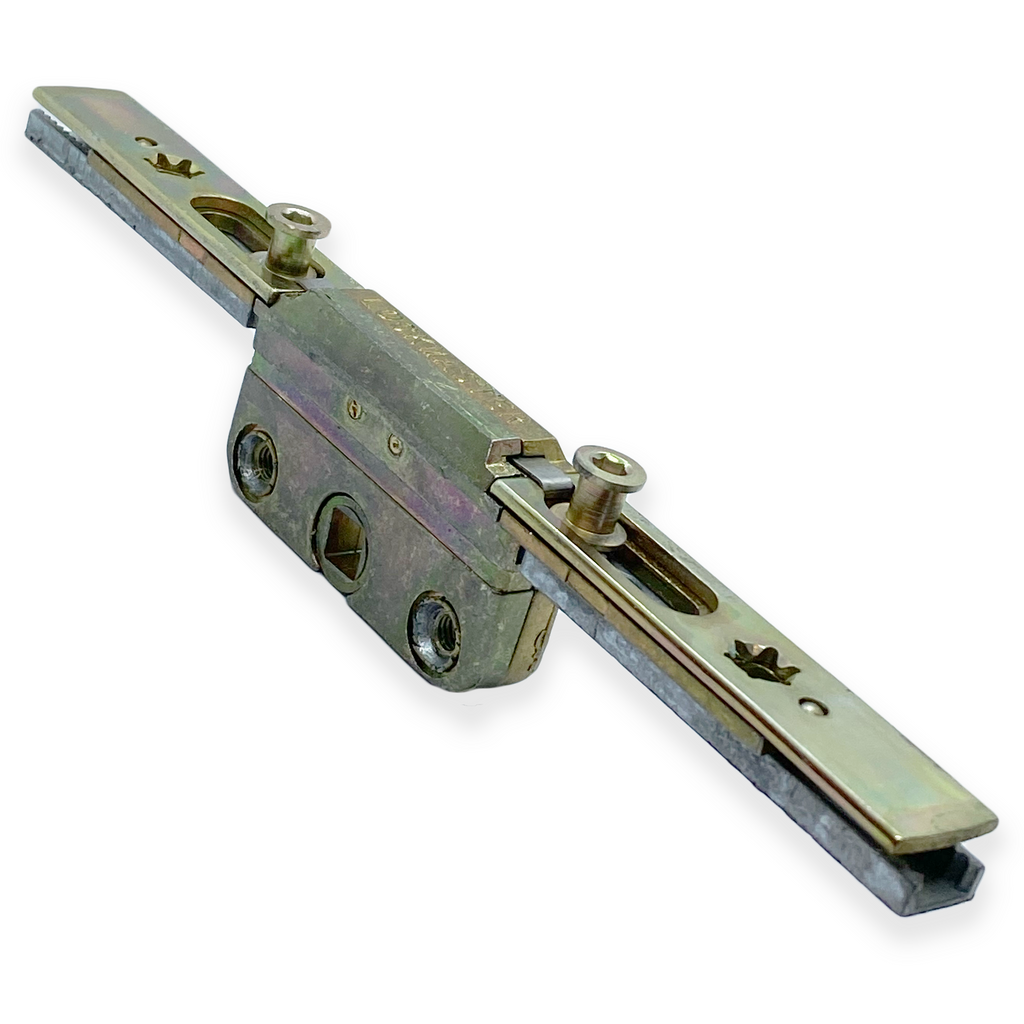

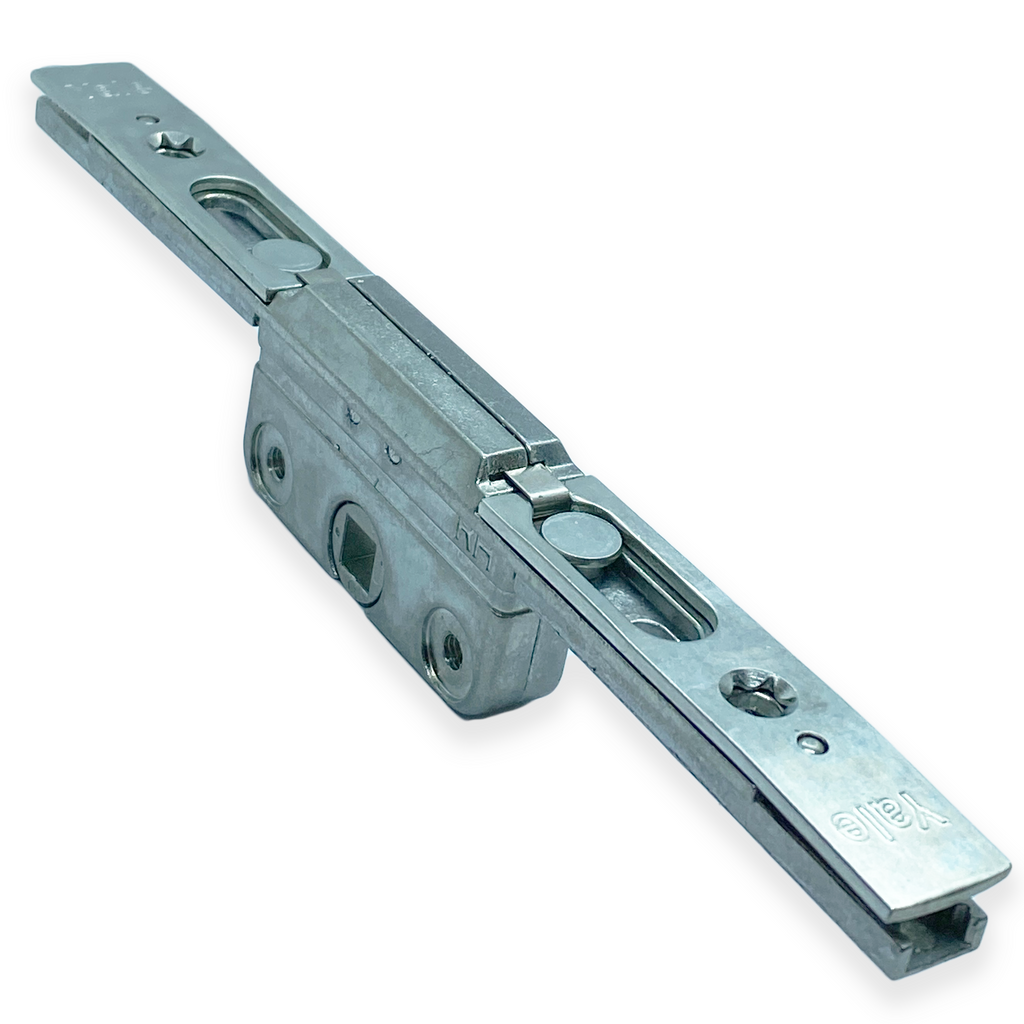

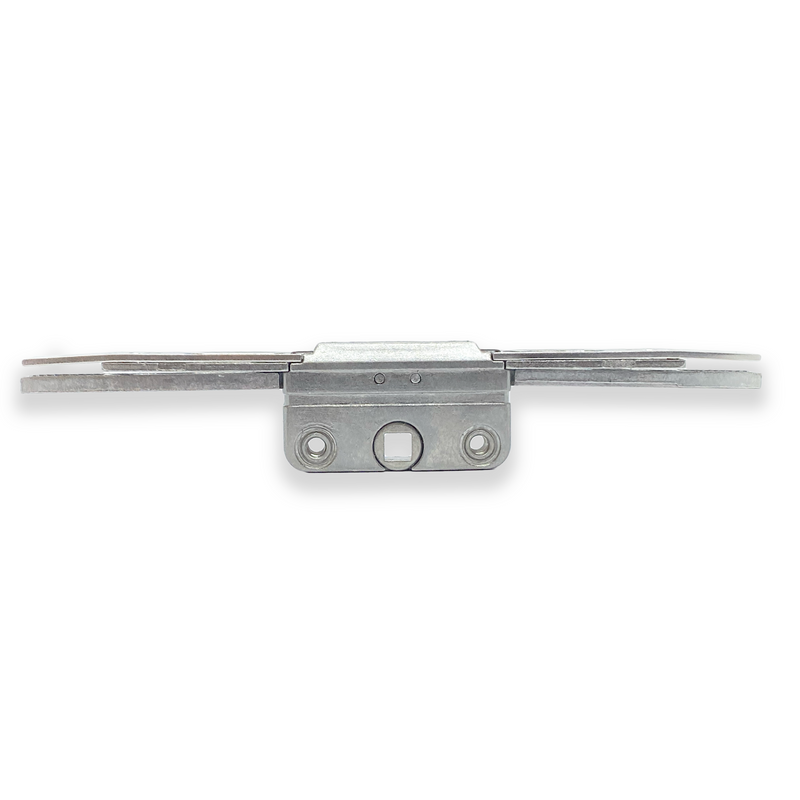

Lockmaster Yale Upvc Window Lock Gear Box Short Crop 20 Or 22 Backset

by Yale

Original price £10.68 - Original price £10.68
Original price
£10.68 - £10.68
Current price £10.68

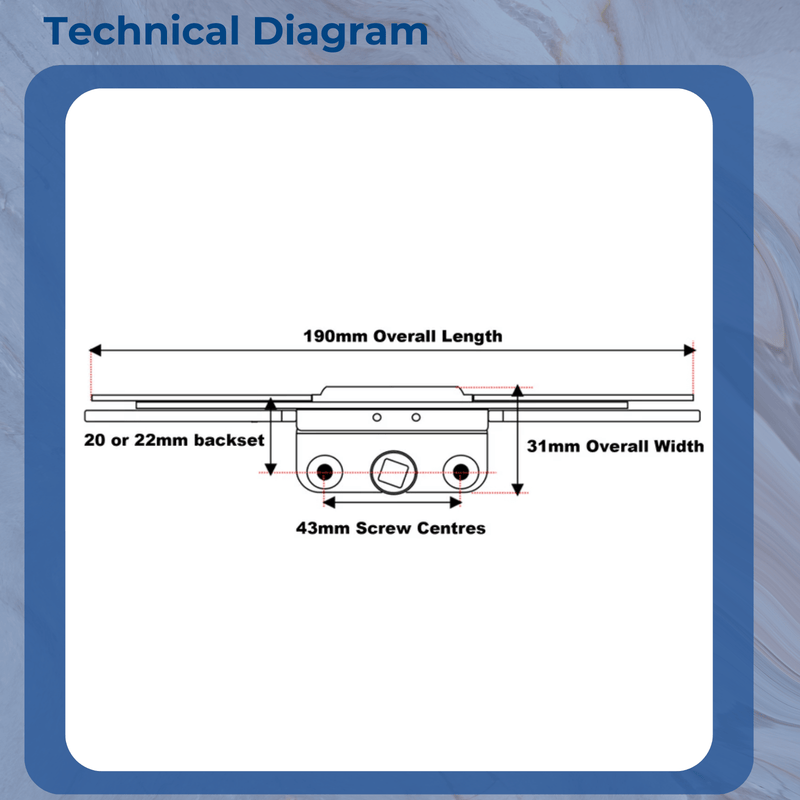

Backset: 20mm
Mushroom Height: 7.7mm

Yale croppable gearboxes offer a low stock solution for shoot bolt systems by using only 4 rod sizes that a fabricator can cut down to the required rebate size.

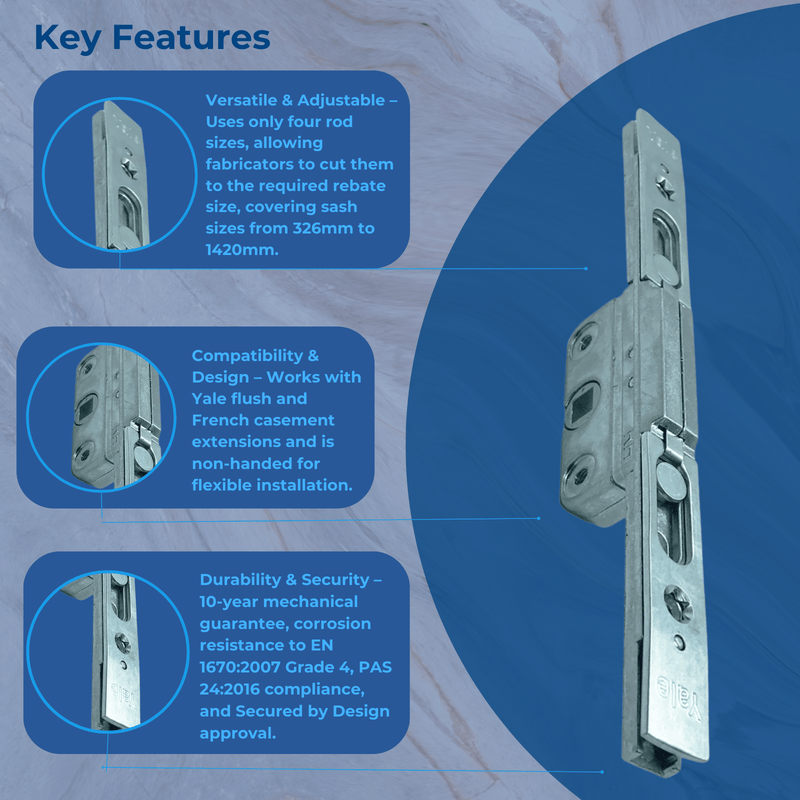

 Key features:

  •  Low stock holding using 4 rod sizes from the Yale shoot bolt range
  • Achieve sash sizes from 326mm to 1420mm (Sold separately see links below)
  • Non-handed
  • Gearbox also compatible with Yale flush & French casement extensions


  • 20 or 22mm backset
  • 7.7 or 9.0mm mushroom cam heights

 Guarantees & accreditations

  • 10-year mechanical
  • Corrosion resistance to EN 1670:2007 Grade 4 240hrs
  • Endurance tested to BS EN 13156-4 Grade 5
  • Designed to meet PAS 24:2016 requirements
  • Secured by Design approved
  • BBA Certification
  • Technical Information-
