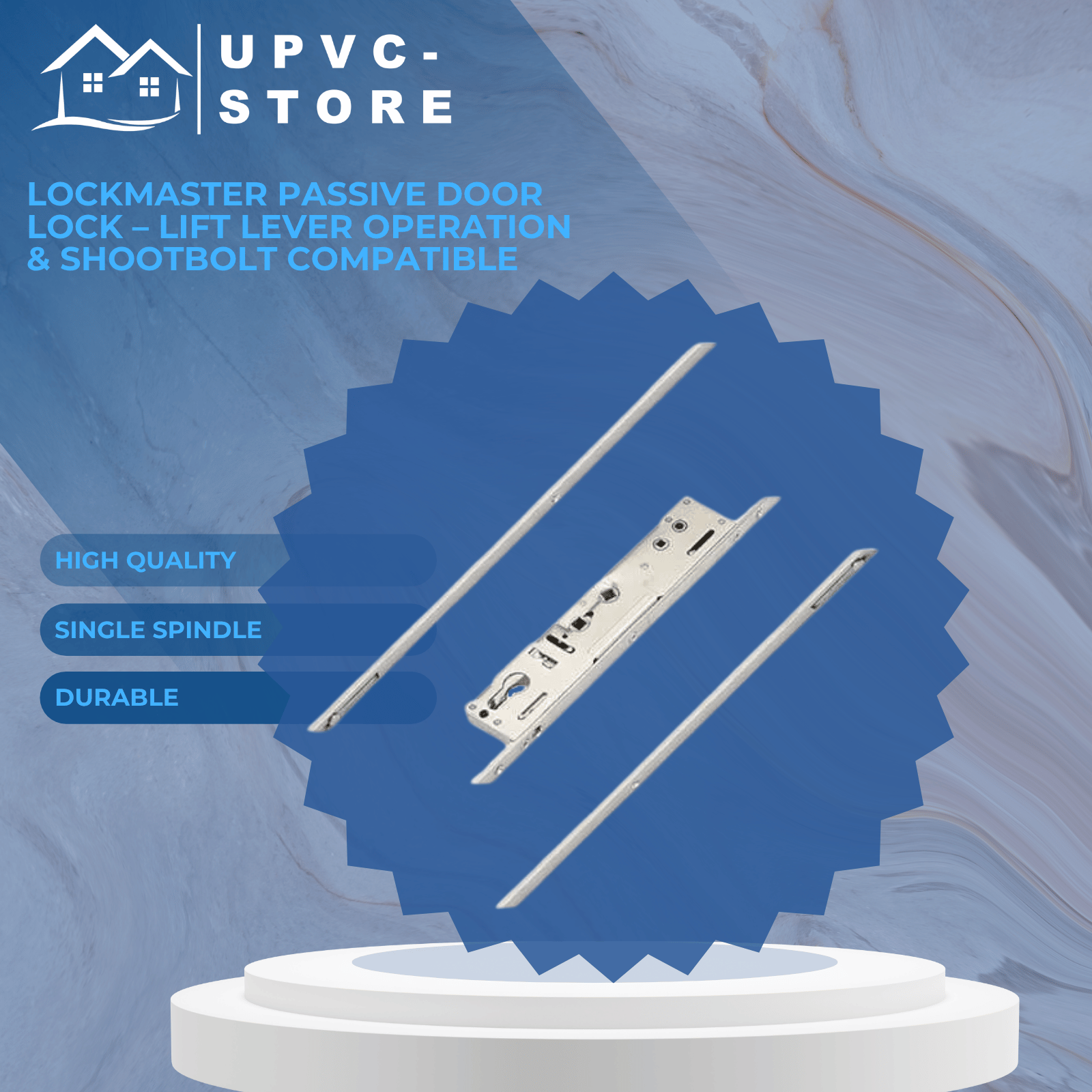

Lockmaster Passive Door Lock – Lift Lever Operation & Shootbolt Compatible

Product Information

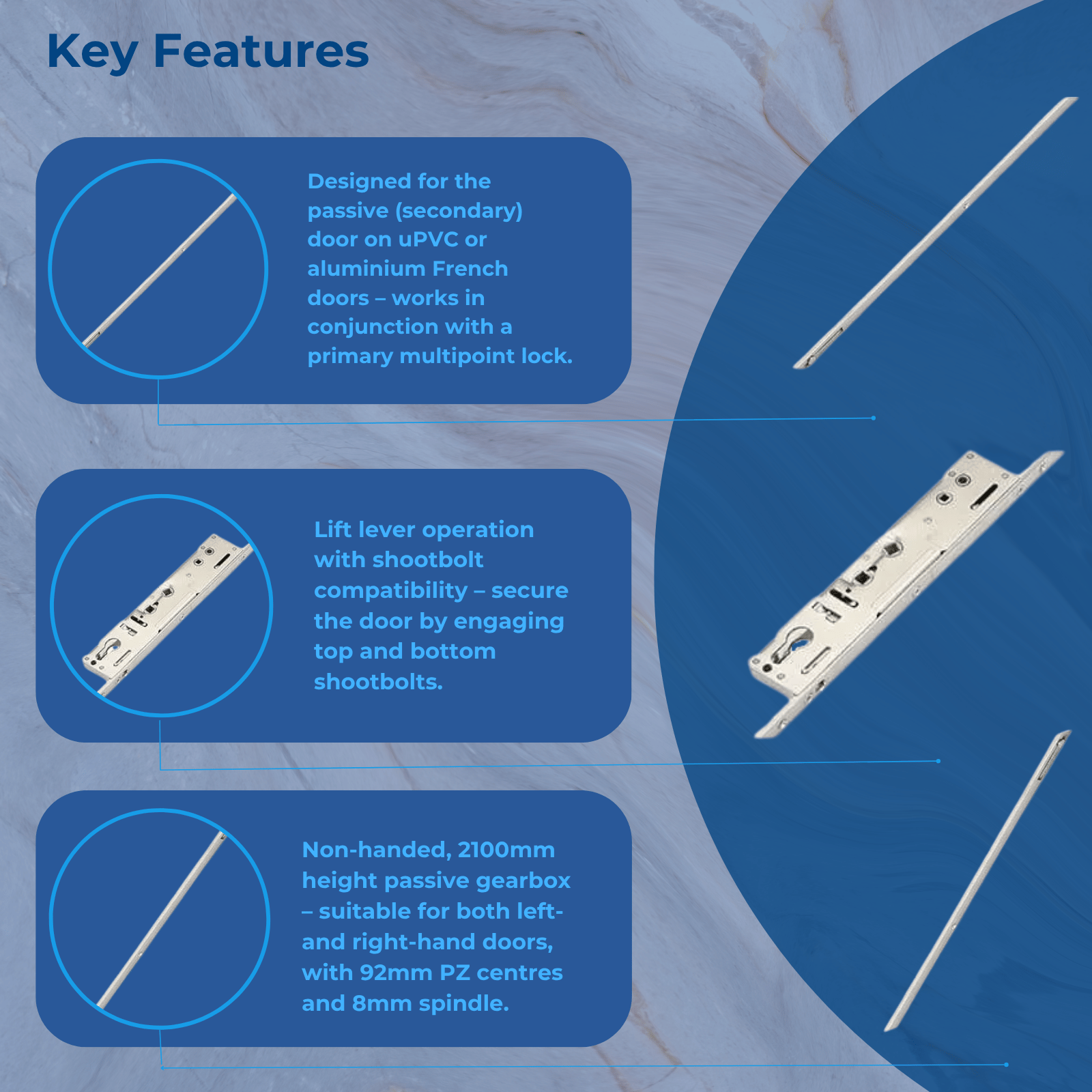

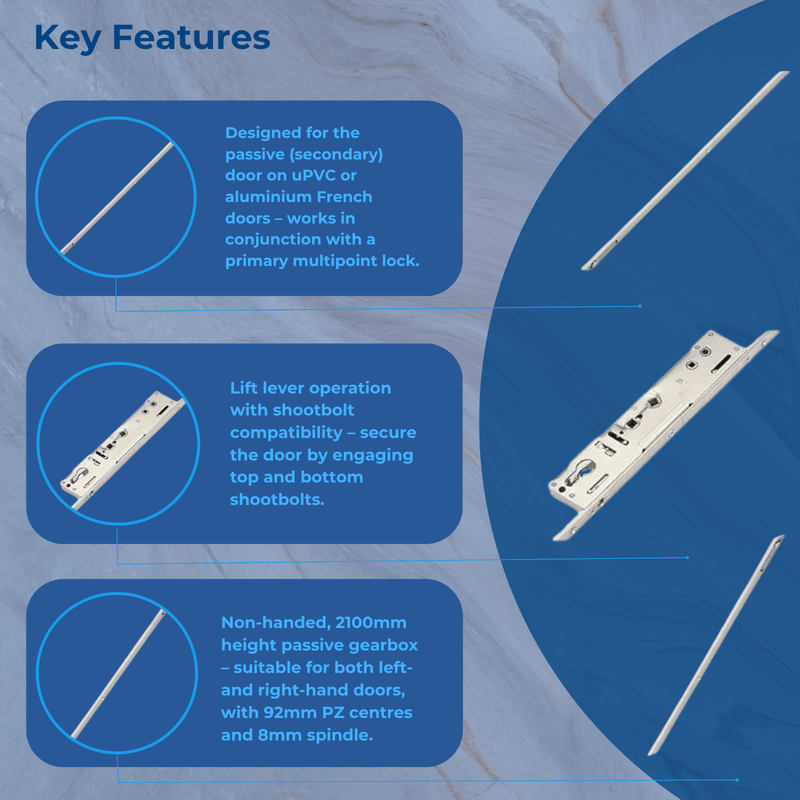

The Lockmaster Passive multipoint door lock is specifically designed for the secondary leaf in a set of uPVC or aluminium French doors. This passive lock features no locking points along the strip, making it ideal for use alongside a primary active lock on the main door.

Passive locks are installed on the secondary (passive) door of a French door pair. When paired with a standard multipoint lock on the main door leaf, they allow the use of top and bottom shootbolts to secure the passive door into the frame when locked.

How It Operates: Lift Lever Mechanism

To lock the door:

• Lift the door handle upwards to activate the shootbolt locking points.
• Turn the key to secure the locking mechanism (and the main deadbolt if present).

To unlock the door:

• Turn the key to release the locking mechanism.
• Push the handle down to retract the shootbolts and disengage the latch.

This Lockmaster passive lock is commonly used on uPVC and aluminium door systems, providing a reliable solution for securing secondary door leaves.

We also stock a wide range of compatible Lockmaster accessories, including shootbolt keeps, door spindles, lever handles, and additional hardware.

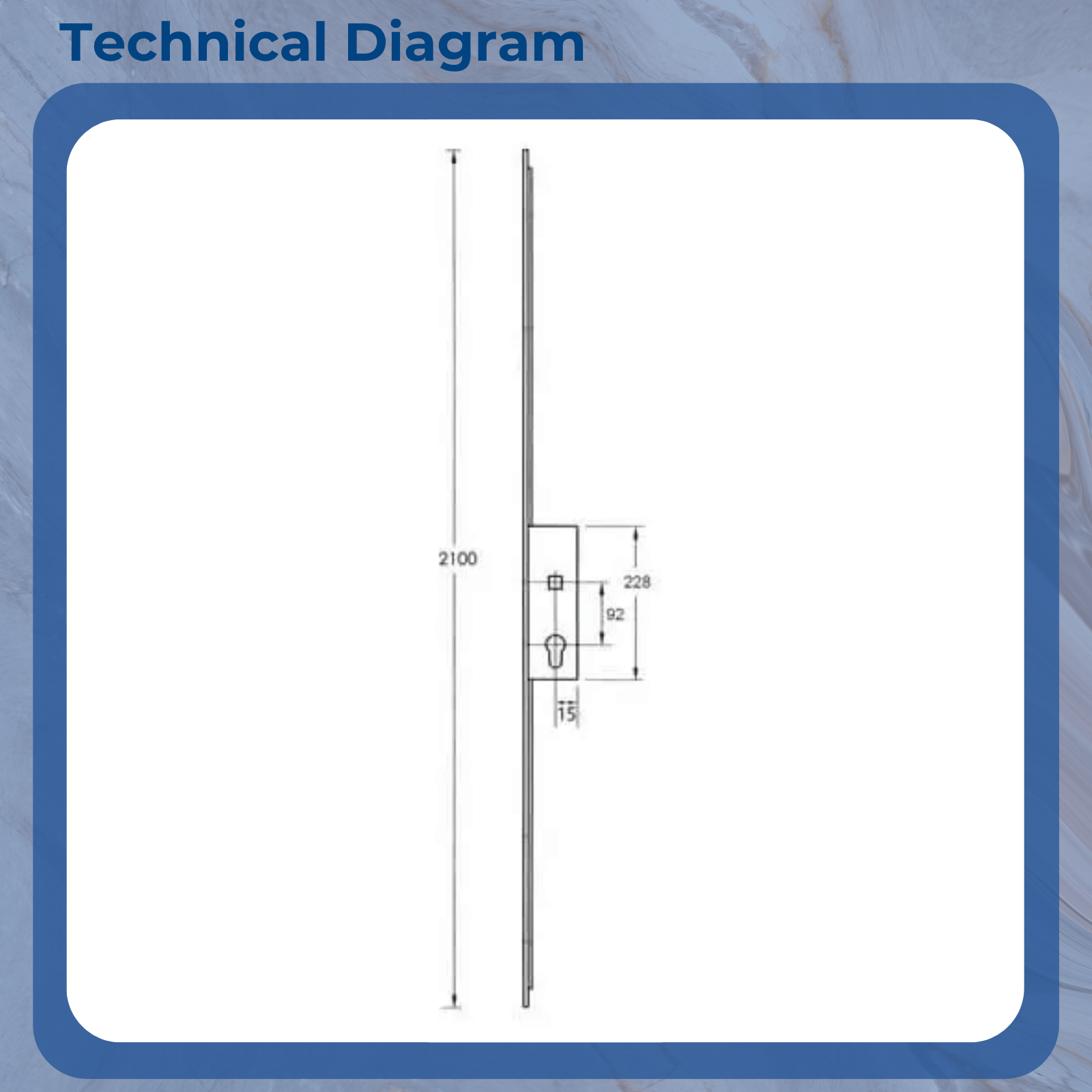

Product Specifications

• Brand: Lockmaster
• Backset: Select from drop-down – How to measure the backset
• Centres (PZ): 92mm – How to measure PZ centres
• Faceplate: Select from drop-down – How to measure the faceplate
• Spindle Size: 8mm
• Main Gearbox: Passive lock configuration
• Operation: Select from drop-down – Operation types explained
• Spindle Type: Single 8mm
• Handing: Non-handed (suitable for left or right-hand doors)
• Overall Height: 2100mm
• Door Compatibility: uPVC Doors, Aluminium Doors
