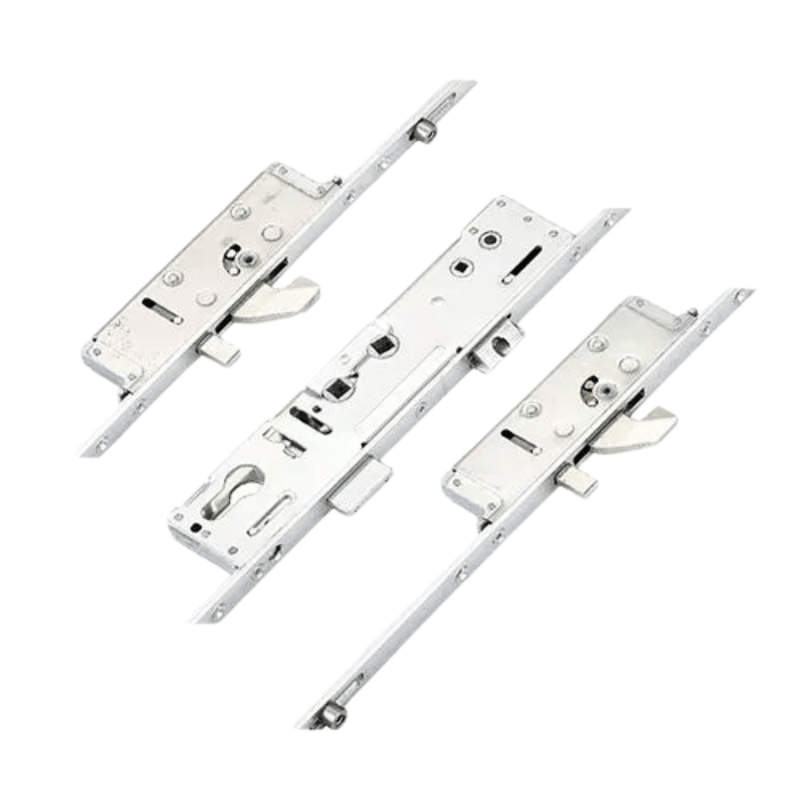

Upgrade your uPVC or aluminium doors with the Lockmaster Standard multipoint door lock, featuring a high-security configuration that includes 2 rollers, 2 anti-lift pins, 2 hooks, 1 deadbolt, and 1 latch. Designed for enhanced security and weather resistance, this double spindle door lock supports lift lever or nightlatch operation.
Why Choose Lockmaster Multipoint Locks?
Lockmaster multipoint door locks are among the UK’s best-selling locks and are now part of the Yale brand family, alongside Millenco and Mantis. Renowned for robust build quality and reliability, these locks offer multiple configurations to suit most replacement or upgrade needs.
While there are many variants with different locking point positions, we stock the most common models. Replacing older Lockmaster locks may require minor adjustments to the door (typically 40–50mm) due to differences in locking point spacing.

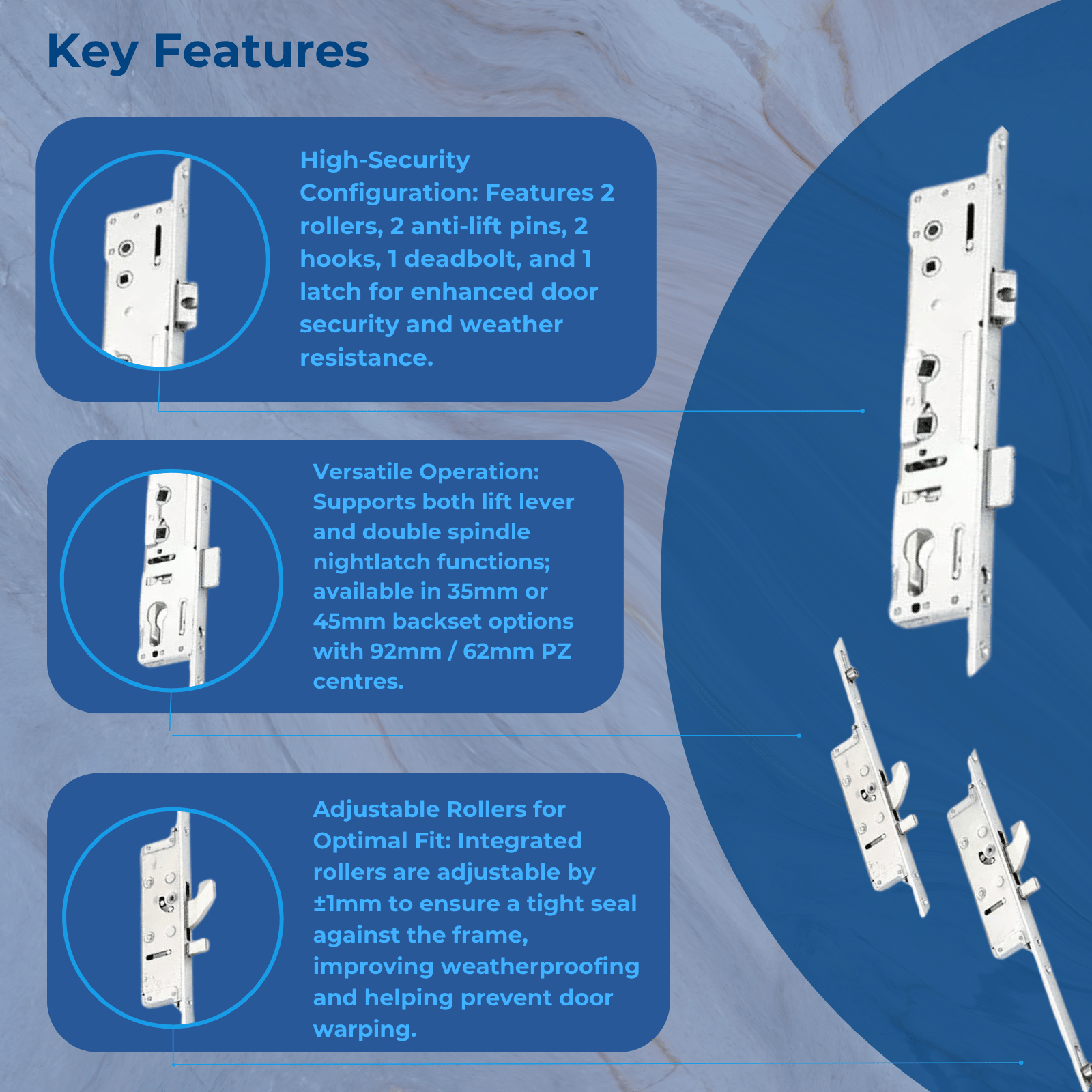

Key Features
- Rollers provide compression for improved weather sealing and help maintain door alignment.
- Anti-lift bolts offer added protection against forced entry.
- Hooks and deadbolts enhance multi-point security engagement.
- Adjustable rollers (±1mm) for a snug, weather-tight fit.
- Compatible with uPVC and aluminium doors.
- Corrosion resistant – Tested to BS EN 1670:2007 Grade 4 (240 hrs NSST).
Gearbox & Operation
The Lockmaster gearbox is available in 35mm and 45mm backsets and supports both double and single spindle options:
- Double spindle: 92mm / 62mm PZ centres, unsprung – requires sprung handles. Supports lift lever or nightlatch operation.
- Single spindle: Sprung mechanism, lift lever only.
- Gearbox dimensions: 228mm height x (backset + 15mm) width
- Latch and deadbolt height: 30mm each
- 65mm spacing between latch and deadbolt

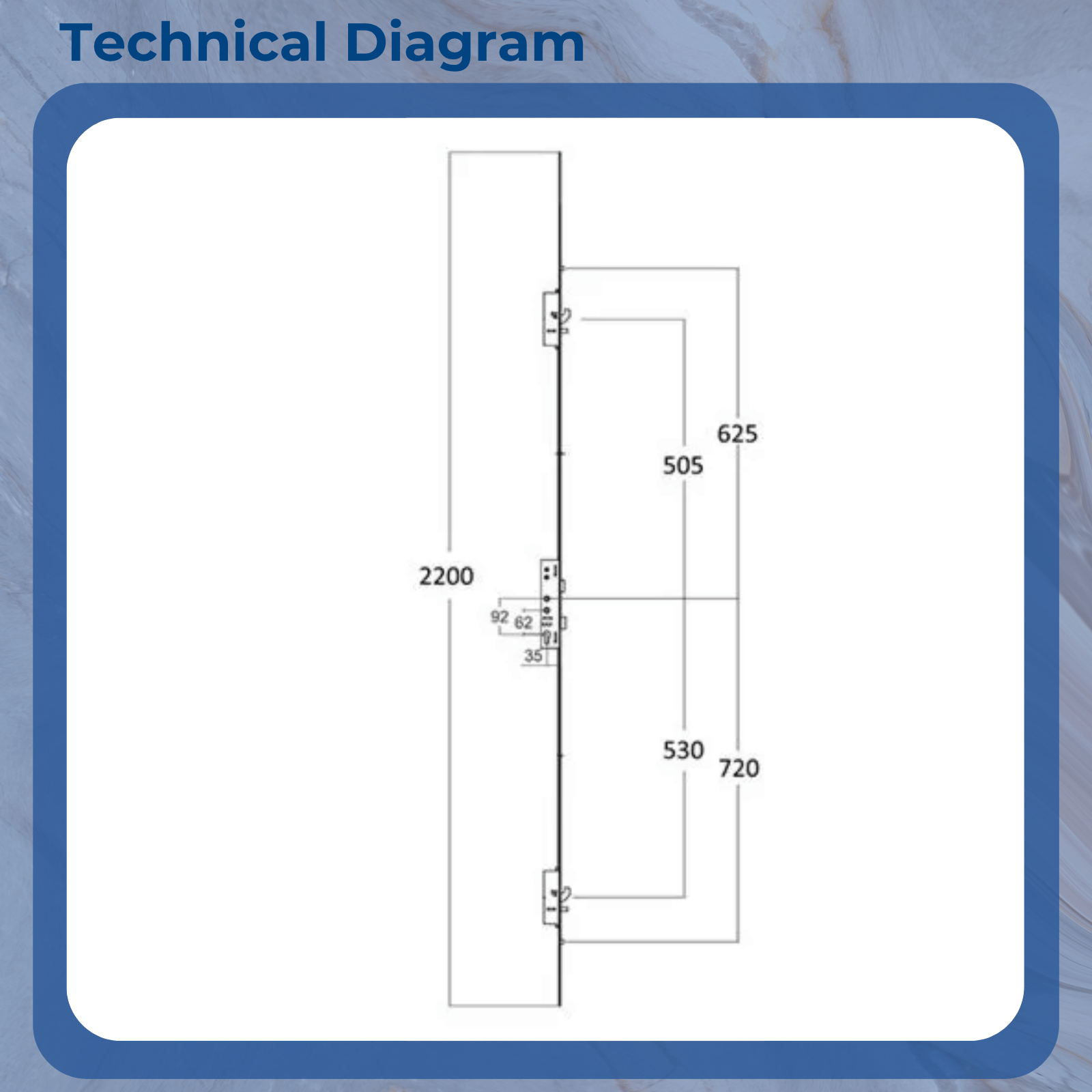

Measurements
- Distance between inner locking points: 1035mm
- Distance between outer locking points: 1395mm
- Top hook to spindle: 505mm
- Bottom hook to spindle: 530mm
- Top roller to spindle: 625mm
- Bottom roller to spindle: 720mm
- Overall height: 2200mm
Note: Some older Lockmaster locks may include a small spindle hole near the latch, previously used to hold the latch back.
How to Lock and Unlock
Locking
- Close the door to engage the latch.
- Lift the handle to activate the locking points.
- Turn the key to fully lock the door.
Unlocking
- Turn the key to release the lock.
- Push the handle down to disengage the locking points.
- Turn the key again to retract the latch.
