Lockmaster Multipoint Door Lock – 2 Hooks, 2 Rollers, Latch & Deadbolt – Lift Lever or Double Spindle Operation (365mm Top Hook to Spindle)

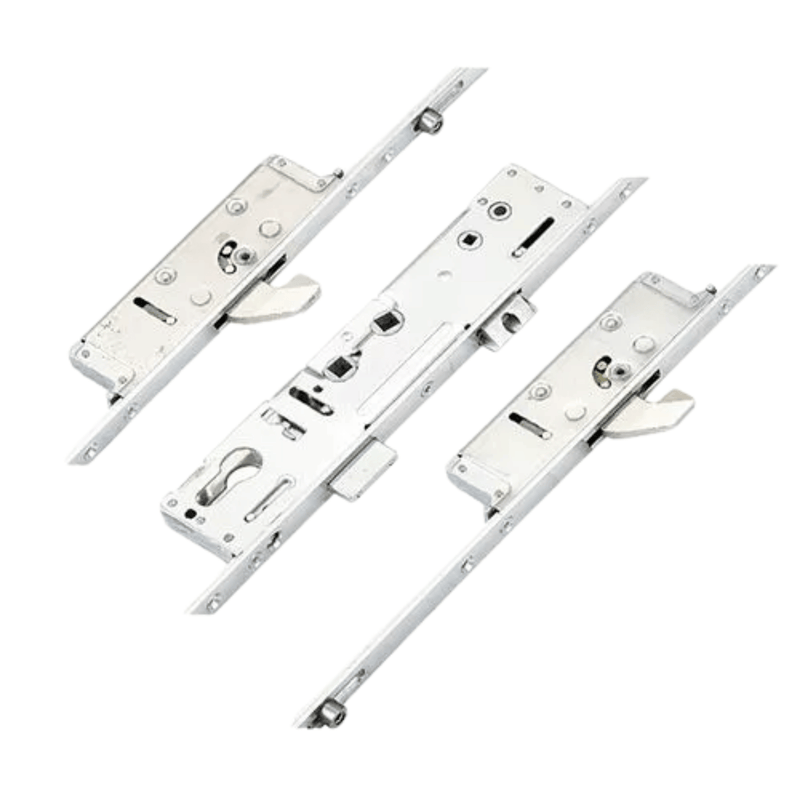

Enhance your door’s security with the Lockmaster Standard multipoint door lock, engineered with 2 rollers, 2 hooks, 1 deadbolt, and 1 latch for robust locking performance and superior compression. Ideal for both residential and commercial applications, this lock is commonly installed on uPVC and aluminium doors.

Lockmaster multipoint locks are trusted across the UK and now form part of the Yale security family, alongside brands like Millenco, Mantis, and Milamaster. Even when rebranded, the high quality and functionality remain unchanged.

Key Features

• Secure & Versatile Configuration: 2 hooks, 2 rollers, 1 latch, and 1 deadbolt provide enhanced security and consistent compression.
• Compatible with Various Door Types: Designed for use with uPVC and aluminium doors, suitable as a front or rear door lock.
• Easy Identification: Features a large 228mm tall gearbox and upward-throwing hooks, often with anti-lift pins, making it easy to identify.
• Available Backsets: Gearboxes available in 25mm, 28mm (bifold), 35mm, and 45mm. The 45mm version includes an extended latch, deadbolt, and conversion faceplate.
• Spindle & Operation Types: Choose between single spindle (lift lever only) or double spindle (lift lever or nightlatch) with 62mm & 92mm centres. Use sprung handles for unsprung gearboxes.
• Roller Function: 2 adjustable compression rollers improve sealing against dust and water ingress while reducing door warping. Adjustment: ±1mm.
• Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 (240 hours NSST) for long-lasting durability.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage all locking points.
2. Turn the key to lock the system and engage the deadbolt.

To Unlock the Door:

1. Turn the key to unlock.
2. Push the handle down to retract the locking points and latch.

Technical Specifications

• Manufacturer: Lockmaster
• Backset Options: 25mm, 28mm, 35mm, 45mm (selectable)
• Centres (PZ): 92mm
• Spindle Size: 8mm
• Operation Type: Lift Lever or Double Spindle (selectable)
• Handing: Non-handed (universal fit)
• Main Gearbox Size: 228mm (H) × [Backset + 15mm] (W)
• Latch & Deadbolt Height: 30mm each
• Distance Between Latch & Deadbolt: 65mm
• Screw Positions: Top–middle: 109mm, Middle–bottom: 109mm

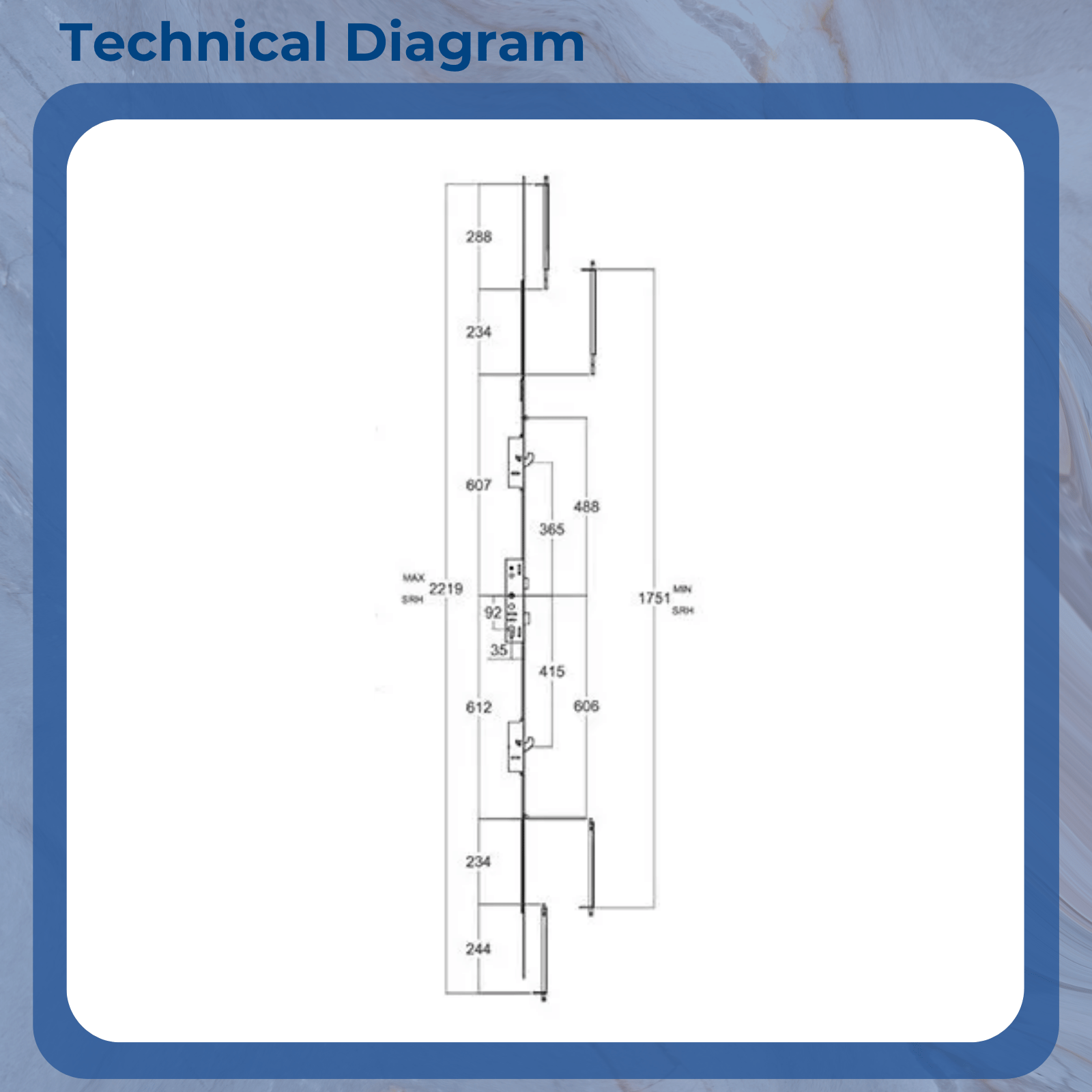

Locking Point Measurements

• Top Hook to Spindle: 365mm
• Bottom Hook to Spindle: 415mm
• Top Roller to Spindle: 488mm
• Bottom Roller to Spindle: 606mm
• Distance Between Inner Locking Points: 780mm
• Distance Between Outer Locking Points: 1094mm
• Overall Height: 2200mm

Additional Notes

• Some older Lockmaster versions may have differently positioned locking points, which may require adjustment of the door prep or repositioning of keeps.
• Early gearboxes had a spindle hole near the latch to hold it back; this feature is no longer included in new versions.
• Hooks always throw upwards and may include anti-lift pins. Hook case height: 136mm. Deadbolt case height: 154mm.
