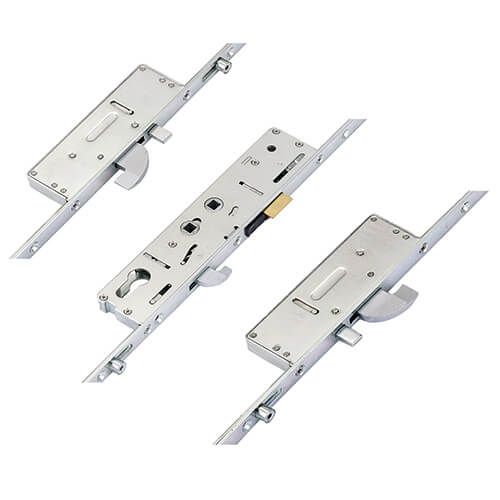

Kenrick Excalibur Latch 3 Hooks 2 Anti Lift Pins 3 Rollers Double Spindle

This Kenrick lock features a central hook, 3 rollers for compression and two hooks with anti lift pins.

Full length keeps are available.

Backset: 35mm

Centres: 92mm/62mm

Operation: Lift lever or double spindle nightlatch.

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.

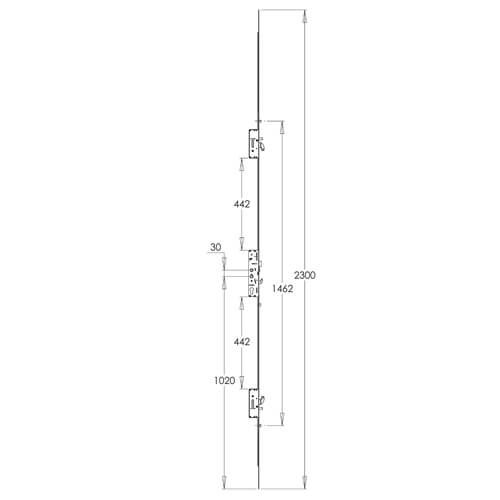

Technical Information-

• Centres: 92mm/62mm
• Case height: 226mm
• Case depth: Backset + 15mm
• Overall length: 2300mm
• Distance between outer rollers: 1462mm
• Distance between inner hooks: 1230mm
