Kenrick Excalibur 22mm uPVC Window Lock Gearbox with Screw-Fixed Faceplate
Kenrick Excalibur 22mm Window Lock Gearbox with Faceplate
Replace a matching window locking unit with this Kenrick Excalibur dual-claw gearbox. This version has its own short, screw-fixed faceplate and a 22mm backset.
Check compatibility before ordering: this is the standalone faceplate version shown in our photographs. It does not have the end connections for espagnolette extension rods. It is only suitable for replacing the same specific part. A matching 22mm backset alone does not confirm compatibility.
Features & benefits
- 22mm backset: measured from the faceplate surface to the centre of the handle spindle hole.
- Integral screw-fixed faceplate: secures the unit directly into the window.

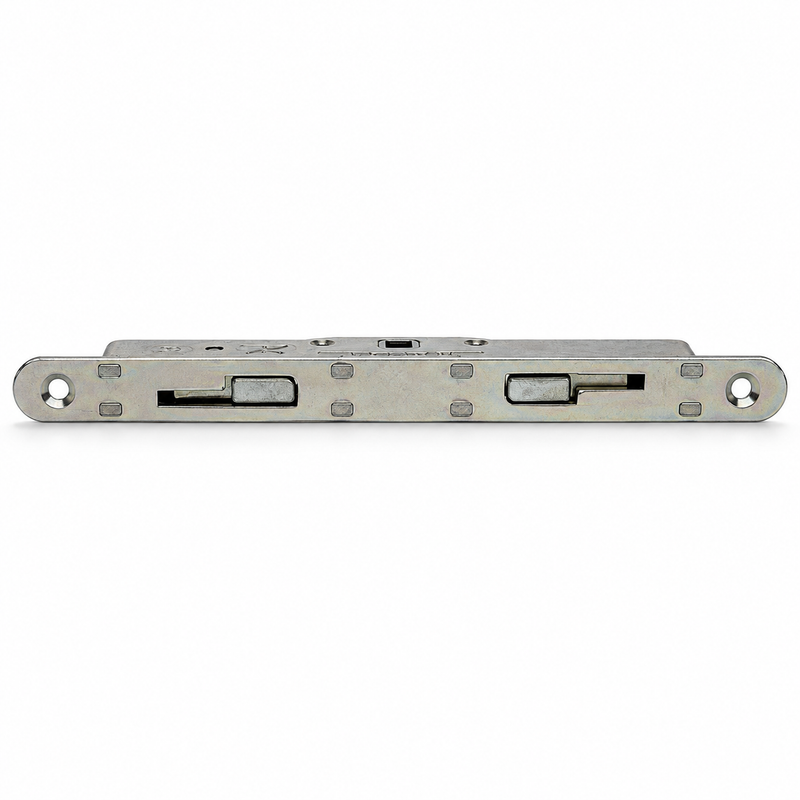

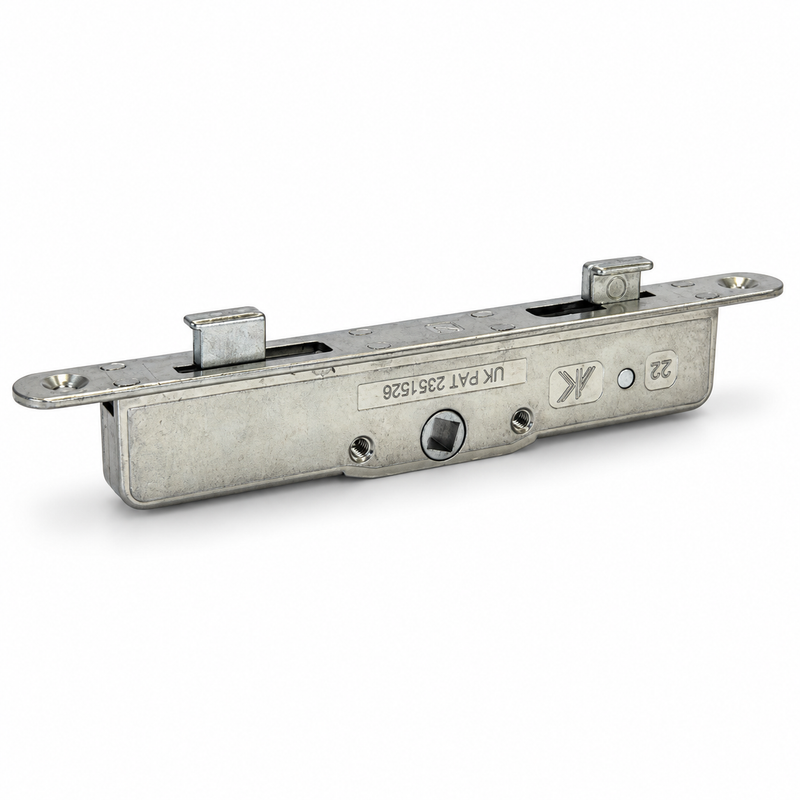

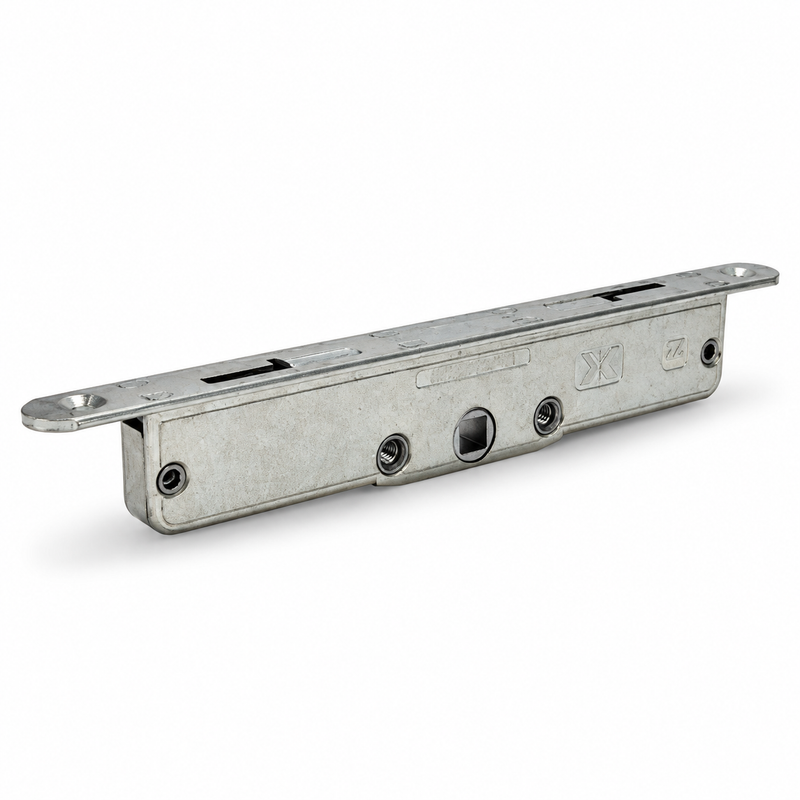

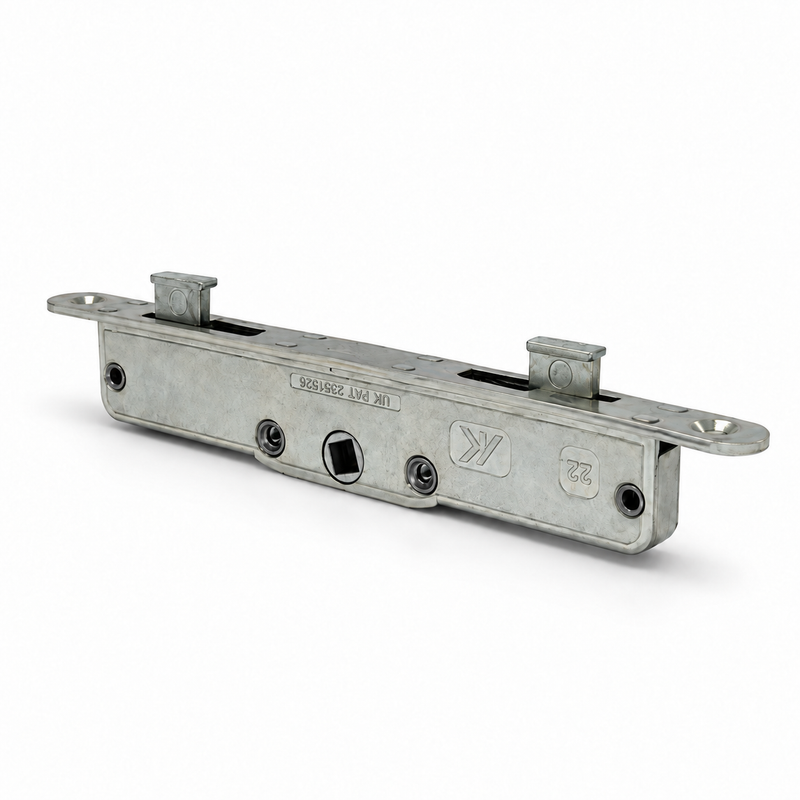

- Dual locking claws: photographs show the extended and retracted positions to help identify the correct replacement.
- Targeted replacement: replace the matching gearbox and faceplate unit.
Measurements
- Overall length: 103mm
- Faceplate width: 16mm
- Backset: 22mm
- Internal handle screw centres: 43mm
- Faceplate fixing screw centres: 77mm
What's included?
1 × new Kenrick window lock gearbox with its faceplate. Fixing screws are not included.
Before you order

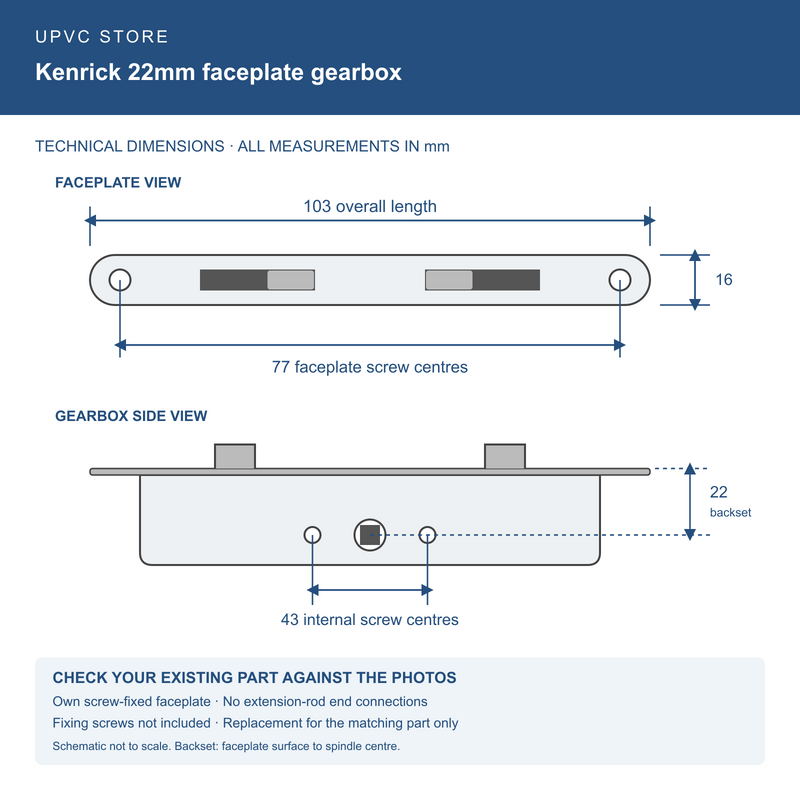

Compare your existing part with all product photographs and the technical diagram. Check the faceplate, fixing positions, backset, spindle opening and locking claws. This unit has no end connections for extension rods and is not a universal replacement.
