Ingenious 13mm Door Keep Latch Infill with Screws - 74mm x 17.5mm, 56mm Centres
Ingenious 13mm Door Keep Latch Infill

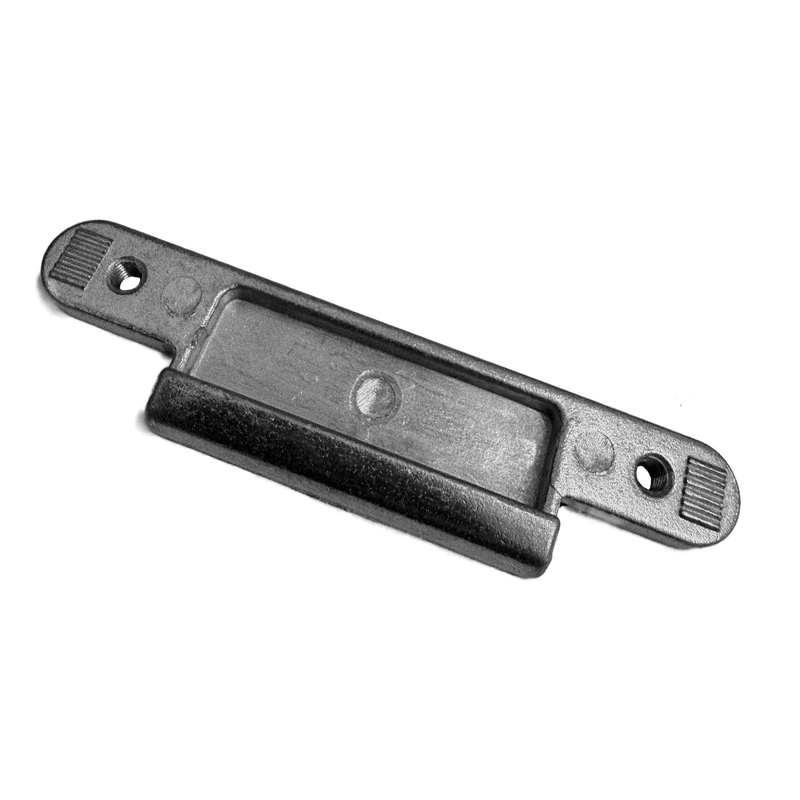

Replacement latch insert for compatible Ingenious door keeps on uPVC and composite doors. This removable centre section receives the door latch and allows a damaged infill to be replaced while retaining the compatible full-length keep.

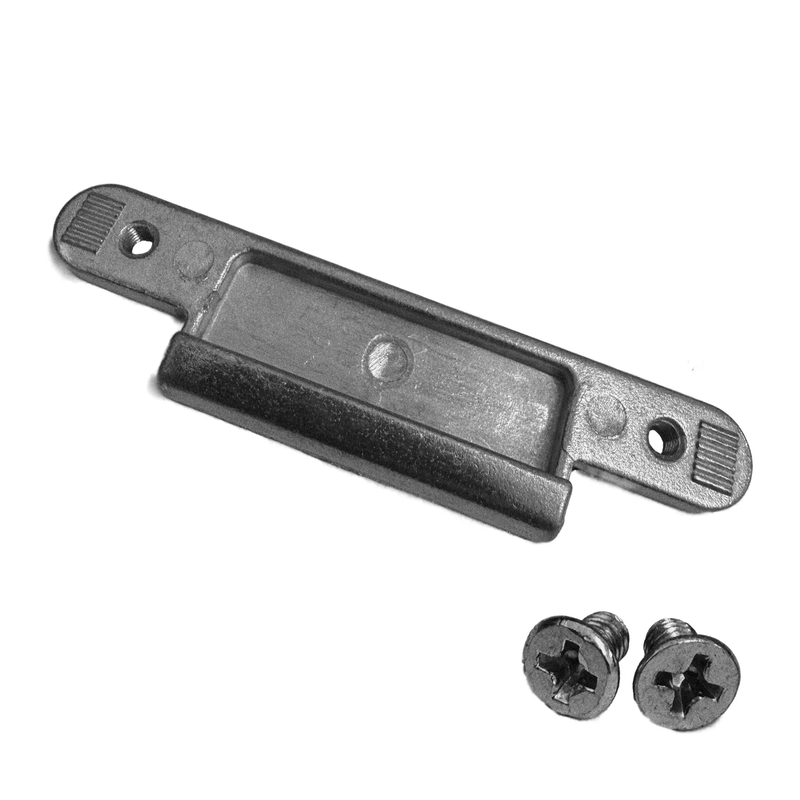

Supplied as one latch infill with two fixing screws. The full-length keep, hook and deadbolt sections and door lock are not included.

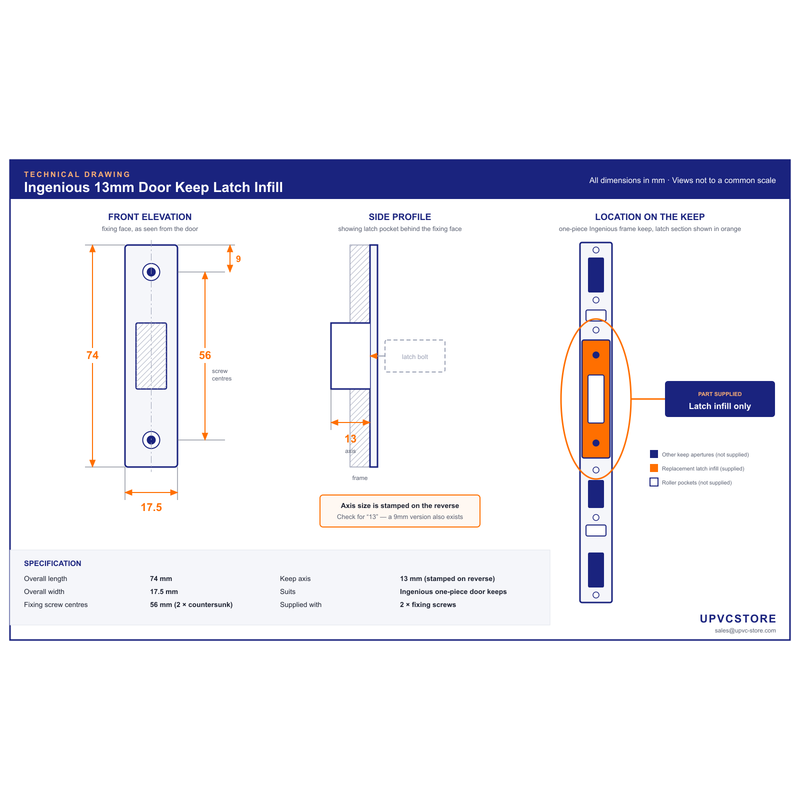

Key details
- Brand: Ingenious
- Keep axis: 13mm
- Overall length: 74mm
- Overall width: 17.5mm
- Fixing screw centres: 56mm
- Finish: silver
- Condition: new
Check before ordering

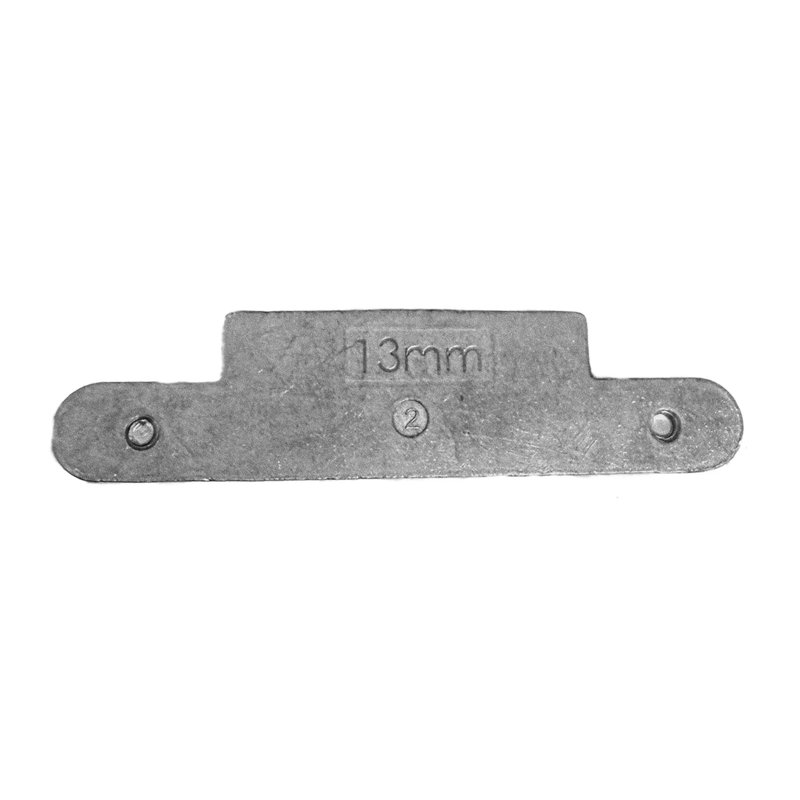

Look for the axis size stamped on the reverse of your existing infill. This is the 13mm version; a 9mm version also exists. Compare the dimensions, fixing holes and pocket shape with the photographs and technical guide before ordering. Compatibility with other makes or keep profiles is not confirmed.
Fitting

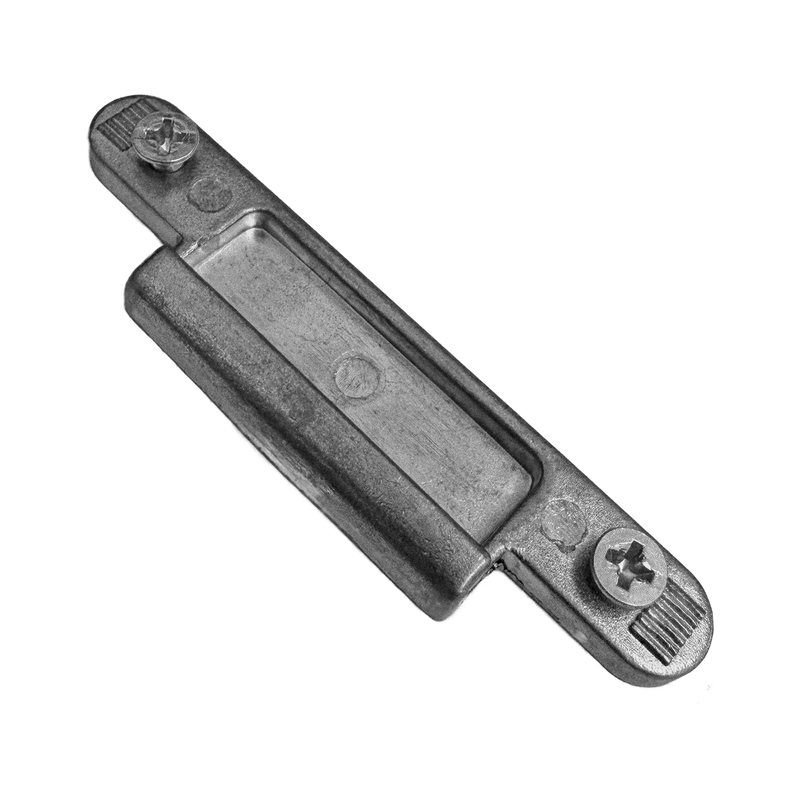

With the door open, remove the two screws securing the existing infill. Fit the replacement into the matching keep recess and secure it without overtightening. Check that the latch engages and releases smoothly before putting the door back into use.
What is included
- 1 x Ingenious 13mm door keep latch infill

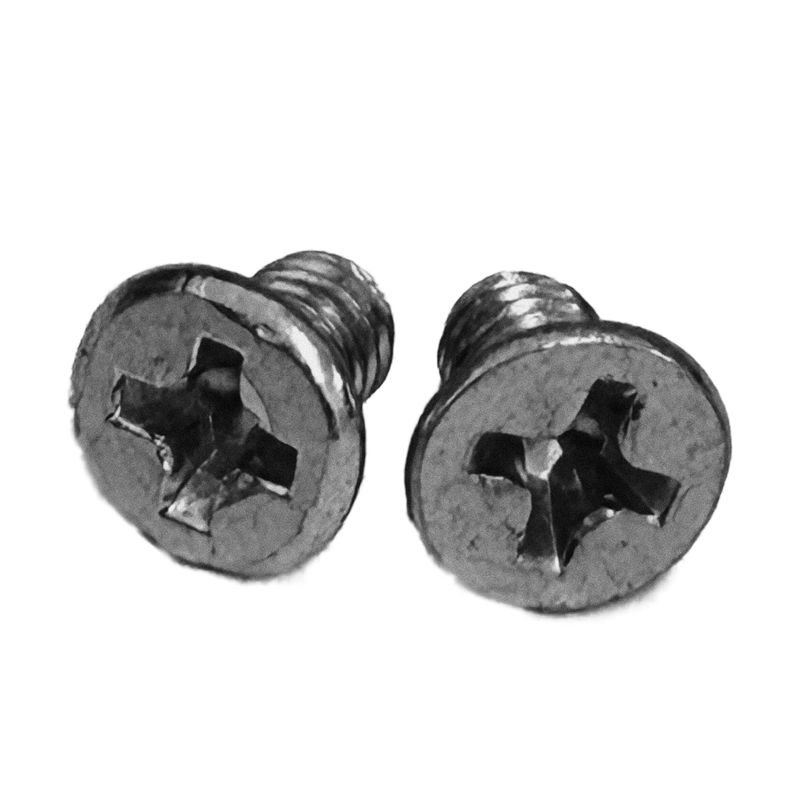

- 2 x fixing screws
