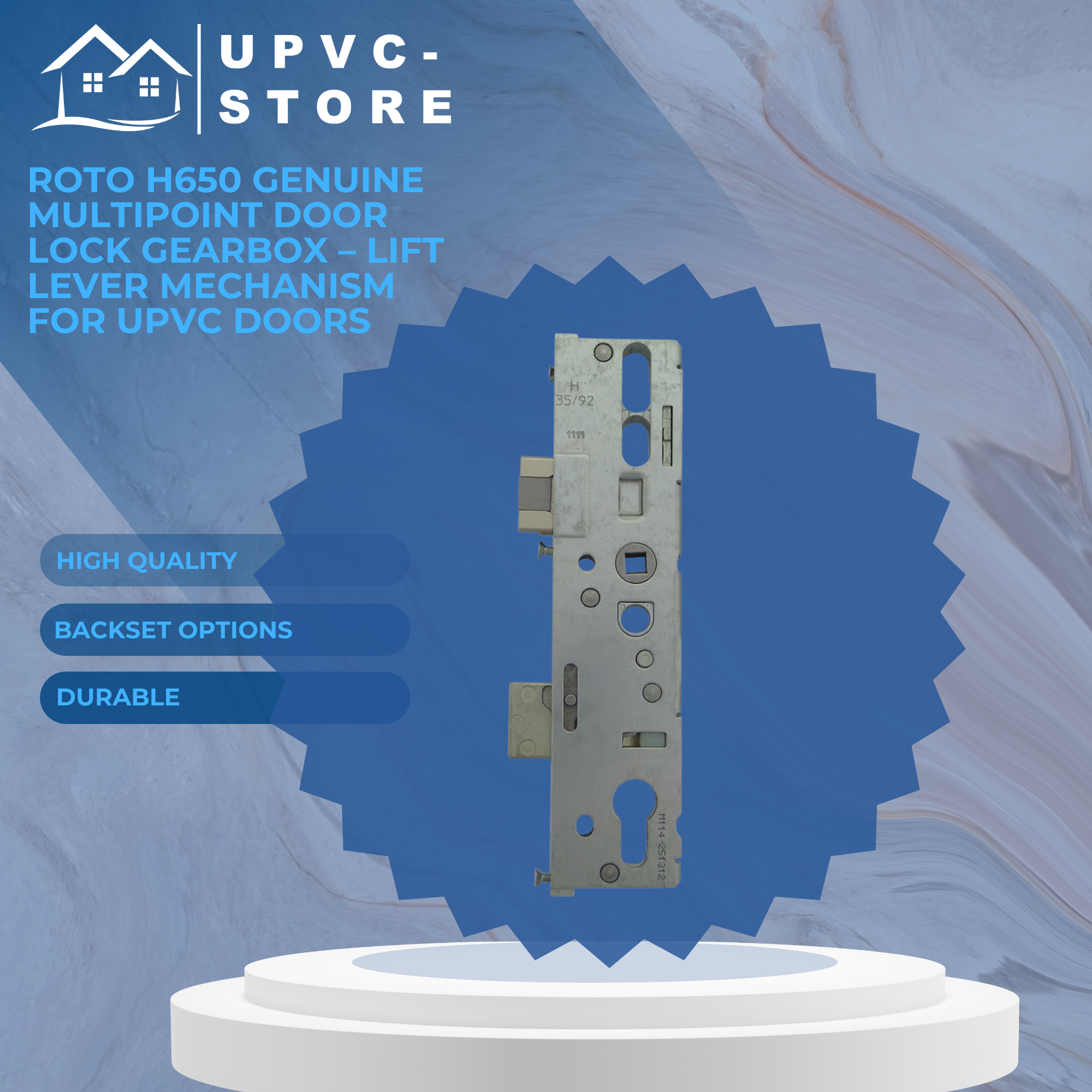

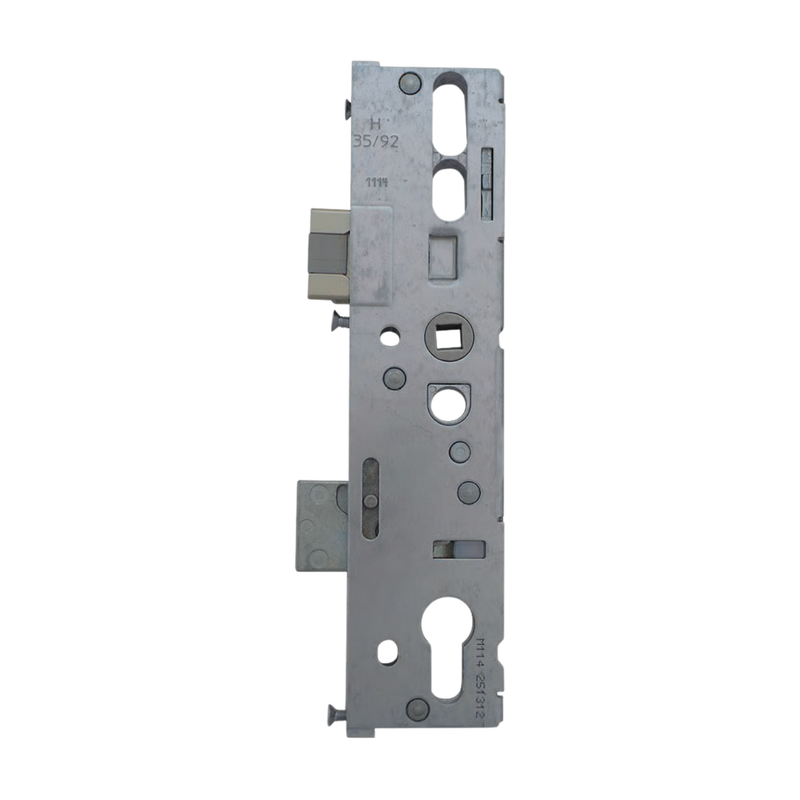

Roto H650 Genuine Multipoint Door Lock Gearbox – Lift Lever Mechanism for uPVC Doors

The Roto H650 multipoint door lock gearbox is a high-quality replacement for H600 series gearboxes, featuring internal upgrades for smoother operation and long-lasting performance. Designed for uPVC and composite doors, the H650 is available in a wide range of backsets: 25mm, 28mm, 35mm, 40mm, 45mm, 50mm, 55mm, and 65mm, all with single spindle lift lever operation.

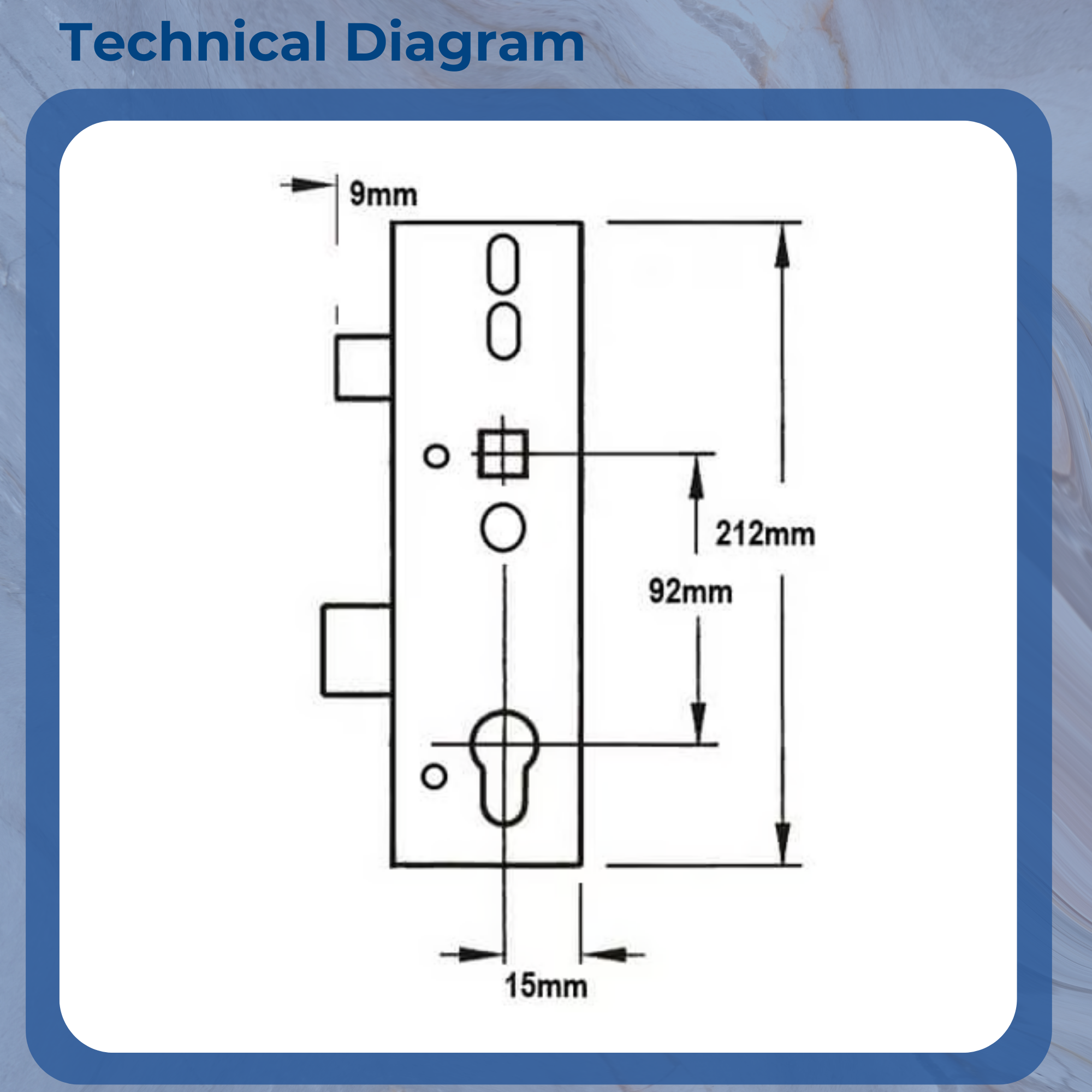

Dimensions & Technical Details

• Case height: 212mm
• Case width: Backset + 15mm
• Latch height: 29mm
• Deadbolt height: 30mm
• Distance between latch and deadbolt: 58mm
• Faceplate fixing screws: 3 (Top-to-middle: 70mm, Middle-to-bottom: 125mm)

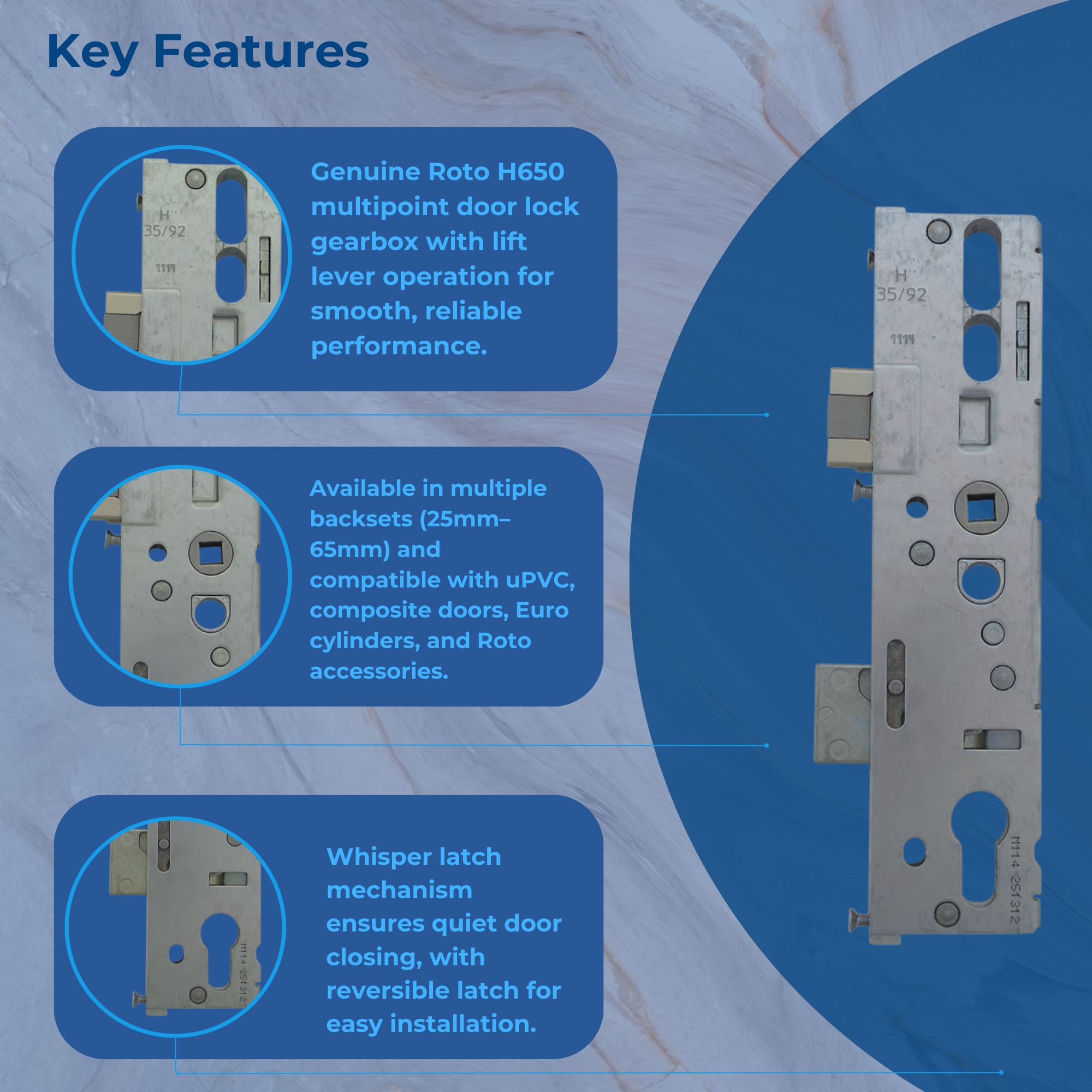

Key Features

• Whisper latch mechanism for quiet door closing
• Compatible with Roto H650 multipoint door locks, spindles, handles, keeps, and accessories
• Euro cylinder compatible for enhanced security
• Reversible latch: Easily adjust using a 2mm Allen key
• Suitable for UK backsets of 35mm and 45mm, with European options up to 80mm

Operation & Installation

• Lift lever operation ensures smooth engagement of latch and deadbolt
• Single 8mm spindle for straightforward installation
• Non-handed design, fits left or right-handed doors
• Supplied as a genuine Roto replacement gearbox, packaged individually

Specifications

• Manufacturer: Roto
• Backset options: 25mm, 28mm, 35mm, 40mm, 45mm, 50mm, 55mm, 65mm
• Centres PZ: 92mm
• Case Height: 212mm
• Case Width: Backset + 15mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Main Gearbox: Latch & Deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever
• Packaging: Supplied individually
