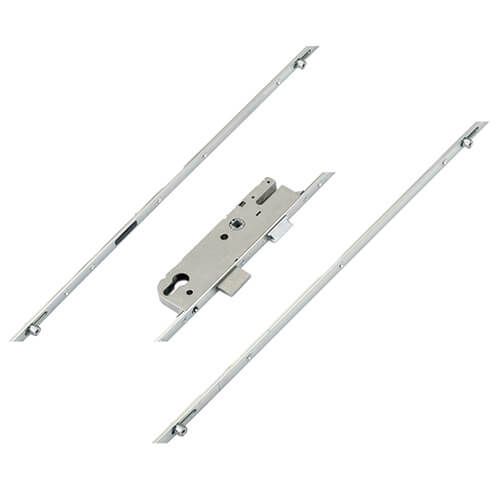

GU Europa Latch Deadbolt 4 Rollers Split Spindle

Regular price £68.89 £0.00
Shipping calculated at checkout.

A split spindle version of the ever popular 4 roller GU multipoint lock.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Depending on date of manufacture either- Undo screw or screws in the latch, remove, reverse and reinsert. Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

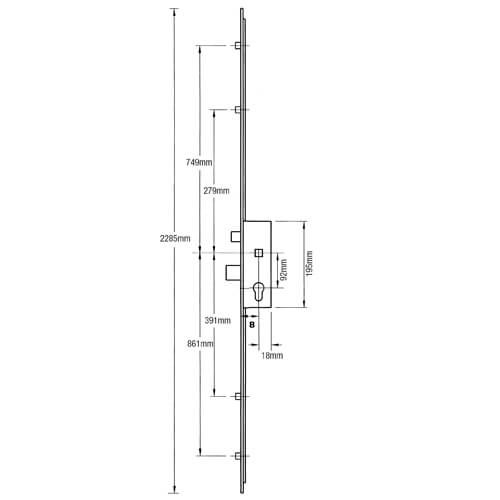

Technical Information-

  • Centres: 92mm
  • Case height: 195mm
  • Case depth: Backset + 18mm
  • Overall length: 2285mm
  • Distance between outer rollers: 1610mm
  • Distance between inner rollers: 670mm
