GU Europa Latch Deadbolt 4 Rollers Lift Lever 16mm Faceplate - All Backsets

One of the most cost effective 4 roller locks available on the market which also features the largest range of different backsets.

Backset: 28mm, 35mm, 40mm, 45mm and 55mm.

Centres: 92mm.

Operation: Lift lever.

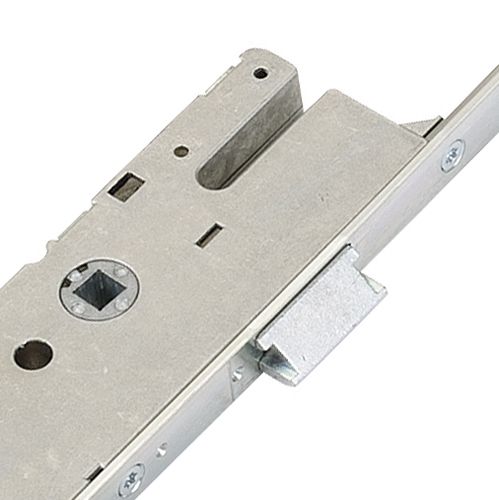

Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

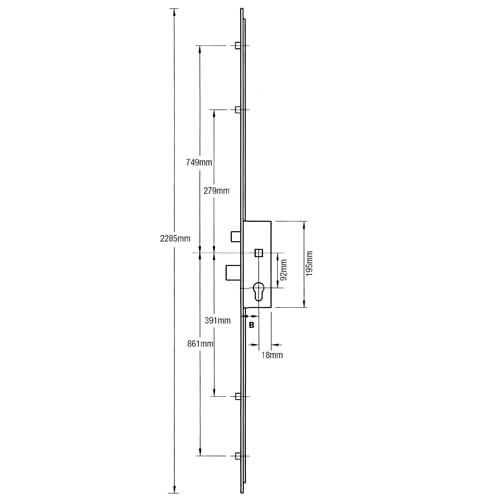

Technical Information-

• Centres: 92mm
• Case height: 195mm
• Case depth: Backset + 18mm
• Overall length: 2285mm
• Distance between outer rollers: 1610mm
• Distance between inner rollers: 670mm
