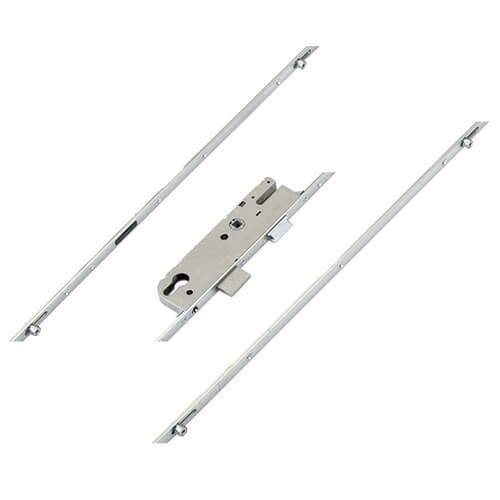

GU Europa Latch Deadbolt 4 Rollers 40mm Backset
by GU
Original price
£80.35
-
Original price
£80.35
Original price
£80.35
£80.35
-
£80.35
Current price
£80.35
A split spindle version of the ever popular 4 roller GU multipoint lock.
Operation: Lift lever or split spindle nightlatch.
Latch reversal: Depending on date of manufacture either- Undo screw or screws in the latch, remove, reverse and reinsert. Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

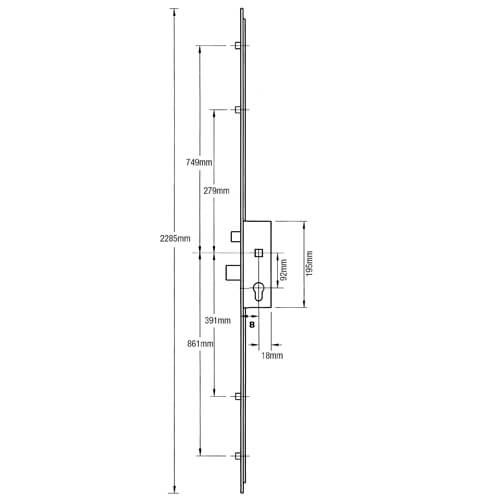

Technical Information-
- Centres: 92mm
- Case height: 195mm
- Case depth: 40mm Backset + 15mm
- Overall length: 2285mm
- Distance between outer rollers: 1610mm
- Distance between inner rollers: 670mm
