GU Europa Latch Deadbolt 2 Hooks Lift Lever - 16mm faceplate

Regular price £78.89 £0.00
Shipping calculated at checkout.

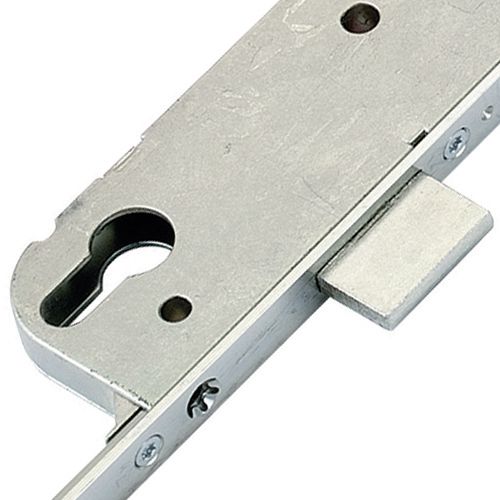

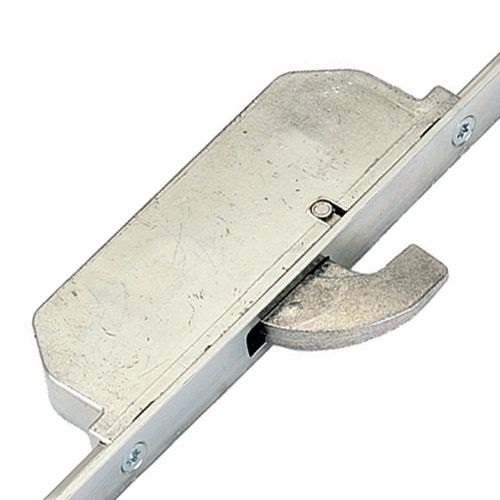

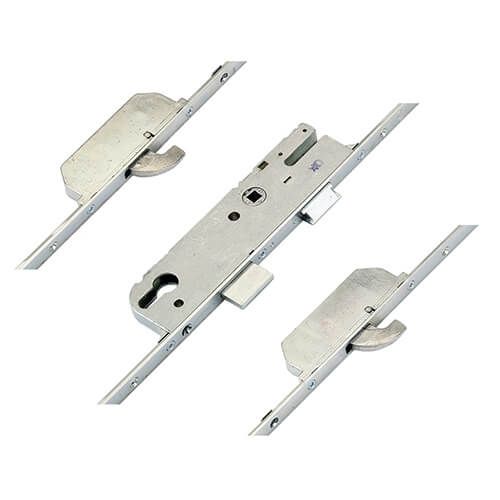

A GU 2 hook lock featuring Latch Deadbolt and 2 rhino hooks with a lift lever function.

Backset: 28mm, 35mm and 45mm.

Centres: 92mm.

Operation: Lift lever.

Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

Technical Information-

  • Centres: 92mm
  • Case height: 195mm
  • Case depth: Backset + 18mm
  • Overall length: 2200mm
  • Distance between hooks: 1228mm
  • Top hook to spindle : 568mm
  • Bottom hook to spindle : 660mm
