GTS 2 Hook Lift Lever Hooks Refurbishment Kit – 28mm or 35mm Backset

What's Included?

1 x Central gearbox with latch & deadbolt

2 x hook cases (opposing direction)

1 x T20 Torx bit

7x  M4.0 Grub Screws

Product Overview

Easily restore your Maco GTS multipoint door lock using this all-in-one refurbishment kit. Designed for locks with a latch and deadbolt centre case (single spindle) and two hookbolt locking points, this kit is compatible with uPVC, timber, aluminium, and composite doors. It provides everything needed to repair a failed lock mechanism without replacing the entire system.

Why Choose the Maco GTS Refurbishment Kit?

Most multipoint locks fail due to wear in the internal gearbox, spindle follower, or locking points. In many cases, the faceplate and drive rods remain fully functional. This refurbishment kit includes all essential bolt-on components to replace worn parts, allowing for a complete overhaul of the lock system—quickly and easily.

With packaging no larger than a pizza box, this compact kit is perfect for installers. It eliminates the need to source full-length replacements, identify exact model numbers, or wait for deliveries. Simply match the kit to the lock’s centre case and hook configuration, install the components on the existing faceplate, and restore full lock functionality in one visit.

Key Benefits

• Fast, one-visit repairs—no return trips required
• Eco-friendly solution—reduced packaging and carbon emissions
• No need for long parcels, roof racks, or catalogues
• Easy to stock in service vans due to compact size
• Compatible with a wide range of multipoint locks used in the UK

Eco-Conscious & Efficient

This refurbishment kit offers a sustainable alternative to replacing full-length multipoint locks. By reducing packaging waste and avoiding next-day deliveries, it helps lower environmental impact—making it the greenest way to repair failed locks.

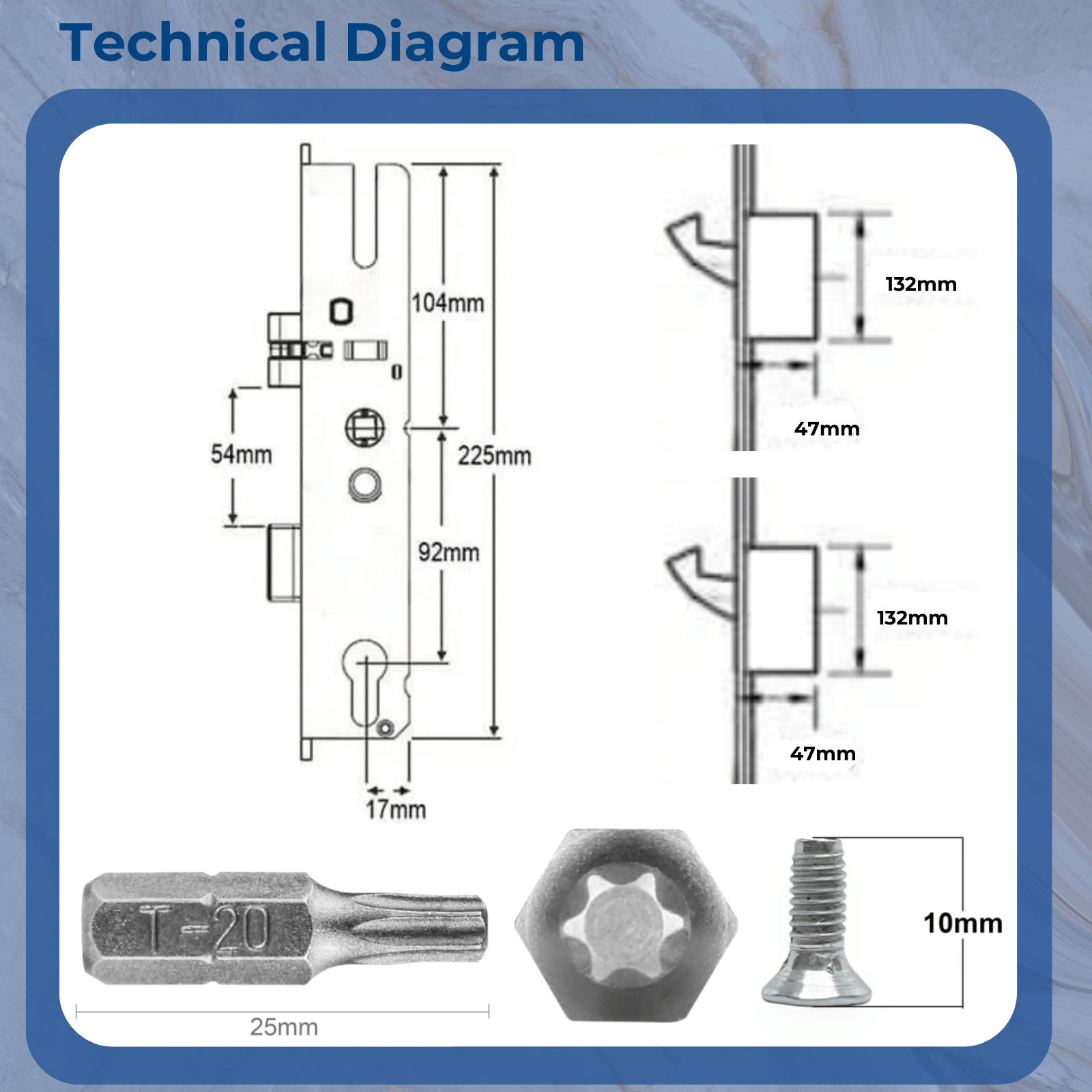

Product Specifications

• Manufacturer: Maco
• Backset: Select from dropdown (see guide: How to measure the backset)
• Centres (PZ): 92mm (see guide: How to measure centres)
• Spindle Size: 8mm
• Spindle Type: Single 8mm
• Deadbolts: 1
• Latch: 1
• Hooks: 2
• Main Gearbox: Latch & Deadbolt configuration
• Operation: Select from dropdown (see guide: What is the operation?)
• Handing: Non-handed (fits left or right handed doors)
• Compatible Door Materials: uPVC, Aluminium, Timber, Composite
