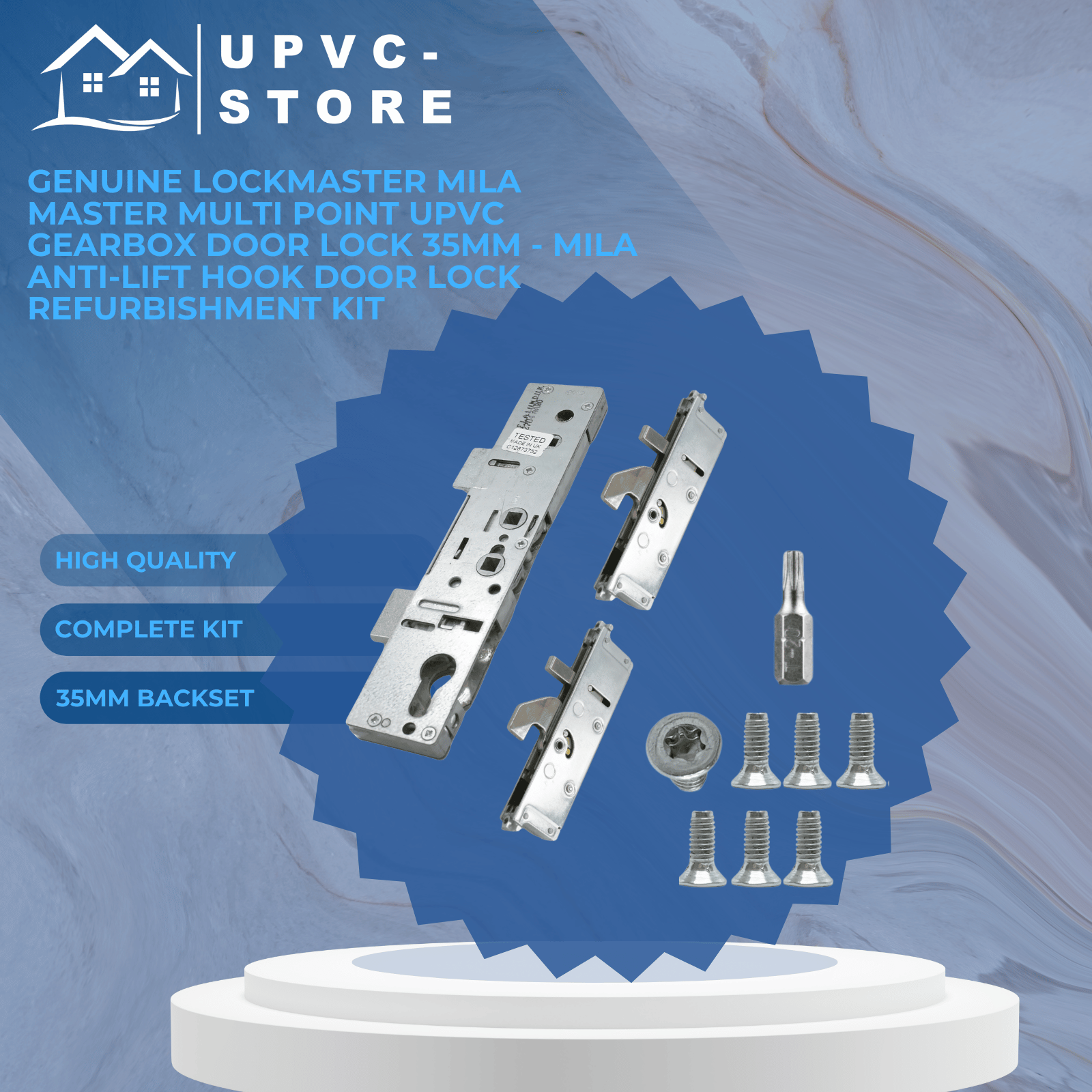

Genuine Lockmaster Mila Master Multi Point uPVC Gearbox Door Lock 35mm – Mila Anti-Lift Hook Door Lock Refurbishment Kit

What's Included?

• 1 x Central gearbox with latch & hookbolt
• 2 x Hook cases (opposing direction)
• 1 x T20 Torx bit
• 7 x M4.0 Grub Screws

Enhance the security and functionality of your uPVC door with this complete replacement solution, featuring a Lockmaster, Milamaster, and Millenco 35mm Backset 2-Spindle Gearbox Case along with a Yale Mila Anti-Lift Hook Gearbox. This combo is ideal for refurbishing worn or faulty multipoint door locking systems, restoring performance and adding anti-lift security.

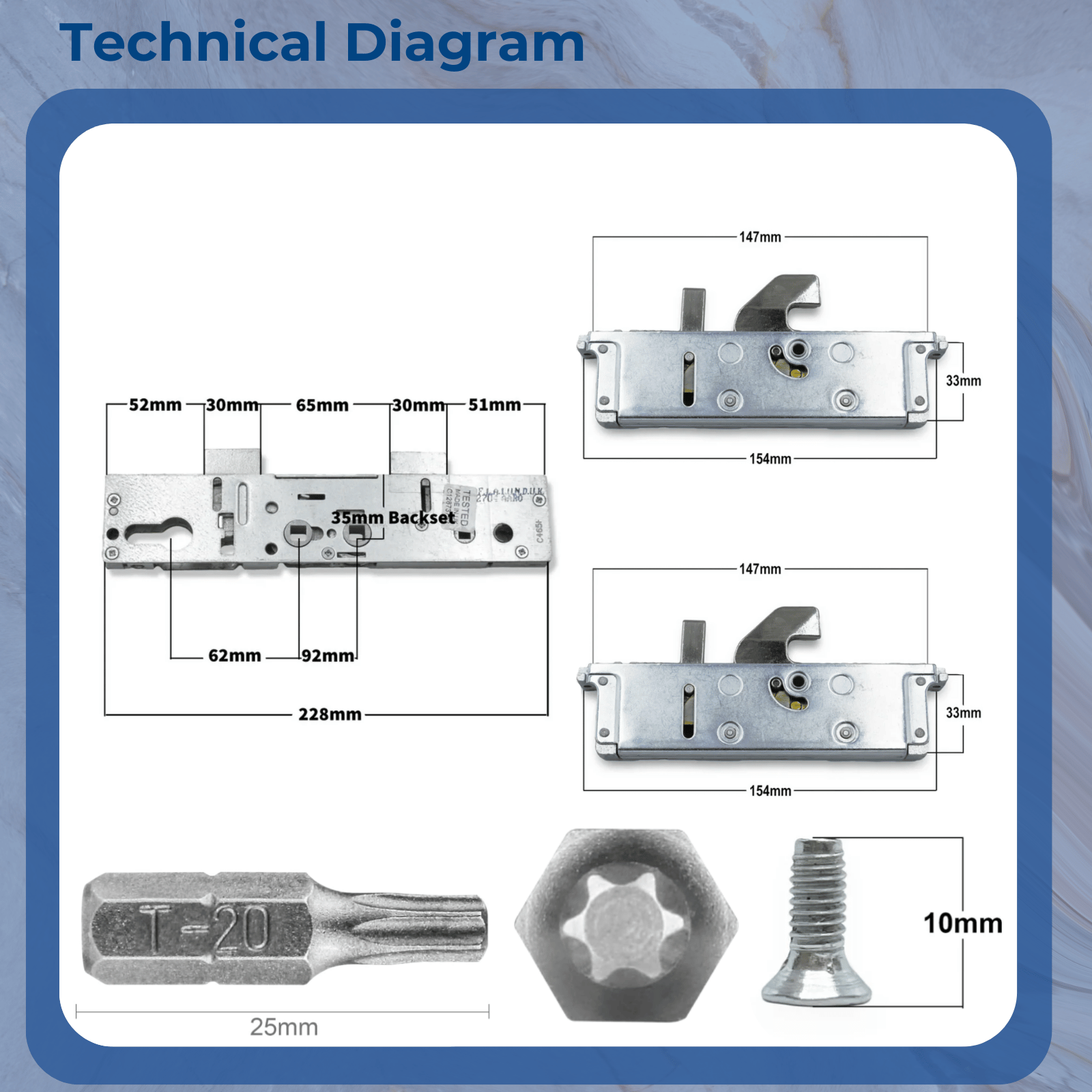

Main Gearbox Case Features:

• Backset: 35mm
• Spindle to Key Measurements: 92mm (top spindle) / 62mm (lower spindle)
• Operation Type: Suitable for Lever/Lever or Lever/Pad handle configurations
• Locking Points: Connects seamlessly to existing multi-point systems
• Faceplate Width: 16mm

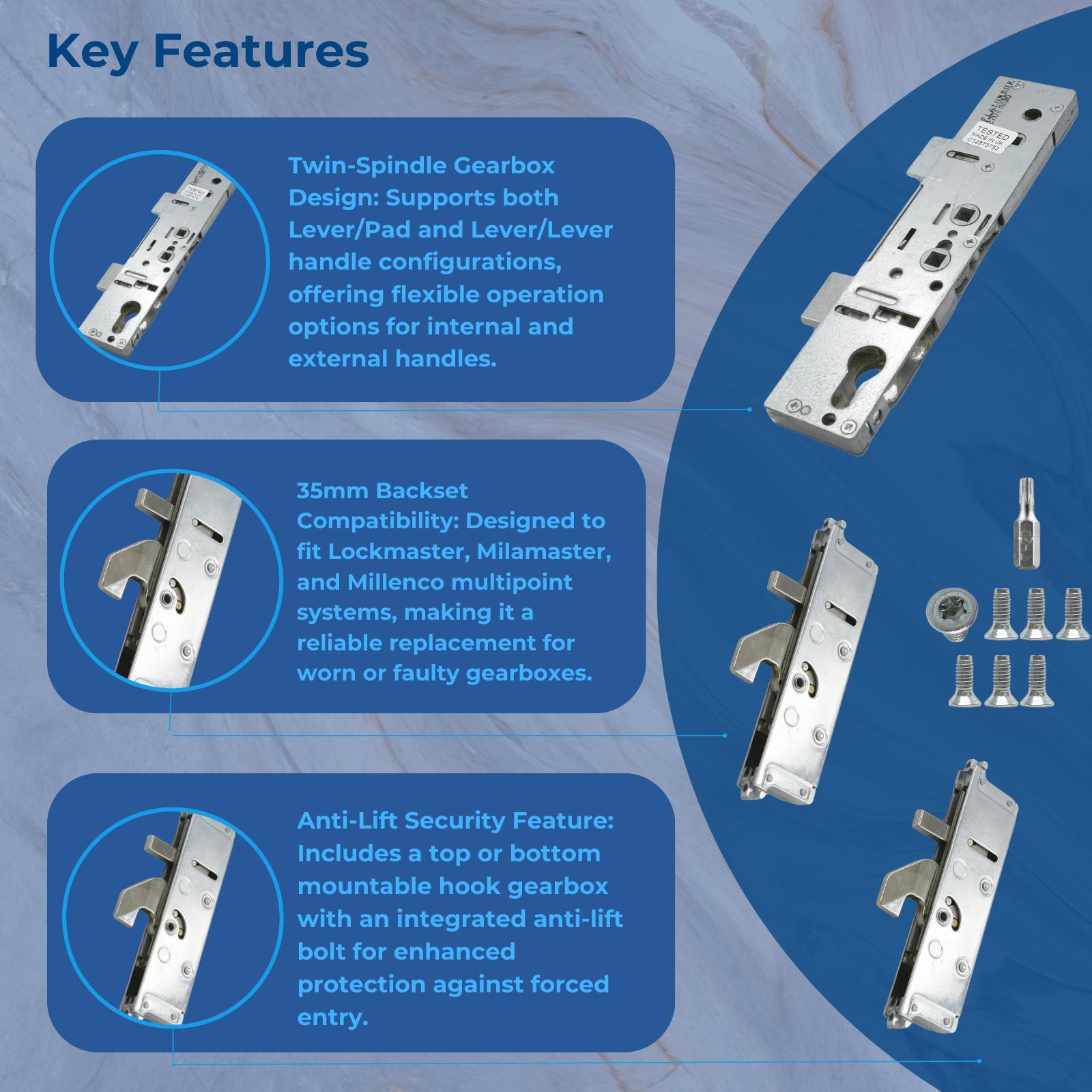

Product Benefits:

• Twin-Spindle Design: Supports both Lever/Pad and Lever/Lever configurations
• External Operation: Lower spindle works with external pad handle (key required to operate latch)
• Internal Functionality: Top spindle operates latch and lock without a key
• Flexible Handle Options: Can be used with only the top spindle for Lever/Lever setups
• Handle Recommendation: Use with sprung handles – this lockcase is unsprung

Anti-Lift Hook Gearbox Features:

• Placement: Can be installed at the top or bottom of the door lock mechanism
• Security: Integrated hook and anti-lift bolt provide enhanced protection against forced entry

Installation Tips:

Ensure compatibility by matching your current lock measurements with the specifications listed above. This set is a reliable replacement for commonly used Lockmaster, Milamaster, and Millenco multipoint door locks, providing smooth operation and additional security features.
