Genuine Fuhr 30mm Split Spindle Multipoint Door Lock Gearbox – 92mm PZ

Genuine Fuhr 30mm Backset Multipoint Door Lock Gearbox

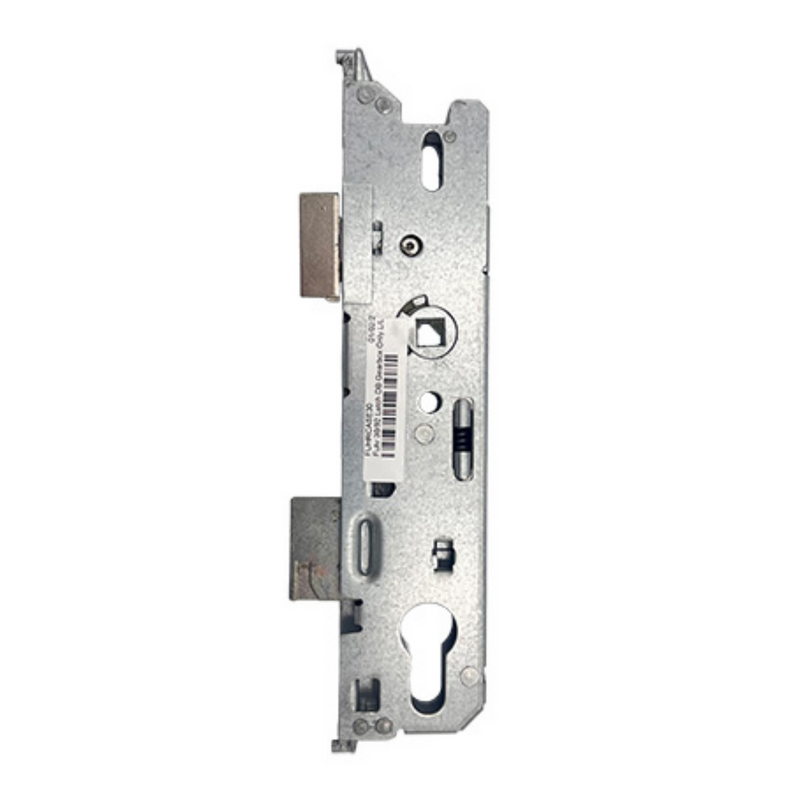

A genuine Fuhr replacement centre gearbox with a 30mm backset, 92mm handle-to-cylinder centres and an 8mm split-spindle follower. Suitable for the matching Fuhr multipoint mechanism using lift-lever or split-spindle nightlatch operation.

Technical details

• Supplier reference: FUHRCASE30SS
• Backset: 30mm
• Handle-to-cylinder centres (PZ): 92mm
• Spindle follower: 8mm, split spindle
• Cylinder profile: Euro
• Locking: latch and deadbolt
• Deadbolt throw: 14mm on this 30mm model
• Reversible latch for left- or right-hand applications
• Spring and ball bearing pre-fitted
• Supplied individually as a replacement gearbox

Check compatibility before ordering

Match the backset, centres, spindle operation, latch and connection points to your existing gearbox. This standard gearbox is not interchangeable with the different 30mm Fuhr gearboxes used on some bifold doors, including Smarts Aluminium systems. Older Fuhr latch shapes can also differ, so check your existing latch and keep.

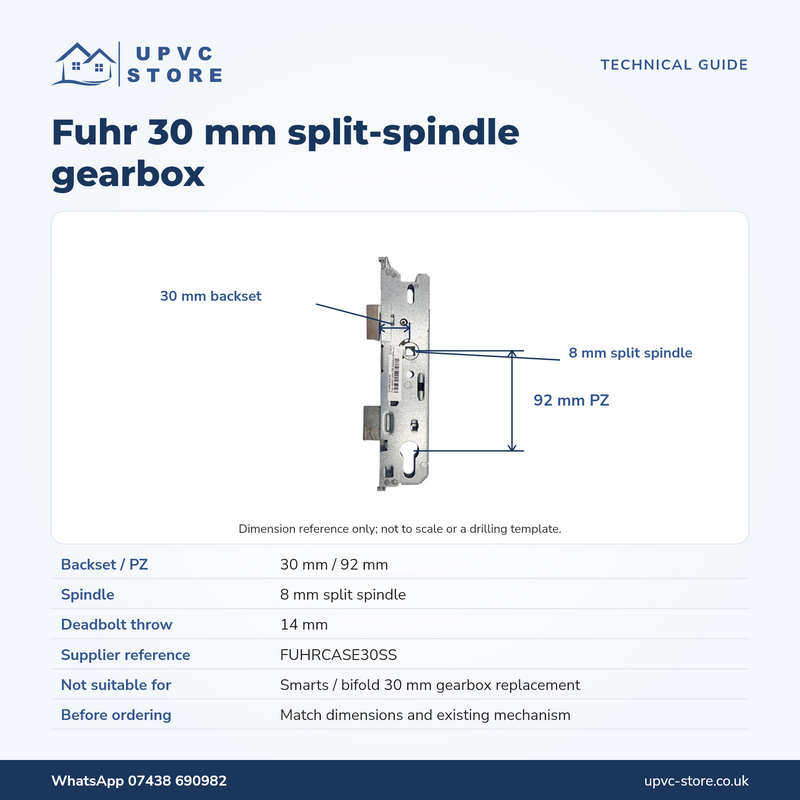

This listing is for the 30mm backset only. Refer to the technical guide for the key measurements, or send us photographs of your existing mechanism if you need help identifying it.
