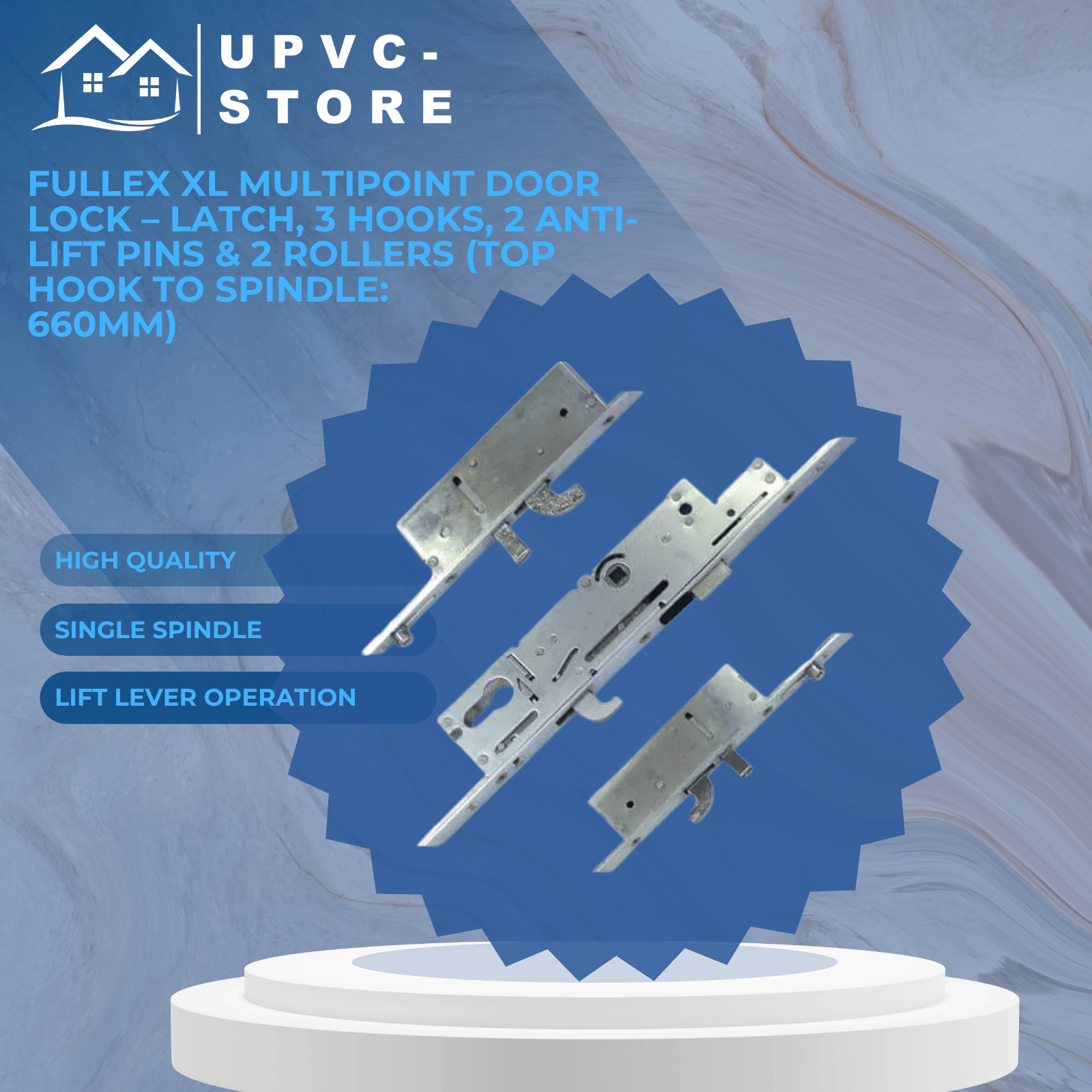

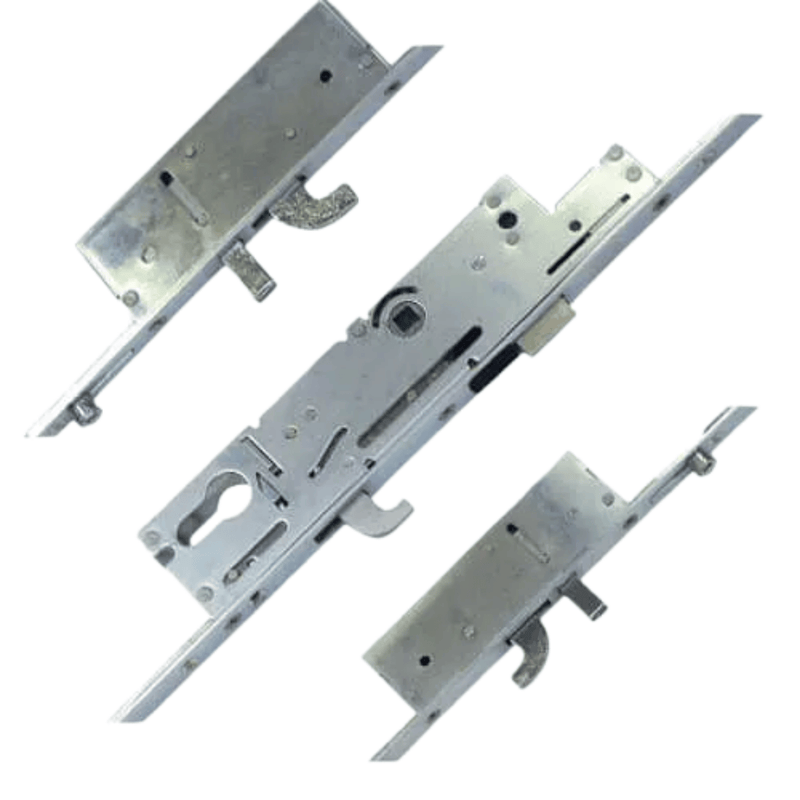

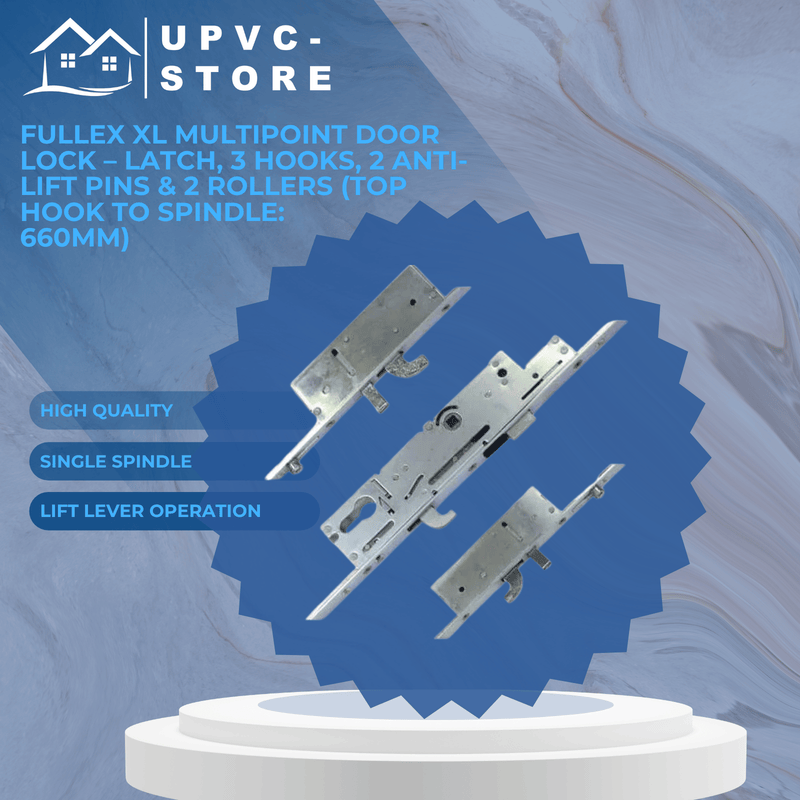

Fullex XL Multipoint Door Lock – Latch, 3 Hooks, 2 Anti-Lift Pins & 2 Rollers (Top Hook to Spindle: 660mm)
Fullex XL Multipoint Door Lock – Latch, 3 Hooks, 2 Anti-Lift Pins & 2 Rollers (Top Hook to Spindle: 660mm)
The Fullex XL Multipoint Door Lock is designed for maximum security and long-term durability, making it ideal for uPVC and aluminium doors. This specific model features 2 rollers, 3 hooks, 2 anti-lift pins, and 1 latch for enhanced protection and smooth operation.
Engineered for performance, all Fullex XL locks are equipped with three hooks, two anti-lift bolts, and either two or four roller cams—designed to provide excellent compression and weather sealing.
The XL range supports multiple gearbox configurations, including:
- Double Spindle
- Single Spindle
- Split Spindle
These allow for a variety of locking methods such as:
- Lift Lever
- Double Spindle Nightlatch
- Split Spindle Nightlatch
All versions share the same door preparation, enabling easy replacement or upgrade. (Note: Double spindle options may require compatible handles.)
How to Identify a Fullex XL Lock
Each Fullex XL lock is clearly marked with the Fullex logo on the faceplate. When removed from the door, the gearbox features a distinctive cut-out on the top corner, making it easily recognizable.
Please verify your measurements against the product specifications to ensure compatibility—hook, roller, and anti-lift pin positions vary depending on the model.

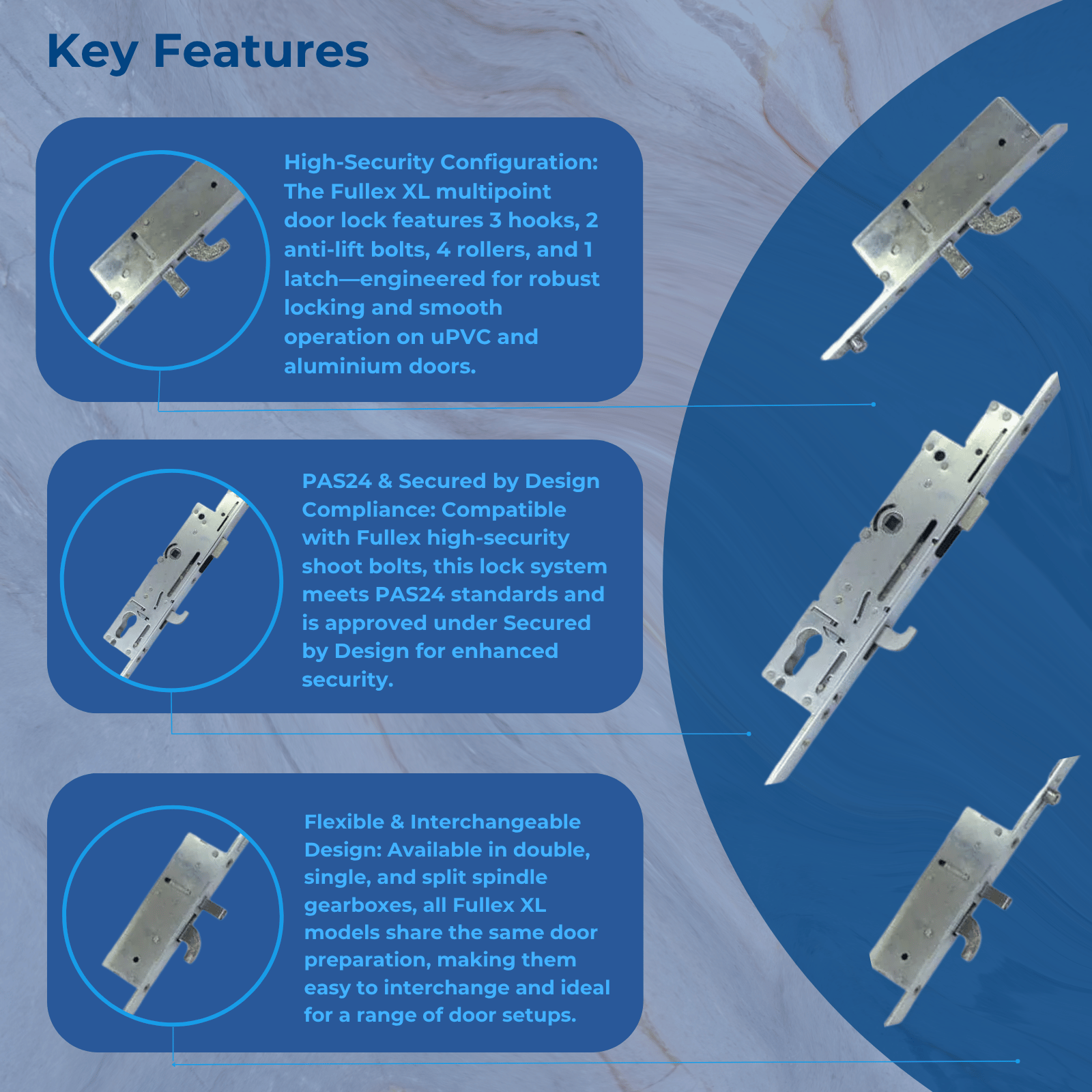

Key Features
- Extendable top and bottom ends for greater flexibility
- Compatible with Fullex shoot bolts to meet PAS24 security standards
- Gearboxes available in 35mm and 45mm backsets, all with 227mm height and backset + 15mm width, fixed with three equidistant screws (middle screw 108mm from top and bottom)
- Hooks made of Dacromet-coated A3 sintered steel, approx. 23mm high, throwing upwards
- Faceplate snib allows you to hold the latch open when needed
Hook & Roller Configuration
- Top Hook: Throws downward, with anti-lift pin located above
- Bottom Hook: Throws upward, with anti-lift pin located below
- Rollers: Help compress the door against the frame and improve sealing—adjustable ±1mm to prevent door warping and improve fit
Locking Operation (Double Spindle)
To Lock:
- Close the door to engage the latch
- Lift the handle to activate all locking points
- Turn the key to fully secure the lock
To Unlock:
- Turn the key to disengage the system
- Push the handle down to release locking points
- Turn the key again to retract the latch
Performance & Security Standards
- Corrosion Resistance: BS EN 1670 Grade 4 (240-hour salt spray test)
- Cycle Tested: 200,000 cycles
- Security: Hooks meet Secured by Design requirements and are PAS24 compliant when used with approved components
We stock a full range of Fullex XL-compatible accessories, including handles, spindles, keeps, and replacement parts.
Commonly used for uPVC doors and aluminium doors.
Product Specification
- Manufacturer: Fullex
- Backset: Selectable (35mm or 45mm)
- Centres (PZ): 92mm/62mm
- Faceplate: Selectable options
- Spindle Size: 8mm (Double spindle)
- Rollers: 2
- Hooks: 3
- Latch: 1
- Anti-Lift Bolts: 2
- Main Gearbox: Latch & hookbolt mechanism
- Operation: Lift Lever, Split Spindle, etc. (selectable)
- Handing: Non-handed

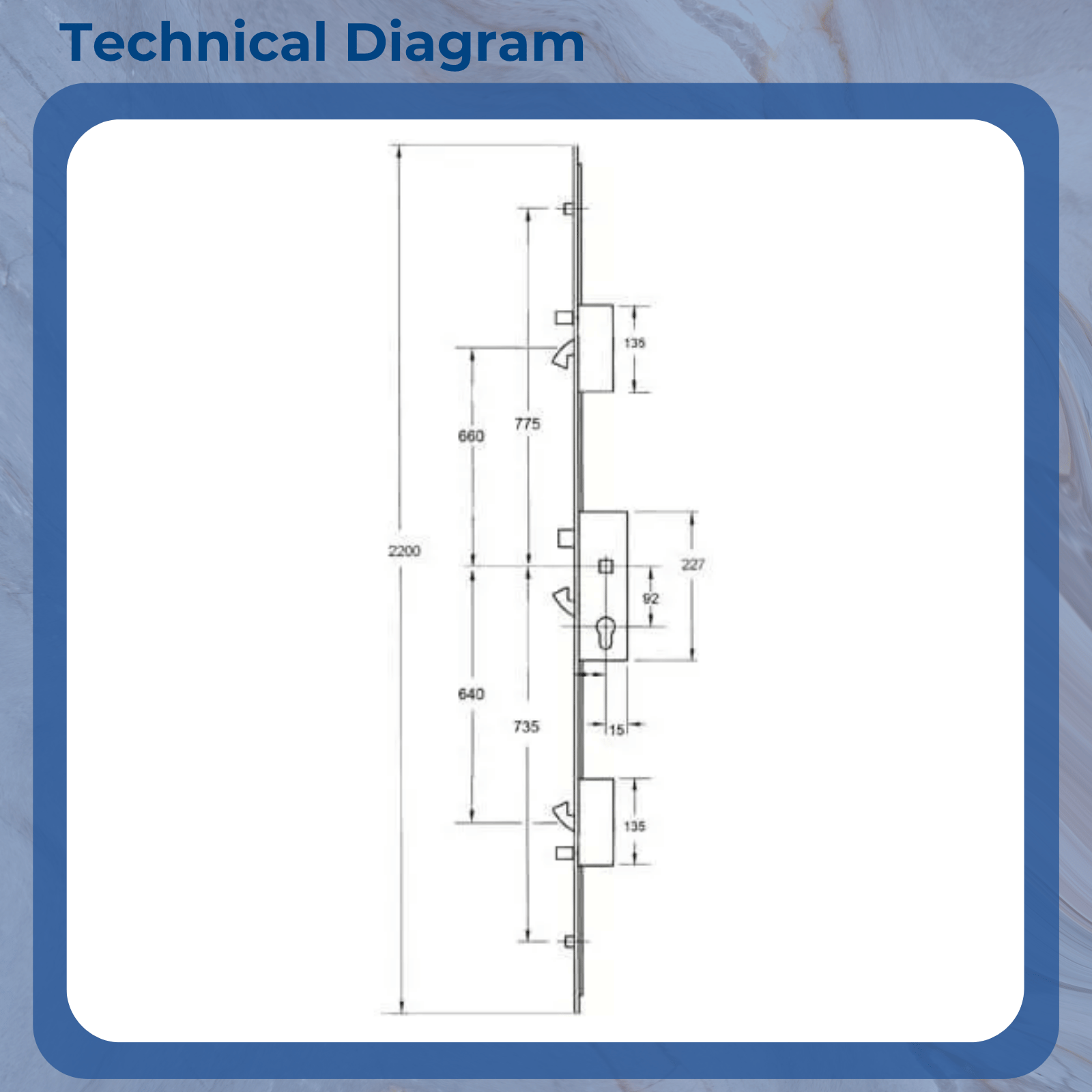

- Distance Between Inner Locking Points: 1300mm
- Distance Between Outer Locking Points: 1510mm
- Top Hook to Spindle: 660mm
- Bottom Hook to Spindle: 640mm
- Top Roller to Spindle: 775mm
- Bottom Roller to Spindle: 735mm
- Overall Lock Height: 2200mm
