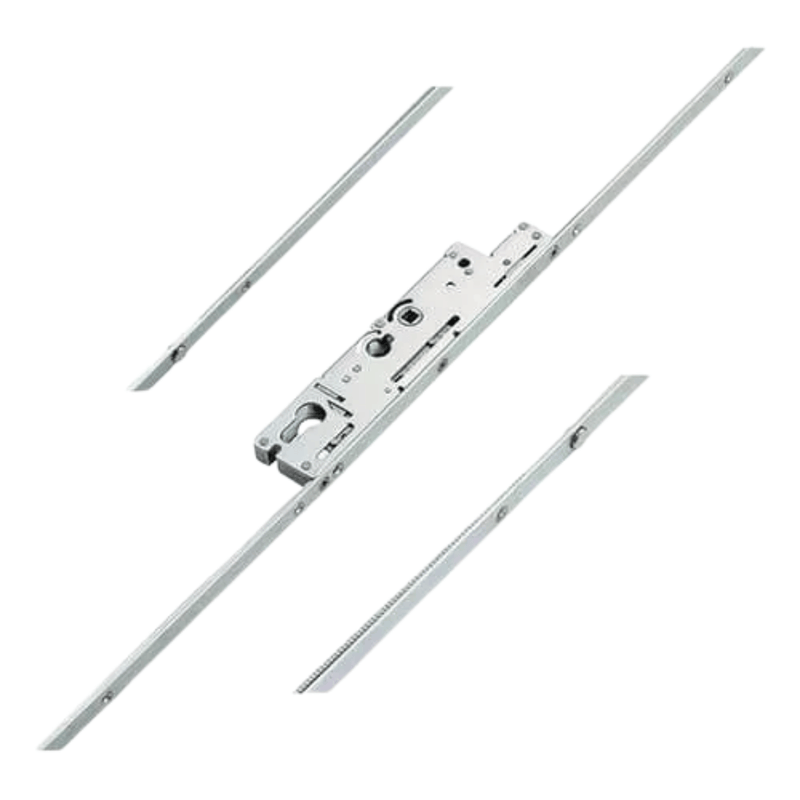

Fullex XL Lift Lever Passive Door Lock for uPVC and Composite Doors

The Fullex XL Passive Multipoint Door Lock is specifically designed for the secondary (passive) door in a pair of uPVC or aluminium French doors. This lock does not include traditional locking points but is engineered to work with top and bottom shootbolts that secure the passive door leaf to the frame.

As Fullex’s latest high-security solution, the XL series is renowned for its strength, reliability, and compatibility with modern door systems. The passive variant includes shootbolt attachment points and is used alongside a primary multipoint lock installed on the main (active) door.

Key Features:

• Suitable for Passive Doors: Designed for use on the secondary door in French door setups.
• Shootbolt Compatible: Accepts top and bottom shootbolts for secure locking.
• Lift Lever Operation: Simple and reliable locking mechanism.
• Non-Handed: Universal fit for left or right-hand doors.
• Durable Construction: Trusted Fullex quality for long-term use on uPVC or aluminium doors.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the shootbolts.
2. Turn the key to lock the shootbolts in place.

To Unlock the Door:

1. Turn the key to unlock the mechanism.
2. Push the handle downward to retract the shootbolts.

Additional Information:

• Latch Reversal: Not required – this lock does not include a latch and is non-handed.
• Compatibility: Commonly used on uPVC and aluminium French doors as a passive locking solution.
• Accessories Available: We stock a full range of compatible spindles, keeps, handles, and accessories for Fullex passive locks.

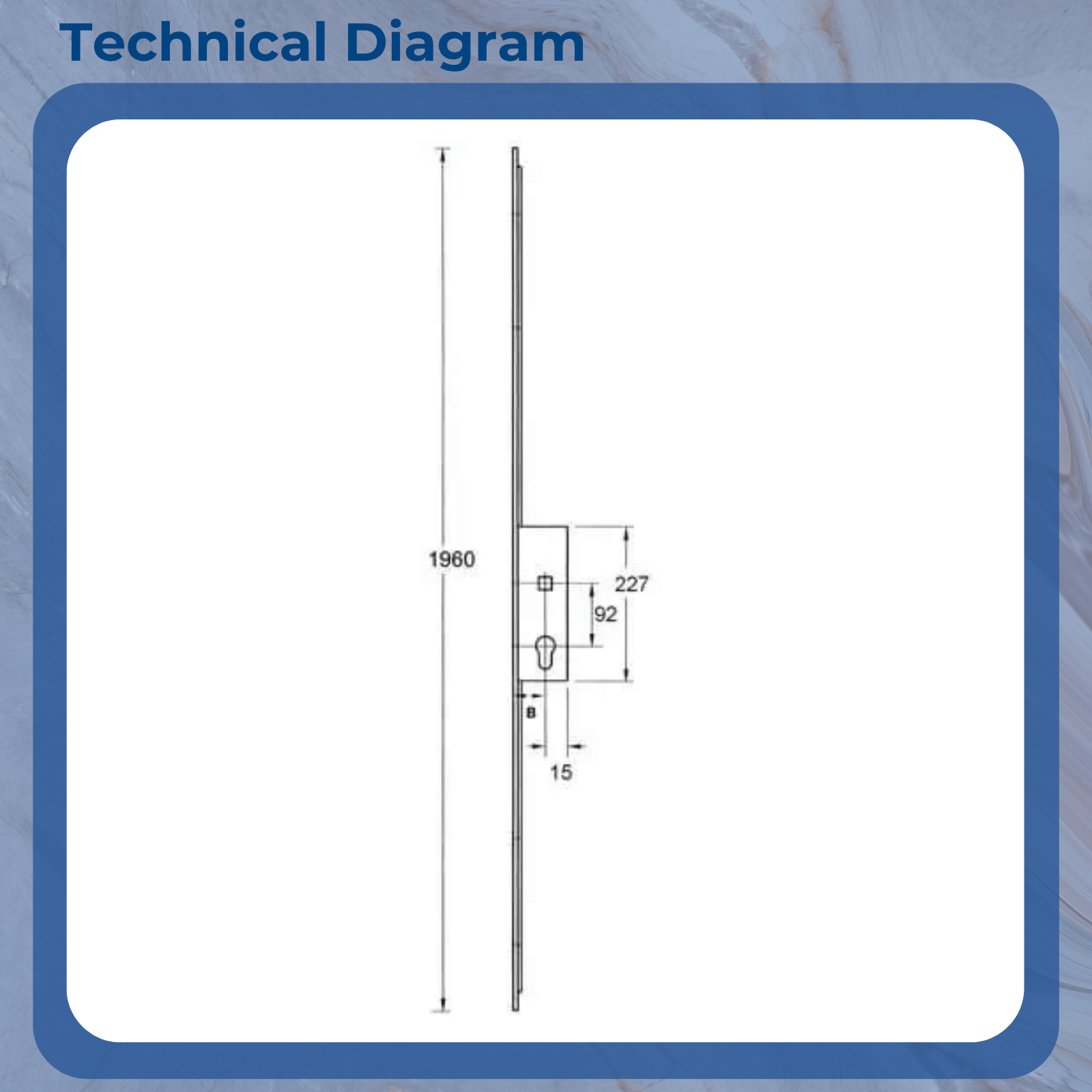

Technical Specifications:

• Manufacturer: Fullex
• Backset: Select from drop-down – How to measure backset
• Centres (PZ): 92mm – How to measure centres
• Faceplate: Select from drop-down – How to measure faceplate
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Operation: Lift Lever (selectable) – What is operation?
• Spindle: Single 8mm
• Handing: Non-handed
• Locking Height: 1960mm
• Door Compatibility: uPVC, Aluminium
