Fullex

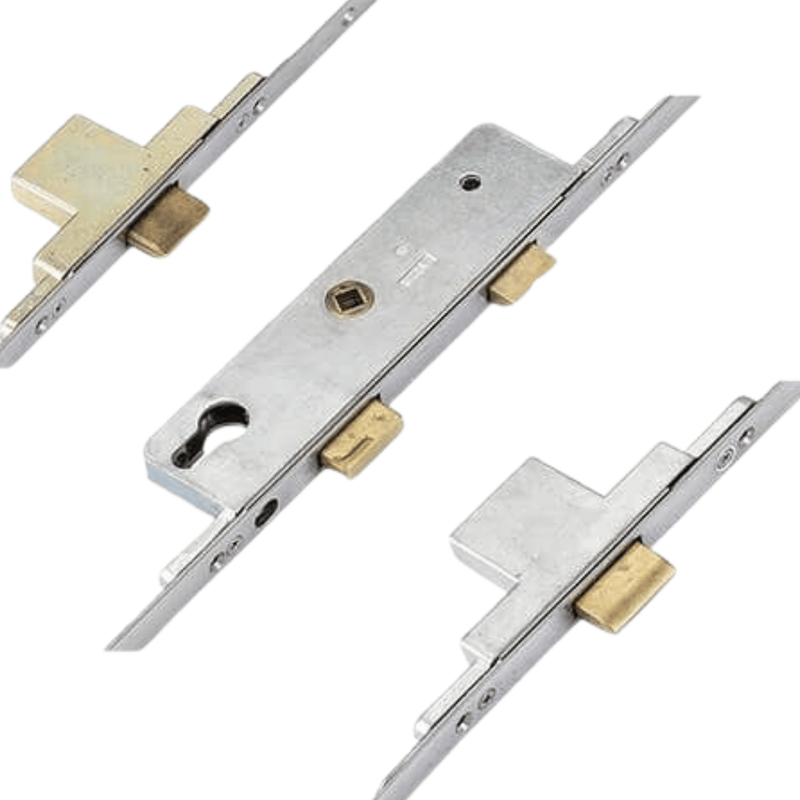

Fullex SL16 Latch 3 Deadbolts Split Spindle 35mm 45mm 55mm - 20mm Faceplate

Regular price £109.89 £0.00
Shipping calculated at checkout.

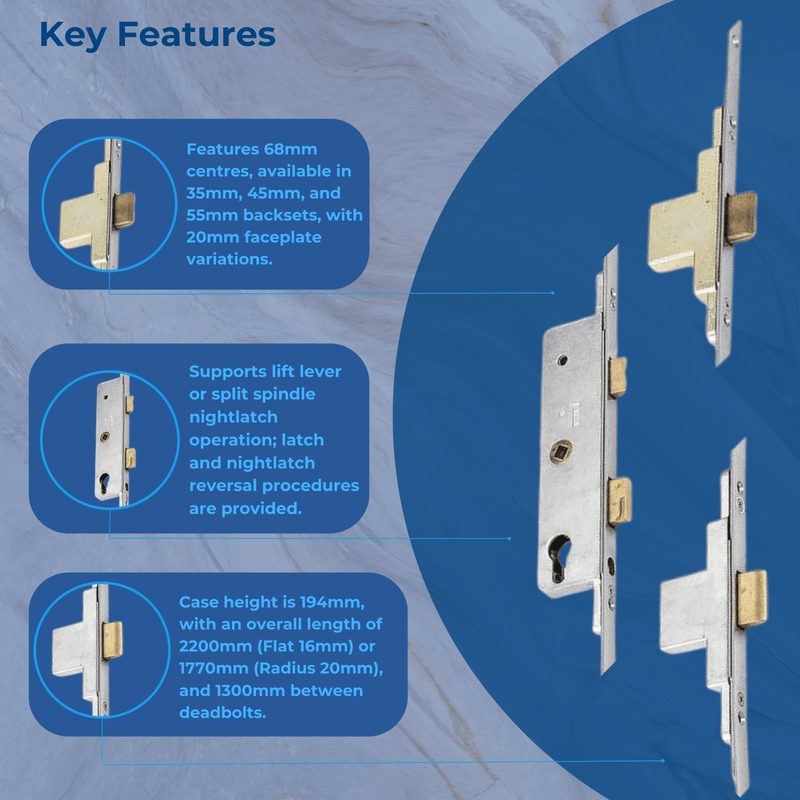

SL16 locks feature 68mm centres and 35mm backset.

Not to be confused with the A - G series locks with 68mm centres and 39mm backset which are now discontinued and only available as a case A or F gearbox.

 20mm faceplate variations.

Backset: 35mm 45mm and 55mm.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Undo the screw or screw in the latch to remove. Reverse, reinsert and replace screw.

Nightlatch reversal: Insert the split spindle 2/3 of the way in on the internal side and 1/3 of the way in on the external side.

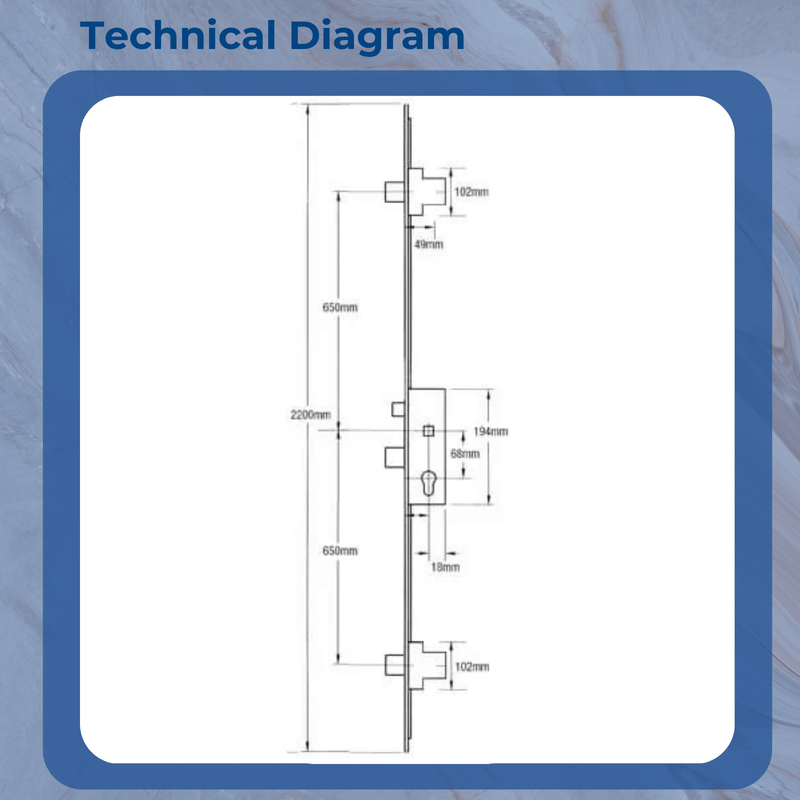

Technical Information-

  • Centres: 68mm
  • Case height: 194mm
  • Case depth: Backset + 18mm
  • Overall length: SL16 - 2200mm - Flat 16mm
  • Overall length: SL160052 - 1770mm - Radius 20mm
  • Overall length: SL160108 - 1770mm - Radius 20mm
  • Overall length: SL160074 - 1770mm - Radius 20mm
  • Distance between deadbolts: 1300mm
