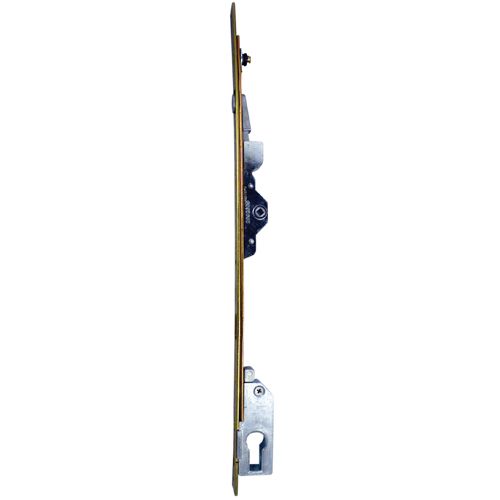

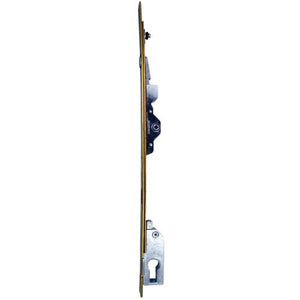

Fullex PDL 2 Point Patio Sliders uPVC Door Lock Pin On Frame 25mm Backset

Case Height: Top case - 158mm. Bottom case - 94mm.

Case Depth:Top case - 23mm. Bottom case - 41mm.

Faceplate Length: 482mm.

Faceplate width: 19mm

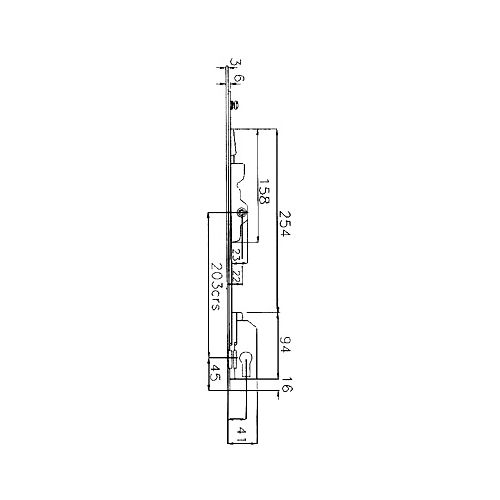

Please see our technical drawing in images for more clarification if you are still not sure then please let us know
