Fuhr 856 Type 3 Latch Deadbolt 2 Rollers 2 Hooks Lift Lever 35mm

Regular price £83.38 £0.00
Shipping calculated at checkout.

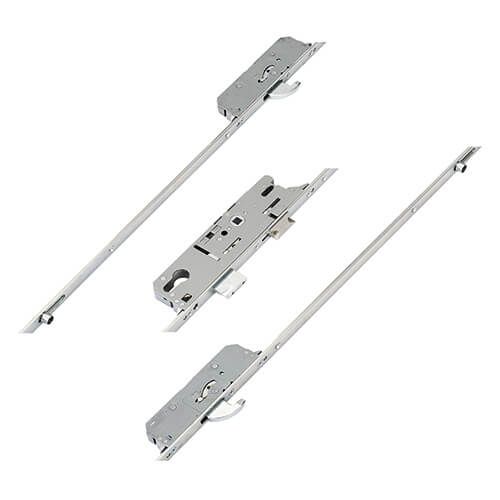

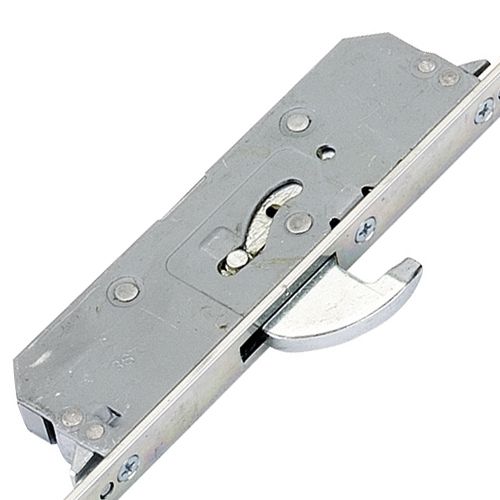

This lock features lift lever operation. Look out for the 859 SS series which has split spindle nightlatch operation. This Type 3 lock features 2 rollers and 2 hooks.


Operation: Lift lever.

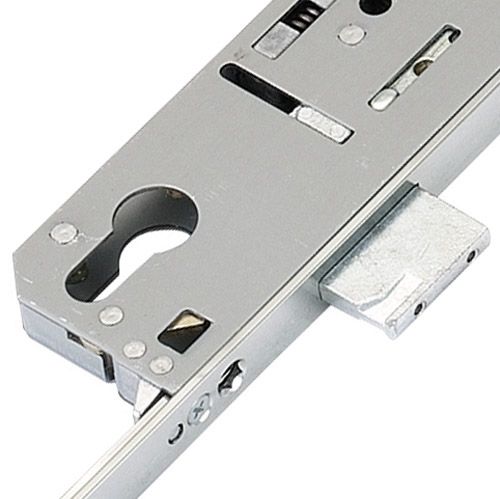

Latch reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and replace the screw.

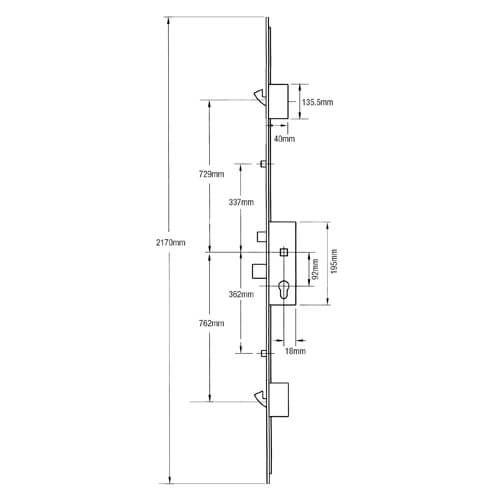

Technical Information-

Centres: 92mm
Case height: 195mm
Case depth: Backset + 18mm
Overall length: 2170mm
Distance between hooks: 1491mm
Distance between rollers: 699mm
Distance between hooks: 1015mm
