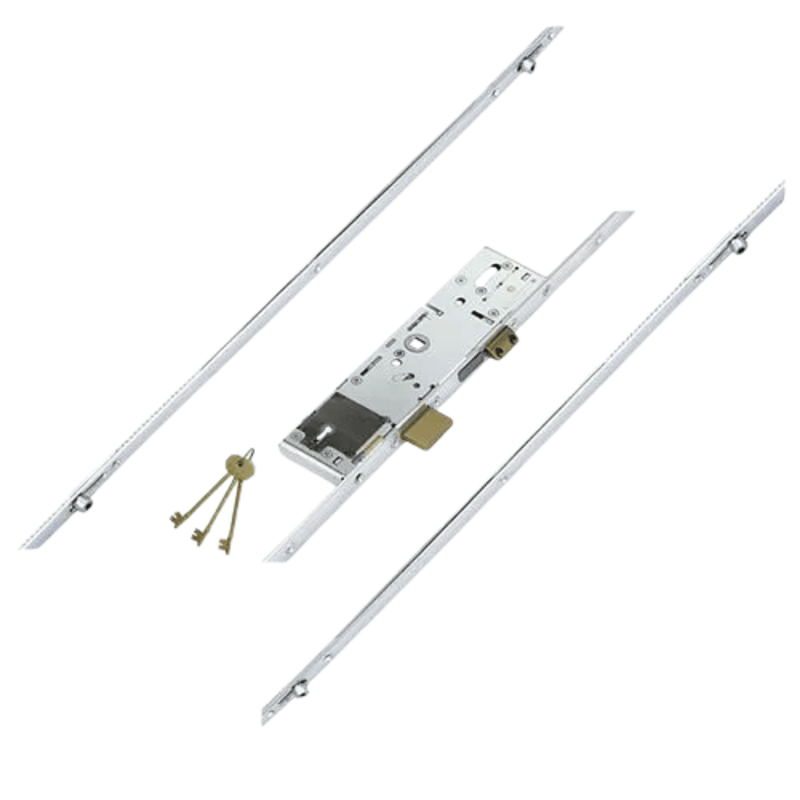

ERA Vectis Multipoint Door Lock – Split Spindle with Latch, Deadbolt & 4 Rollers for Enhanced Security

Key Features:

• Split spindle functionality for secure inside and outside access
• Includes 4 compression rollers, 1 deadbolt, and 1 latch
• Designed to fit uPVC and aluminium doors
• Available in 35mm or 45mm backset options
• Meets BS EN 1670:2007 Grade 4 corrosion resistance
• Endurance tested to 50,000 locking cycles

Identification Tips:

Identifying an ERA Vectis lock can be straightforward if you know what to look for:

• Key Feature: Uses a traditional 5-lever mortice key instead of a euro cylinder
• Snib Colour: Look for a blue snib (deadbolt/hook bolt versions may have grey, black, or green snibs)
• Branding: ERA locks are sometimes rebranded under names like Saracen or Laird
• Gearbox Shape: Distinctive square-shaped gearbox with no corner cutouts
• Faceplate Markings: May not always show ERA branding—check key profile and snib for confirmation

Gearbox Details:

• UK keyway for mortice key
• Gearbox length: 221mm
• Width: backset + 18mm
• Latch height: 24mm with 2 screws
• Deadbolt height: 30mm
• Distance between latch and deadbolt: 61mm
• Screw hole spacing: 37mm / 85mm / 43mm
• Deadbolt throw: 18mm, chamfered for a tight door seal

Installation Notes:

• ERA Vectis locks use a 5-lever mechanism identical to the ERA Fortress mortice lock
• Can be keyed alike with timber doors using Fortress locks—ideal for matching property security
• A longer mortice key may be required depending on the door profile—contact us for assistance
• We recommend removing the lock from the door to confirm identification, especially if rebranded

Rollers:

• Used primarily for compression and weather sealing
• Help prevent door warping
• Adjustable by +/-1mm for optimum fit

Latch Reversal:

To reverse the latch, unscrew, flip, and reinsert the latch.

How to Operate:

• To Lock: Lift the handle to engage locking points, then turn the key to secure
• To Unlock: Turn the key, then push the handle down to disengage

Compatibility:

• Suitable for both uPVC and aluminium doors
• Can be configured with deadbolt or hook bolt as needed

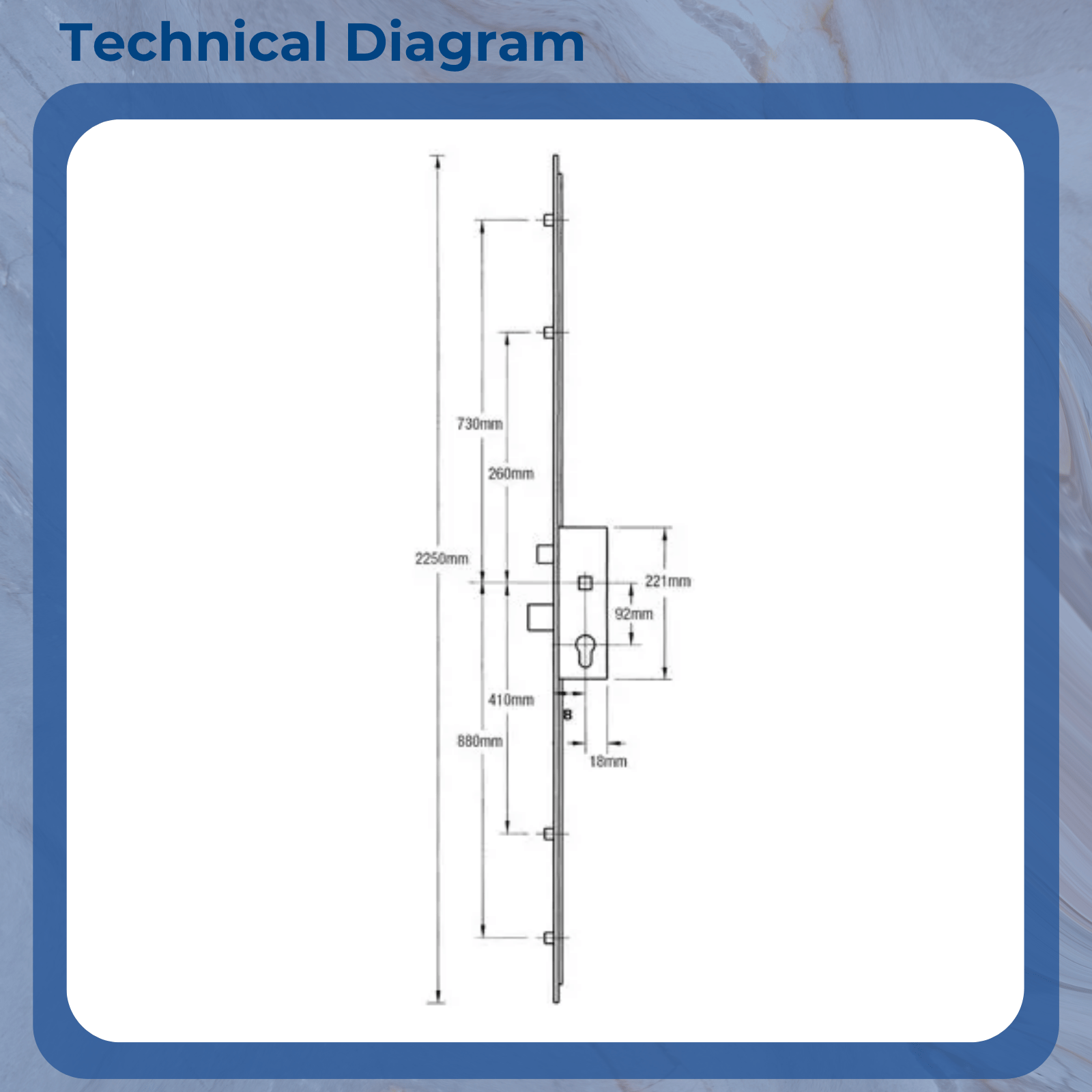

Product Specifications:

• Manufacturer: ERA
• Backset: 35mm or 45mm (selectable)
• Centres (PZ): 92mm
• Spindle Size: 8mm split spindle
• Faceplate: Selectable
• Locking Points: 4 rollers, 1 latch, 1 deadbolt
• Handing: Universal (non-handed)
• Gearbox Operation: Latch and deadbolt
• Lock Height: 2250mm
• Distance Between Rollers: Inner – 670mm, Outer – 1610mm
• Top Roller to Spindle: 730mm
• Bottom Roller to Spindle: 880mm
• Suitable Door Materials: uPVC, Aluminium

Accessories Available:

We stock compatible keeps, handles, spindles, and other accessories. Contact us for keyed-alike options or custom-built configurations.

Upgrade your door security with the robust and reliable ERA Vectis multipoint lock—ideal for long-term performance and safety.
