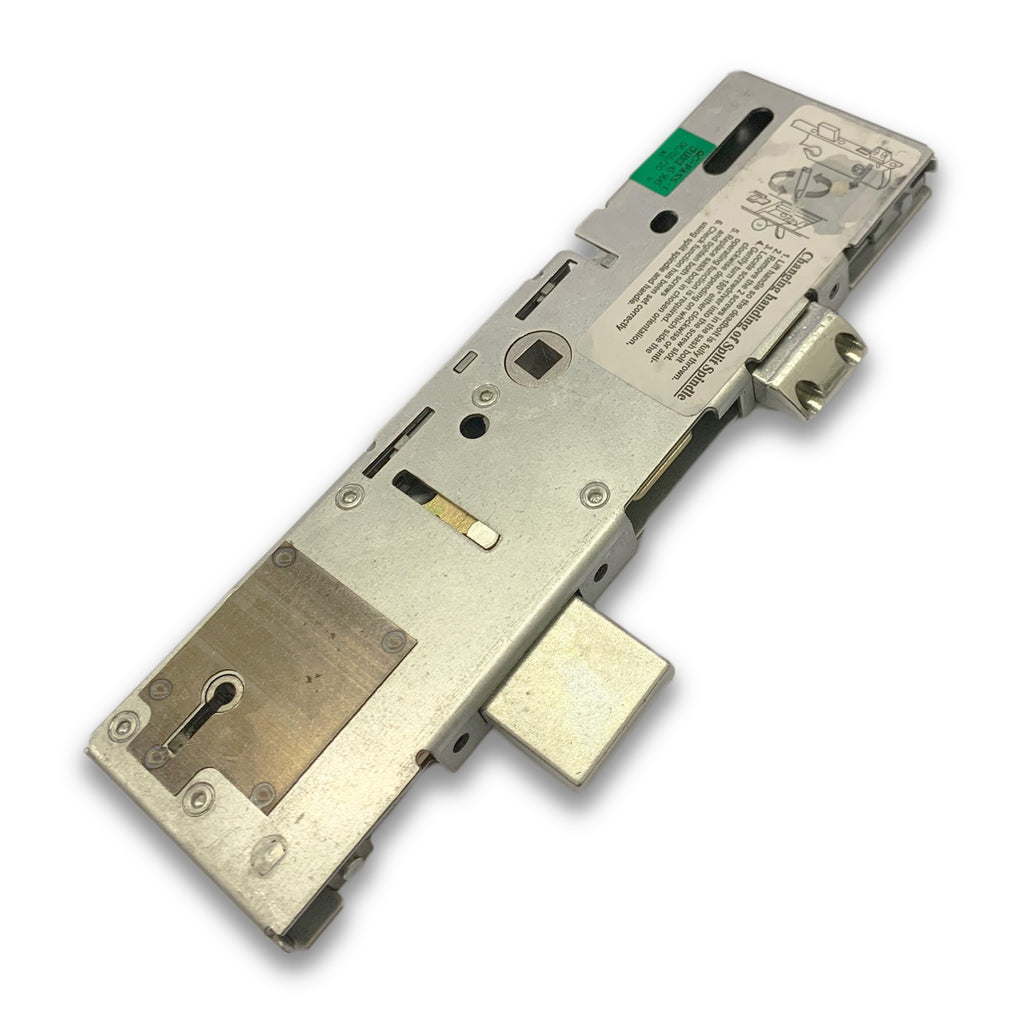

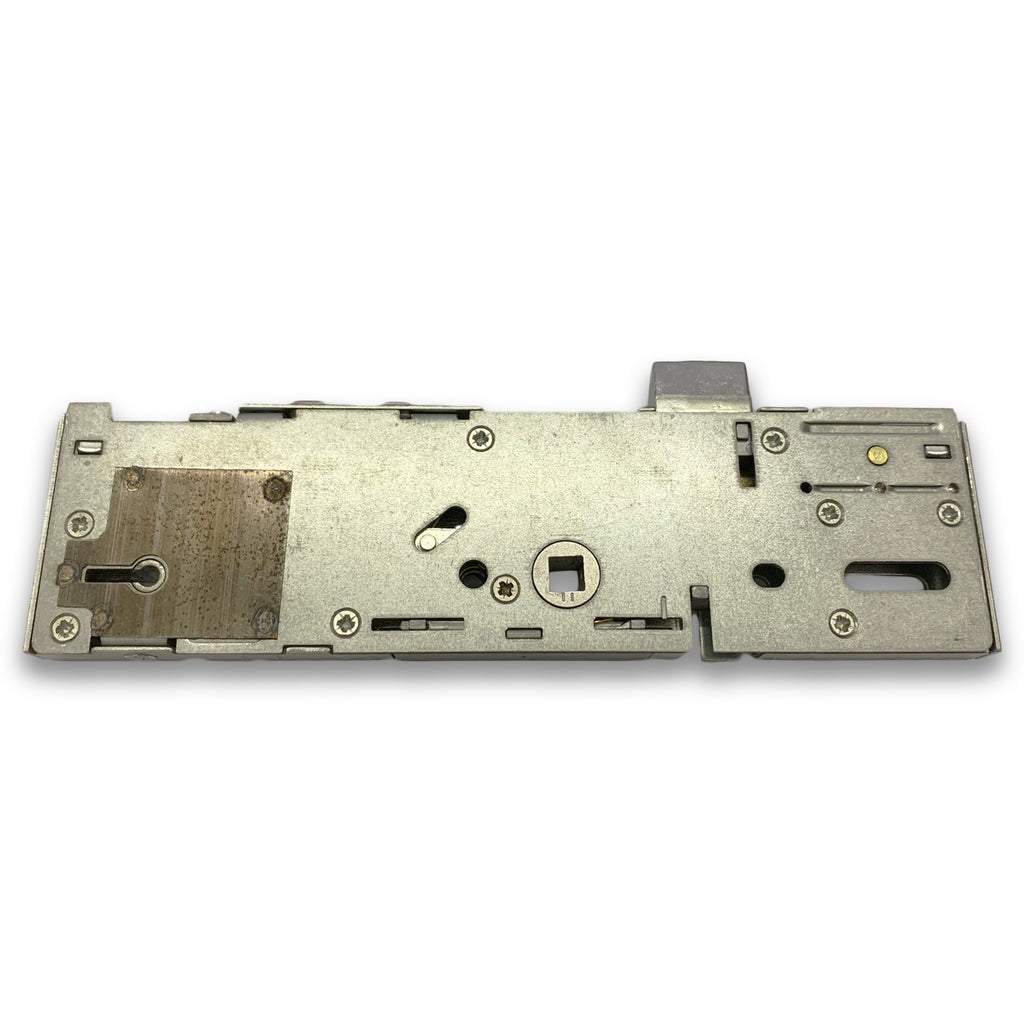

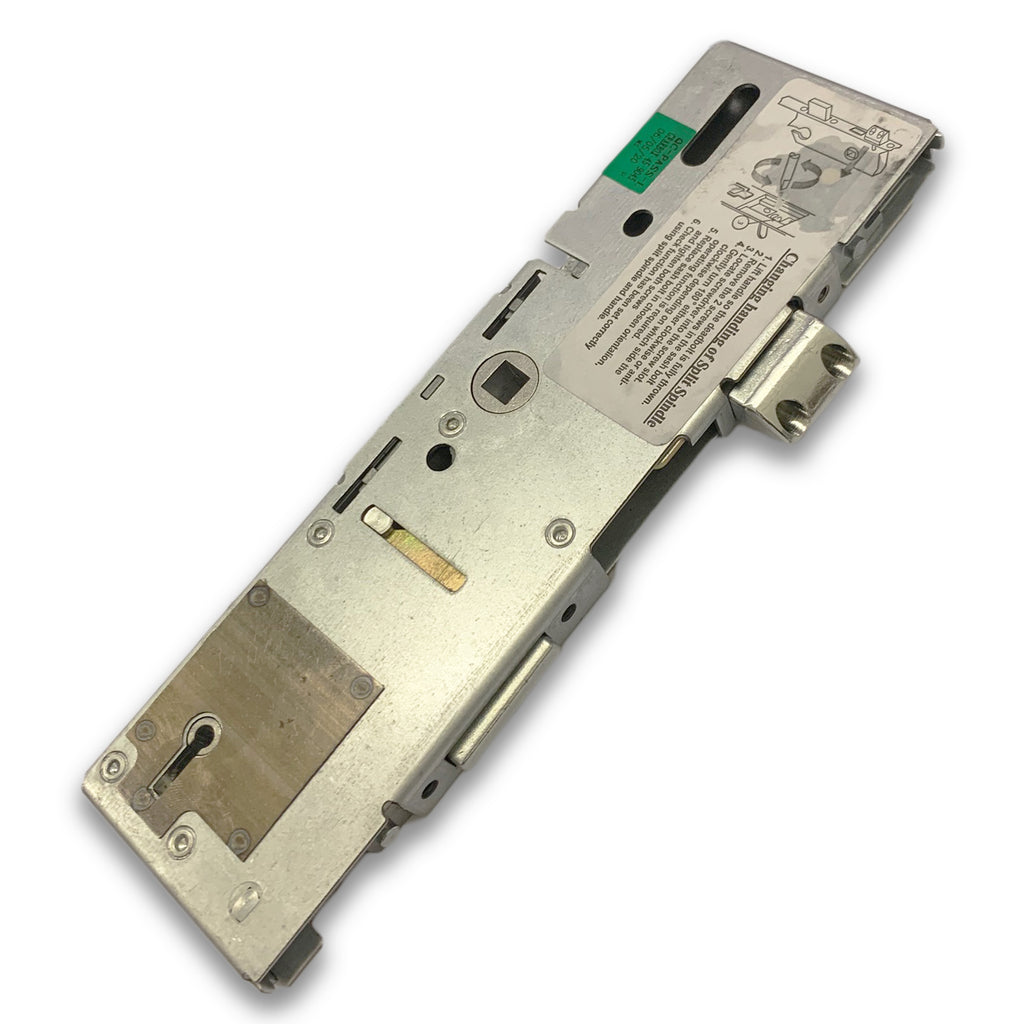

Era Vectis Multipoint Door Lock Centre Gear Box UPVC Doors 45mm Backset 5 Lever

Why buy a new door lock when often the fault is just with the gearbox? This ERA Saracen Vectis replacement gearbox provides a cheaper and more efficient way to repair your door lock without having to buy an entire replacement. This lock is non-handed ( Can suit left or right handed doors ) and is available in a 45mm backset.


Please note: This gearbox is sold as a replacement, this means that it does not include a lock faceplate.


Features:


45mm Backset
95mm PZ
220mm Case Length
7mm Deadbolt Thickness
60mm Deadbolt - Latch distance
8mm Spindle
Non-handed, suits both left and right.
Latch and Deadbolt locking
Split Spindle
What's in the pack?

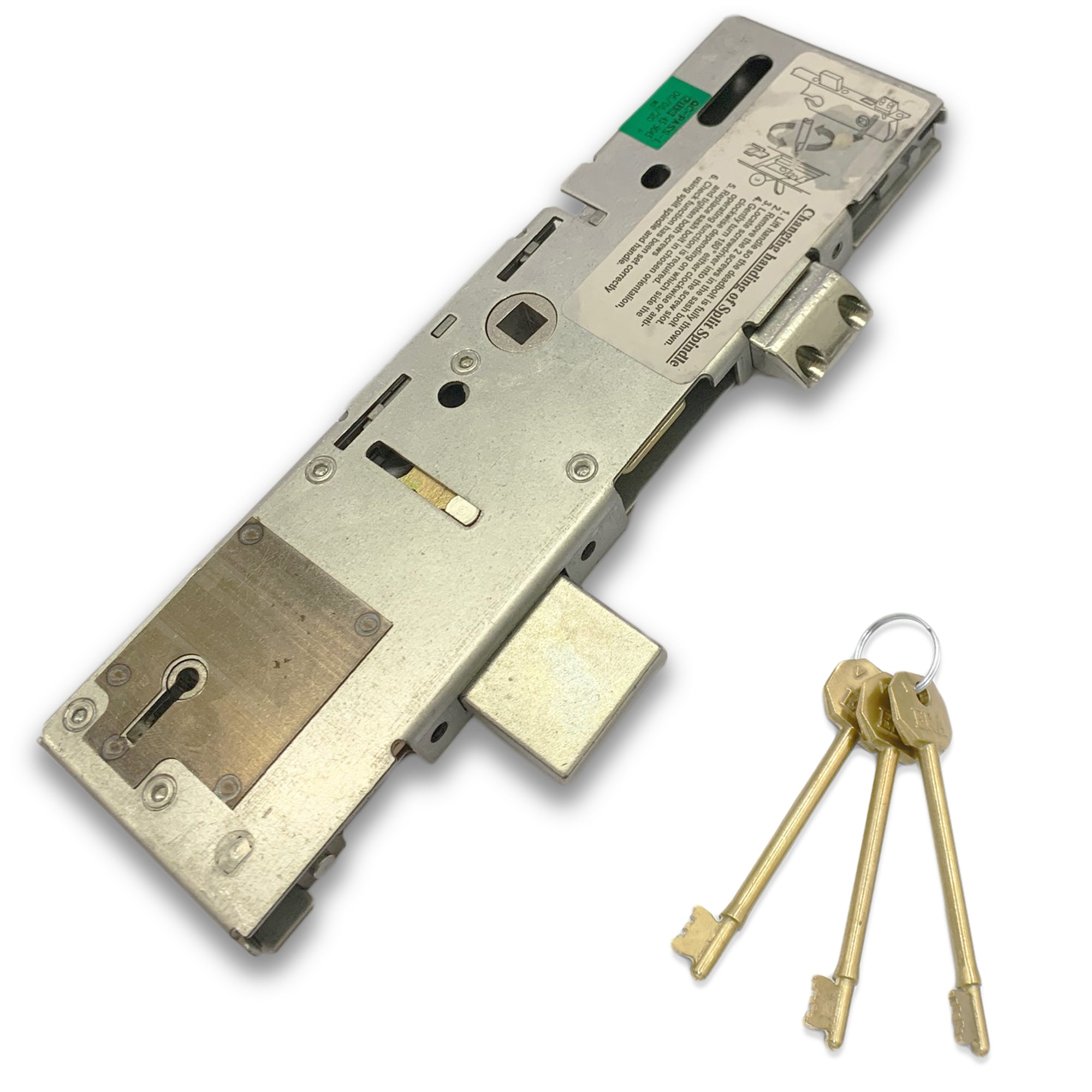

1 x Era Saracen Vectis 5 Lever 45mm Backset Multipoint Door Lock

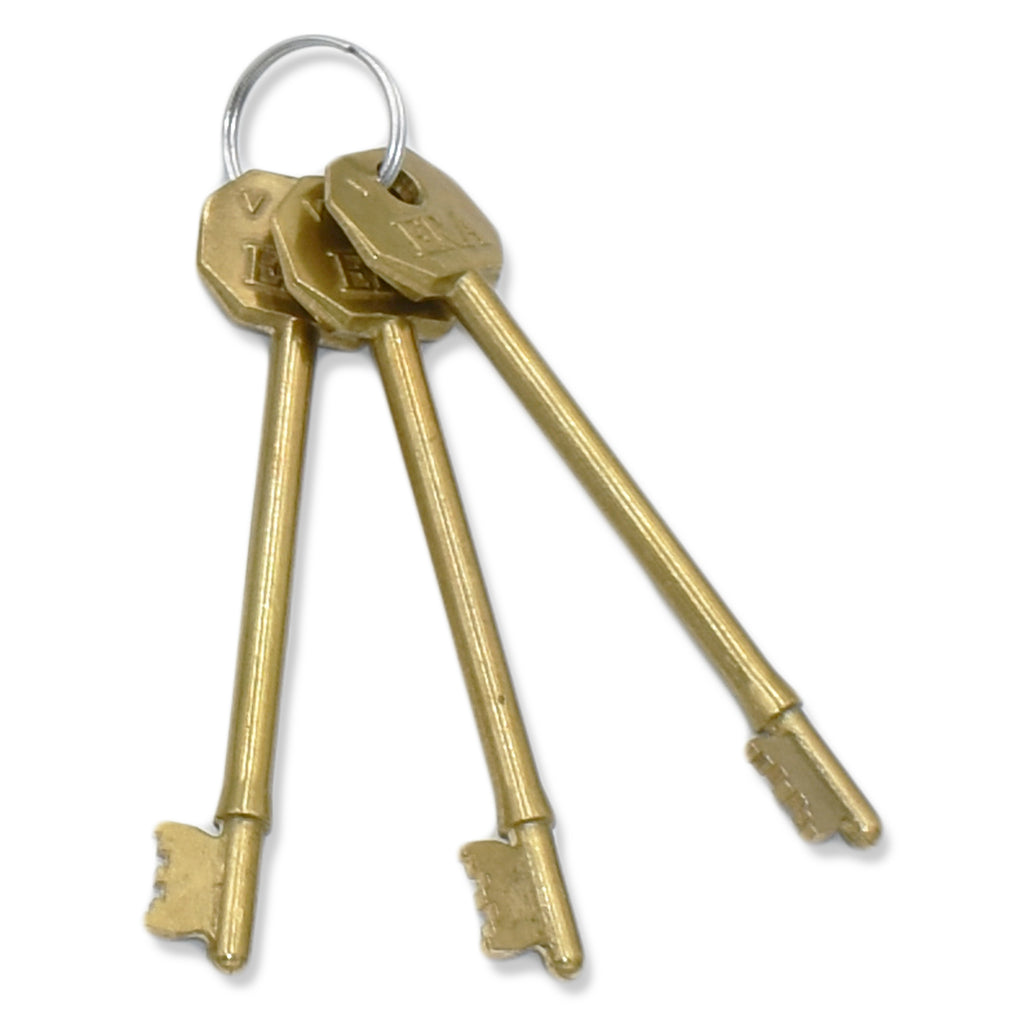

3 x Key


Reversing the Centre Latch


The Centre latch of this gearbox is non-handed meaning it can be easily reversed. Do this by following the instructions below;


Undo the screw located at the end of the latch
Rotate the latch 180
Slide the latch back in
Replace and tighten the screw
