Era Vectis Multipoint Door Lock Centre Gear Box UPVC Doors 35mm Backset 5 Lever Deadbolt
by ERA
Original price
£27.99
-
Original price
£27.99
Original price
£27.99
£27.99
-
£27.99
Current price
£27.99

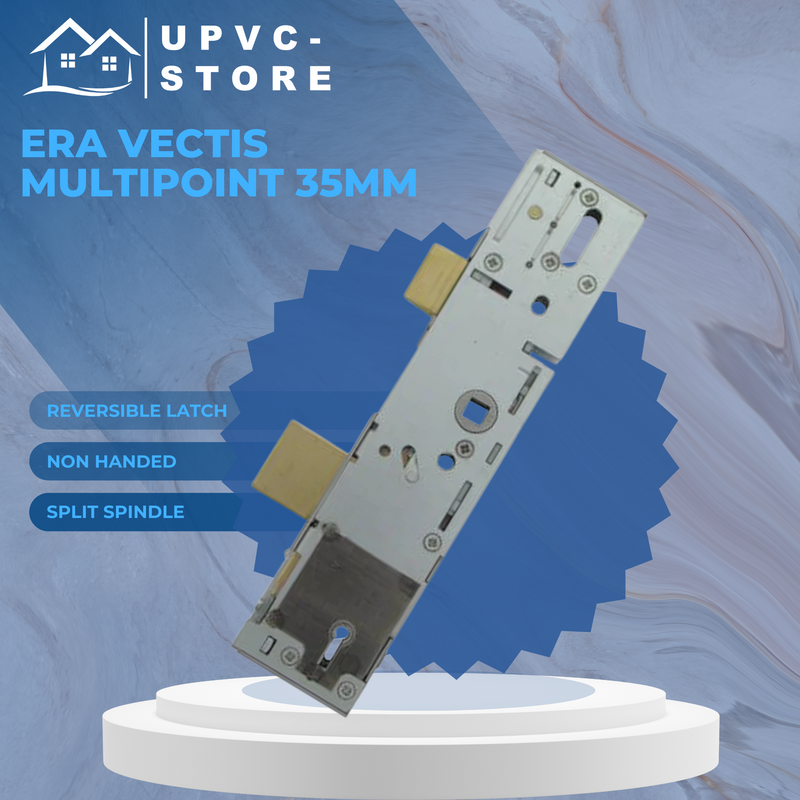

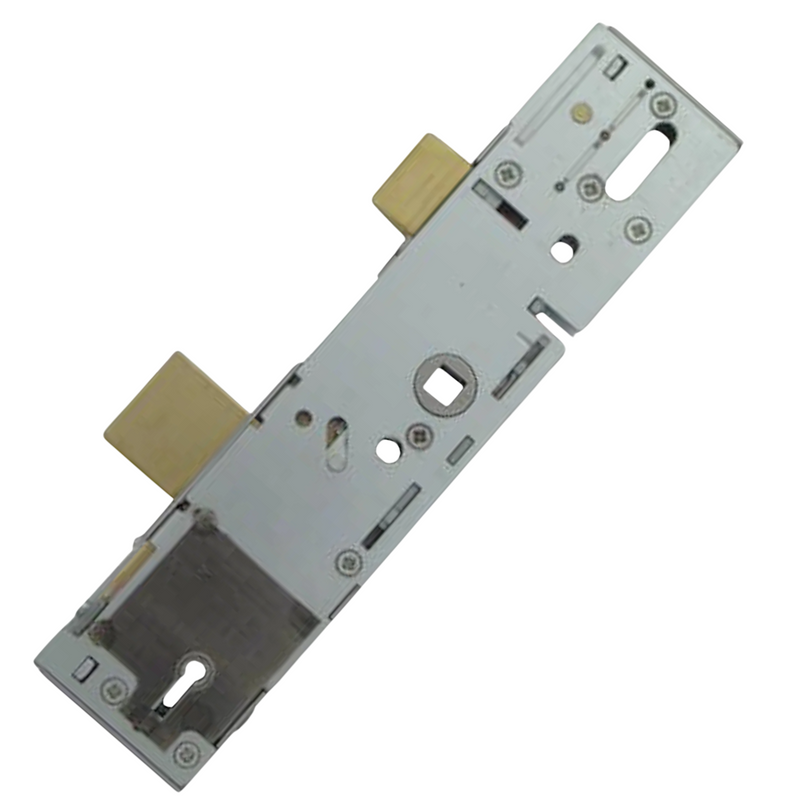

Era Saracen Vectis 5 Lever 35mm Backset Multipoint Door Lock

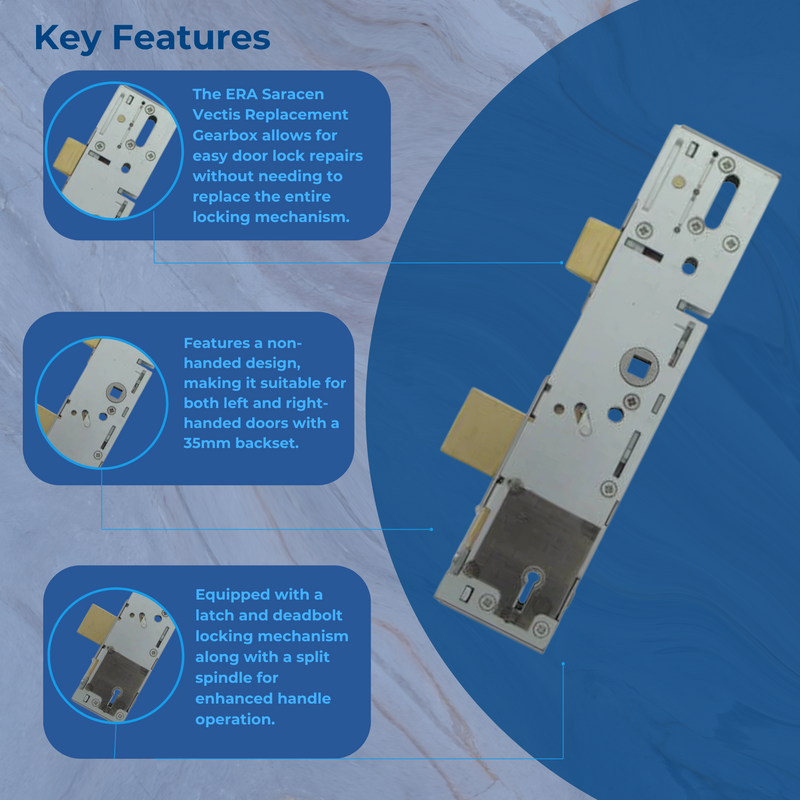

Why buy a new door lock when often the fault is just with the gearbox? This ERA Saracen Vectis replacement gearbox provides a cheaper and more efficient way to repair your door lock without having to buy an entire replacement. This lock is non-handed ( Can suit left or right handed doors ) and is available in a 35mm backset.
Please note: This gearbox is sold as a replacement, this means that it does not include a lock faceplate.
Features:
35mm Backset
95mm PZ
220mm Case Length
7mm Deadbolt Thickness
60mm Deadbolt - Latch distance
8mm Spindle
Non-handed, suits both left and right.
Latch and Deadbolt locking
Split Spindle
What's in the pack?
1 x Era Saracen Vectis 5 Lever 35mm Backset Multipoint Door Lock
3 x Key
Reversing the Centre Latch
The Centre latch of this gearbox is non-handed meaning it can be easily revsersed. Do this by following the instructions below;
Undo the screw located in the end of the latch
Rotate the latch 180
Slide the latch back in
Replace and tighten it
