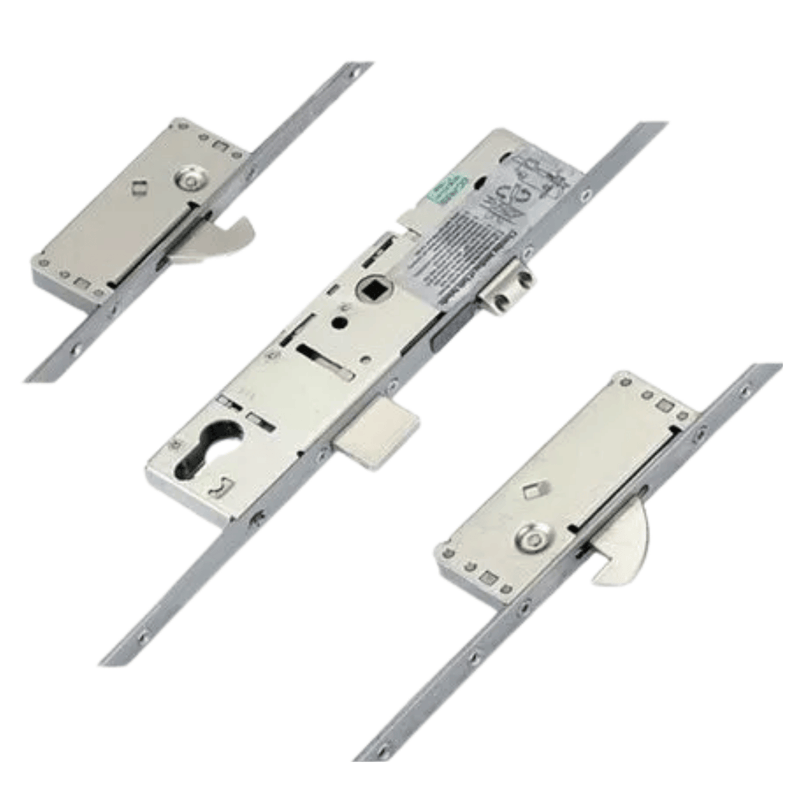

ERA Multipoint Door Lock – Split Spindle with Latch, Deadbolt & 2 Large Hooks (680mm Top Hook to Spindle)

Product Overview

Enhance the security and reliability of your door with this ERA multipoint door lock featuring 2 bi-directional hooks, a central deadbolt, and a latch. Commonly used on uPVC, aluminium, timber, and composite doors, this lock is ideal for both replacement and new installations.

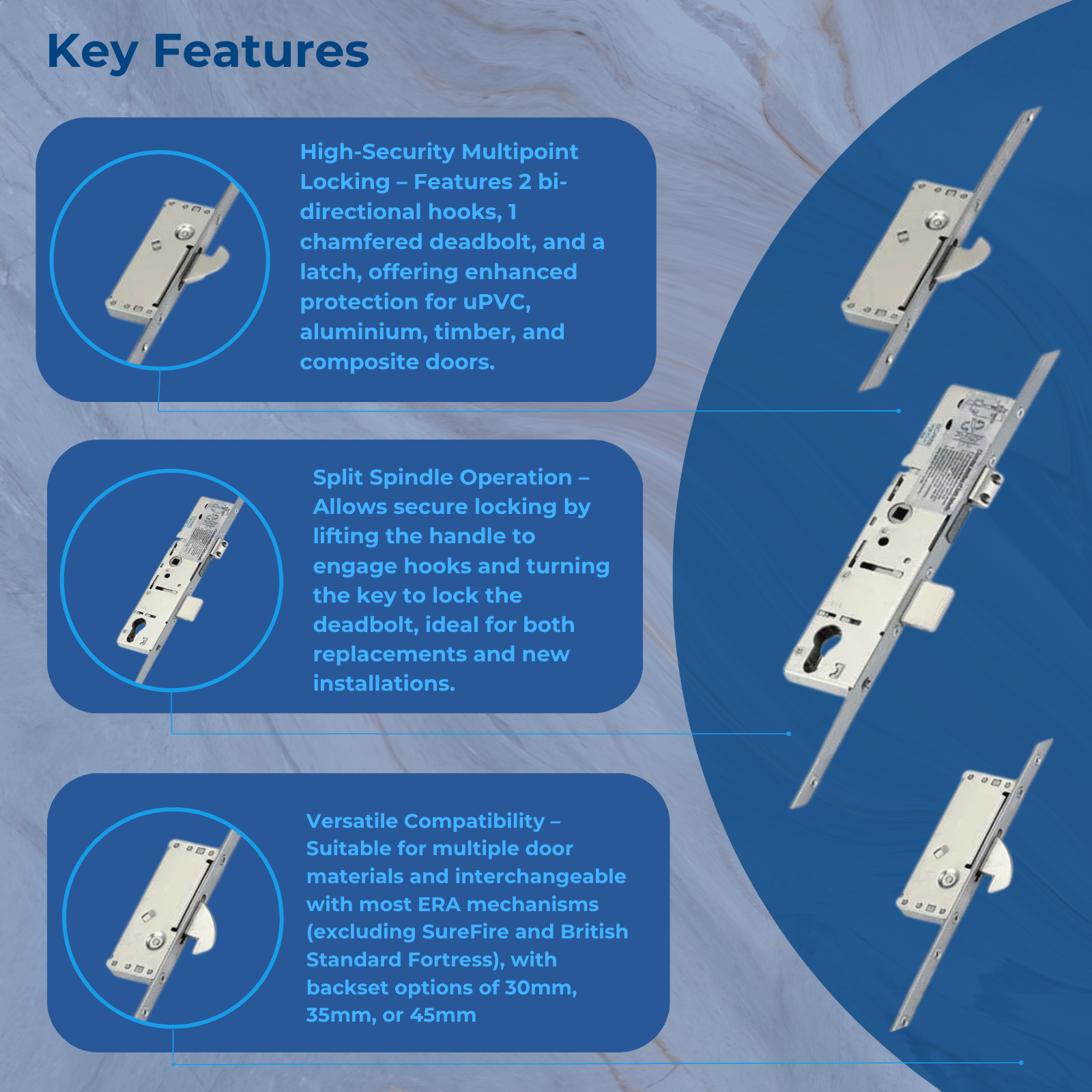

Key Features

• Split Spindle Operation – Lift the handle to engage locking points; turn the key to secure the system.
• High Security – Includes 2 strong hooks, 1 chamfered deadbolt (also known as a linear bolt), and 1 latch.
• Universal Compatibility – Suitable for uPVC, timber, aluminium, and composite doors.
• Rebranded Models – Often branded as Saracen, Surelock, Spartan, Supa, Duraflex, Westward, or Cego.
• Visual Identifier – Grey snib on deadbolt/hook bolt models; Vectis locks have a blue snib (sometimes black or green).

Compatibility & Gearbox Details

• Distinctive Design – ERA gearboxes are square-shaped (no corner cut-outs), measuring 221mm in height. Width = backset + 18mm.
• Backset Options – Available in 30mm, 35mm, or 45mm.
• Interchangeable Gearboxes – Compatible with most ERA mechanisms, including deadbolt, hook, and Vectis types (excluding SureFire and British Standard Fortress).

Hook Variants

• Standard Hook – Slim profile, ideal for tight routing in retrofits.
• Security Steel Hook – Larger housing for enhanced strength (door routing modifications may be required).
• Bi-directional Operation – Top hook throws upwards; bottom hook throws downwards.

Deadbolt Features

• 18mm chamfered throw designed to pull the door tightly against the frame.
• Commonly used on timber and composite doors.

Operation Instructions

To Lock the Door:

• Lift the handle to engage hooks and latch.
• Turn the key to lock the deadbolt and secure the door.

To Unlock the Door:

• Turn the key to retract the deadbolt.
• Push the handle down to disengage hooks and latch.

Durability & Standards

• Corrosion Resistance: BS EN 1670:2007 Grade 4 (240 hours)
• Cycle Tested: 50,000 operations
• Compliant With: PAS24:2012 door set requirements

Common Applications

• Multipoint locks for uPVC doors
• Security locks for aluminium doors
• Timber and composite door locking systems

Accessories Available

We also stock a full range of ERA-compatible components:

• Strike plates and keeps
• Spindles and handles
• Gearboxes and replacement lock parts

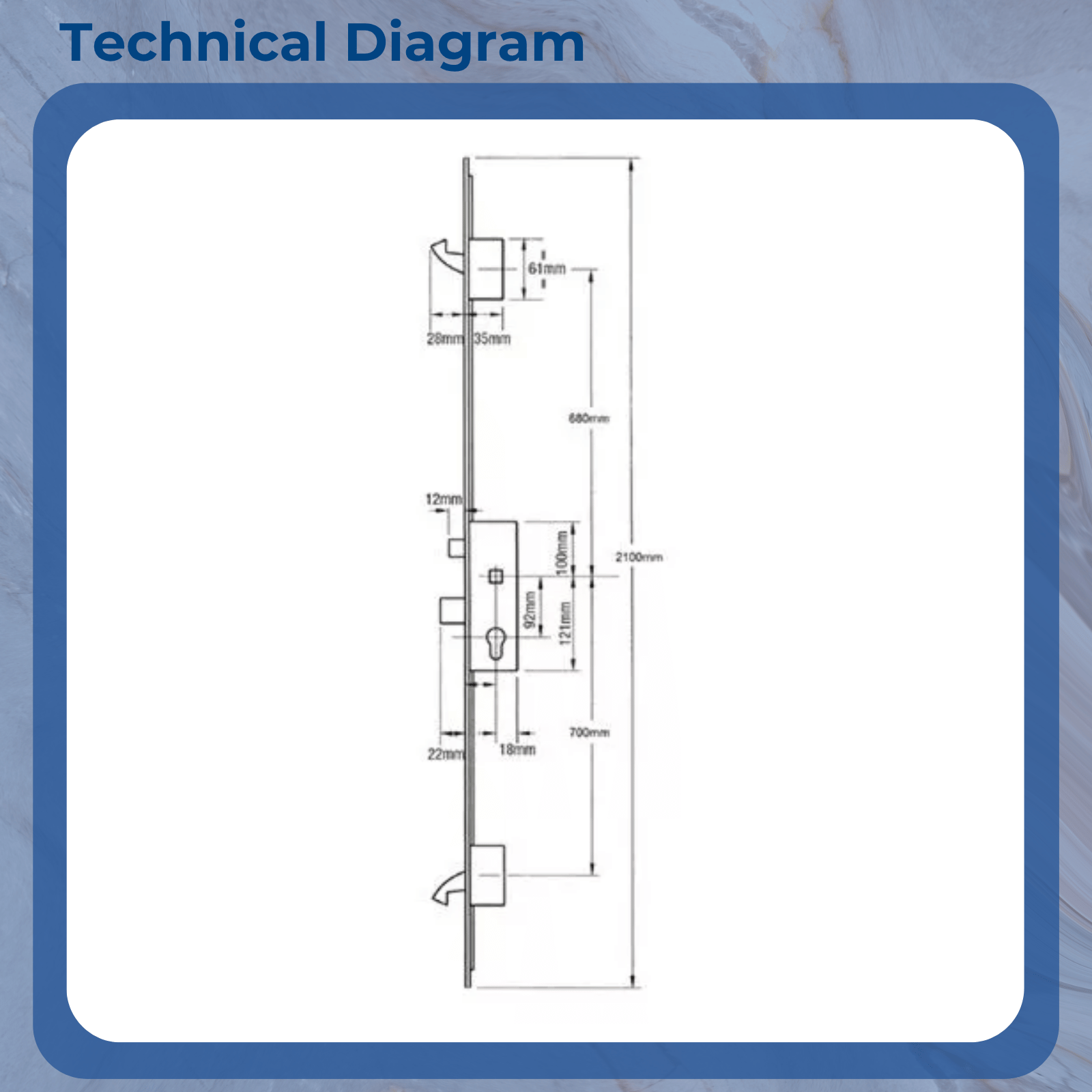

Product Specifications

• Manufacturer: ERA
• Backset: 30mm, 35mm, or 45mm
• Centres (PZ): 92mm
• Faceplate: Multiple options available
• Spindle Size: 8mm split spindle
• Hooks: 2 bi-directional
• Deadbolt: 1 chamfered linear bolt
• Latch: 1
• Gearbox Configuration: Latch & deadbolt
• Handing: Universal (non-handed)
• Inner Locking Point Distance: 1380mm
• Overall Height: 2100mm
• Top Hook to Spindle: 680mm
• Bottom Hook to Spindle: 700mm
• Door Compatibility: uPVC, aluminium, timber, composite
