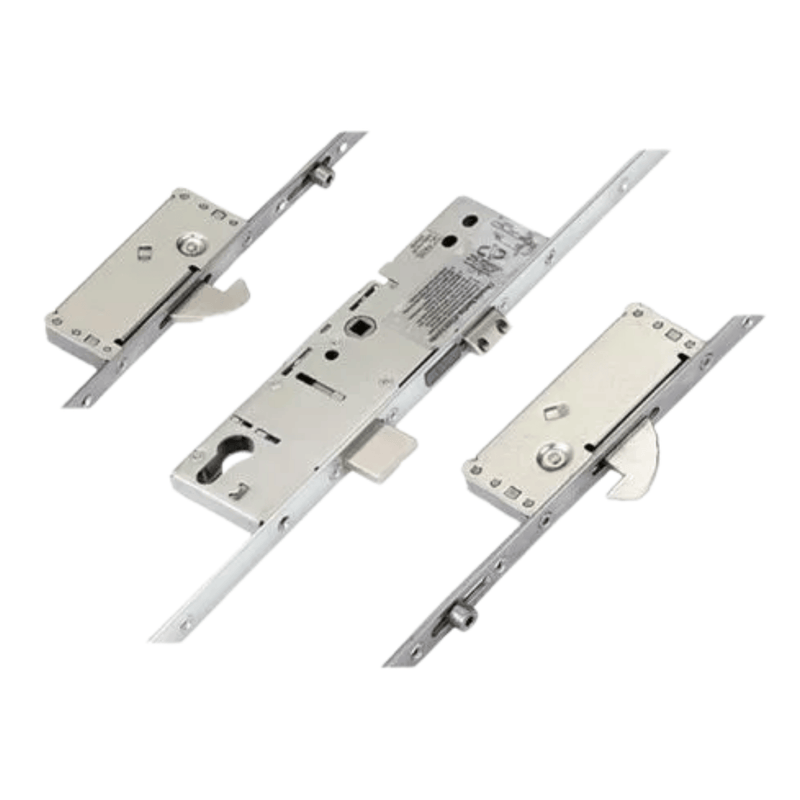

ERA Multipoint Door Lock – Split Spindle with Latch, Deadbolt, 2 Large Hooks & 2 Rollers – Option 2 (730mm Top Hook to Spindle)

Product Overview

Enhance your home security with this high-performance ERA multipoint door lock, designed with 2 adjustable rollers, 2 bi-directional hooks, 1 chamfered deadbolt, and 1 latch. This lock is ideal for uPVC and aluminium doors, delivering durability, compression sealing, and multi-point protection. Compatible with timber and composite doors as well, it offers versatility across a wide range of door types.

Key Features & Benefits

• Trusted ERA Quality – ERA is one of the UK’s most popular brands for multipoint door locks. Though locks may be rebranded as Saracen, Surelock, Spartan, Supa, Westward, or Cego, the core ERA design remains.
• Split Spindle Operation – Separate handle and key operation improves security and is common on replacement ERA locks (excluding SureFire, auto-locking, and British Standard Fortress models).
• High Security Mechanism – Equipped with a strong chamfered deadbolt, bi-directional hooks (top throws up, bottom throws down), and compression rollers that reduce warping and water ingress.
• Universal Compatibility – Suitable for uPVC, aluminium, timber, and composite doors. Often found in both new and retrofit installations.
• Durable & Corrosion Resistant – Complies with BS EN 1670:2007 Grade 4 (240-hour salt spray) and endurance-tested to 50,000 cycles. Designed to meet PAS24:2012 security standards.

Hook & Roller Variants

• Standard Hooks – Slim housing ideal for narrow routing in retrofits.
• Security Steel Hooks – Larger case with enhanced strength (door modifications may be needed).
• Adjustable Rollers – ±1mm adjustment helps improve weather sealing and door alignment.

Identifying ERA Locks

• Snib Colour Clues – Grey for hook or deadbolt locks, blue (or sometimes green/black) for Vectis locks.
• Square Gearbox Design – Unique 221mm length, with no corner cut-outs and backset +18mm width.
• Faceplate Branding – May show ERA or other OEM brand names due to wide third-party supply.

Specifications

• Manufacturer: ERA
• Backset Options: 30mm, 35mm, 45mm
• Centres (PZ): 92mm
• Faceplate: Multiple types available
• Spindle Size: 8mm (split)
• Hooks: 2 bi-directional
• Rollers: 2 adjustable
• Deadbolt: 1 chamfered linear
• Latch: 1
• Operation: Split spindle (manual locking)
• Handing: Non-handed (reversible)

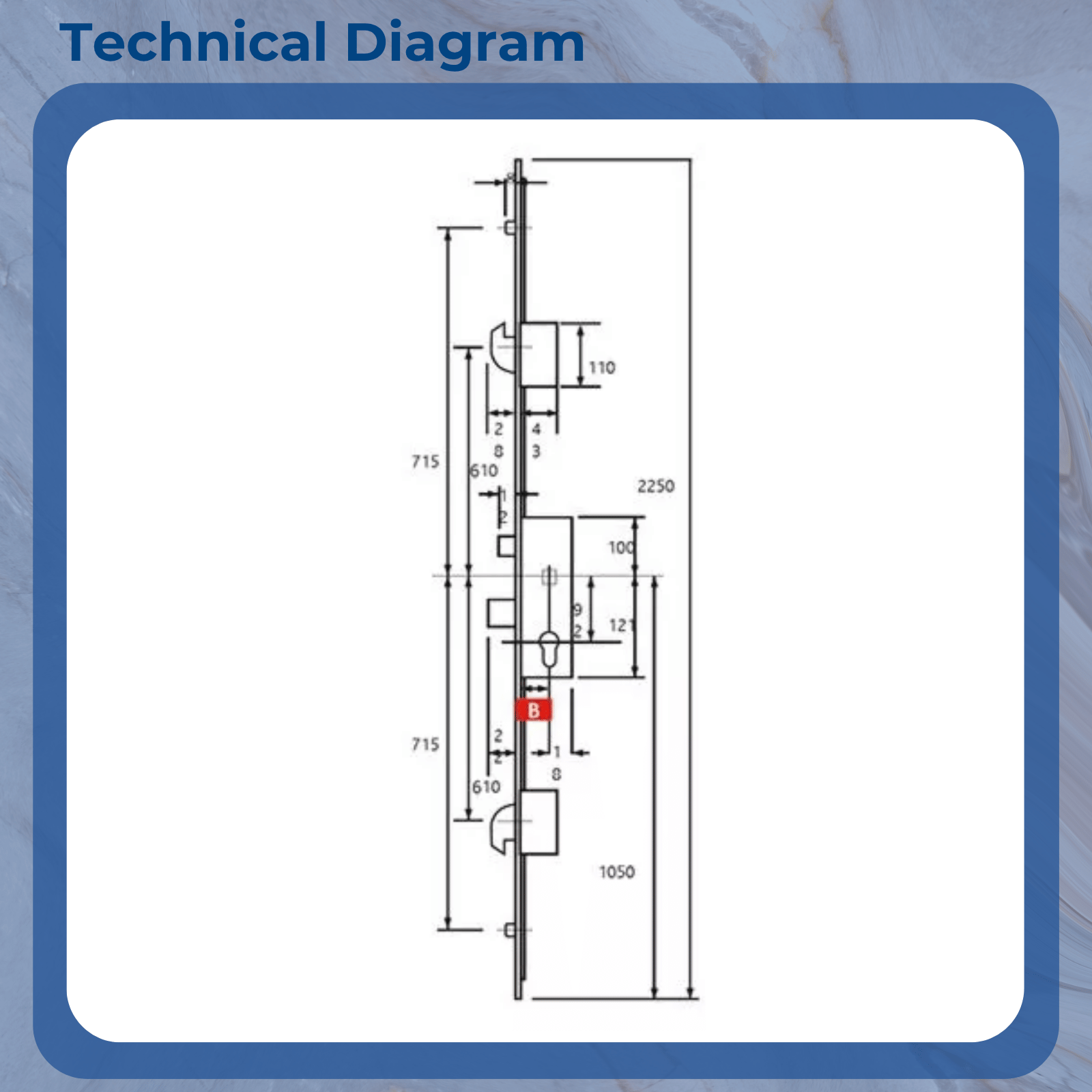

• Distance Between Inner Locking Points: 1480mm
• Distance Between Outer Locking Points: 1690mm
• Overall Height: 2250mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 750mm
• Top Roller to Spindle: 835mm
• Bottom Roller to Spindle: 855mm
• Suitable Door Materials: uPVC, aluminium, timber, composite

How to Operate

To Lock:

• Lift handle to engage hooks and rollers
• Turn key to lock the deadbolt and secure the door

To Unlock:

• Turn key to release the deadbolt
• Push handle down to disengage hooks and latch

Compatible Accessories Available

We stock a full range of ERA-compatible parts, including:

• Replacement gearboxes
• Strike plates & keeps
• Door handles & spindles
