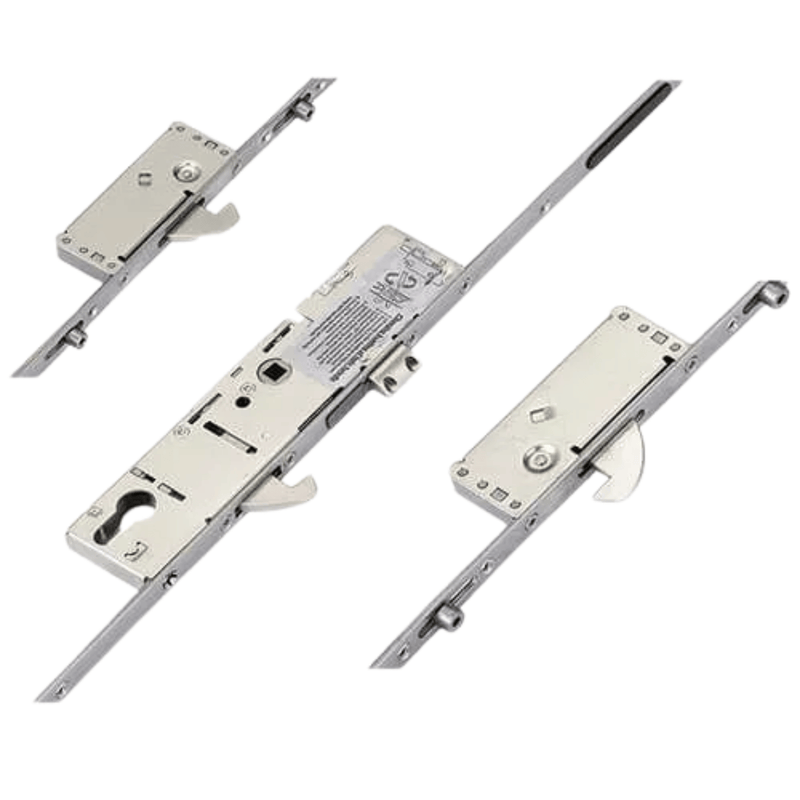

ERA Multipoint Door Lock – Split Spindle with 3 Hooks, 4 Rollers & Latch
ERA Multipoint Door Lock – Split Spindle with 3 Hooks, 4 Rollers & Latch
Product Overview
This high-security ERA Hookbolt multipoint door lock features three hooks, four rollers, and a latch, making it an ideal replacement for enhanced door security and smooth locking operation. Its split spindle mechanism separates internal and external handle functions, commonly used on front and back doors for improved protection.
ERA multipoint locks are often branded under different names, including Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego. Originally designed to replace GU, Lockmaster, and Winkhaus locks, this model is compatible with existing routing, making upgrades and replacements simple.
Why Choose ERA?
ERA is a leading UK manufacturer of multipoint locking systems for uPVC, composite, and aluminium doors. Their locks are well-regarded for durability, compatibility, and ease of identification and replacement.
Identifying ERA Locks:
- Locks may be rebranded with different names on the faceplate.
- Look for the holdback snib – typically grey on hook and deadbolt locks, blue on Vectis, though some models may be black or green.
- ERA locks were formerly known under the Saracen brand when Laird supplied the double glazing industry before rebranding to ERA.
Technical Features
- Gearbox length: 221mm
- Backset options: 30mm, 35mm, or 45mm (measured from the faceplate edge to the spindle hole; subtract 2–3mm for faceplate thickness)
- Latch height: 24mm, secured by two distinctive screws
- Deadbolt/hookbolt height: 30mm
- Distance between latch and deadbolt: 61mm
- Fixing screws: Four total – spaced 37mm, 85mm, and 43mm apart
- Spindle size: 8mm split spindle
- Centre measurement (PZ): 92mm
ERA gearboxes are square with no corner cut-outs and are interchangeable across most models (excluding British Standard Fortress versions). They are available with standard euro profile cut-outs, Invincible cylinder profiles, or Vectis 5-lever mechanisms.
Hook and Roller Arrangement
- Three bi-directional hooks:
- Top hook throws upward
- Bottom hook throws downward
- Two hook case styles:
- Compact hook case for tight routing spaces
- Larger reinforced steel hook case for added security (may require door modification)
- Four rollers: Provide tight door compression and improve weather sealing. Adjustable by ±1mm for optimal fit.
Lock Operation
To lock the door:
- Lift the handle to engage hooks and rollers
- Turn the key to lock the latch and main locking points
To unlock the door:
- Turn the key to release all points
- Push the handle down to retract the latch and disengage hooks/rollers
Latch reversal is simple: unscrew, reverse the latch, and reinsert it with the screws.
Performance and Standards
- Complies with BS EN 1670:2007 Grade 4 – 240 hours corrosion resistance
- Cycle tested to 50,000+ operations
- Suitable for use in PAS24:2012-compliant door sets

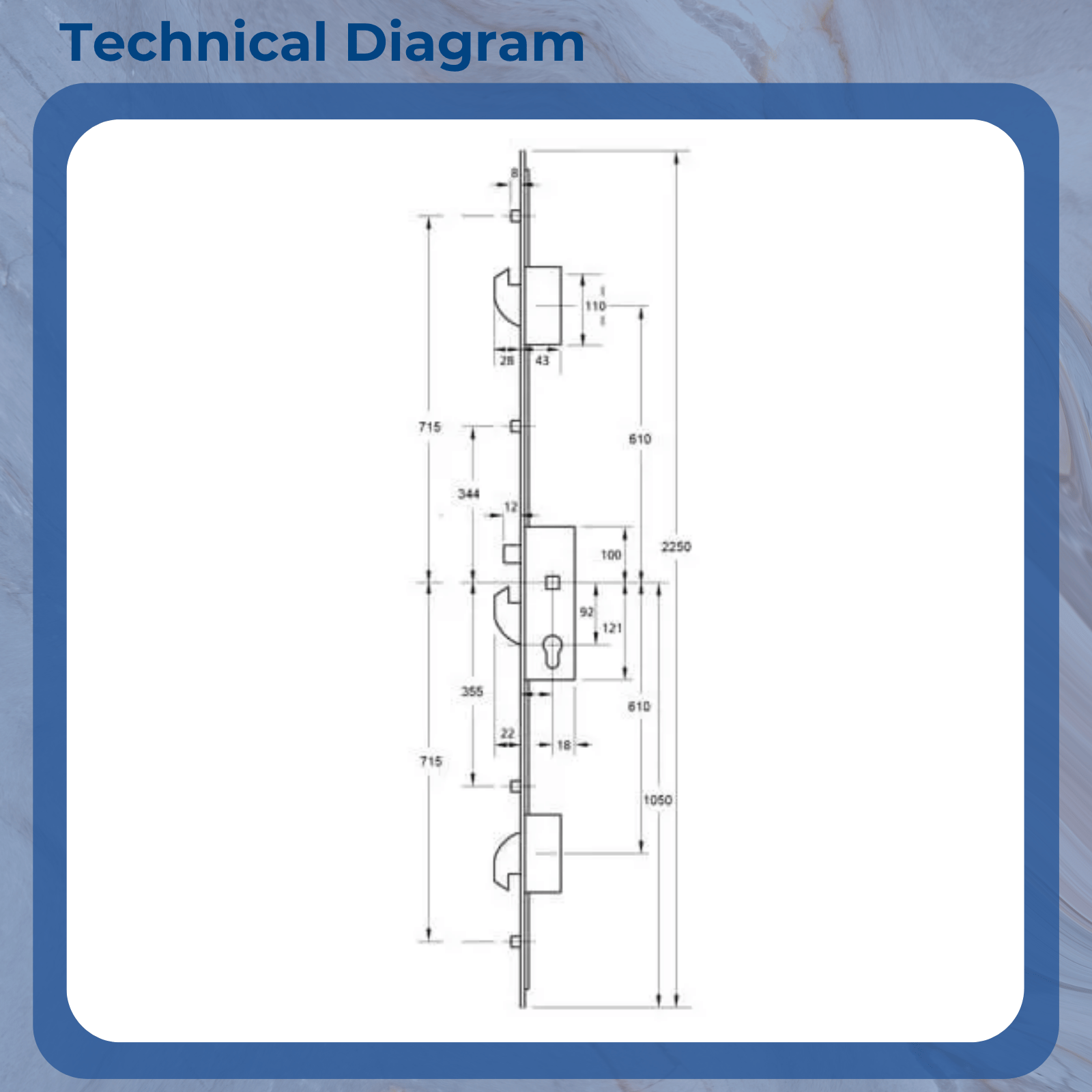

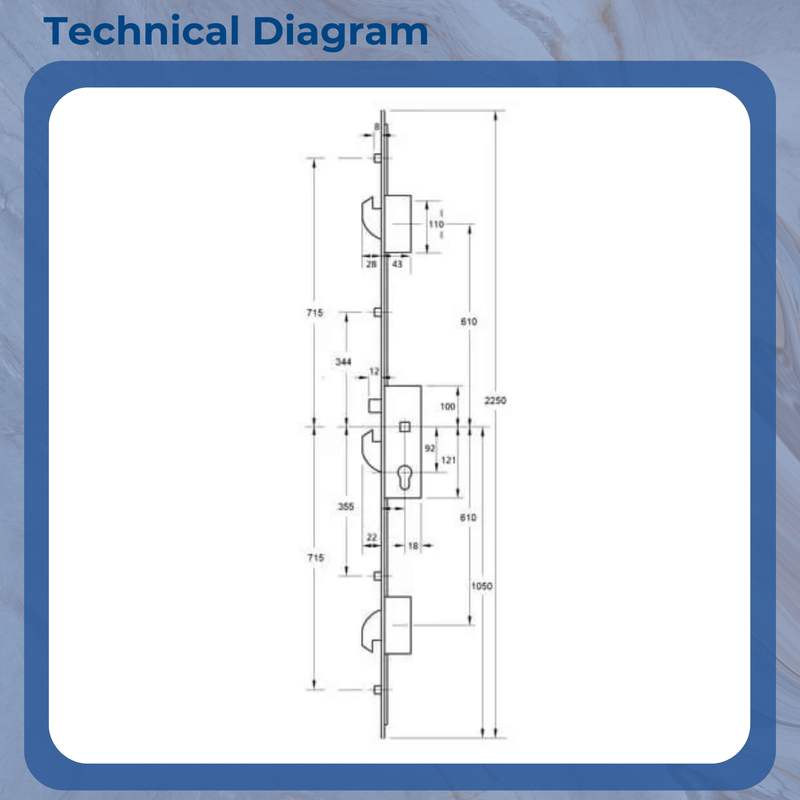

Dimensions and Compatibility
- Backset: Available in 30mm, 35mm, or 45mm
- PZ Centres: 92mm
- Spindle Size: 8mm (split)
- Rollers: 4 adjustable
- Hooks: 3 bi-directional
- Latch: 1 standard ERA latch
- Main Gearbox: Hookbolt and latch configuration
- Operation: Split spindle
- Handing: Non-handed
- Distance between inner locking points: 699mm
- Distance between outer locking points: 1430mm
- Overall lock height: 2250mm
- Top/bottom hook to spindle: 610mm
- Top/bottom roller to spindle: 715mm
- Suitable for door materials: uPVC and aluminium
Accessories Available
We stock a full range of ERA Hookbolt accessories, including:
- Replacement keeps and strike plates
- Lever and lever/pad handles
- Spindles and split spindle kits
- Gearboxes and full locking mechanisms
